DSBOX-3572SE RK3572 4K Digital Signage Player
Discover the DSBOX-3572SE RK3572 digital signage player with 4K@60Hz output, up to 4 TOPS NPU, Android 16, 4GB RAM, 64GB storage and fanless design.
Description
The ShiMeta DSBOX-3572SE is a 4K digital signage player powered by the RK3572 octa-core processor. Running Android 16, it combines up to 4 TOPS of AI computing performance, 4GB RAM, 64GB storage, and HDMI output up to 4K@60Hz in a compact, fanless design.
Designed for commercial display applications, the DSBOX-3572SE supports high-resolution media playback, network connectivity, and flexible integration into digital signage systems. Its Gigabit Ethernet, dual-band Wi-Fi, Bluetooth Low Energy (BLE), and USB interfaces make it a practical hardware platform for retail displays, hotel information screens, tourism displays, and other commercial digital signage projects.
For digital signage solution providers, system integrators, and OEM/ODM customers, the DSBOX-3572SE offers a balance of processing capability, connectivity, and deployment flexibility.
Key Highlights
- RK3572 octa-core processor with a maximum frequency of 2.2GHz
- Integrated NPU delivering up to 4 TOPS of AI computing performance
- HDMI output supporting up to 4K@60Hz
- Android 16 operating system
- 4GB RAM + 64GB onboard storage
- Dual-band 2.4GHz / 5GHz Wi-Fi and Gigabit Ethernet
- Fanless design for quiet operation
- Support for an external USB 4G module
- DC 12V power input
Looking for a 4K digital signage player for your next project? Contact ShiMeta to discuss your application and hardware requirements.
RK3572 Octa-Core Processing with AI Acceleration
At the heart of the DSBOX-3572SE is the Rockchip RK3572 processor, featuring an octa-core CPU with a maximum operating frequency of 2.2GHz. Its integrated NPU provides up to 4 TOPS of AI computing performance for compatible AI workloads.
This combination makes the DSBOX-3572SE suitable for commercial display applications that require more than basic media playback. Depending on the software and application workload, its computing resources can support the integration of AI-related functions alongside digital signage applications.
For project developers, the RK3572 platform provides a hardware foundation for building and integrating application-specific commercial display solutions.

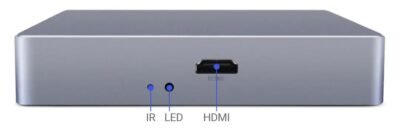

4K@60Hz HDMI Output for Commercial Displays
The DSBOX-3572SE features one HDMI output supporting resolutions up to 4K@60Hz, making it suitable for high-resolution commercial display installations.
Potential applications include:
- Retail advertising screens
- Shopping mall information displays
- Hotel and hospitality information screens
- Tourism and visitor information displays
- Corporate showrooms and exhibition displays
- Commercial digital signage systems
Actual playback resolution and performance depend on the media format, software, and overall system configuration.
Android 16 for Application Integration
The DSBOX-3572SE runs Android 16, providing an operating system platform for compatible digital signage applications and customized software solutions.
For system integrators and solution providers, the Android-based platform can be evaluated for integration with content playback software, display management applications, interactive interfaces, and other compatible commercial applications.
Software compatibility should be verified against the specific application and deployment requirements before mass production.
4GB RAM and 64GB Storage
The DSBOX-3572SE comes with 4GB of RAM and 64GB of local storage.
This configuration provides memory and storage resources for compatible operating system components, applications, and locally stored media content. It can help support deployments that need local content storage or application installation without relying exclusively on network delivery.
For multi-screen or more demanding deployments, buyers should confirm the memory, storage, decoding, and application requirements of their chosen digital signage software.
Flexible Connectivity for Commercial Deployments
The DSBOX-3572SE offers a range of wired and wireless connectivity options for networked digital signage systems.
Gigabit Ethernet
The built-in 10/100/1000 Mbps Ethernet interface provides a wired network option for deployments requiring network communication and content management.
Dual-Band Wi-Fi
Support for 2.4GHz and 5GHz Wi-Fi provides wireless connectivity options for compatible network environments.
Bluetooth Low Energy
BLE support enables compatible Bluetooth Low Energy use cases, subject to software and peripheral compatibility.
Optional USB 4G Connectivity
The player can support an external USB 4G module for cellular network access. The required module, network compatibility, and software configuration should be confirmed for each project.

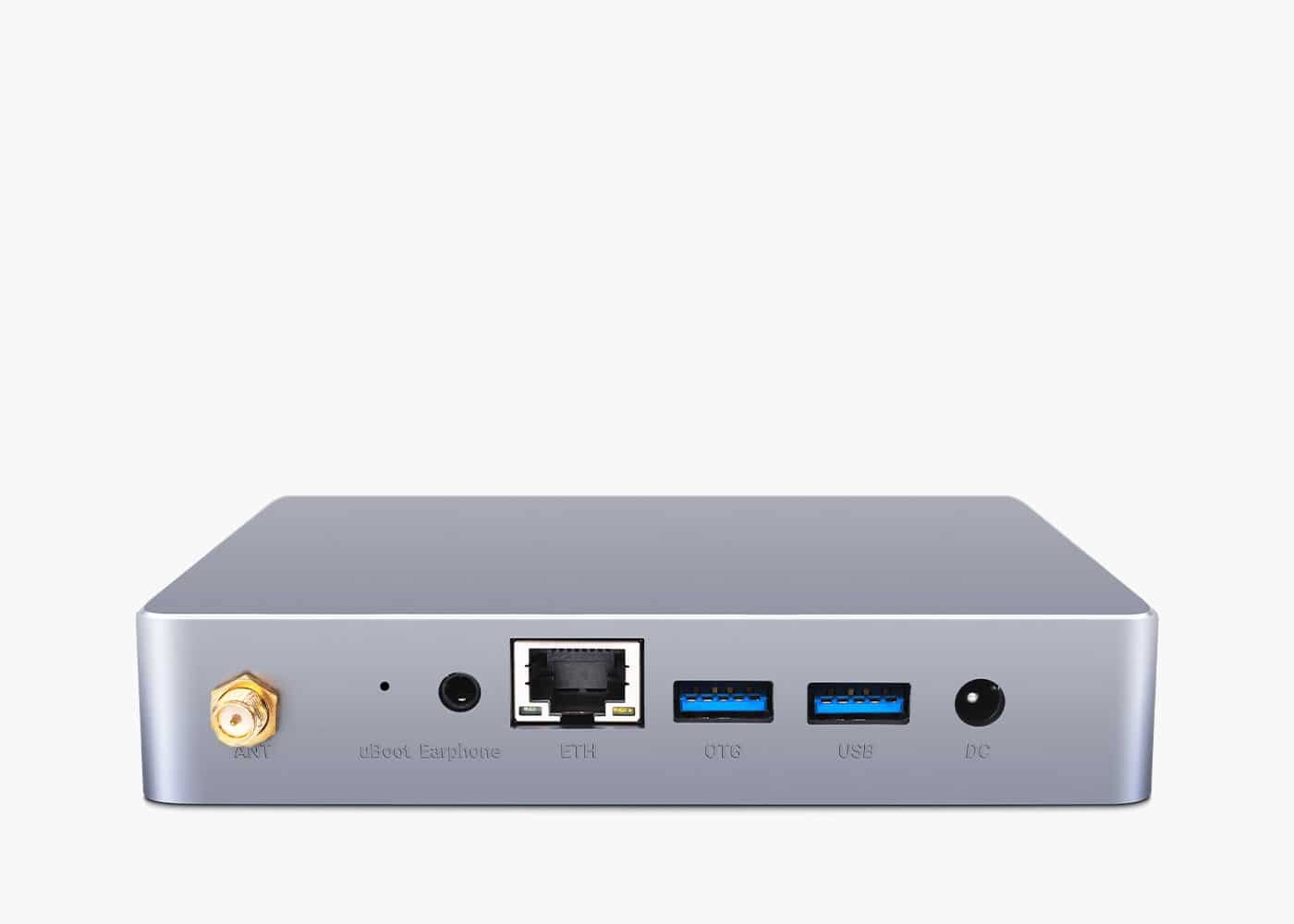

USB and Audio Interfaces
The device includes one USB 3.0 OTG interface, one USB 2.0 interface, and a 3.5mm four-pole audio jack for compatible peripherals and audio equipment.
Fanless Design for Quiet Operation
The DSBOX-3572SE uses a fanless design, eliminating the need for an internal cooling fan. This supports quiet operation in environments where equipment noise should be minimized.
The specified operating temperature range is 0°C to 60°C, with a non-condensing operating humidity range of 8% to 90% RH.
For installations in enclosed display cabinets or other thermally constrained environments, ensure adequate heat dissipation and confirm that the actual operating conditions remain within the specified limits.

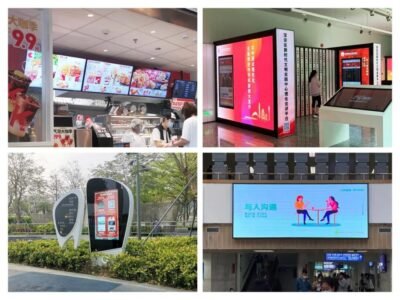

Typical Applications of the DSBOX-3572SE
Retail Digital Signage
Deploy the DSBOX-3572SE as the media playback hardware for retail advertising screens, promotional displays, and store information systems.
Hotel and Hospitality Displays
Integrate the player into compatible hotel information screens, welcome displays, and other hospitality communication systems.
Tourism and Visitor Information
Use the player as a hardware platform for visitor information displays, tourism promotion screens, and public information applications.
Exhibition and Commercial Displays
Evaluate the DSBOX-3572SE for exhibition booths, corporate showrooms, and other installations requiring high-resolution HDMI output.
AI-Enabled Commercial Applications
With an integrated NPU providing up to 4 TOPS of AI computing performance, the platform can be evaluated for compatible edge AI applications. The achievable functions depend on the selected model, software framework, and workload.
DSBOX-3572SE Technical Specifications
| Category | Specification |
|---|---|
| Product Model | DSBOX-3572SE |
| Product Type | 4K Digital Signage Player |
| Processor | Rockchip RK3572 |
| CPU | Octa-core, maximum frequency up to 2.2GHz |
| CPU Architecture | 2 × Cortex-A73 + 6 × Cortex-A53* |
| GPU | Mali-G310, Vulkan 1.4 |
| AI Computing | Up to 4 TOPS NPU |
| Operating System | Android 16 |
| RAM | 4GB DDR |
| Internal Storage | 64GB |
| Wi-Fi | 2.4GHz / 5GHz |
| Bluetooth | BLE |
| Ethernet | 1 × 10/100/1000 Mbps Ethernet |
| 4G Connectivity | Supports an external USB 4G module |
| Antenna | 1 × SMA antenna connector; 1 Wi-Fi antenna |
| HDMI Output | 1 × HDMI OUT, up to 4K@60Hz |
| USB 3.0 | 1 × USB 3.0 OTG, current limit 1A |
| USB 2.0 | 1 × USB 2.0, current limit 1A |
| Audio | 1 × 3.5mm four-pole headphone jack |
| Power Input | DC 12V ±10% |
| Fan | Fanless |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 8%–90% RH, non-condensing |
| Storage Temperature | -20°C to 70°C |
| Storage Humidity | 10%–95% RH |
| Enclosure | Black matte finish |
| Installation | Horizontal placement or wall mounting |
| In the Box | 1 × player, 1 × user manual, 1 × certificate of conformity; subject to actual shipment |
Please confirm the CPU core configuration against the final approved specification before publication.
Why Choose ShiMeta for Digital Signage Hardware?
ShiMeta develops smart terminal hardware for commercial display and digital intelligence applications. The DSBOX-3572SE is designed for projects that need 4K output, Android-based application integration, network connectivity, and additional AI computing capability.
Whether you are developing a new digital signage solution, integrating a media player into an existing system, or evaluating hardware for a commercial deployment, ShiMeta can help you review the product configuration and application requirements.
Contact our team to discuss product specifications, project compatibility, and potential OEM/ODM requirements.
Frequently Asked Questions
What is the DSBOX-3572SE?
The DSBOX-3572SE is a compact digital signage player powered by the RK3572 octa-core processor. It runs Android 16 and supports HDMI output up to 4K@60Hz.
Does the DSBOX-3572SE support 4K video output?
Yes. Its HDMI output supports resolutions up to 4K@60Hz. Actual playback performance depends on the media format, software, and system configuration.
How much memory and storage does it have?
The standard configuration specified in the product specification is 4GB RAM and 64GB onboard storage.
Does the DSBOX-3572SE support AI applications?
The RK3572 platform includes an NPU rated at up to 4 TOPS. AI application support depends on the software framework, model compatibility, and workload.
Which network connections are available?
The device supports dual-band 2.4GHz/5GHz Wi-Fi, Gigabit Ethernet, and BLE. It can also support an external USB 4G module, subject to module and network compatibility.
Is the DSBOX-3572SE fanless?
Yes. The product specification lists a fanless design and an operating temperature range of 0°C to 60°C.
Can the DSBOX-3572SE be used in OEM or integrated digital signage projects?
It can be evaluated for commercial digital signage integration. Please contact ShiMeta to confirm software compatibility, hardware configuration, and project-specific requirements.
Request a Quote for DSBOX-3572SE
Looking for a reliable RK3572 digital signage player for your commercial display project?
Contact ShiMeta to discuss your application, required interfaces, connectivity, and deployment environment. Our team can help you evaluate whether the DSBOX-3572SE fits your digital signage hardware requirements.
