DSBOX-133SE 1080P Digital Signage Player

Cost-Effective Digital Signage Player for Commercial Displays

A133 Quad-Core | Android 10 | 1080P@60Hz | Wi-Fi 4 | 10/100 Ethernet | Fanless Design

The DSBOX-133SE is a cost-effective 1080P digital signage player designed for commercial display applications where reliable media playback, simple connectivity, and controlled deployment costs are essential.

Powered by the Allwinner A133 quad-core Cortex-A53 processor and PowerVR GE8300 GPU, the player delivers stable Full HD media playback through HDMI output at up to 1920×1080@60Hz. With Android 10, Ethernet, Wi-Fi 4, USB connectivity, and audio output, it provides a practical hardware platform for advertising displays, digital menu boards, information screens, building intercom displays, and other 1080P commercial signage applications.

Key Features

• Allwinner A133 Quad-Core Processor – 4× Cortex-A53 cores with up to 1.7GHz clock speed
• PowerVR GE8300 GPU – Optimized for smooth commercial multimedia playback
• 1080P HDMI Output – Supports up to 1920×1080@60Hz
• Android 10 OS – Compatible with a wide range of Android-based digital signage applications
• 16GB Storage + 1GB DDR – Standard configuration with other specifications available
• Wi-Fi 4 + 10/100 Ethernet – Flexible wired and wireless network connectivity
• USB 2.0 + USB-OTG – Supports external storage and peripheral devices
• 3.5mm Audio Output – Supports external speakers, amplifiers, and audio equipment
• Fanless Design – Passive cooling for quiet operation and reduced mechanical failure points
• Compact Commercial Enclosure – Supports desktop placement or wall mounting

Smooth 1080P Digital Signage Playback

The DSBOX-133SE combines the Allwinner A133 quad-core processor with a PowerVR GE8300 GPU to provide a practical hardware solution for Full HD commercial media playback. Its HDMI output supports 1920×1080@60Hz, making it suitable for advertising videos, promotional graphics, digital menus, announcements, and other Full HD content.

Whether deployed in a restaurant, retail store, commercial building, or public information environment, the DSBOX-133SE-1 provides a straightforward platform for 1080P digital signage applications.

Android 10 for Flexible Digital Signage Deployment

Running Android 10, the DSBOX-133SE can support a wide range of Android-based digital signage and media playback applications.

Typical software functions can include:

• Scheduled content playback
• Digital menu management
• Image and video playback
• Scrolling text and announcements
• Remote content distribution
• Multi-screen content management
• Local content updates through USB

This makes the player easy to integrate into existing commercial display projects and software ecosystems.

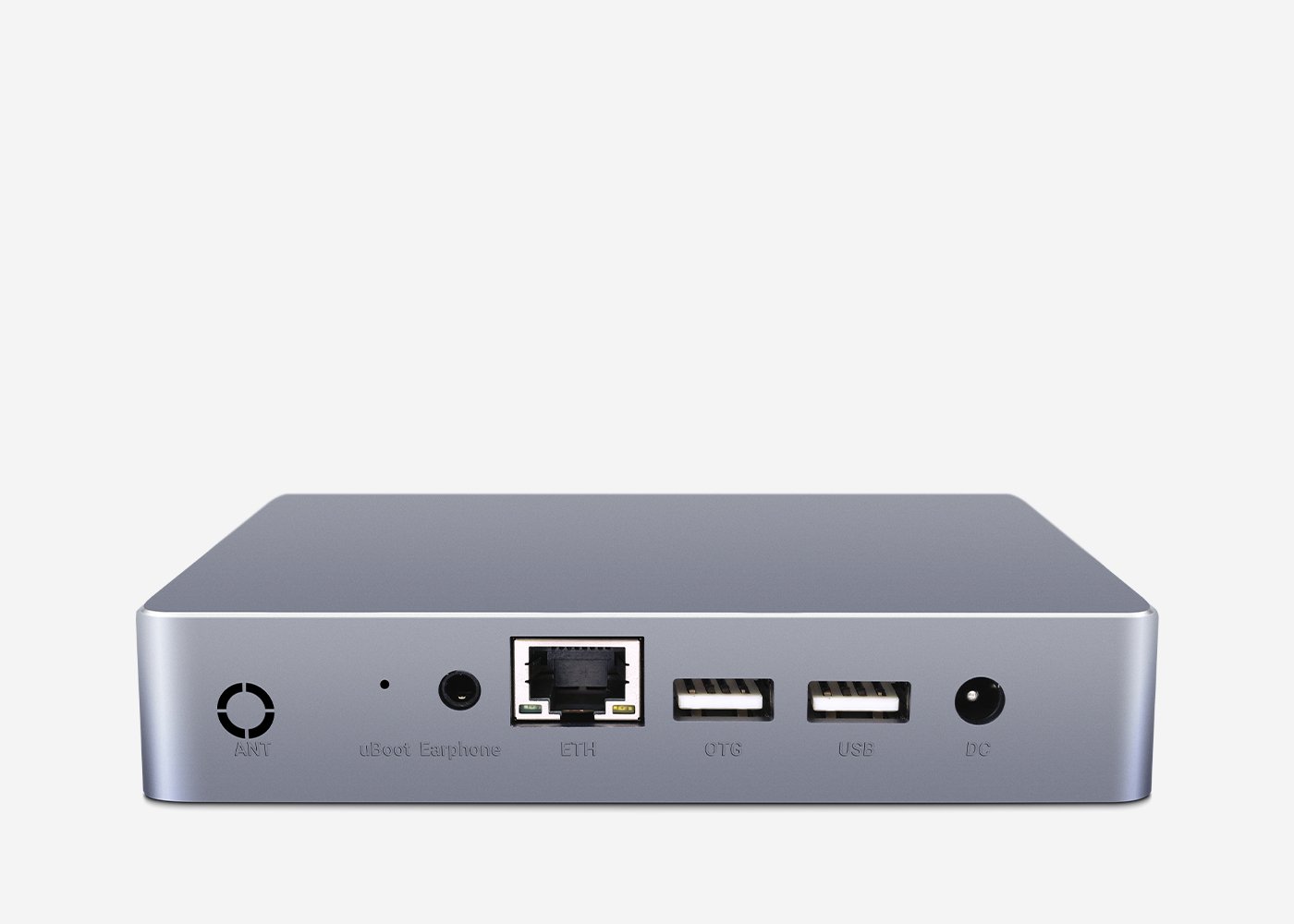

Reliable Connectivity for Commercial Displays

The DSBOX-133SE provides the essential interfaces required for mainstream 1080P signage deployments.

Network Connectivity

• 10/100M adaptive Ethernet
• Wi-Fi 4
• SMA antenna interface support

Wired Ethernet provides a stable option for fixed installations, while Wi-Fi allows more flexible deployment where network cabling is inconvenient.

USB Expansion

The player includes:

• 1 × USB 2.0 Host
• 1 × USB 2.0 OTG

The USB interfaces can be used for external storage, USB peripherals, local software upgrades, and other common deployment requirements.

Audio Output

A 4-section 3.5mm audio interface supports connection to external speakers or amplifiers for applications requiring synchronized audio playback.

Fanless Design for Quiet Commercial Environments

The DSBOX-133SE adopts a fanless passive cooling design, eliminating the mechanical fan as a potential noise and maintenance point.

This makes the player suitable for environments where low noise and long-term operational stability are important, including:

• Restaurants
• Retail stores
• Shopping malls
• Office buildings
• Residential communities
• Public information areas

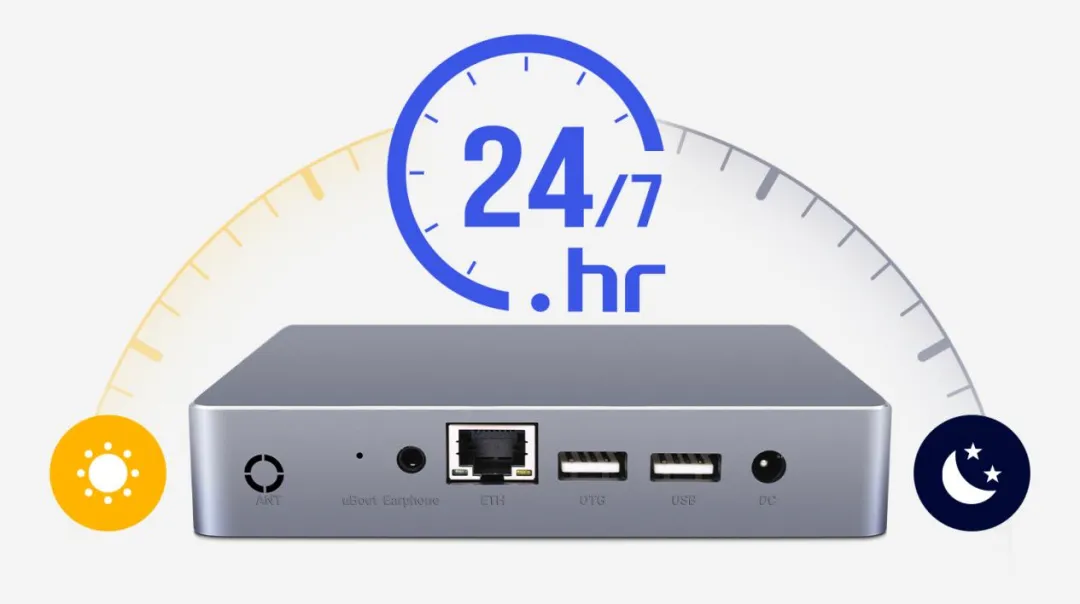

Built for Commercial Deployment

The DSBOX-133SE is designed with practical reliability features for commercial installations.

The specification includes:

• 0°C to 60°C operating temperature
• 8%–90% RH non-condensing operating humidity
• IEC 60068-2-64 vibration protection
• IEC 60068-2-27 shock protection
• IEC 61000-4-2 Level 4 ESD immunity
• 4kV contact discharge / 8kV air discharge
• ±2kV surge protection

These design features help the player withstand common environmental and electrical conditions encountered in commercial deployments.

Compact Design and Flexible Installation

The DSBOX-133SE measures approximately 235 × 88.5 × 130 mm and features a purple-gray frosted enclosure.

It supports both horizontal placement and wall mounting, allowing integration into different commercial display structures and advertising machine enclosures.

Typical Applications

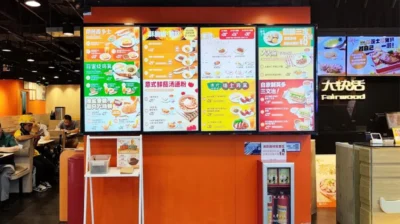

Digital Menu Boards

Deploy the DSBOX-133SE-1 in restaurants, cafés, and food-service locations for Full HD menu displays, promotional content, pricing information, and seasonal campaigns.

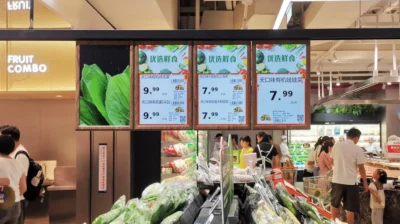

Retail Digital Signage

Suitable for advertising players, promotional screens, shelf displays, and other retail signage applications where cost-efficient Full HD playback is required.

Commercial Advertising Displays

Power advertising screens in shopping malls, stores, transportation areas, and other commercial environments.

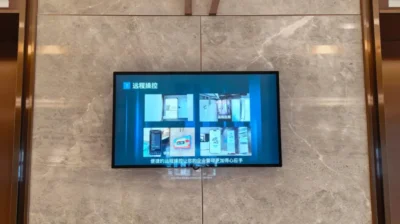

Building Information Displays

The player can be integrated into building information screens, community announcement displays, and building intercom systems.

Public Information Screens

Use the platform for announcements, notices, informational content, and other Full HD display applications.

DSBOX-133SE Specifications

The standard configuration and technical specifications are based on the DSBOX-133SE-1 V1.0 product specification.

Why Choose DSBOX-133SE?

For projects that do not require 4K playback or advanced AI processing, the DSBOX-133SE provides a focused and cost-efficient solution for 1080P commercial digital signage.

It combines:

Full HD Performance
Stable 1080P@60Hz HDMI output for mainstream commercial displays.

Practical Android Platform
Android 10 enables integration with a wide range of digital signage software.

Essential Interfaces
Ethernet, Wi-Fi, USB, OTG, HDMI, and audio interfaces cover common deployment requirements.

Fanless Operation
Passive cooling supports quiet operation and reduces mechanical components.

Commercial Reliability
ESD, surge, vibration, and shock protection features support demanding commercial installation environments.

Flexible Deployment
Compact enclosure with horizontal and wall-mount installation options.

Ideal for Cost-Sensitive 1080P Digital Signage Projects

The DSBOX-133SE is a practical choice for system integrators, digital signage operators, advertising display manufacturers, restaurant chains, retail businesses, and commercial display solution providers looking for a reliable 1080P digital signage player without unnecessary hardware complexity.

From digital menu boards and retail advertising screens to building information displays and intercom systems, DSBOX-133SE helps manufacturers and integrators build cost-efficient commercial display solutions.
