Choosing the Right RK3576 AIoT Board for Mid-Range Edge AI Applications
As AIoT (Artificial Intelligence of Things) moves rapidly from concept validation to large-scale commercial deployment, mid-range AI devices are facing increasingly clear hardware demands. Developers and system integrators now require reliable AI performance, flexible system integration, scalable interfaces, and strong cost efficiency—all within compact, edge-ready designs.
Powered by Rockchip RK3576 processor, built on an advanced 8nm manufacturing process and delivering up to 6 TOPS of AI computing power, ShiMeta RK3576 AIoT motherboard series is purpose-built to meet these requirements across a wide range of edge AI applications.
Based on the same RK3576 platform, AIoT-3576SC, AIoT-3576SE, and AIoT-3576E are optimized for different deployment scenarios through distinct form factors, interface layouts, and expansion capabilities. This guide helps you choose the right model for your application.

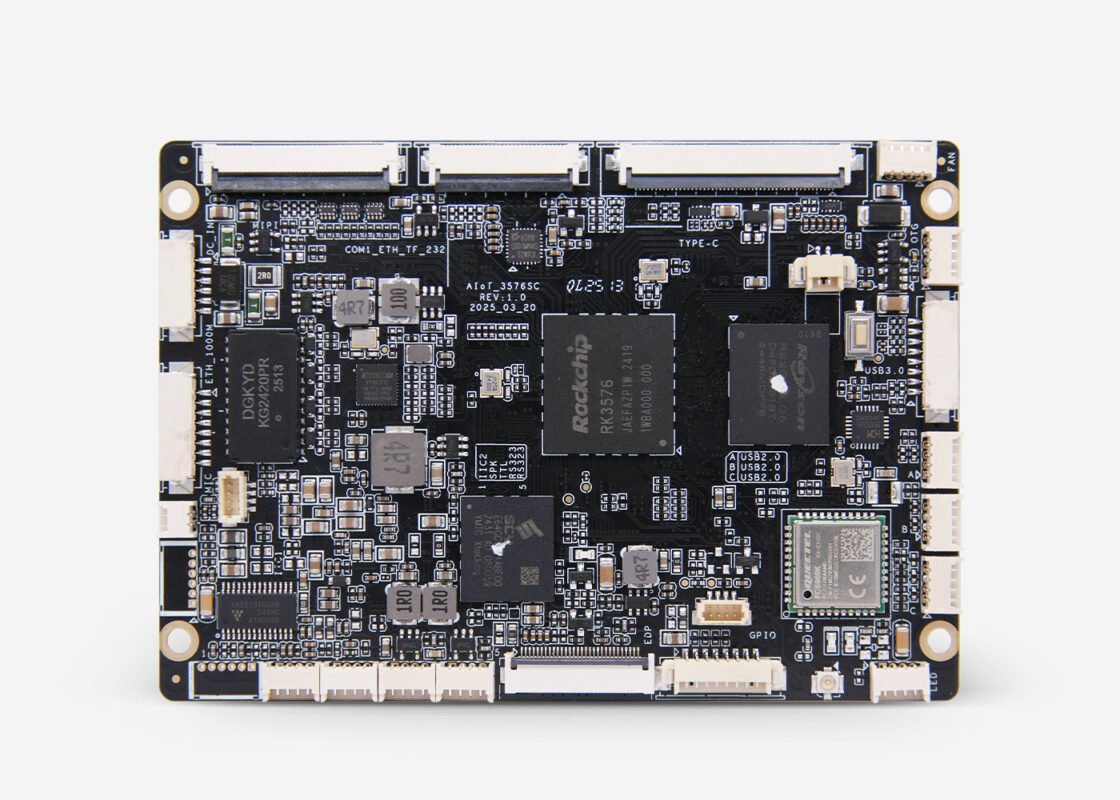

AIoT-3576SC: Compact Design with Full Display Support
The AIoT-3576SC features an ultra-compact 100 × 70 mm form factor, making it ideal for devices with limited internal space while still delivering robust performance.
Despite its small size, the board supports DP (up to 4K @ 120Hz), eDP, and MIPI display interfaces, enabling smooth, high-resolution output for modern AI terminals. Dual Ethernet, along with Wi-Fi and Bluetooth, ensures flexible network connectivity, while multiple USB and industrial interfaces allow seamless integration of peripherals and sensors.
Best suited for:
- Small self-service kiosks
- Portable medical devices
- Educational terminals
- Compact AI display systems

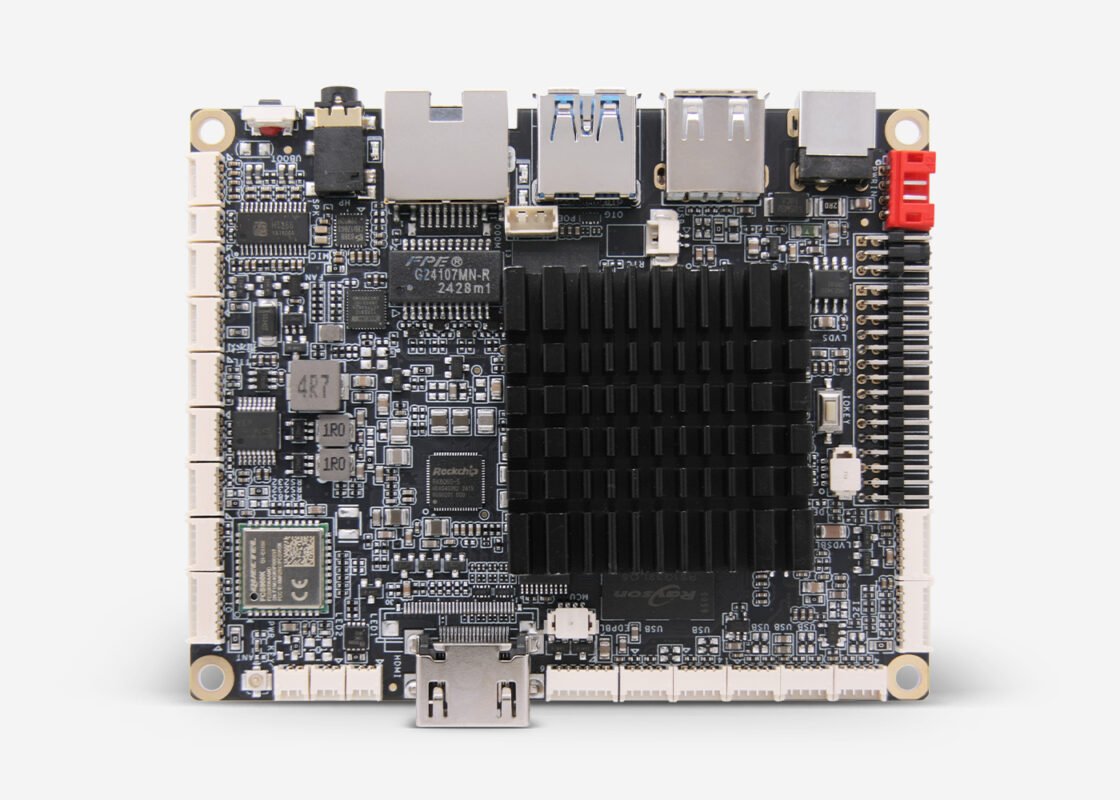

AIoT-3576SE: Cost-Efficient Choice for Vision-Based Edge AI
Optimized for Image Recognition and Visual Computing
Designed for cost-sensitive AI deployments, the AIoT-3576SE balances compact design with strong visual processing capabilities. It supports MIPI 4-lane cameras up to 13 MP, fully leveraging the RK3576’s 6 TOPS AI performance for real-time image recognition and computer vision tasks.
An expanded USB configuration and rich industrial interfaces allow easy connection to cameras, sensors, actuators, and external devices—making it ideal for scalable vision-driven solutions.
Best suited for:
- Vision-based AI robots
- Edge computing nodes
- Image recognition terminals
- Cost-effective AI systems

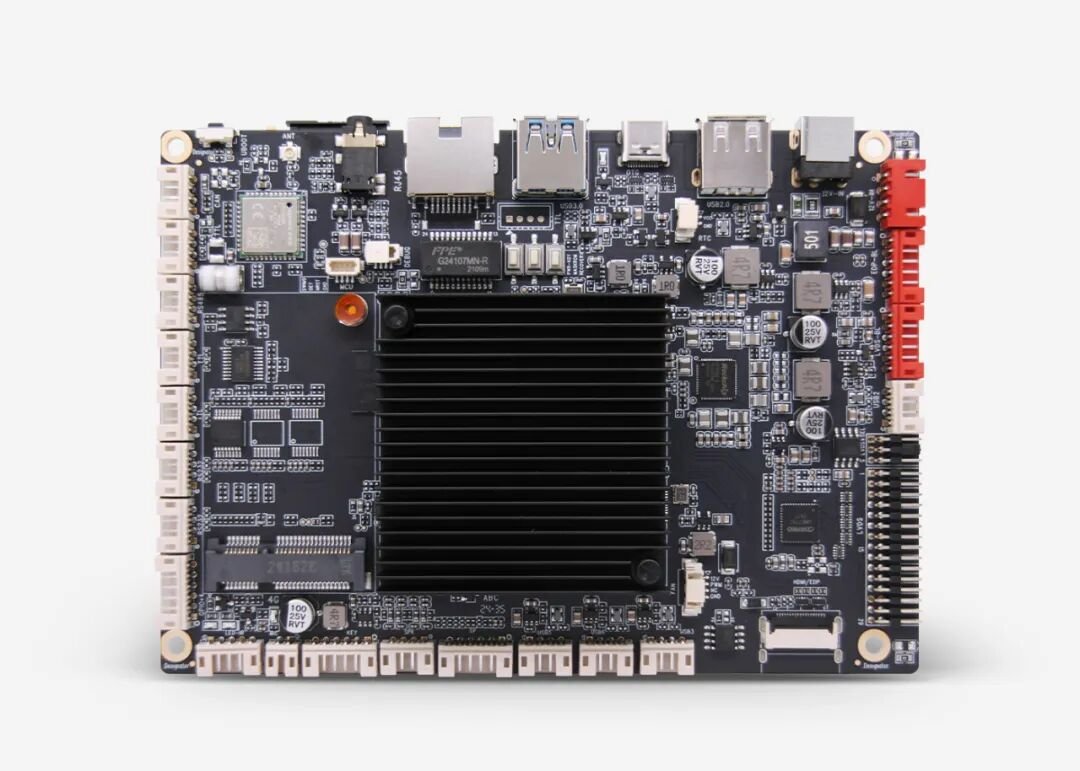

AIoT-3576E: Full-Featured Platform for Complex AI Systems
Built for Large Displays and Mobile AI Deployments
The AIoT-3576E is the most powerful and expandable board in the RK3576 lineup. Supporting DP, eDP, and LVDS, it easily drives large, high-resolution displays, making it ideal for commercial and industrial AI applications.
With extensive USB and serial interfaces, the board supports a wide variety of peripherals. Its Mini PCIe slot for 4G modules enables reliable connectivity in mobile, outdoor, or remote deployments where wired networks are unavailable.
Best suited for:
- Large-screen digital signage
- Edge AI gateways
- AI all-in-one systems
- Mobile service robots
- Outdoor AI equipment
How to Choose the Right RK3576 AIoT Board
Small, space-limited AI terminals: AIoT-3576SC
Cost-sensitive, vision-based AI devices: AIoT-3576SE
Large displays, multi-peripheral, or mobile AI systems: AIoT-3576E
| Feature / Model | AIoT-3576SC | AIoT-3576SE | AIoT-3576E |
| Processor | Rockchip RK3576 | Rockchip RK3576 | Rockchip RK3576 |
| AI Performance | Up to 6 TOPS | Up to 6 TOPS | Up to 6 TOPS |
| Manufacturing Process | 8nm | 8nm | 8nm |
| Form Factor | Ultra-compact (100 × 70 mm) | Compact | Standard / Full-featured |
| Display Interfaces | DP (4K@120Hz), eDP, MIPI | HDMI / MIPI | DP, eDP, LVDS |
| Camera Support | Basic | MIPI 4-lane, up to 13MP | Multi-camera support |
| USB Interfaces | Multiple USB | Expanded USB | Rich USB configuration |
| Industrial Interfaces | GPIO, UART, I²C | GPIO, UART, I²C, SPI | GPIO, UART, RS232/485 |
| Network Connectivity | Dual Ethernet, Wi-Fi, Bluetooth | Ethernet, Wi-Fi, Bluetooth | Ethernet + Mini PCIe (4G) |
| Wireless Expansion | Wi-Fi / BT | Wi-Fi / BT | 4G LTE (Mini PCIe) |
| Key Advantage | Small size, full display | Cost-effective vision AI | Maximum expansion & mobility |
| Typical Applications | Small terminals, kiosks | Vision AI, robots | Digital signage, robots |
Build Smarter AIoT Systems with ShiMeta
By combining the power efficiency of the RK3576 processor with application-oriented board designs, ShiMeta enables partners to accelerate AI product development while maintaining long-term system stability, scalability, and cost control.
Whether you are building smart terminals, vision-based edge devices, or complex AI systems, ShiMeta RK3576 AIoT motherboard lineup provides a reliable foundation for your next generaion of AIoT solutions.
For detailed specifications or customized board solutions, feel free to contact ShiMeta.
