Why Panel PCs Are Ideal for HMI Systems

As Industry 4.0 continues to reshape manufacturing and automation, Human-Machine Interface (HMI) systems are evolving into more intelligent, integrated, and rugged platforms. At the center of this evolution is the Panel PC—an all-in-one computer with a touchscreen display designed for harsh industrial environments.

Whether used in production lines, smart kiosks, or cleanroom environments, Panel PCs are emerging as the top choice for HMI deployments. But what makes them the ideal HMI platform? This guide explains the features, benefits, and use cases that make Panel PCs the optimal hardware solution for next-generation HMI systems.

What Is an HMI System?

A Human-Machine Interface (HMI) is the user interface that connects a human operator to a machine, system, or process. In industrial environments, HMIs typically visualize data from PLCs (Programmable Logic Controllers), enable control over equipment, and provide real-time process feedback.

HMI applications include:

• Machine status dashboards
• Process control panels
• SCADA systems
• Factory automation touchscreens
• Embedded terminals in equipment

For HMI systems to be reliable, the underlying hardware must be robust, responsive, and built for 24/7 use. That’s where Panel PCs come in.

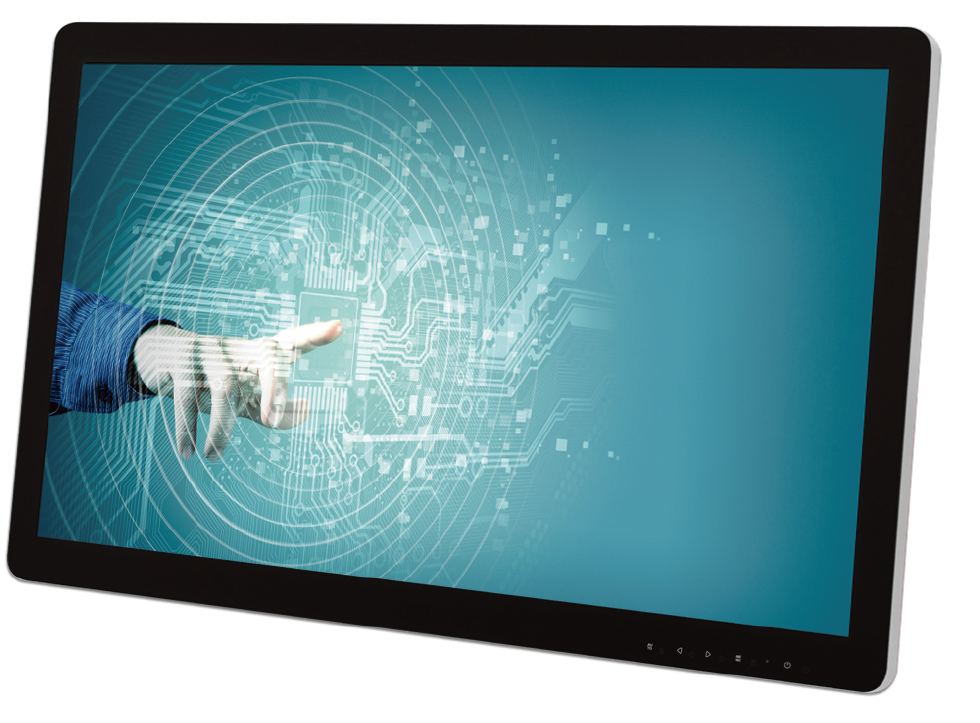

What Is a Panel PC?

A Panel PC is a compact, industrial-grade computer integrated with a touchscreen display. Designed for harsh and mission-critical environments, these systems are often fanless, dustproof, waterproof, and vibration-resistant.

Key features include:

• Built-in CPU and GPU
• Capacitive or resistive touchscreen
• IP-rated housing (e.g., IP65)
• Wide operating temperature tolerance
• Industrial I/O interfaces (COM, USB, LAN, GPIO)

Panel PCs are mounted directly into machine enclosures, control cabinets, or walls, making them a sleek and space-saving choice for HMI installations.

Why Are Panel PCs Ideal for HMI Applications?

✅ 1. All-in-One Integration

A Panel PC eliminates the need for a separate PC and monitor setup, saving space and simplifying system architecture. The integration of touchscreen, computing hardware, and ports in a single device results in:

• Faster installation
• Easier cable management
• More compact control systems
• Fewer points of failure

For HMI use, this design ensures streamlined operator interactions and a clutter-free work environment.

✅ 2. Touchscreen User Interface

Touchscreens are the backbone of modern HMI systems. Panel PCs support:

• Capacitive Touch: Multi-touch, intuitive, high sensitivity (ideal for dry and indoor use)
• Resistive Touch: Single-touch, works with gloves or wet fingers (perfect for food processing, healthcare, etc.)

High-resolution screens (from 7” to 21.5” and beyond) with wide viewing angles and brightness adjustment ensure excellent visibility in various lighting conditions, including outdoor or bright factory floors.

✅ 3. Rugged Design for Industrial Use

Panel PCs are specifically designed for tough environments. Key protective features include:

• Fanless Cooling: Reduces moving parts and dust intake
• IP65-Rated Front Panel: Water and dust-resistant front bezel
• Anti-vibration Mounting: Prevents damage from machine-induced shock
• EMI Shielding: Ensures electromagnetic compatibility with factory equipment

These qualities make Panel PCs more resilient than consumer-grade computers, ensuring uptime in mission-critical operations.

✅ 4. Industrial Connectivity (I/O)

For effective HMI communication, a Panel PC must interface with various control systems. Typical industrial I/O includes:

• RS232/RS485/CAN bus – for PLCs, sensors, and legacy devices
• USB 2.0/3.0/Type-C – for peripherals
• Dual LAN Ports – for secure and redundant network connections
• HDMI/VGA – for secondary displays
• GPIO – for digital signal integration

Many Panel PCs from ShiMeta Devices offer customizable I/O layouts for flexibility across automation applications.

✅ 5. OS Flexibility for Any HMI Software

Panel PCs support a range of operating systems to match your software stack:

• Windows 10 IoT / 11 Pro – Ideal for SCADA and HMI software (e.g., Wonderware, Ignition)
• Linux (Ubuntu, Debian) – Lightweight and secure for embedded automation platforms
• Android – Great for cost-effective, user-friendly HMI applications

Whether you’re using cloud-based dashboards or on-premise SCADA tools, ShiMeta offers Panel PCs with pre-configured OS images for rapid deployment.

Use Cases: How Panel PCs Power Real-World HMI Systems

🔧 1. Smart Factory Floor HMI Panels

Used to control and monitor CNC machines, robotics arms, conveyors, and assembly lines. Features needed:

• Rugged build
• Bright screen
• Multi-protocol connectivity (MODBUS, OPC UA, MQTT)

🍽️ 2. Food Processing Automation

Panel PCs with stainless steel enclosures and IP66/IP69K ratings are used in sanitary environments like meat, dairy, and beverage production. They:

• Survive frequent washdowns
• Work with gloved hands
• Integrate with temperature sensors and barcode scanners

🧪 3. Pharmaceutical Cleanrooms

In GMP and ISO 14644 compliant labs, fanless Panel PCs with antimicrobial coatings are used for:

• Workflow control
• Batch tracking
• Document access

🏢 4. Building Management & Smart HVAC

Touchscreen terminals embedded in walls or control rooms manage:

• Lighting
• Heating
• Access control
• Energy analytics

Panel PCs provide a sleek, interactive interface for building automation systems (BAS).

🛫 5. Transportation Systems

Used in public kiosks, ticketing systems, and onboard vehicle diagnostics. Key requirements:

• Vibration resistance
• Wide temperature tolerance
• Sunlight-readable displays

Additional Advantages of Panel PCs in HMI Roles

🔄 Remote Management and OTA Updates

Many Panel PCs support remote monitoring and firmware upgrades, reducing onsite maintenance and supporting IT/OT integration.

🔌 Easy Mounting Options

• Panel mount for flush integration into equipment
• VESA mount for arms, walls, or carts
• DIN-rail or swing arms for adjustable operator workstations

🔋 Low Power Consumption

Efficient CPUs like Intel Celeron J6412 or ARM Cortex-A72 ensure low heat output and power draw—critical for embedded and mobile systems.

ShiMeta Panel PC: Engineered for HMI Performance

ShiMeta Devices provides a range of industrial-grade Panel PCs optimized for HMI integration.

🔹 ShiMeta 10.1″ Android Panel PC

• Cortex-A72 CPU
• Android 12
• IP65 front bezel
• RS485/USB/Ethernet
• Fanless, ultra-slim

✅ Ideal for: Smart retail terminals, light factory automation, and kiosks

🔹 ShiMeta 15.6″ Intel Panel PC

• Intel Celeron J6412
• Windows/Linux compatible
• HDMI output
• Multiple COM/LAN/USB ports
• Touchscreen with glove support

✅ Ideal for: MES dashboards, manufacturing HMIs, and building automation

🔹 Stainless Steel IP66 Panel PC

• Full SUS304/SUS316 enclosure
• IP66-rated (front and back)
• Fanless design
• Resistive touch for glove/wet input
• VESA or panel mount

✅ Ideal for: Food processing, cleanrooms, and wet environments

Comparison: Panel PC vs. Traditional PC + Monitor Setup

Conclusion: Panel PCs as the Ultimate HMI Solution

The future of industrial automation depends on smart, reliable, and integrated interfaces. Panel PCs meet all these requirements and more by offering:

• Durable construction
• Powerful computing
• Real-time user interactivity
• Seamless integration with control systems

Whether you’re upgrading your manufacturing HMI or designing a new embedded solution, Panel PCs offer unmatched value and performance.

✅ Looking to deploy rugged HMI terminals across your facility?
