ShiMeta Smart Monitoring Solution

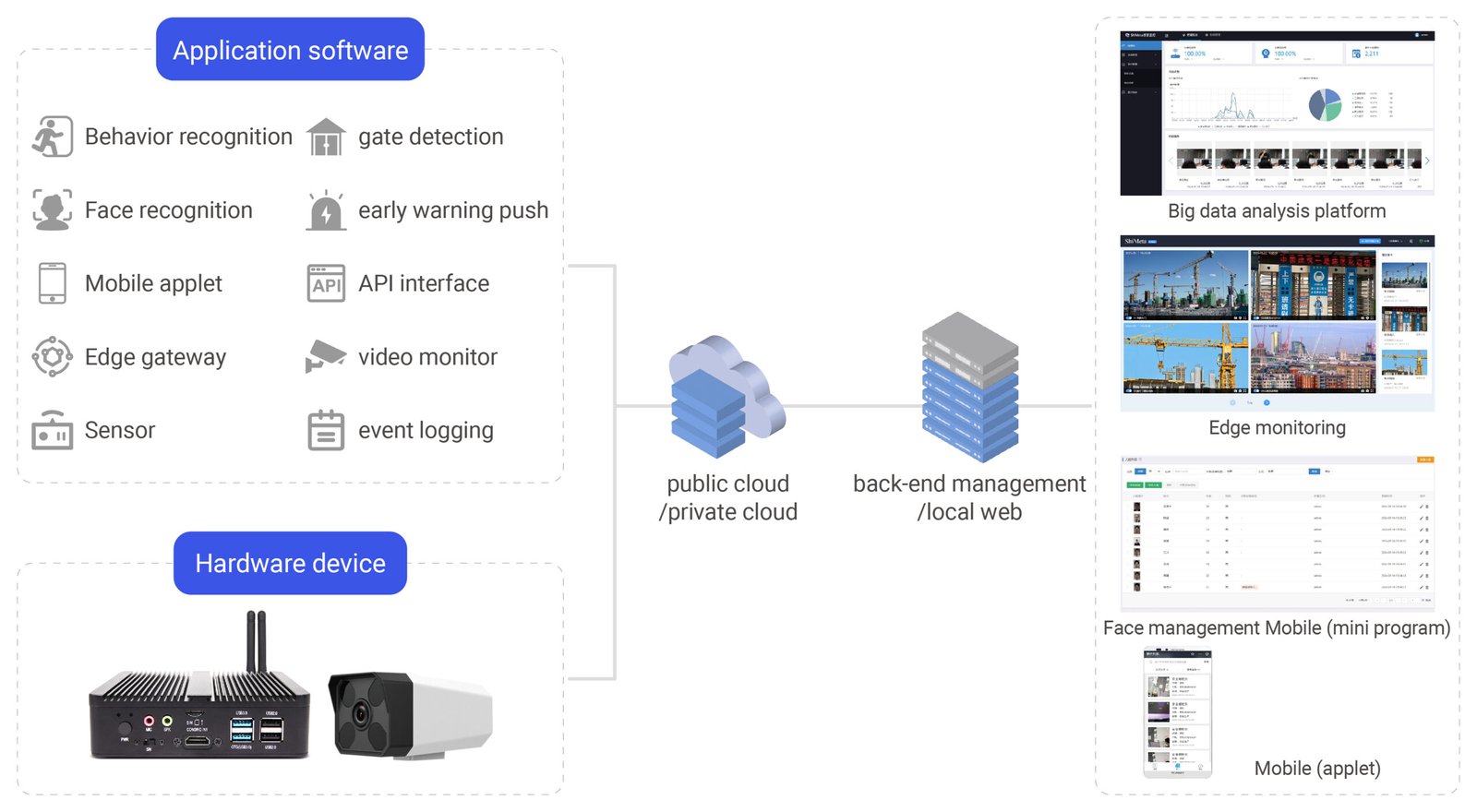

Solution Architecture

The ShiMeta Smart Monitoring Solution adopts an integrated architecture consisting of:

  • AI vision box (AIBOX series)
  • Network cameras
  • Management backend
  • Mobile control platform
  • Optional NVR

It forms a complete, secure closed loop—from front-end intelligent video surveillance to backend data processing.

Solution Value

01 / Save Labor Costs

With high-accuracy AI algorithms, the system conducts real-time intelligent video detection, reducing manual oversight and error rates. It automates alarm triggering, analyzes footage independently, stores effective video information in the cloud, and dramatically reduces post-event querying workloads.

02 / Improve Site Safety

  • Real-time detection of strangers and blacklist entries
  • Behavior recognition for dangerous actions, falls, and misconduct
  • Instant alerts for smoke, fire, equipment damage, and more
  • Helps prevent potential hazards proactively

03 / Optimize Data Storage

  • Flexible cloud or LAN-based storage
  • Self-developed algorithms with independent control
  • Supports incremental and full OTA updates of algorithm modules and software
  • Secure, cost-effective, and low-risk storage solutions

04 / Simple & Scalable Deployment

  • Plug-and-play AI vision box with built-in algorithms
  • Compatible with most universal IP cameras via RTSP/GB28181 protocols
  • Supports high-resolution video
  • Backed by a professional team for deployment training
  • Highly scalable with low setup cost

Smart Hardware – AI Vision Boxes

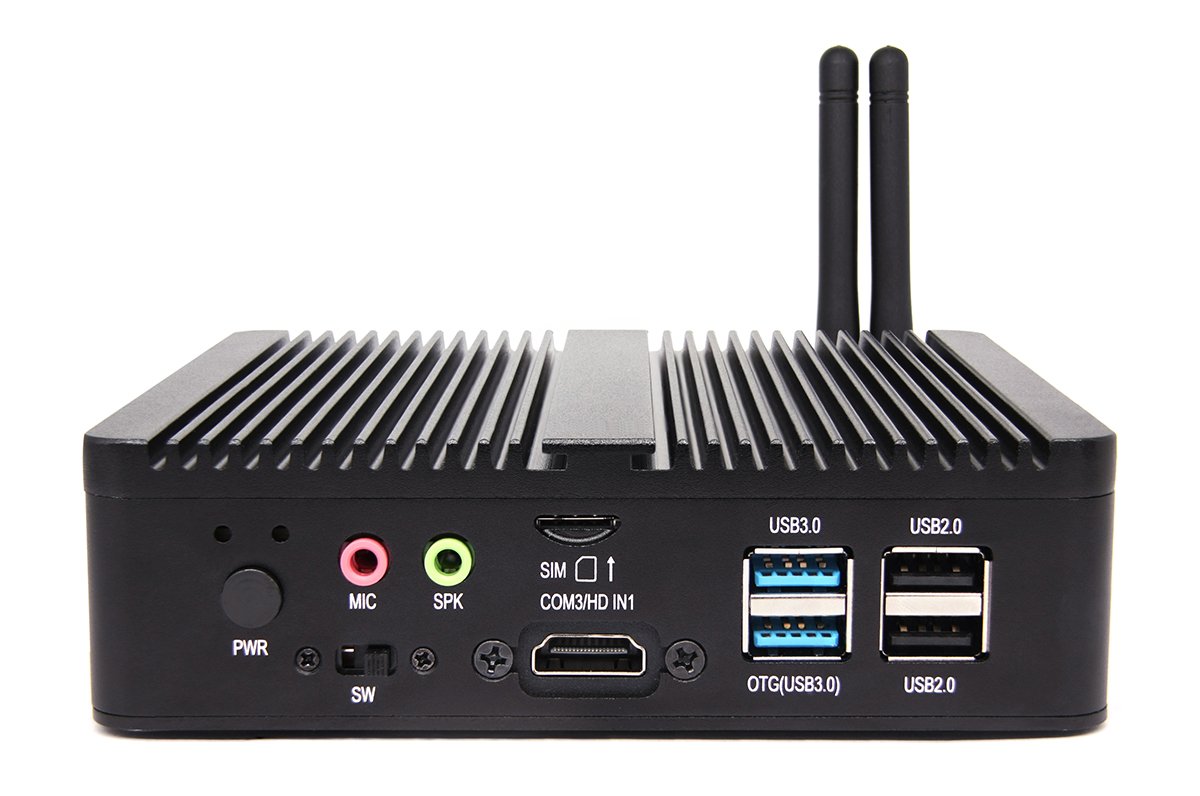

AIBOX-3588M AI Computing Box

CPU RK3588 Octa-Core, up to 2.4GHz
GPU Quad-core Mali-G610 MP4 high-performance GPU
NPU 6TOPS
Operating System Android 12.0 (Linux/Open-Harmony support available)
Memory/Storage Standard 8G/Standard 64G
Display Output 2 HDMI Outputs
Display Input 1 HDMI Input
External Port 1-channel USB3.0, 2-channel USB2.0, 1-channel USB3.0 OTG, 1-channel RS232, 1-channel RS485, 2-channel GPIO, 1-channel Nano-SIM card interface
Internal Port 1-channel USB2.0, optional 1-channel M.2, optional 1-channel SATA
Audio Interface 1 * LINE IN ，1 * LINE OUT，using 3.5mm, three-section headphone holder
Network Support 2-way 10/100/1000M adaptive Ethernet, support Wi-Fi6, dual antennas, support BT5.0, built-in PCI-E 4G module interface, support 4G Internet access
operating temperature 0℃~+60℃
Box Size 136(H)*126.2(W)*43(D)mm

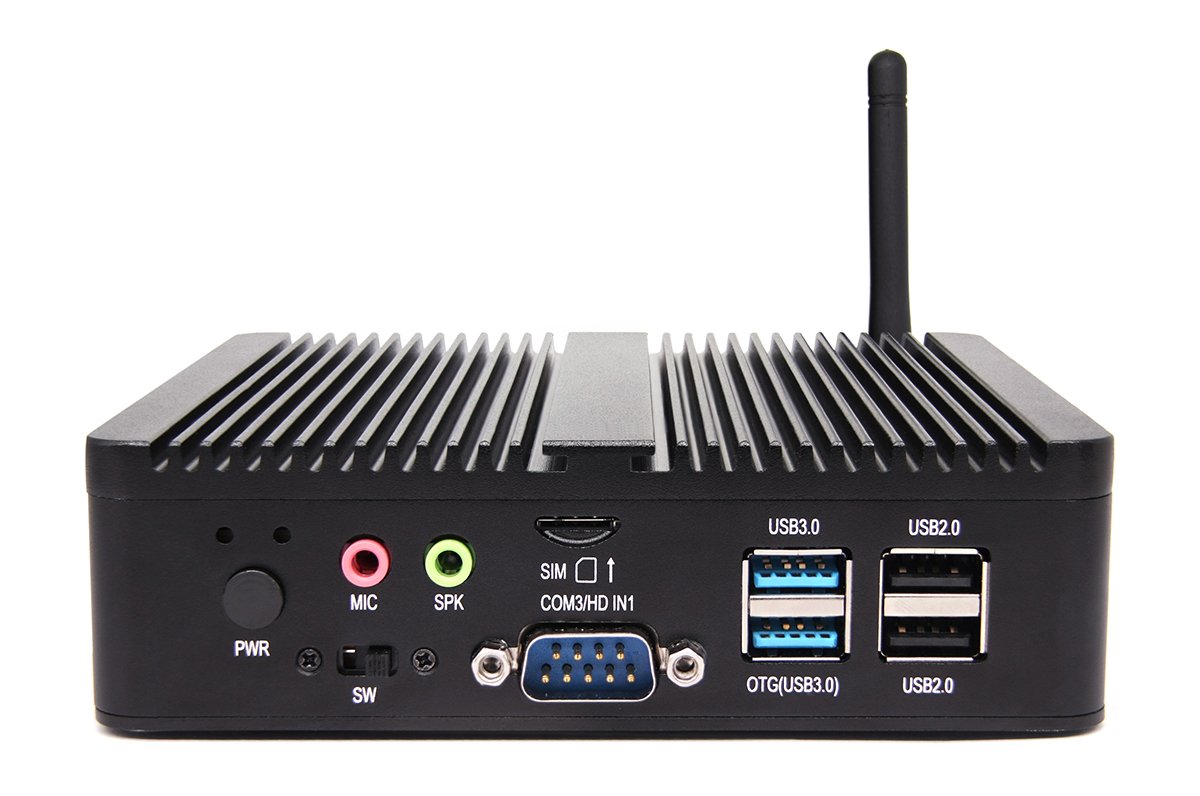

AIBOX-3576M AI Computing Box

CPU RK3576 Octa-Core, up to 2.2GHz
GPU ARM Mali G52 MC3 High Performance GPU
NPU 6TOPS
operating system Android14.0
Memory/Storage Standard 8G/Standard 64G
Display Output 1-channel USB3.0, 2-channel USB2.0, 1-channel USB3.0 OTG, 3-channel RS232, 1-channel RS485, 2-channel GPIO, 1-channel CAN, 1-channel relay, 1-channel Nano-SIM card interface
External port 1-channel USB3.0, 2-channel USB2.0, 1-channel USB3.0 OTG, 3-channel RS232, 1-channel RS485, 2-channel GPIO, 1-channel CAN, 1-channel relay, 1-channel Nano-SIM card interface
Audio Interface 1 * LINE IN ，1 * LINE OUT，using 3.5mm, three-section headphone holder
Network Support 1 channel 10/100/1000M adaptive Ethernet, 1 channel 10/100M adaptive Ethernet, support Wi-Fi6, support BT5.4, built-in PCI-E 4G module interface, support 4G Internet access
operating temperature 0℃~+60℃
Box Size 136(H)*126.2(W)*43(D)mm

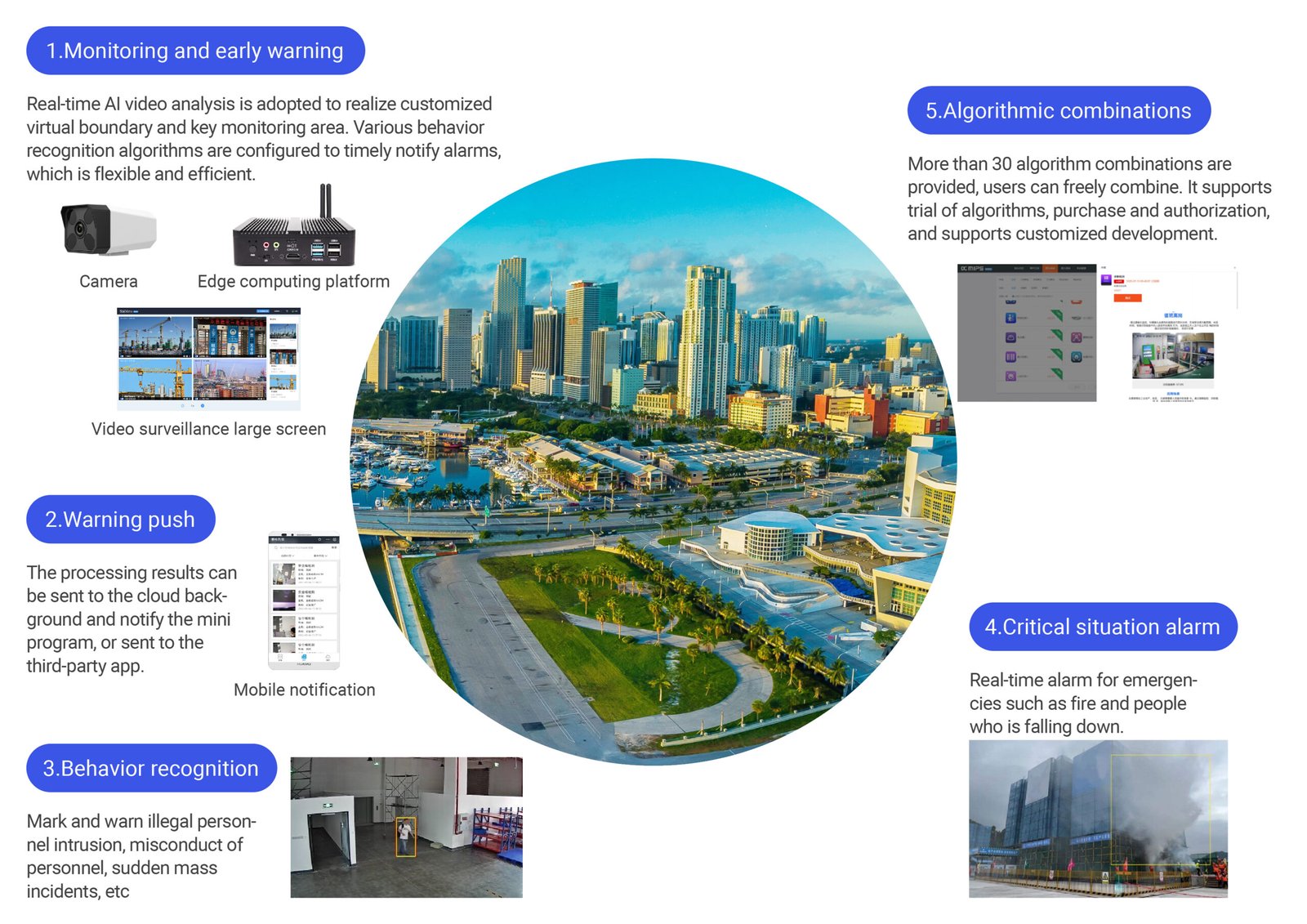

Application Scenarios

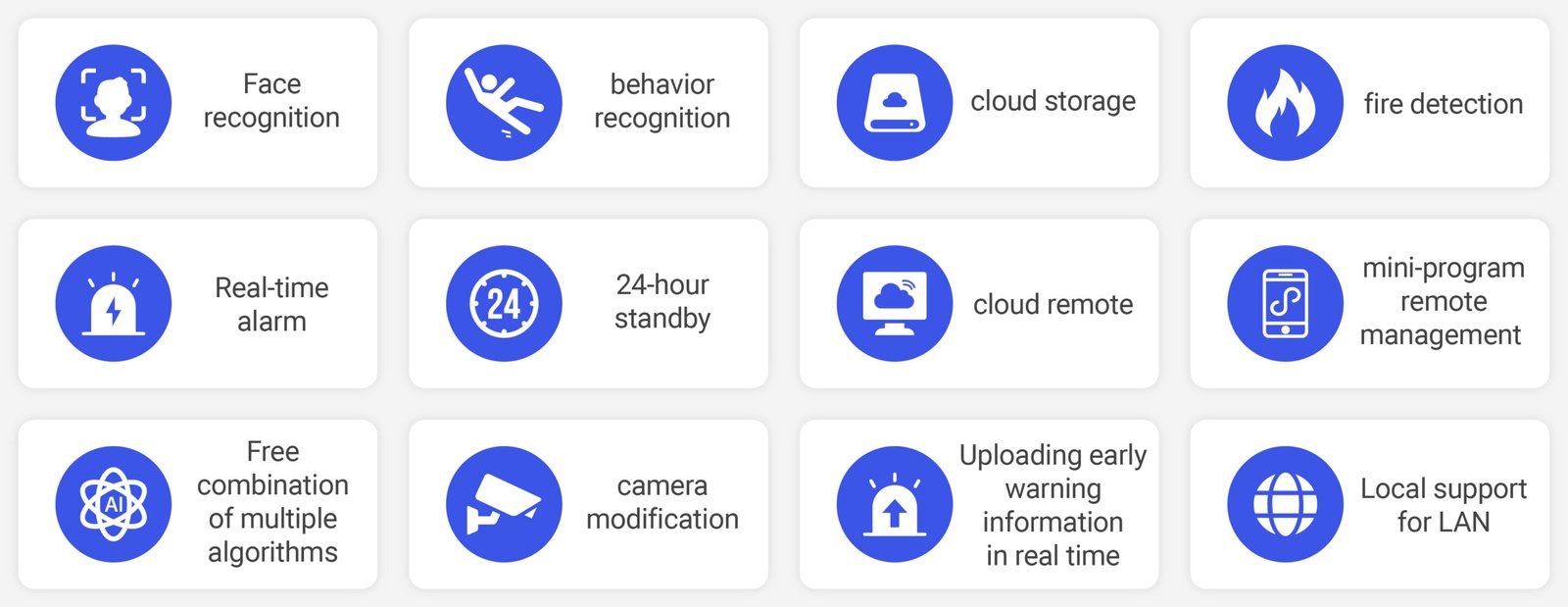

ShiMeta's solution supports 30+ AI algorithms including:

  • Security: Fire detection, illegal intrusion, fall detection, rescue detection
  • Safety: Safety helmet detection, climbing behavior, leaving post alerts
  • Behavior Monitoring: Phone usage, smoking, loitering, crowd gathering
  • Access Control: Face recognition, blacklist alert
  • Industrial Use: Tool detection, equipment damage, smoke detection

Suitable for:

  • Industrial parks
  • Schools & campuses
  • Public facilities
  • Construction sites
  • Warehouses
