ShiMeta Access Control and Attendance Solution

Solution Overview

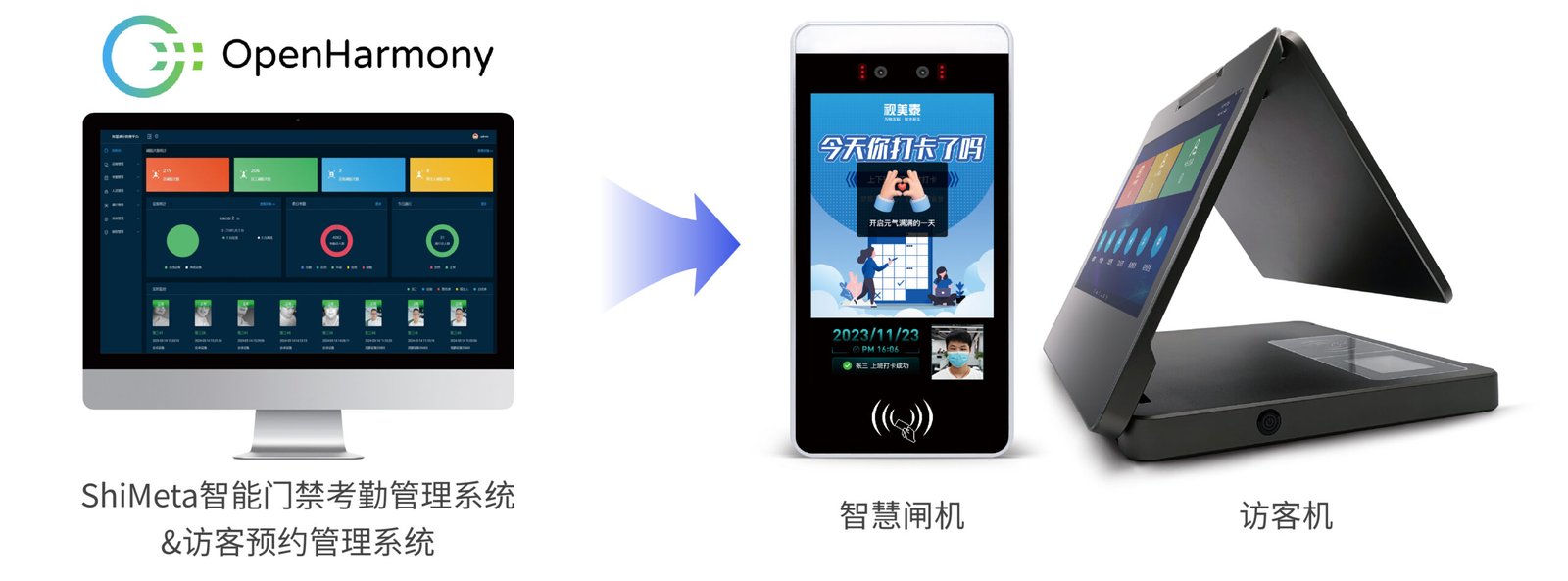

The ShiMeta Access Control and Attendance Solution integrates the ShiMeta Intelligent Access Management System with HarmonyOS-based face recognition devices to provide secure, efficient, and intelligent management of personnel entry, attendance, and visitor appointments.

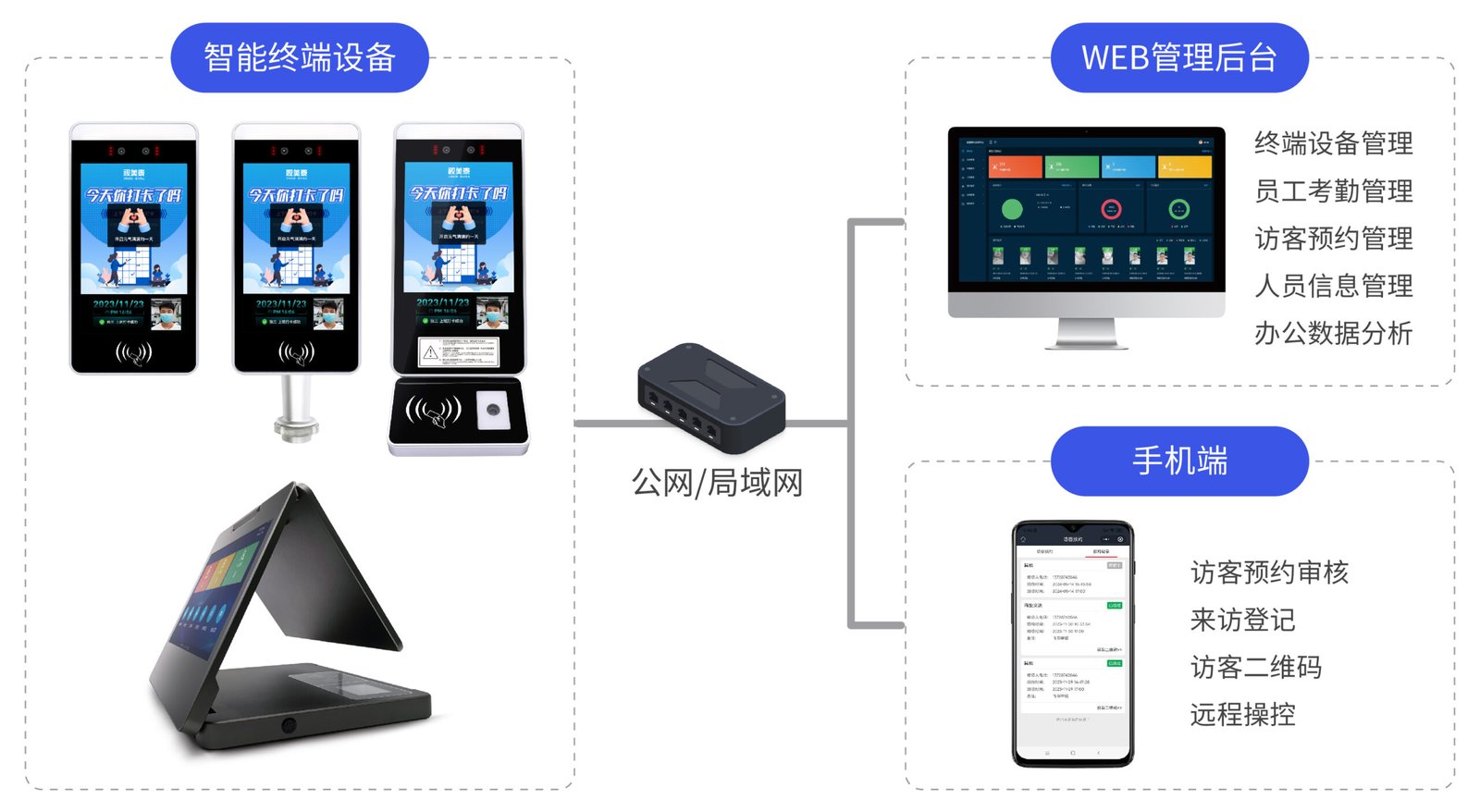

System Architecture

Built on a B/S (browser/server) structure, the solution supports centralized management via web portals and seamless integration with OA systems for a complete lifecycle of access and attendance.

Key Features

✅ Contactless Passage

Enables unmanned, self-service access to improve entry efficiency.

✅ AI-Powered Face Recognition

Supports liveness detection, whitelist/blacklist identification with <1s recognition speed and 0.1% false recognition rate.

✅ Multiple Authentication Methods

Facial recognition, ID cards, fingerprint scanning — compatible with most access control systems.

✅ Visitor Appointment System

Visitors can self-register and pass through gates using QR code or facial recognition after approval.

✅ Real-Time Entry Records

All entry/exit data is tracked and accessible, ensuring traceability.

Attendance & Security Management

✅ Integrated Attendance

Automatically generates attendance reports based on access records, with one-click export options.

✅ Access Authorization

Control sensitive zones with whitelist access and timed entry windows to protect restricted areas.

✅ Data Analytics

Analyze access behaviors of employees, visitors, and unidentified individuals.

✅ Domestic Compatibility

Fully supports HarmonyOS, domestic AI chips, and self-developed algorithms for maximum security and control.

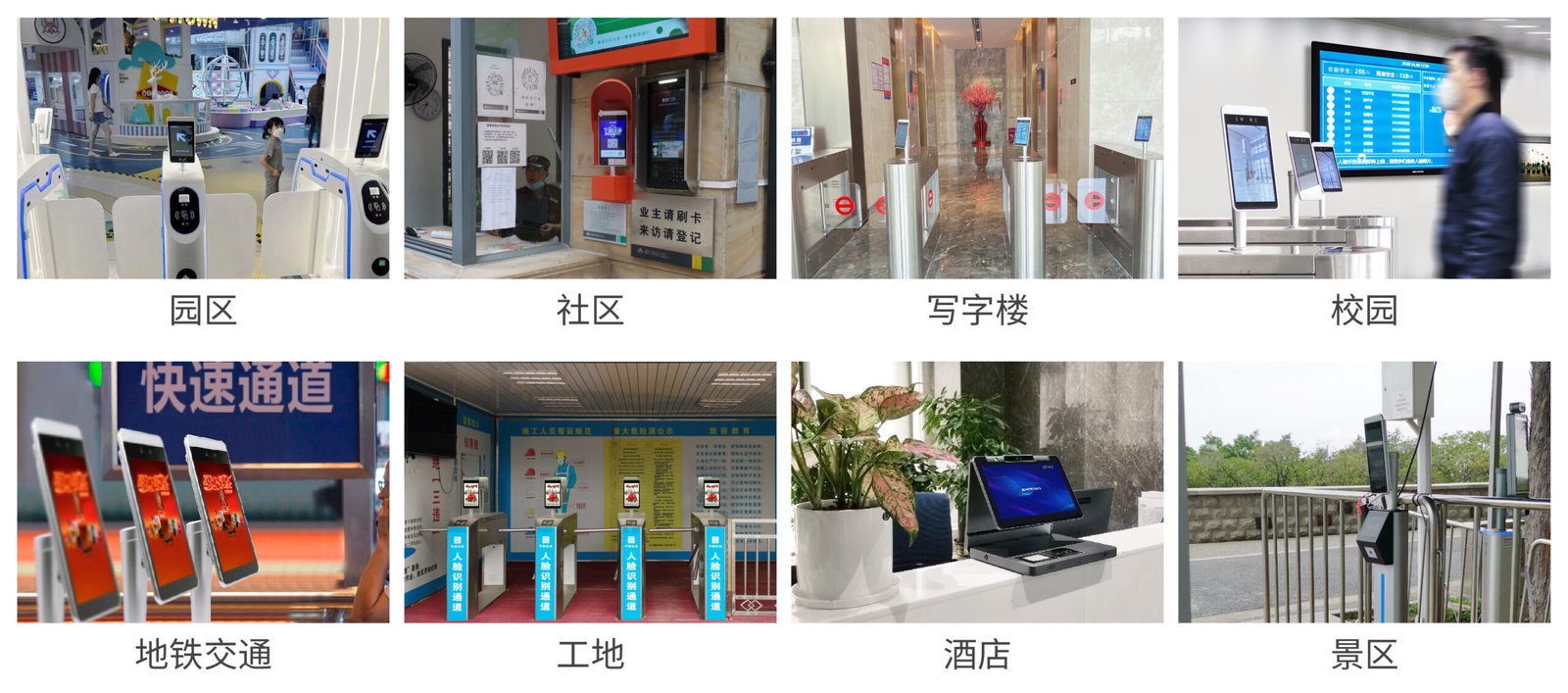

Application Scenarios

The system is ideal for access and attendance management across diverse sectors:

  • Industrial Parks & Campuses
  • Government Buildings & Offices
  • Construction Sites & Hospitals
  • Hotels, Airports, Subway Stations
  • Scenic Areas & Residential Communities

System Configuration

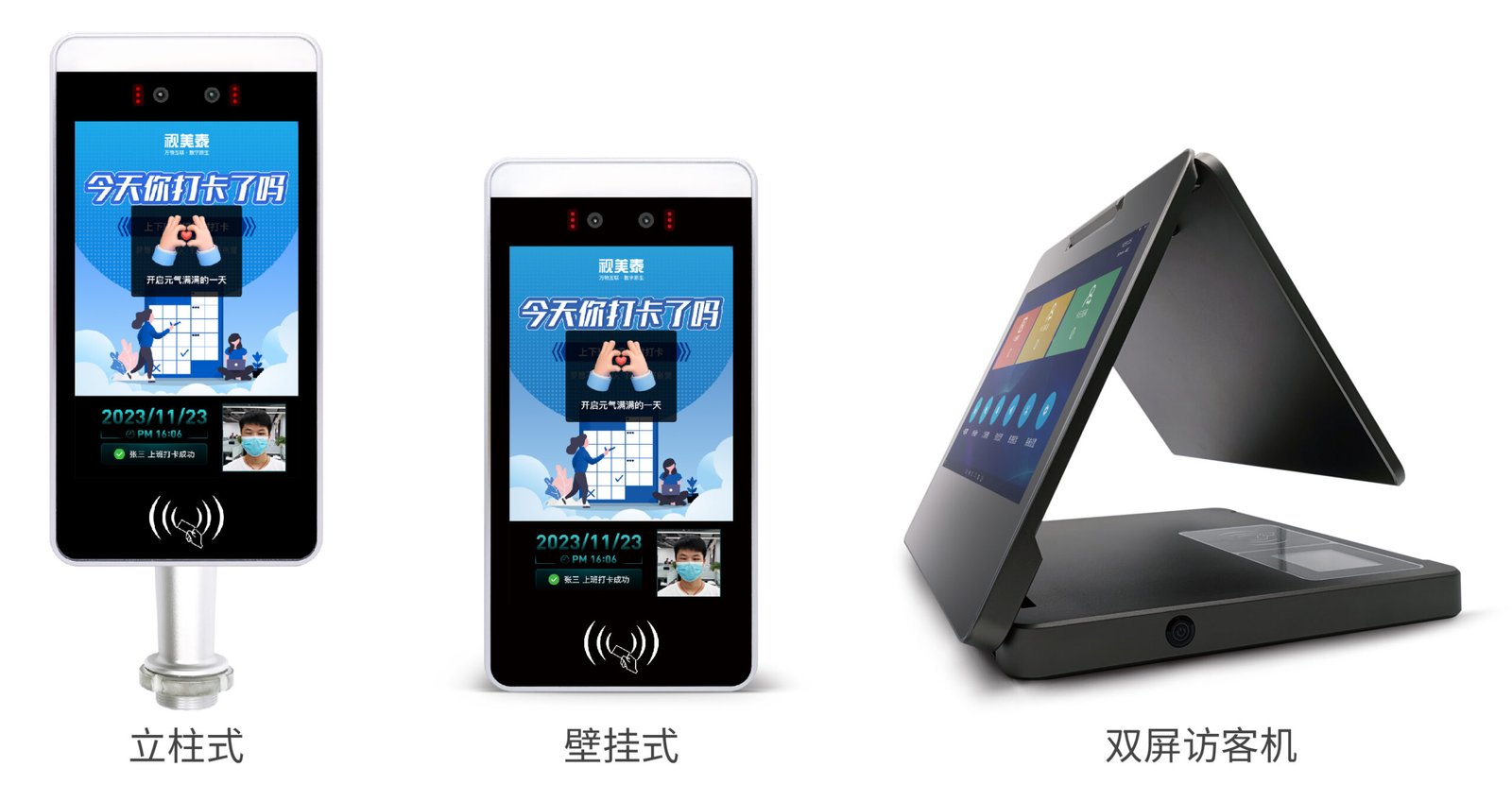

Product Model SW-5086 (columnar, wall-mounted)
operating system Support Android and Hongmeng Domestic OS
RAMClick to apply Memory 2G (default). 4G, 16G and 32G optional
processing unit RK3568 Quad Core
camera 200W pixel wide dynamic binocular camera with LED and IR dual fill light
Screen/Resolution 8.0-inch IPS LCD, 800 x 1280
interfaces Support Ethernet, wireless (Wi-Fi), 1 channel USB OTG, 1 channel USB HOST standard A port, 11 channel RS232 serial port, 1 channel WEGAN 26/34 output, 1 channel WEGAN 26/34 input, 1 channel RJ45 Ethernet cradle, support 4R/2W speaker, support Uboot upgrade button
ID card reader With card swiper or ID card reader, support a variety of IC/ID card and second generation ID card online identification
IC Card Reader Supports MifareS50, MifareS70, FM11RF08 series cards, obtains physical card numbers in accordance with ISO/IEC14443A protocols
Power Supply/Power Consumption DC12V（±10%) ，13.5W（Max）
operating temperature -10°C~60℃
Packing List Whole machine *1, power adapter *1, manual *1, certificate of conformity *1
Product Model Visitor machine FB-11ACK
operating system Support Android OS
screen Single/dual screen, 11.6-inch high brightness LCD screen
processing unit RK3568 quad-core, up to 1.8GHz
touch Optional touch, including visitor interface and property operator interface
