Smarter, Smaller, Stronger – The Ultimate Modular Kiosk for Self-Service Applications

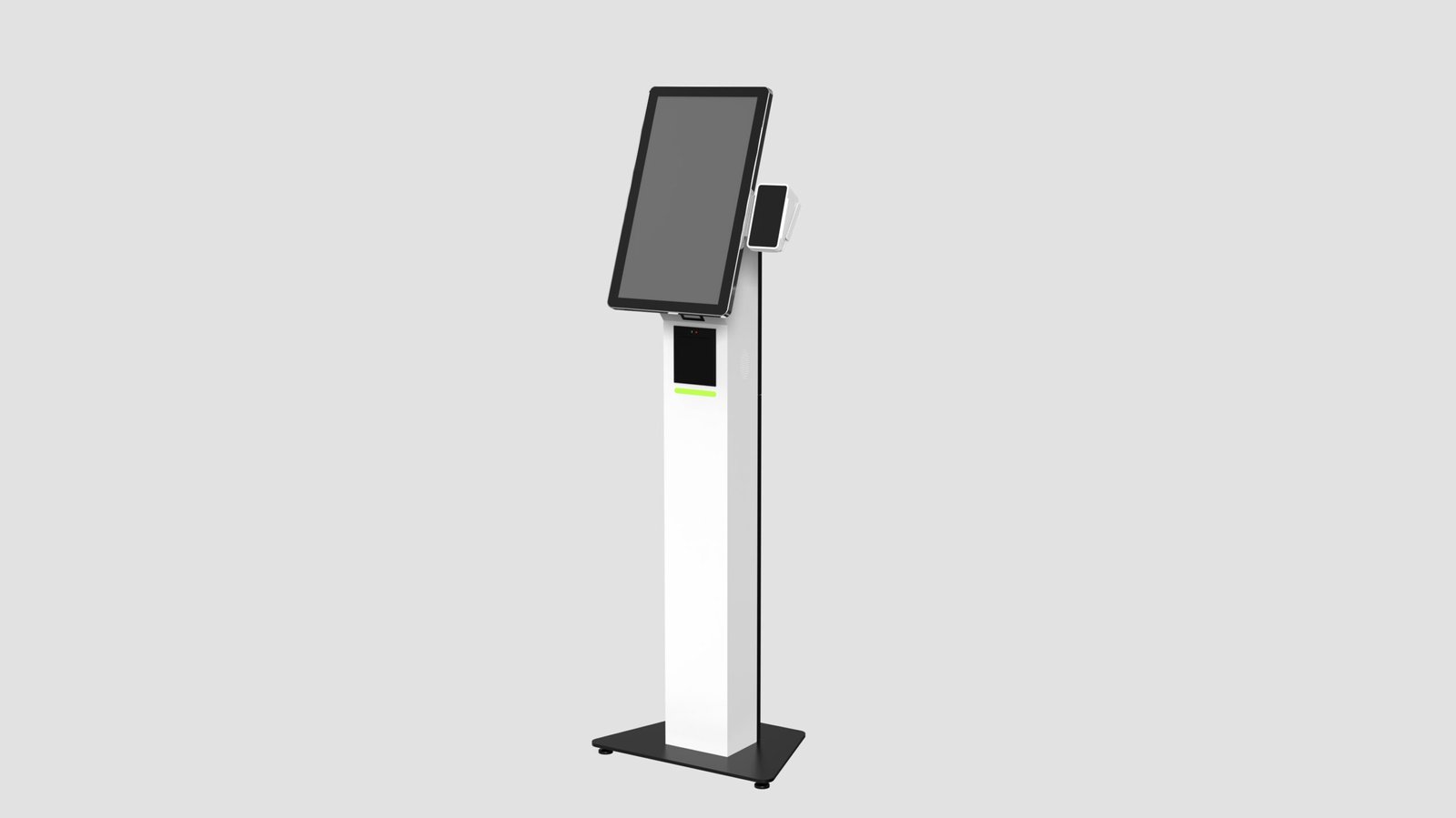

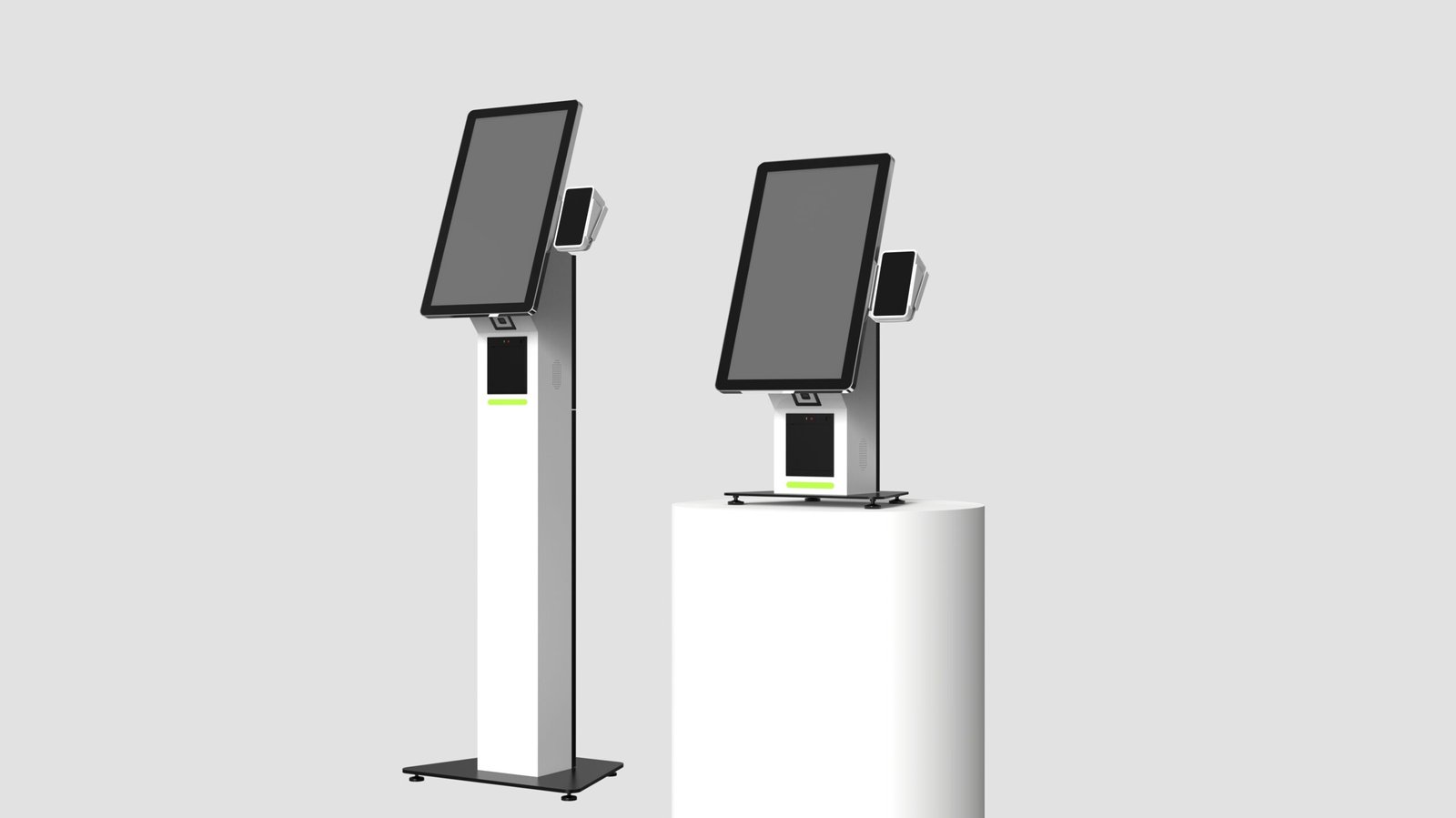

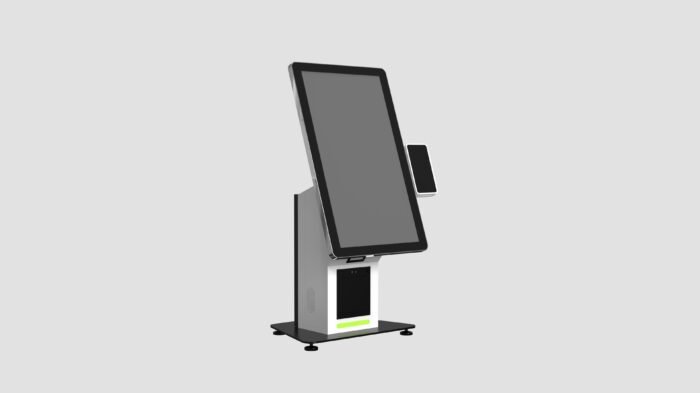

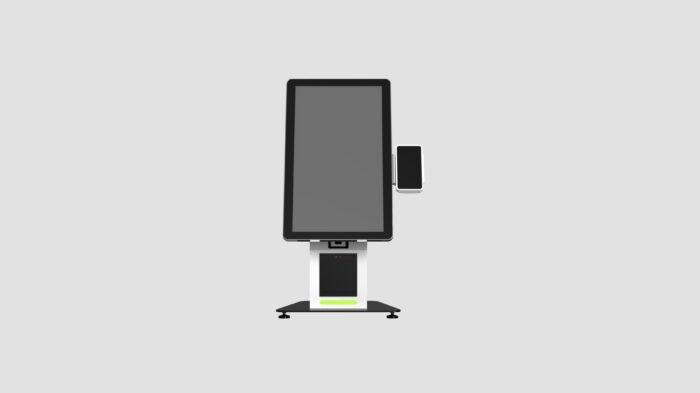

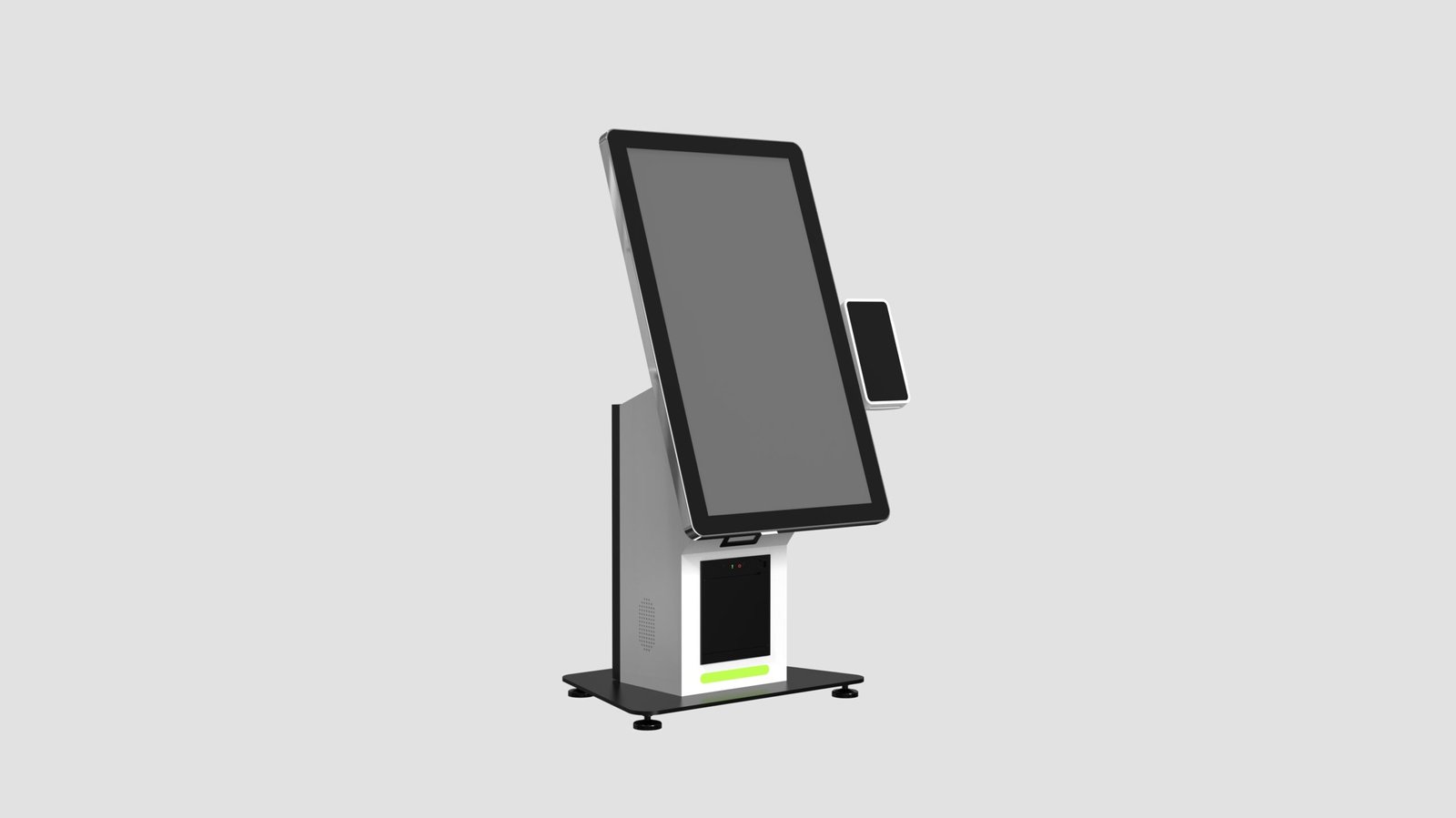

The K9 Self-Order Kiosk is a compact yet powerful solution designed to enhance customer experiences across retail, hospitality, healthcare, and more. Featuring a 15.6 inch or 21.5 inch true flat touch screen, built-in thermal printer, barcode scanner, and support for Android, Windows, and Linux operating systems, the K9 delivers unmatched versatility and performance in a sleek, modular body.

Whether you’re setting up a POS kiosk with printer, a barcode scanner kiosk for product checkouts, or a modular kiosk for self-registration, K9 offers everything you need in a plug-and-play solution.

✅ Key Features

Modular Design for Flexibility

Choose from ARM-based (Cortex-A55 RK3568) or Intel platforms (Intel Alder Lake N95/97, or 11th/12th Gen Core i3/i5/i7)

Multiple operating systems: Android 11, Windows 10/11, or Linux

Scalable storage: eMMC (8G–128G) or mSSD (64G–512G)

Up to 16GB DDR RAM

Interactive Touch Display

Available in 15.6 inch and 21.5 inch TFT LED panels

1920×1080 full HD resolution

True flat projected capacitive touch screen

Brightness: 260–300 nits for indoor environments

Integrated High-Speed Printing

Built-in 58mm/80mm thermal printer

Ideal for receipts, tickets, or queue slips

Compact and fully enclosed to minimize maintenance

Barcode & Camera Support

Optional 1D/2D barcode scanner

Front 2MP / Rear 8MP camera (optional)

Ideal for check-ins, user identification, or QR-based applications

Comprehensive I/O & Connectivity

4 × USB (2.0 + 3.0), 2 × RS-232, 1 × Line-out

1 × Gigabit Ethernet port (RJ-45)

Wireless: 802.11 b/g/n Wi-Fi, Bluetooth 4.1

Optional: NFC, POS card reader, additional camera

Power Supply

120W DC model, +12VDC 10A max

Color Options & Certifications

Colors: White + Black

Certified by CCC, CE, FCC, RoHS, UKCA, KC, ETL

Technical Specifications

Why Choose K9?

Fully integrated self-service kiosk in a modular form factor

Supports a wide range of use cases: payment kiosk, ordering kiosk, check-in kiosk, POS kiosk, and more

Available in various configurations to meet your deployment needs

Compact footprint for easy placement in tight spaces

High compatibility across platforms and environments

Ideal Applications

Retail: self-checkout, loyalty management, barcode scanning

Hospitality: self-ordering, room check-in/out

Healthcare: patient registration, health kiosks

Government / Banking: ticketing, utility payment, ID validation

Frequently Asked Questions

Q1: Can I choose between Android and Windows for the operating system?
A: Yes. The K9 kiosk supports Android 11, Windows 10/11, and Linux, depending on your CPU selection.

Q2: Is the K9 kiosk suitable for POS systems?
A: Absolutely. It’s a highly customizable POS kiosk with printer and barcode scanner integration—perfect for self-payment and retail applications.

Q3: What screen sizes are available?
A: K9 comes in two sizes: 15.6 inch kiosk and 21.5 inch kiosk.

Q4: Can I integrate NFC or facial recognition?
A: Yes, optional features include NFC card reader and camera for facial recognition or QR scanning.

Q5: What makes K9 a modular kiosk?
A: You can customize the CPU, OS, memory, display size, and add-ons like printers, scanners, and card readers based on your needs.
