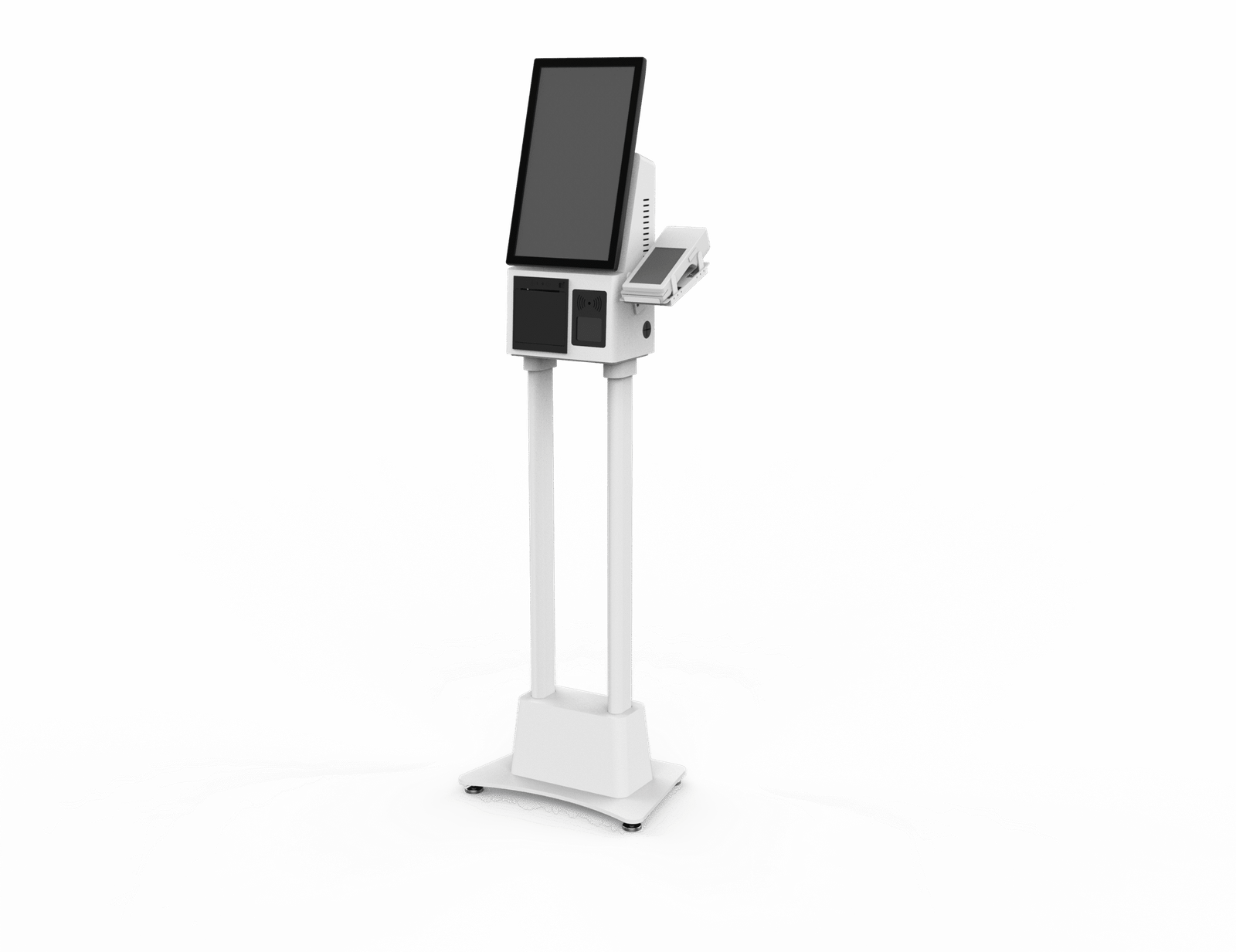

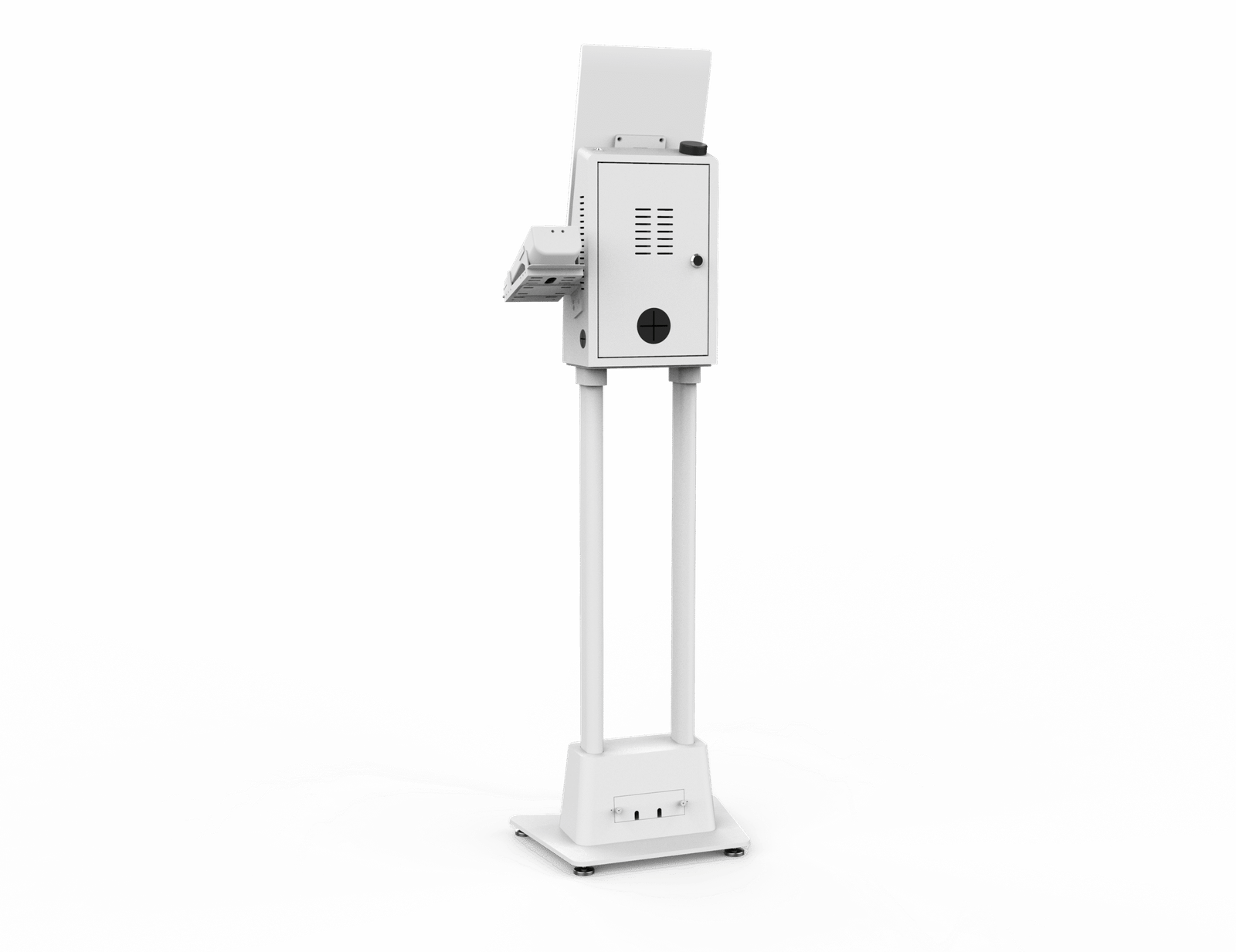

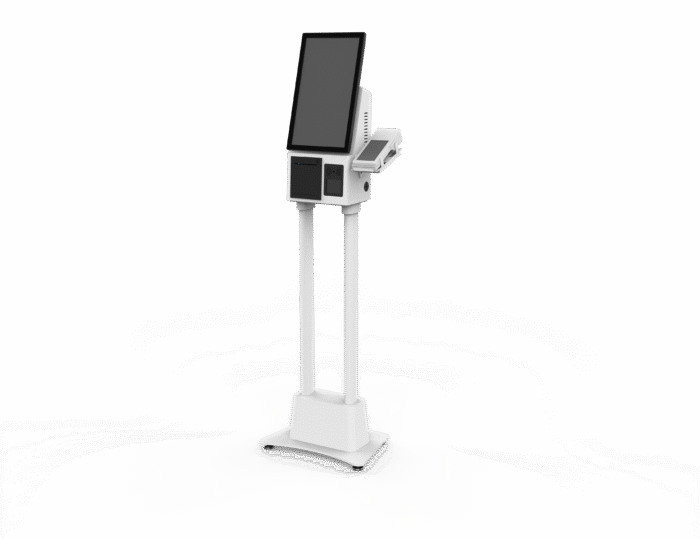

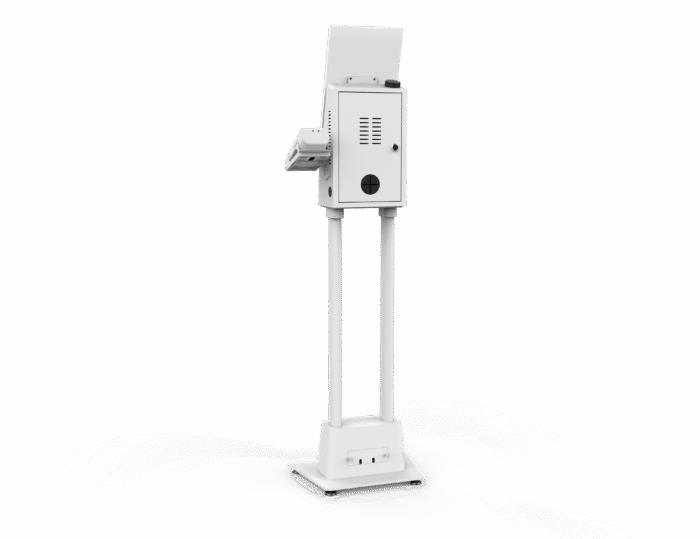

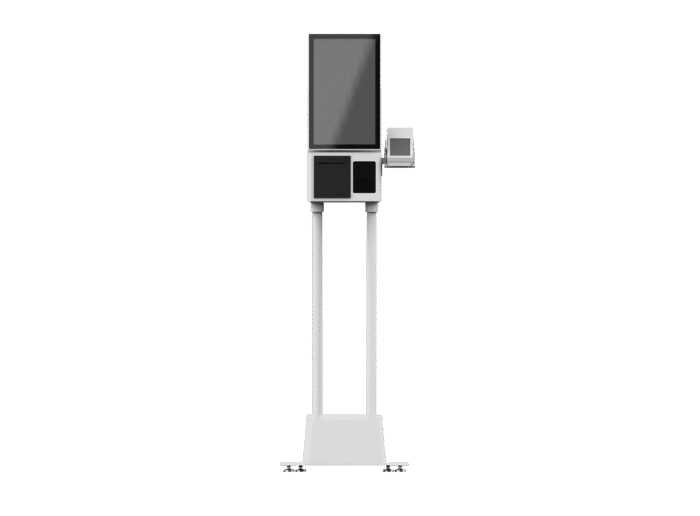

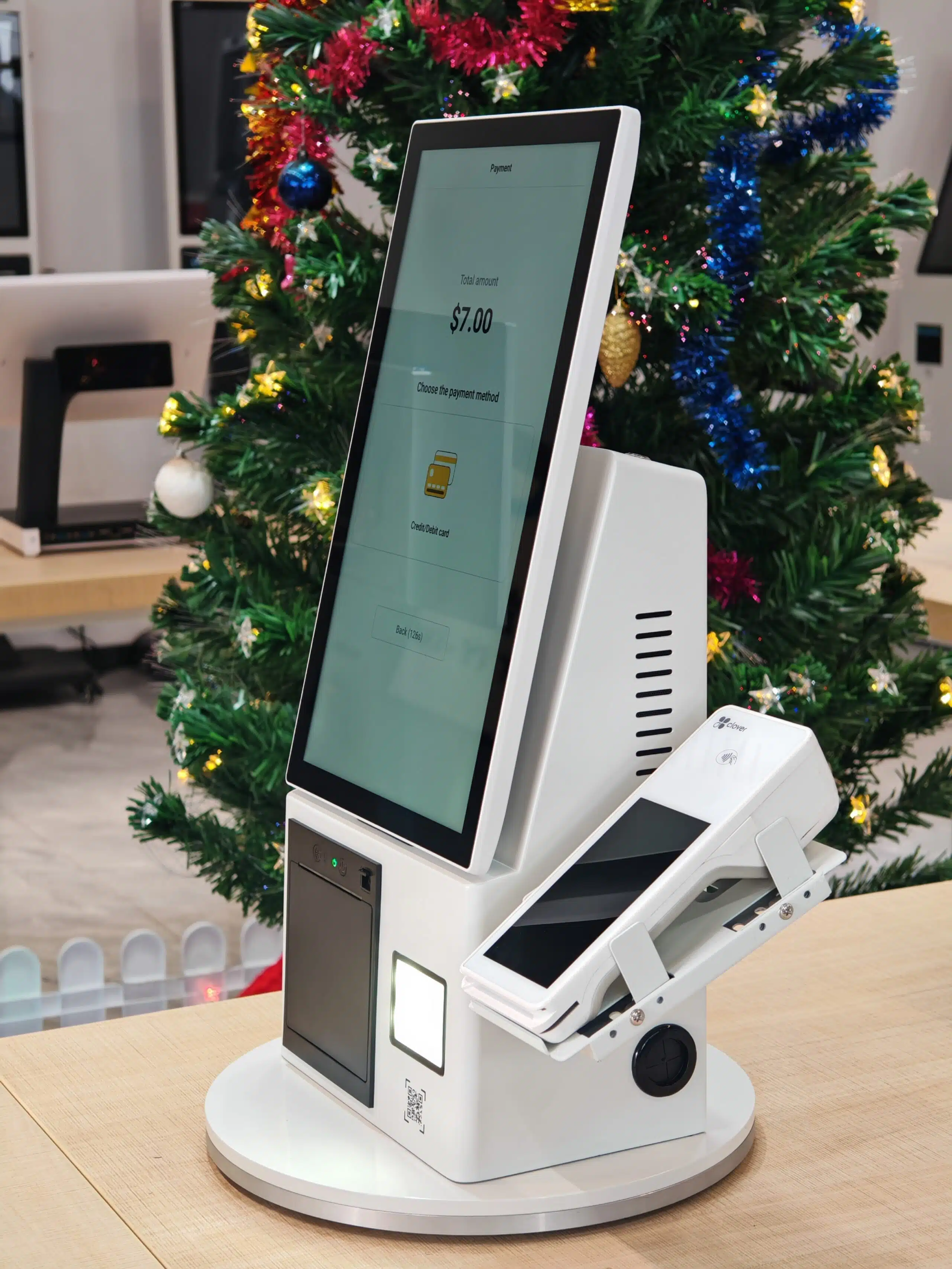

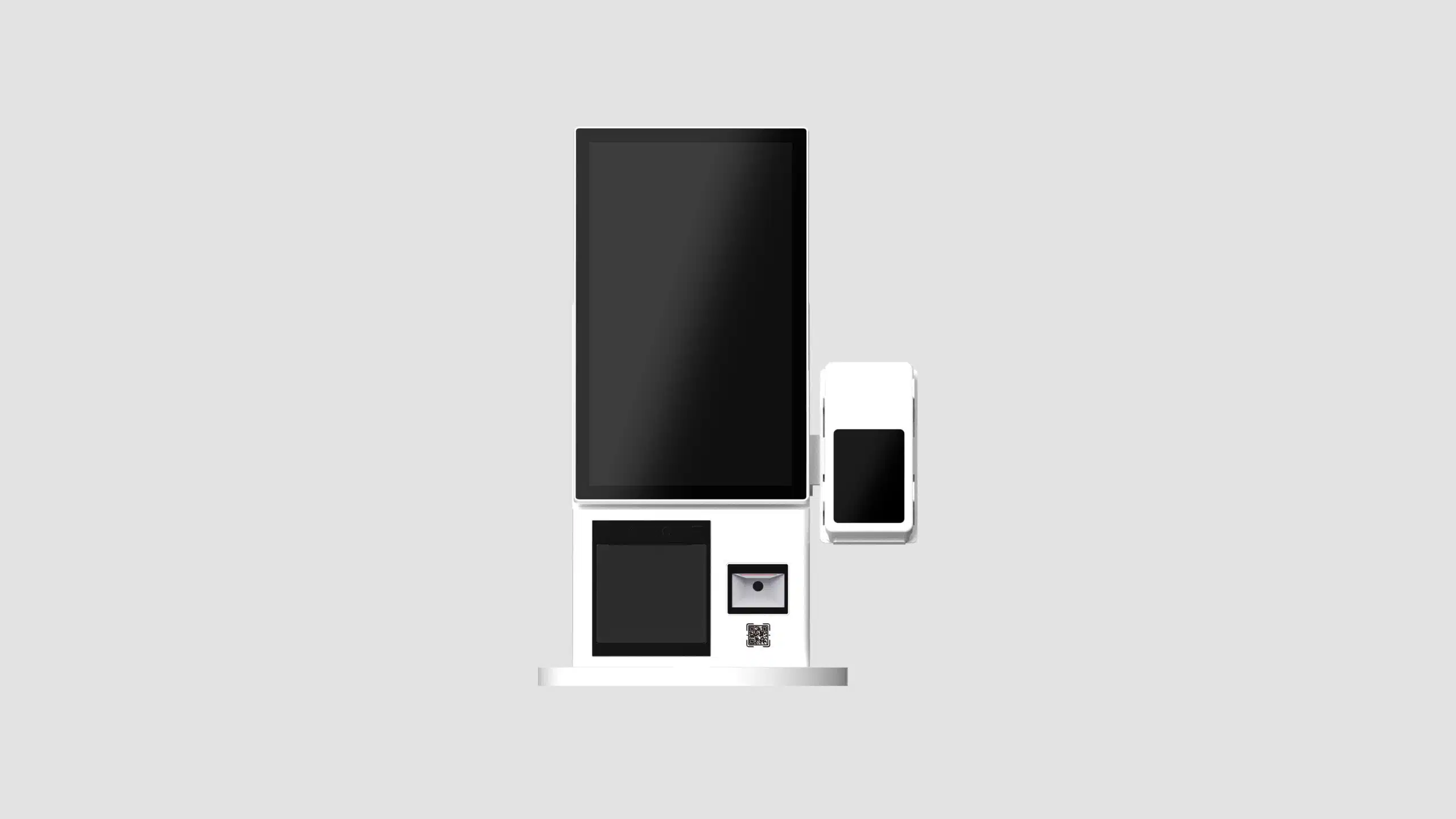

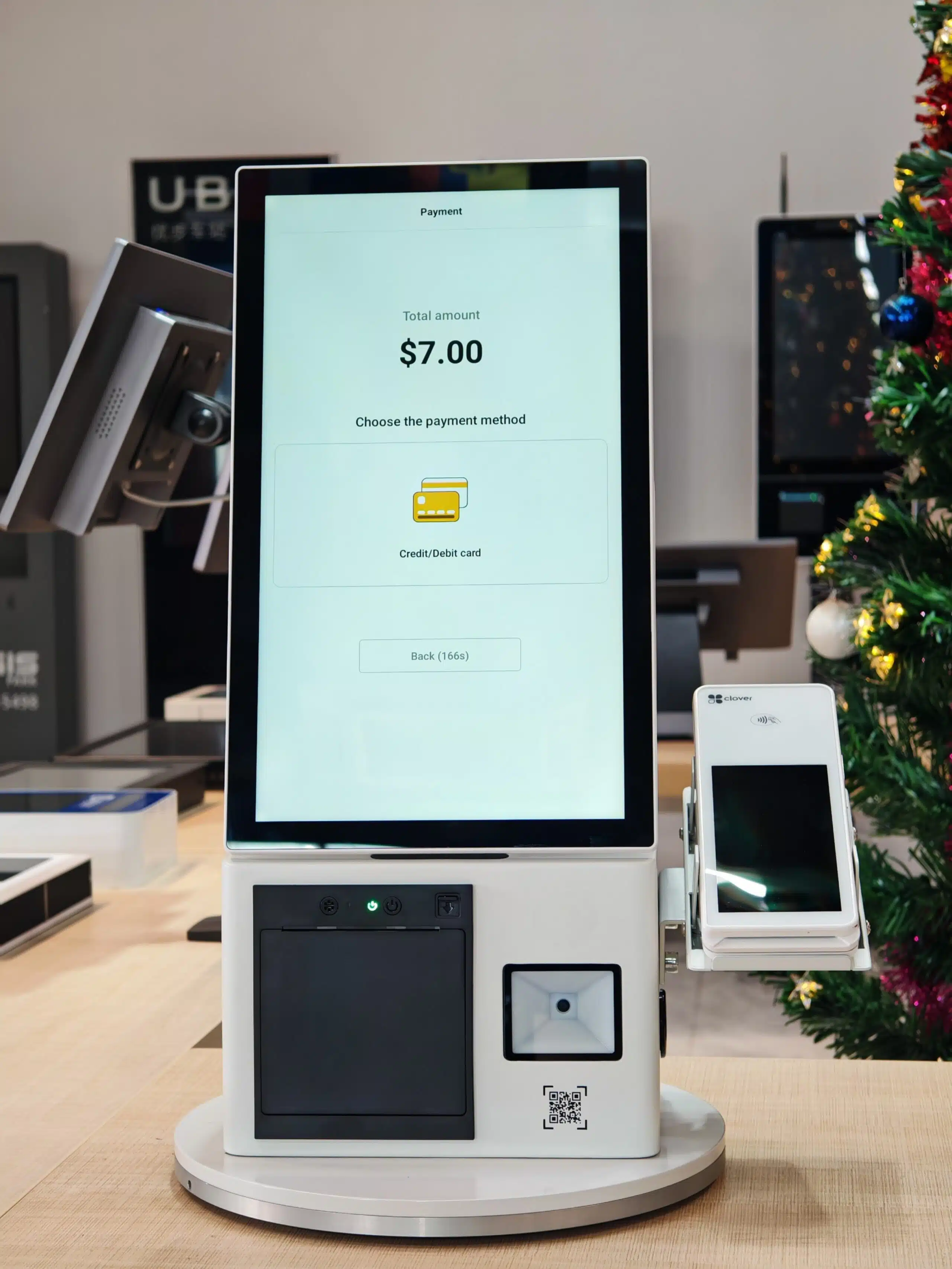

Self-Order Kiosk-K8
The Kiosk-K8 is the newest-generation self-service kiosk launched in 2024. Designed for high-efficiency environments like convenience stores, retail outlets, and quick-service venues.
Description
Product Overview
Compact. Cost-Effective. Feature-Rich.
The Kiosk-K8 is the newest-generation self-order kiosk launched in 2024. Designed for high-efficiency environments like convenience stores, retail outlets, and quick-service venues, it combines a compact form factor with rich hardware capabilities, offering a highly flexible and affordable kiosk solution.
Whether you’re deploying a mini kiosk for self-checkout, a barcode scanner kiosk for inventory management, or a POS kiosk with printer, the Kiosk-K8 delivers the performance and reliability you need in a modern, space-saving design.
Technical Specifications
| Board | CPU | Cortex-A55×4 RK3568,2.0Ghz Intel®Alder Lake-N95/97 CPU 4C/4T Intel 11/12th Core i3/i5/i7Cache |
| System Memory | DDRIII G,up to 16GB | |
| Display | TFT LED | 15.6”,21.5” |
| Brightness | 260-300nits | |
| Resolution | 1920×1080 | |
| Touch Screen | True Flat Projected Capacitive Technology | |
| Storage | eMMC/MSSD | eMMC8Gup to 16G/32G/64G/128G mSSD 64G/128G/256G/512G |
| I/O Ports-Extemal | DC Input | 1x Mini Din 2P(DC 12V only) |
| Network(LAN) | 1×Gigabit Ethemet by RJ-45 | |
| USB Port | 2×USB 2.0/2×USB 3.0 | |
| Serial Port | 1x RS-232 | |
| Audio | 1x Line-out | |
| Printer | 58mm/80mm Thermal Printer | |
| Code Reade | 1D/2D Code Rade | |
| Speaker | 2×5W Internal Speaker | |
| Camera | Front:2MP/Rear:8MP(Optional) | |
| Connection | Wifi 802.11b/g/n;Bluetooth 4.1 | |
| Opdonal | POS/NFC Card/Camera | |
| Power Supply | DC Model:120Watts,Voltage:+12VDC10A max | |
| Color | Whitc Black | |
| Certifications | cCC,CE,FCC,RoHS,UKCA,KC,ETL | |
| oSSupport | Android 11 Windows 10/11,Linux | |
Key Features
Flexible CPU Platform
ARM-based: Cortex-A55 ×4 (RK3568, 2.0GHz)
Intel® Alder Lake-N: N95/N97 (4C/4T)
Intel® 11th/12th Gen Core™: i3/i5/i7 (with cache)
System Memory
DDR RAM: 2GB up to 16GB
High-Definition Display
Sizes: 15.6-inch / 21.5-inch TFT LED
Resolution: 1920×1080 Full HD
Brightness: 260–300 nits
True Flat Projected Capacitive Touch Screen
Flexible Storage Options
eMMC: 8GB / 16GB / 32GB / 64GB / 128GB
mSSD: 64GB / 128GB / 256GB / 512GB
Modular I/O Ports
2 × USB 2.0, 2 × USB 3.0
2 × RS-232, 1 × Line-out
1 × Gigabit Ethernet (RJ-45)
1 × Mini Din 2P (DC 12V only)
Built-in Thermal Printer
Supports 58mm / 80mm receipt printing
Ideal for payment, ticketing, and check-in kiosks
Camera & Barcode Scanner (Optional)
Front 2MP / Rear 8MP camera (optional)
1D/2D barcode reader integration
Suitable for user verification, QR check-ins, and mobile scanning
Built-in Speakers
2 × 5W internal speakers for voice prompts or media playback
Connectivity & Expansion
Wireless: 802.11 b/g/n Wi-Fi, Bluetooth 4.1
Optional: NFC, POS card reader, camera
Power Supply
DC Model: 120W, +12VDC, 10A Max
Customizable Design
Available in classic White + Black color scheme
Certifications: CCC, CE, FCC, RoHS, UKCA, KC, ETL
Operating System Support
Android 11
Windows 10/11
Linux
Typical Applications
Retail / Mini Stores: Self-checkout kiosk, product lookup
QSR / Cafes: Self-ordering terminal, ticket printing
Healthcare / Clinics: Self-registration and queueing
Transportation / Events: Ticketing and ID scanning
Smart Buildings: Access control, visitor check-in
Why Choose the Kiosk-K8?
Ultra-compact, ideal for space-limited environments
Rich in features but highly cost-effective
Supports multi-system deployment (Android kiosk, Windows kiosk)
Built-in printing and scanning functions
Designed for 24/7 commercial use
Frequently Asked Questions
Q1: Can I choose between Android and Windows OS?
A: Yes. The Kiosk-K8 supports Android 11, Windows 10/11, and Linux, depending on the CPU platform you choose.
Q2: What is the screen resolution and size?
A: The K8 is available with 15.6″ or 21.5″ full HD (1920×1080) displays using projected capacitive touch technology.
Q3: Is the K8 a modular kiosk?
A: Absolutely. From CPU, storage, printer, scanner, to optional features like NFC or cameras, all can be customized for your needs.
Q4: Can I use it as a POS kiosk with a printer and scanner?
A: Yes, it integrates both thermal printers and 1D/2D barcode scanners, making it ideal as a POS kiosk for retail or food service.
Q5: What connectivity options are available?
A: The K8 supports both wired (RJ-45) and wireless (Wi-Fi, Bluetooth) connections, with optional NFC and card reader expansion.
