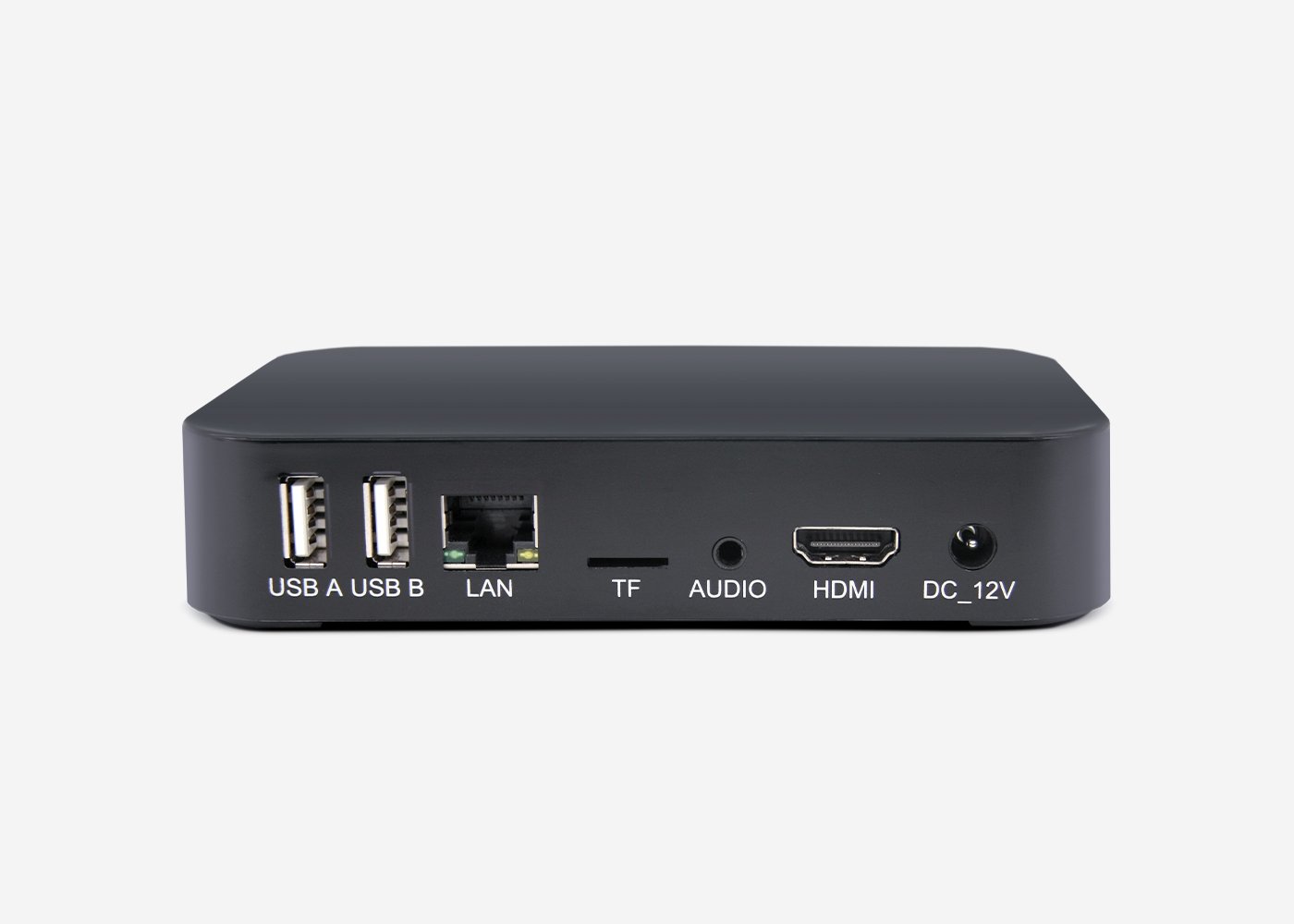

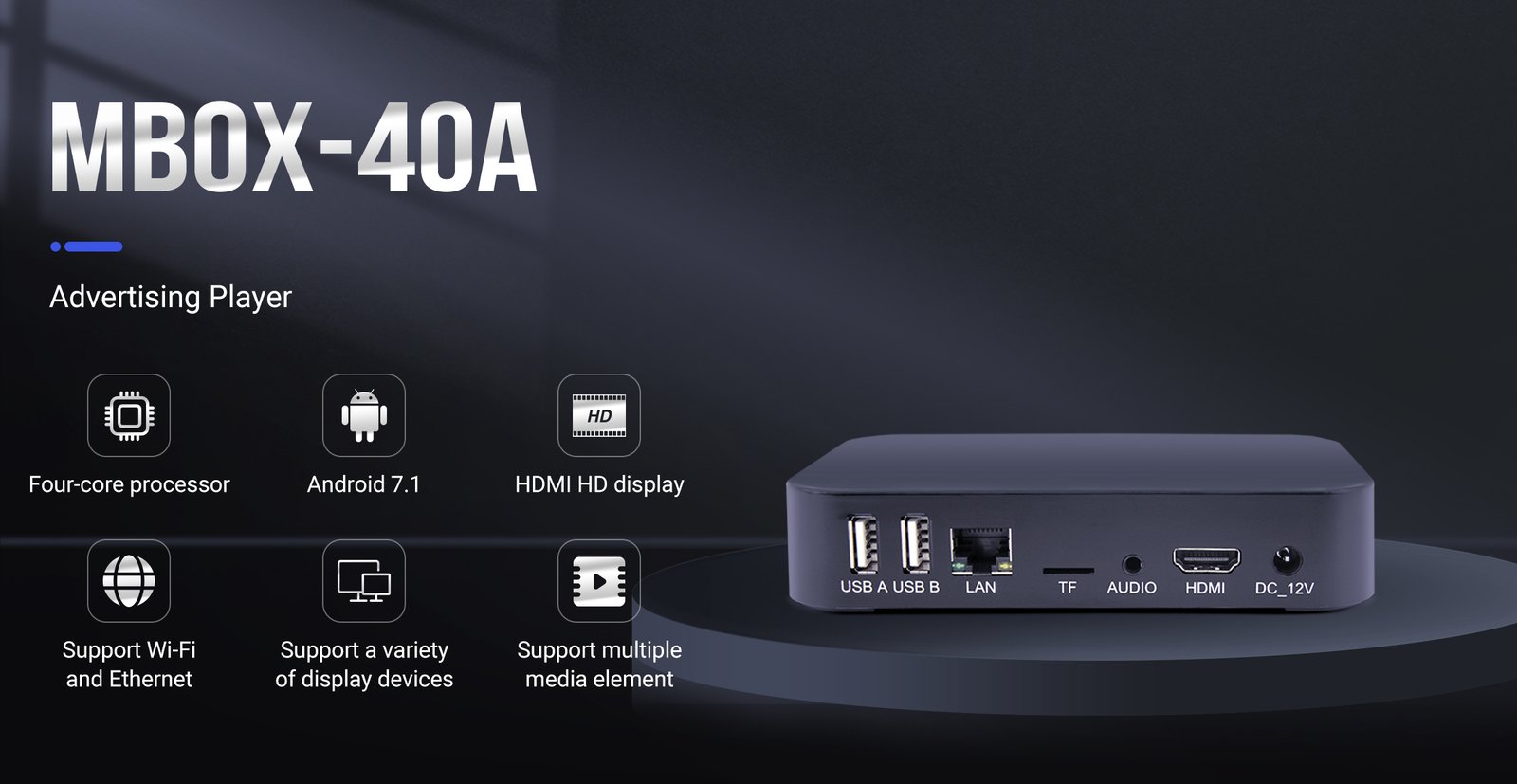

MBOX-40A – Android Cloud Information Publishing Box
MBOX-40A is a smart Android signage box with A40i quad-core CPU, HDMI 1080P output, split-screen playback, remote scheduling, and WiFi/100M Ethernet. Ideal for digital signage and commercial displays.
Description
Overview
The MBOX-40A is a high-performance Android-based cloud information publishing box, engineered for commercial and residential display devices. Featuring a quad-core Allwinner A40i processor, 1080P output, split-screen support, and full cloud control, it’s ideal for digital signage, advertising displays, e-class signs, and smart tablets.
Product Highlights

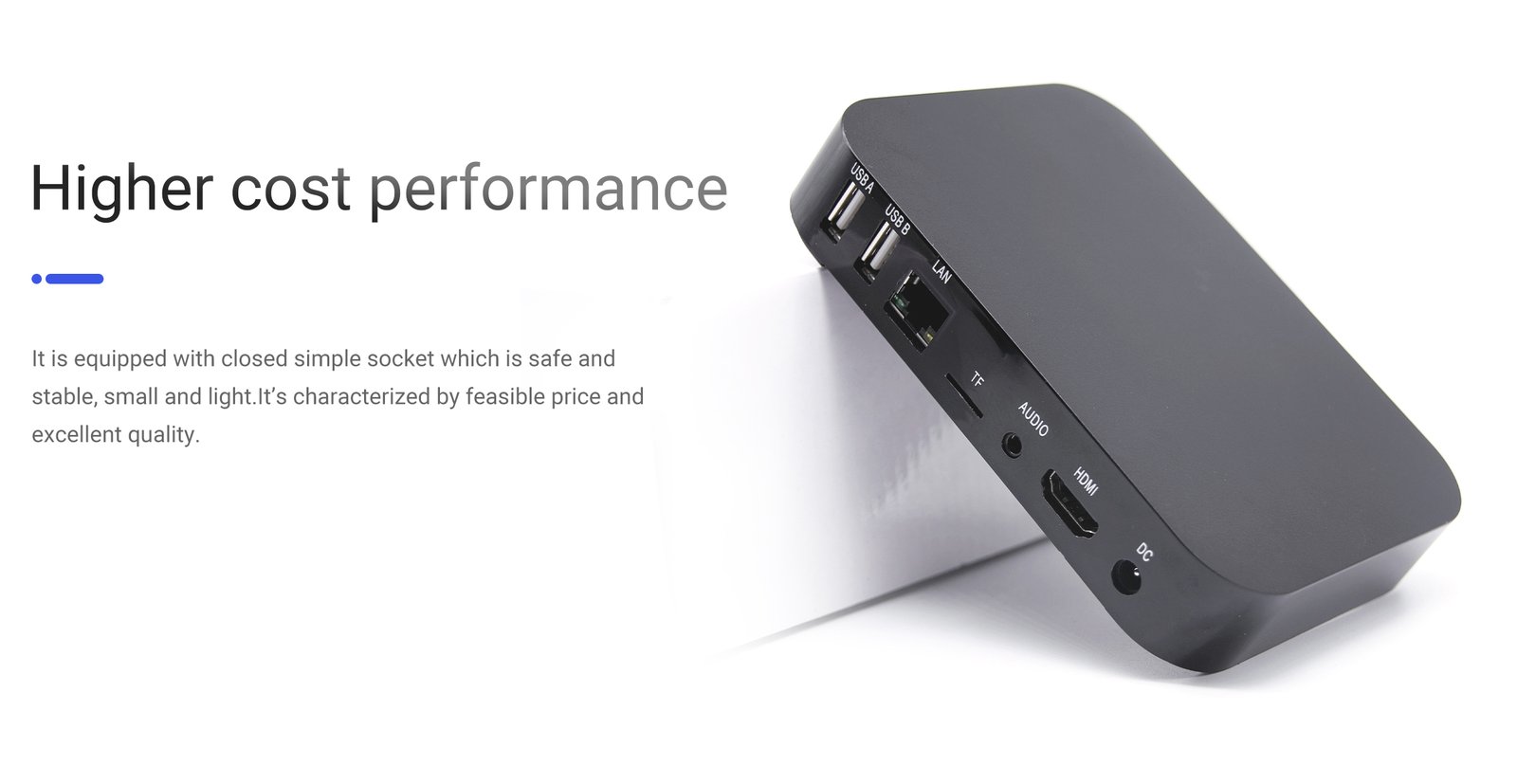

Compact and Cost-Efficient Design
- Lightweight and portable
- Secure and stable closed-socket design
- Affordable pricing and excellent quality-performance ratio

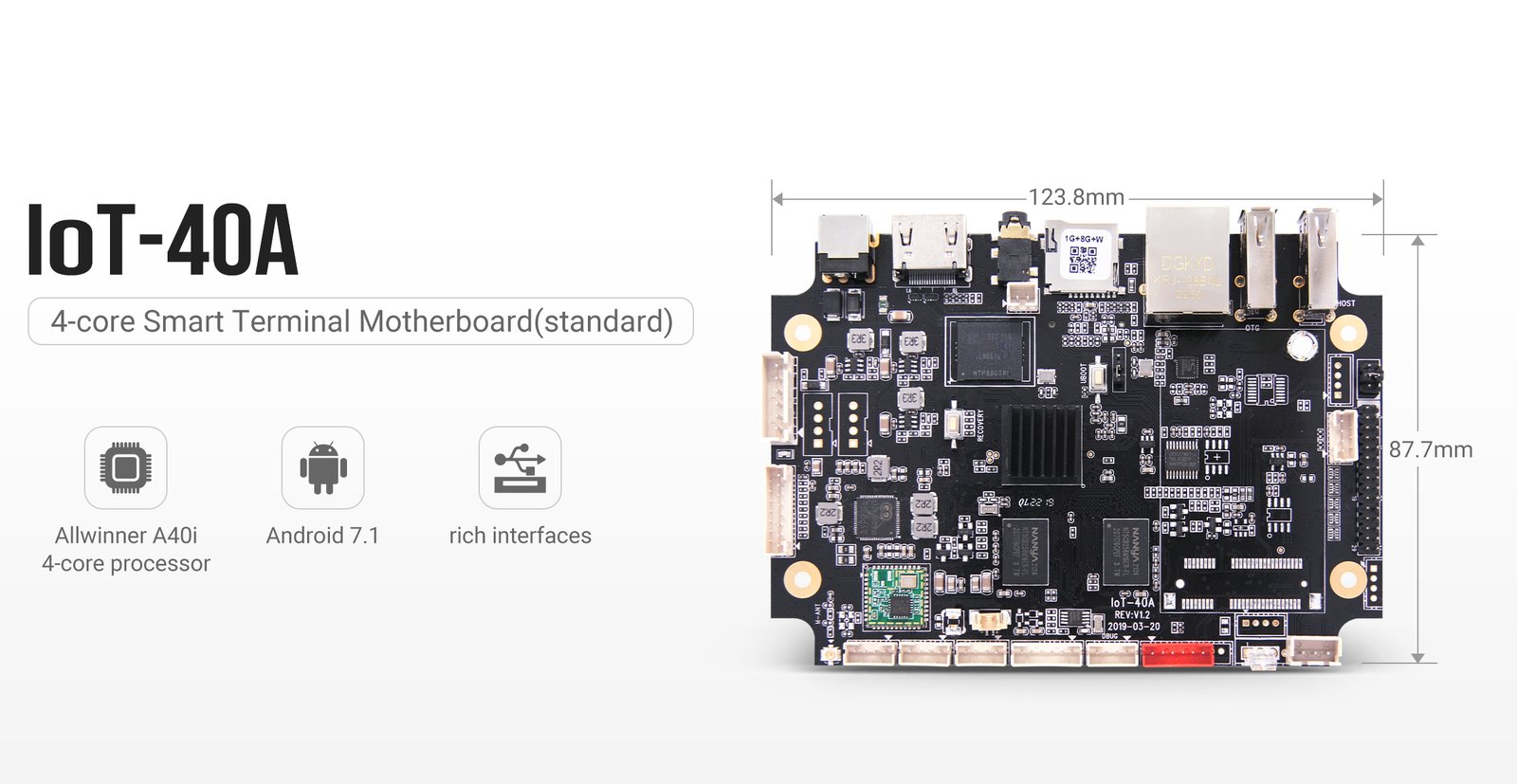

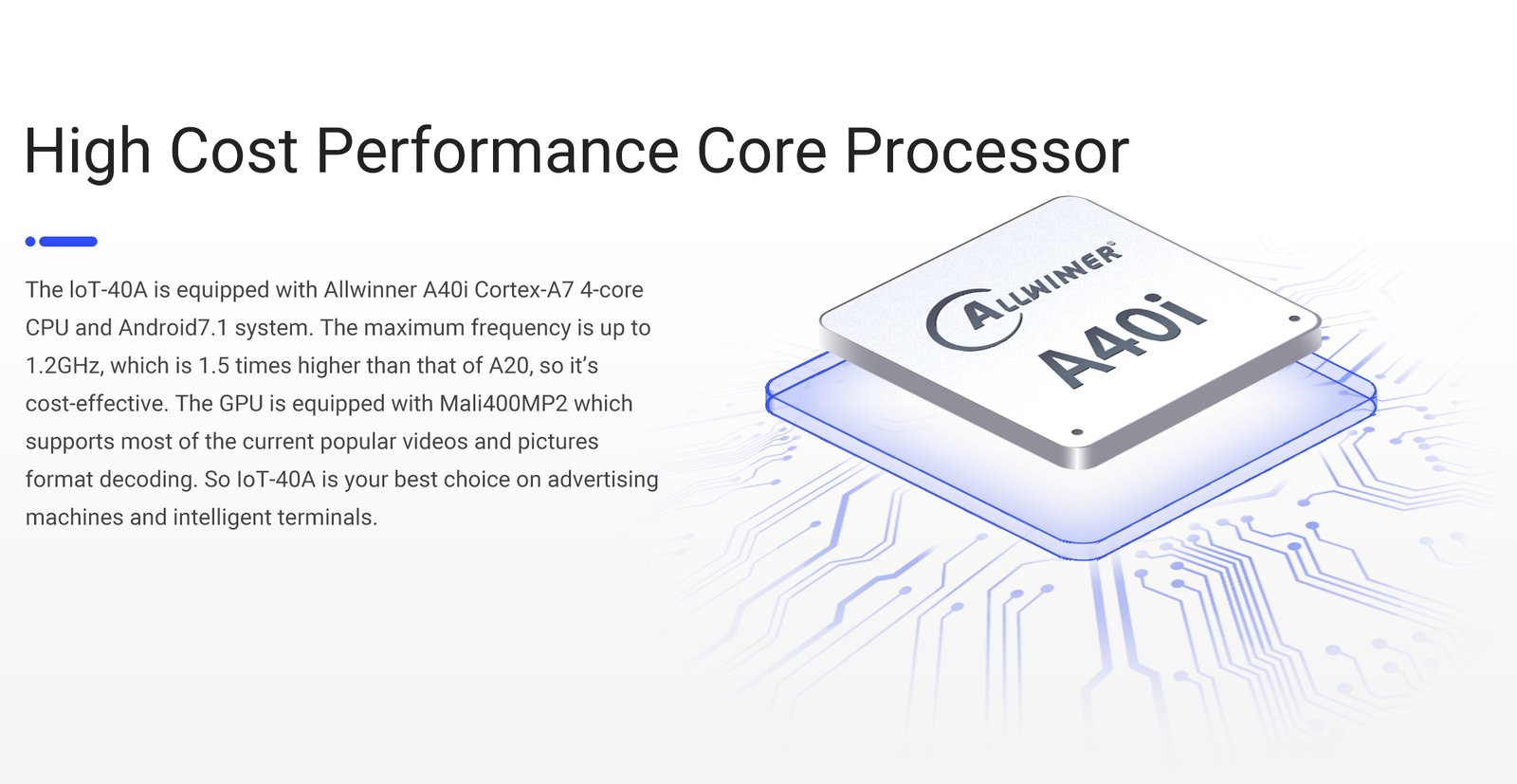

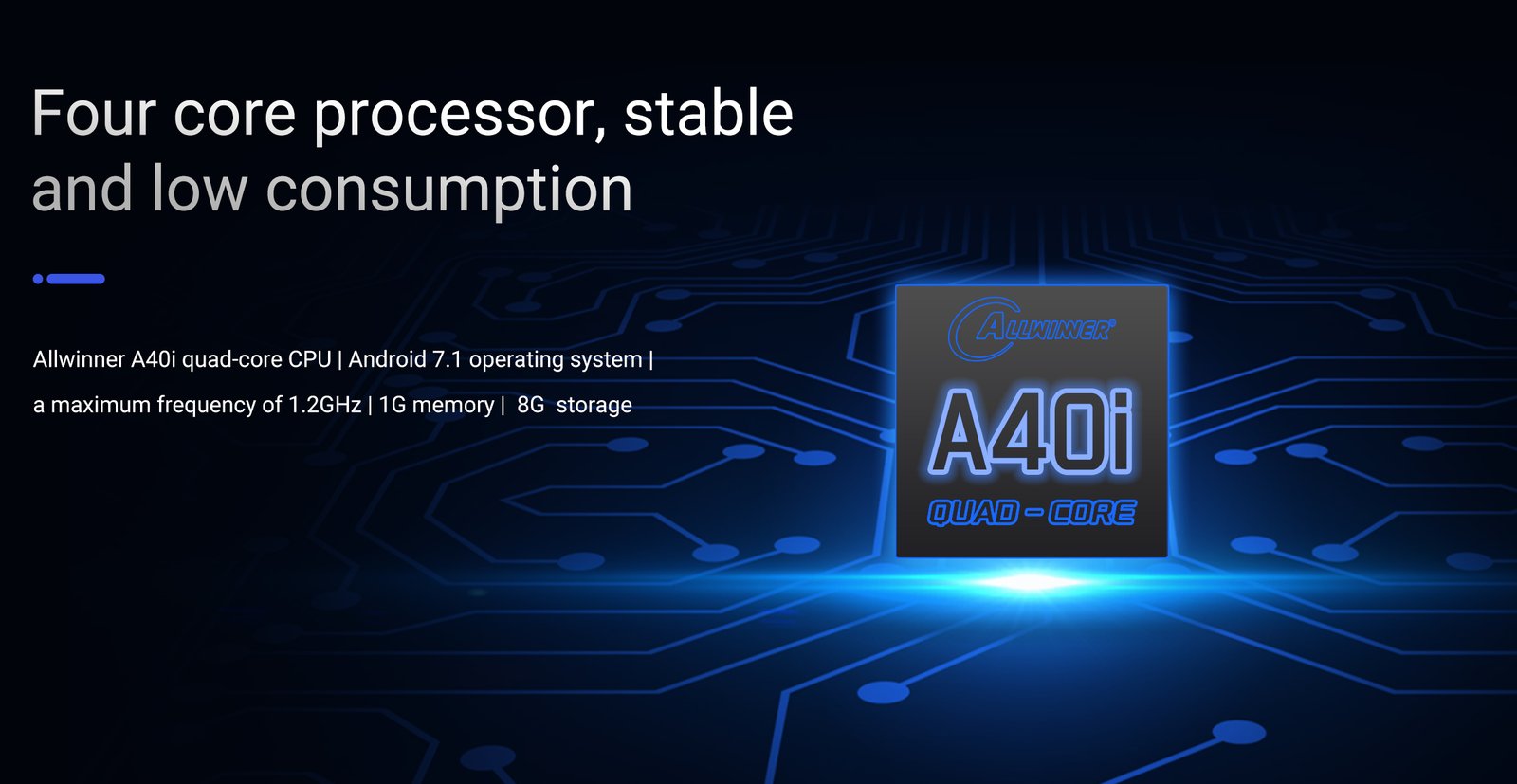

Powerful Quad-Core Performance
- Processor: Allwinner A40i (Cortex-A7), 4-core, 1.2GHz
- Memory: 1GB RAM
- Storage: 8GB eMMC
- Operating System: Android 7.1
- GPU: Mali400 MP2 – supports smooth 1080P video decoding

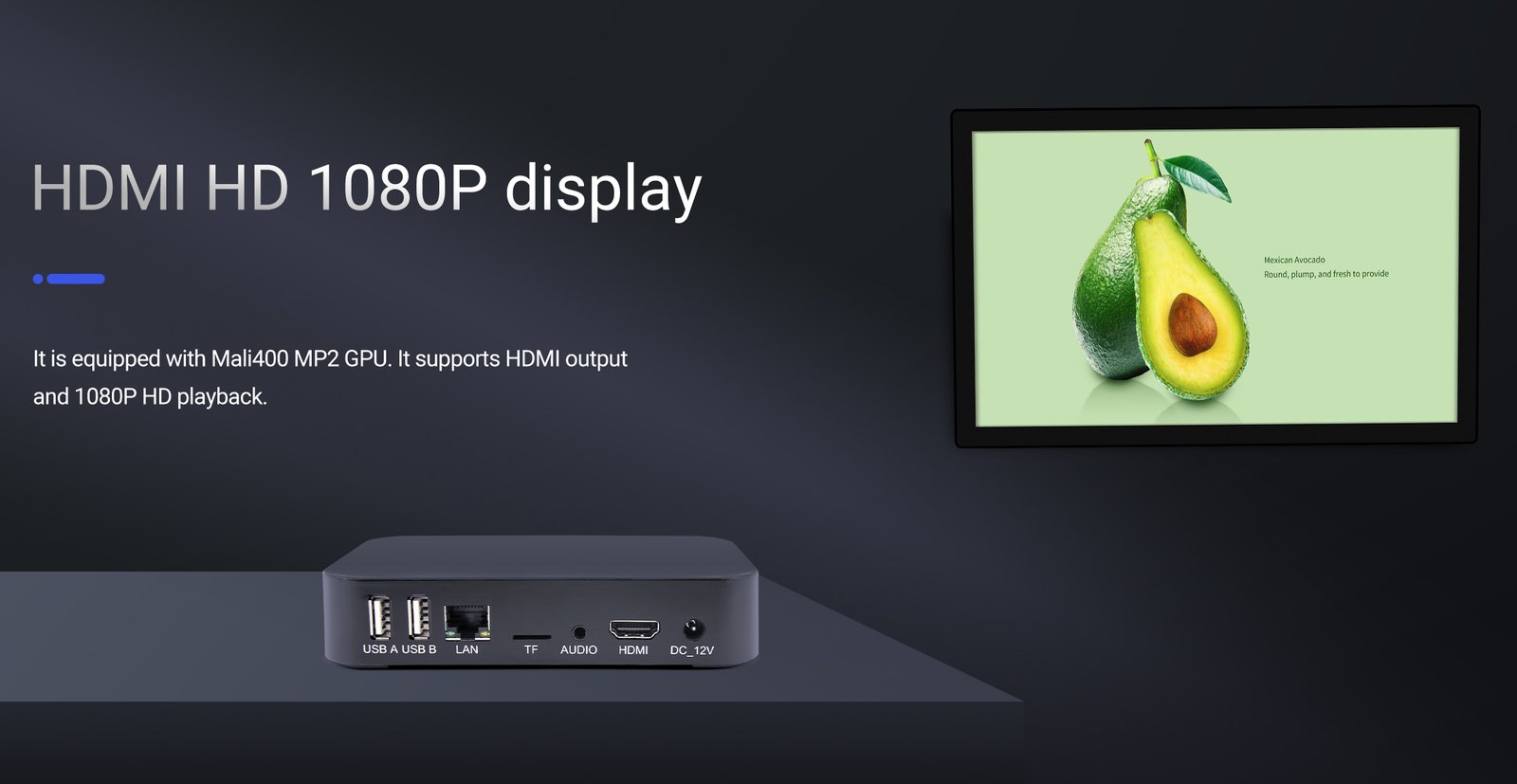

1080P Full HD Display Output
- HDMI output with support for 1920×1080 resolution
- Ideal for high-definition screens and display signage
- Sharp video and rich color rendering
Flexible Multi-Screen & Split-Screen Display
- Custom split screen layout configuration
- Play multiple media elements on horizontal or vertical screens
- Simultaneous playback of videos, music, images, webpages, and more
- Supports interactive apps and touchscreen integration
Reliable Network Access
- WiFi support (Realtek 8188/8732)
- 100M RJ45 Ethernet port
Ensures stable remote content synchronization and program management.

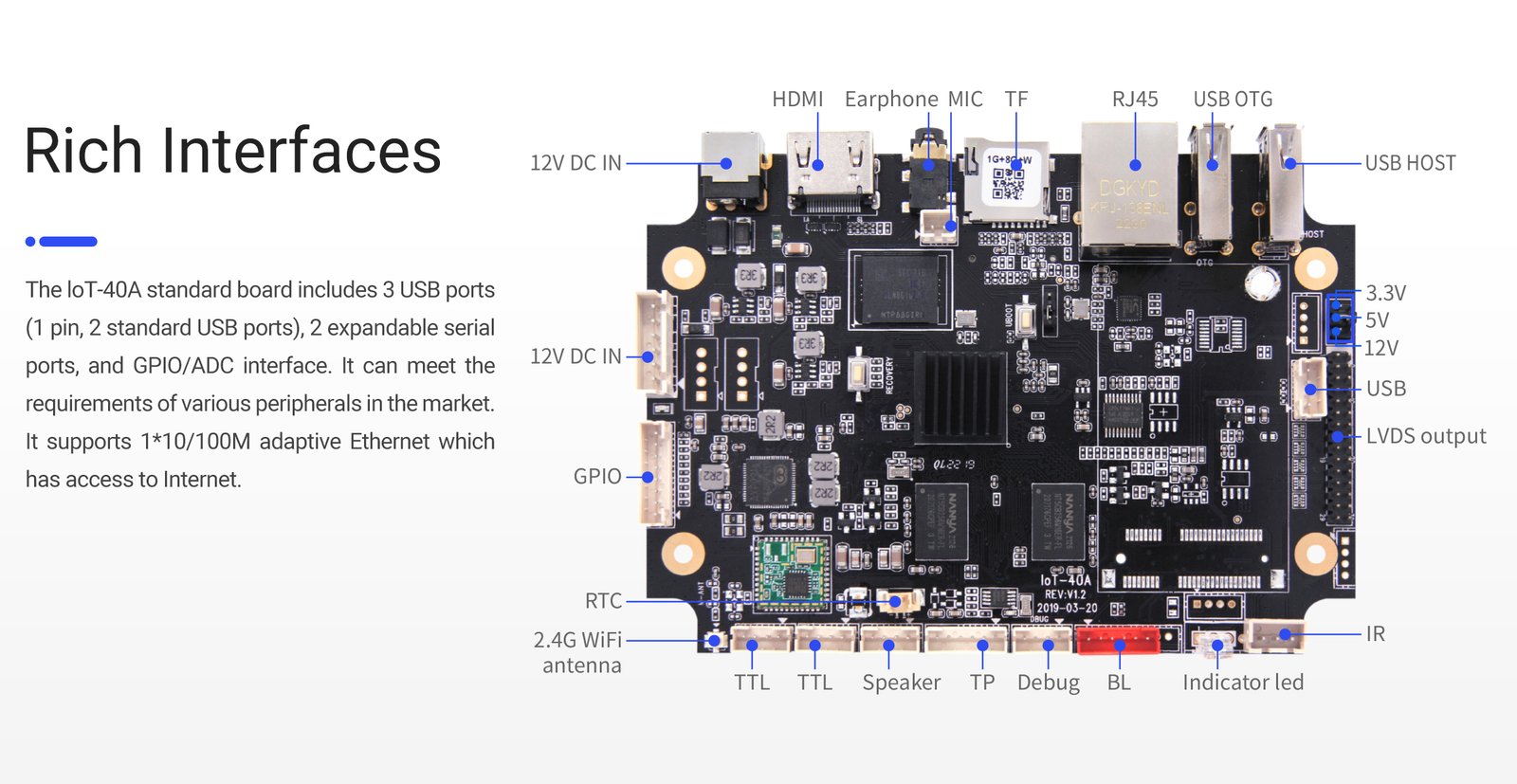

Extended Interfaces
- 2× USB 2.0 ports
- HDMI output
- TF card slot
- AV input/output: 3.5mm jack
- Easy connectivity with peripherals like remote controls, USB drives, or sensors

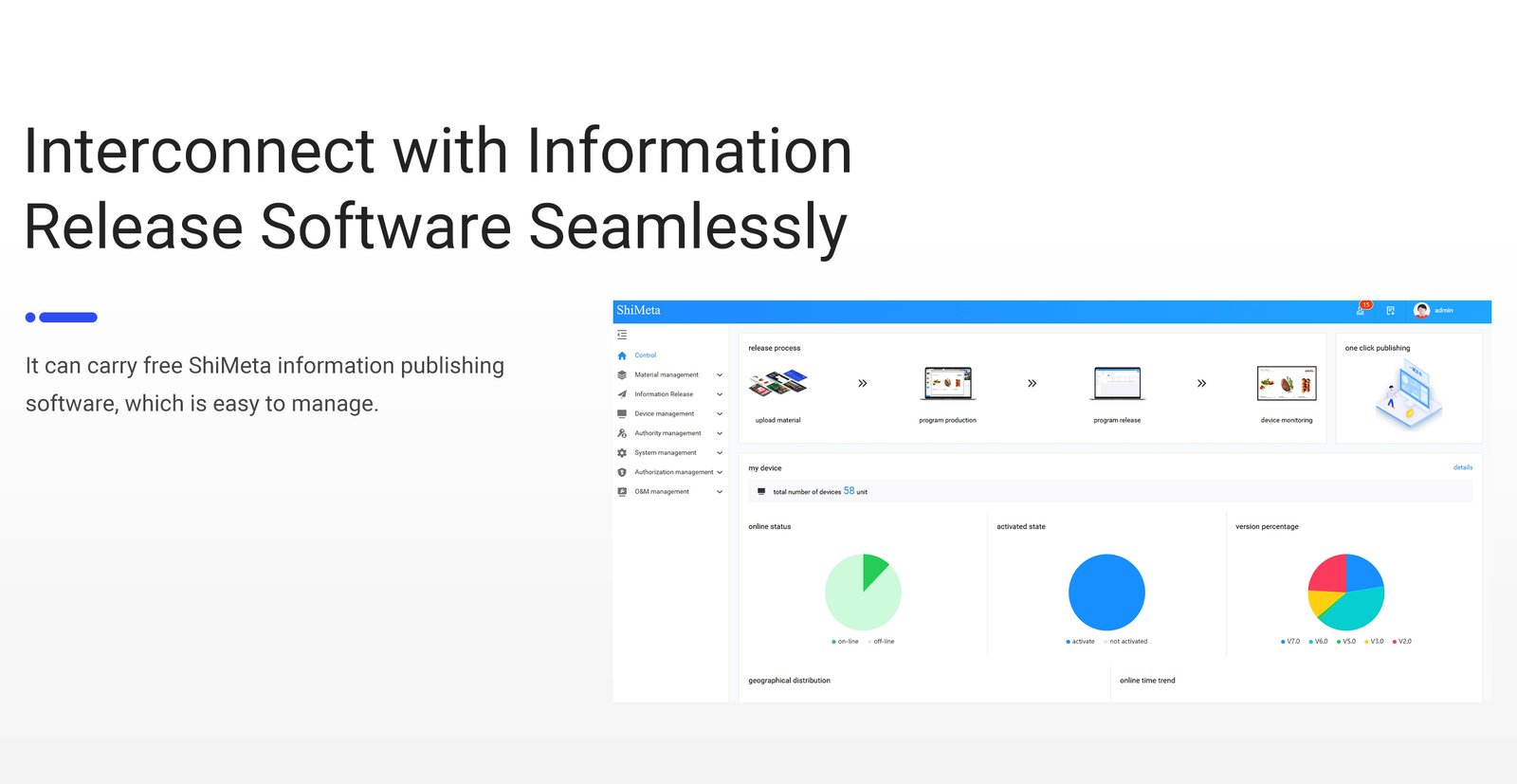

Cloud Information Publishing System
MBOX-40A is equipped with DC MIPS Cloud Multimedia Information Publishing Software, compatible with:
- LCD panels, LED splicing walls
- Advertising machines
- Projectors, smart TVs
Perfect for centralized remote content scheduling and management.
Advanced Functions
✅ Multi-Media Element Support
- Compatible with: video, image, audio, HTML pages, documents, live streams, HDMI-IN, APKs
- Supports multi-type broadcast combinations and touch query interactions
✅ Scheduled Program Playback
- Add, insert, or replace mode
- Set by time slots (e.g., morning ads, afternoon menu)
- Valid period and automatic cycling available
✅ Remote Device Management
- View and manage each terminal’s config, status, and release history
- Control power, boot, volume, app launching, scheduling, and firmware updates remotely
✅ Offline Program Continuity
- When the device is offline, it continues playing stored content
- Queued updates resume once network connection is restored
Specifications
Parameter | Description |
CPU | Allwinner A40i, Quad-Core, 1.2GHz |
Memory / Storage | 1GB RAM / 8GB eMMC |
OS | Android 7.1 |
Interfaces | 2× USB 2.0, HDMI, RJ45, TF card, AVIN/headphone |
Display Output | HDMI 1080P |
Network | WiFi + 100M Ethernet |
Power | 12V/2A |
Dimensions | 138 × 98 × 25mm |
Operation Temp. | 0–60°C (working), -20–70°C (storage) |
Humidity | ≤95% RH @ 40°C |
Function | Supports text/video/image/web/time/weather/clock/info split/HD video |
Packaging | 1× 12V2A power adapter, 1× remote control |

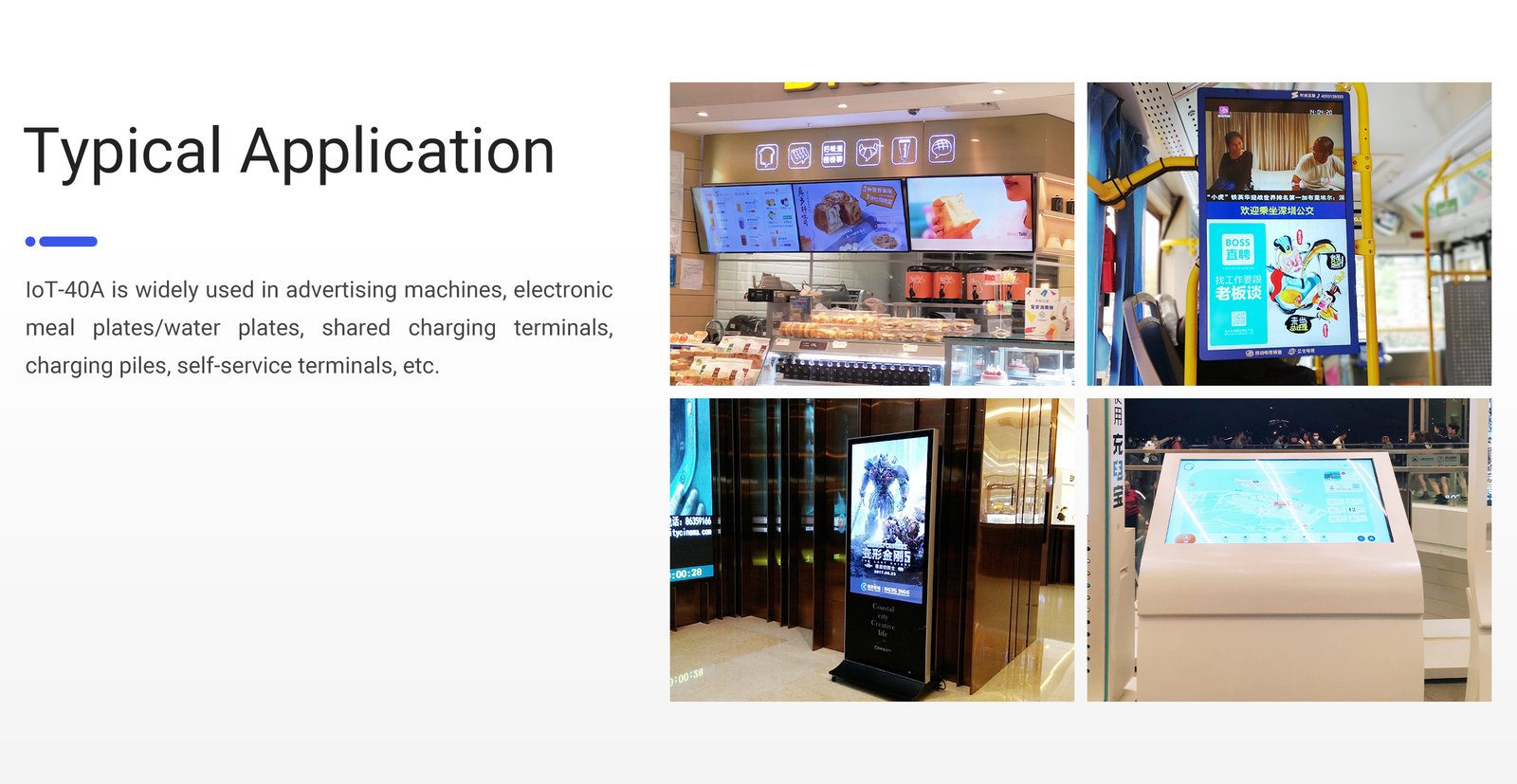

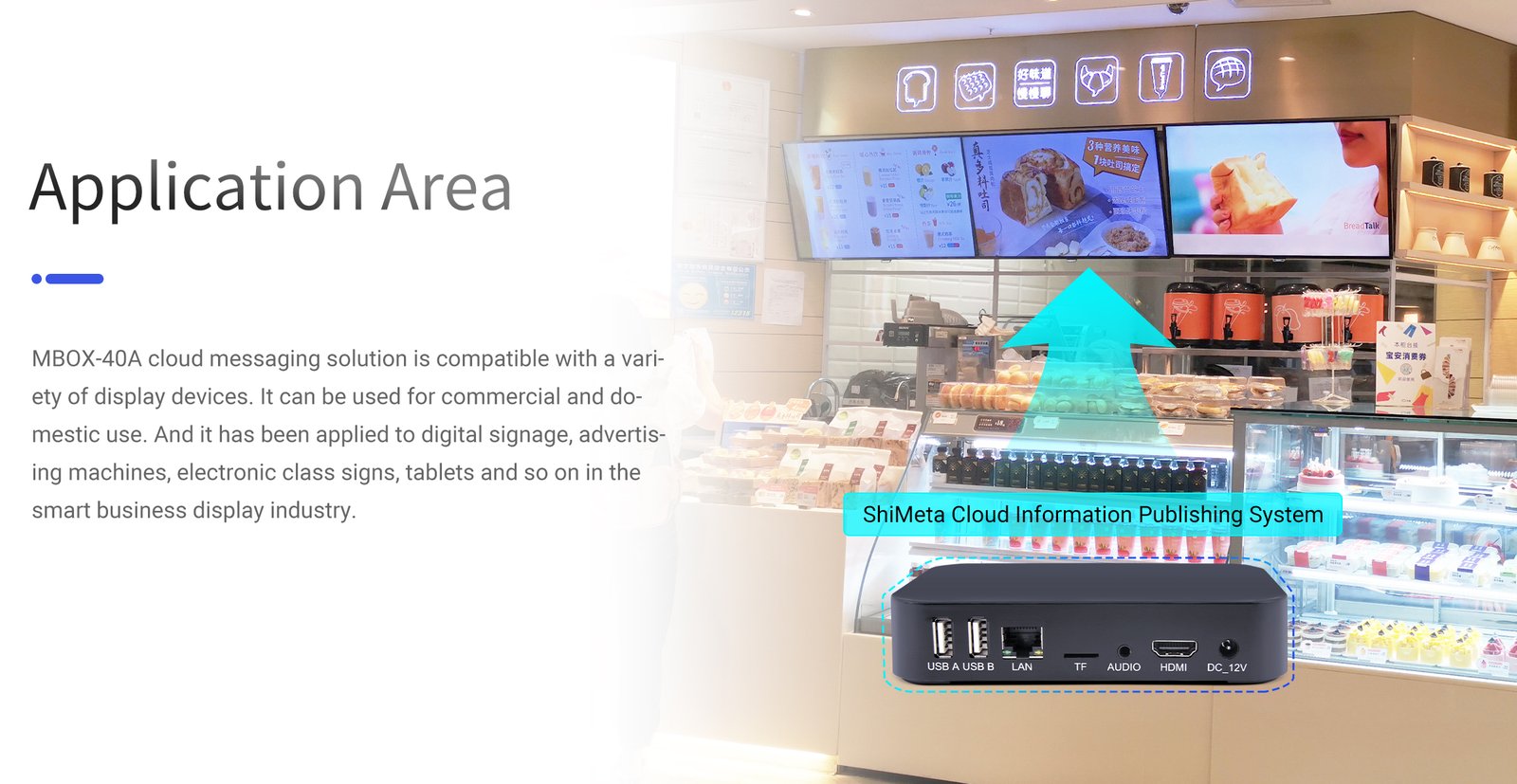

Application Scenarios
The MBOX-40A is widely used in:
- Digital signage
- Commercial advertising machines
- Electronic menu boards
- Smart tablets and class signs
- Retail and restaurant terminals
- Home display and content broadcast systems
Frequently Asked Questions (FAQ)
What media formats does MBOX-40A support?
Video, audio, images, web pages, documents, APKs, HDMI-IN, touch queries, and live streams.
Can I control it remotely?
Yes. It supports full remote device management, playback scheduling, volume, app launch, and updates.
Does it support vertical screen displays?
Yes, both vertical and horizontal screen orientations are supported with flexible split-screen layout.
Is offline playback supported?
Yes. Content is cached and resumes upon reconnection
Can it play 1080P video continuously?
Absolutely. It supports 1080P full HD playback via HDMI.
