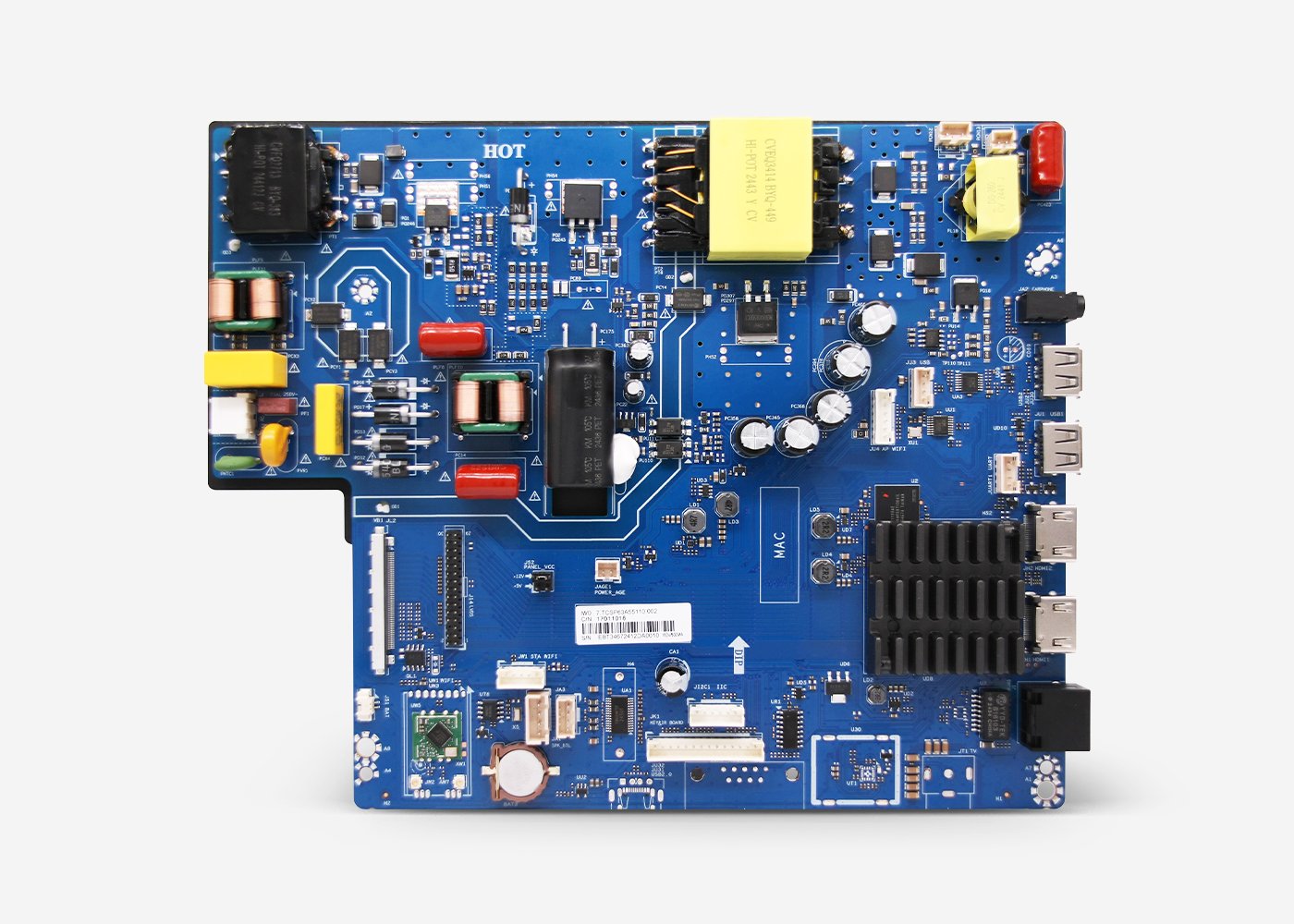

DS-963B 4K 3-in-1 Digital Signage Motherboard
DS-963B is a 3-in-1 Android signage motherboard supporting 4K V-by-One output, dual HDMI-IN, adaptive backlight, and optional TV receiving module for high-performance display systems.
Description
Powerful Core for Smooth Operation
The DS-963B motherboard is built with an Amlogic T963 quad-core processor (up to 1.8GHz) and runs Android 9 OS, delivering powerful performance for complex data processing, smooth video playback, and reliable long-term operation in digital signage environments.
4K Ultra HD + Versatile Display Output
- V-by-One Output: 1×V-by-One output supports 8-lane transmission and up to 4K resolution, delivering rich, vivid images.
- LVDS Output: 1×LVDS interface expands compatibility for diverse screen formats and display solutions.
Dual HDMI-IN for Flexible Input Sources
With 2×HDMI-IN ports (up to 4K@60Hz), DS-963B supports seamless switching between HD signal sources such as:
- Computer hosts (for presentations or signage content)
- Video players or set-top boxes (for multimedia streaming)
- Perfect for dynamic content applications and signal relay needs.
Adaptive LED Backlight Integration
- Supports both 2-pin and 3-pin backlight interfaces
- Backlight power supported: ≤80W / ≤100W
- Adjustable current via software for precise brightness control
- Voltage configuration provided based on screen size, ensuring optimal display effect across multiple display types.
Rich I/O for Peripheral Expansion
- 3×USB ports, 1×UART, 1×IIC
Optional RS232 interface for industrial control and system integration
These ensure strong expandability for smart terminal scenarios like kiosks, interactive boards, and intelligent signage systems.
Strong Network Connectivity
- Supports 10/100M adaptive Ethernet for high-volume data transfer
- Built-in WiFi for wireless communication
- Optional Bluetooth (via RTL8822CU module) to connect to nearby devices and sensors
Ideal for remote management, data interaction, and multi-device deployment.
Optional Digital & Analog TV Module
DS-963B supports optional TV receiving module with DTMB digital and PAL analog decoding.
Devices with this feature may qualify for 15% government subsidy under new information consumption policies—helping manufacturers reduce hardware costs.
System Customization & Secondary Development
Offers full support for Android customization, including:
- API interfaces for app integration
- Reference code to speed up secondary development
Greatly shortens project deployment cycle and enables highly tailored application environments.

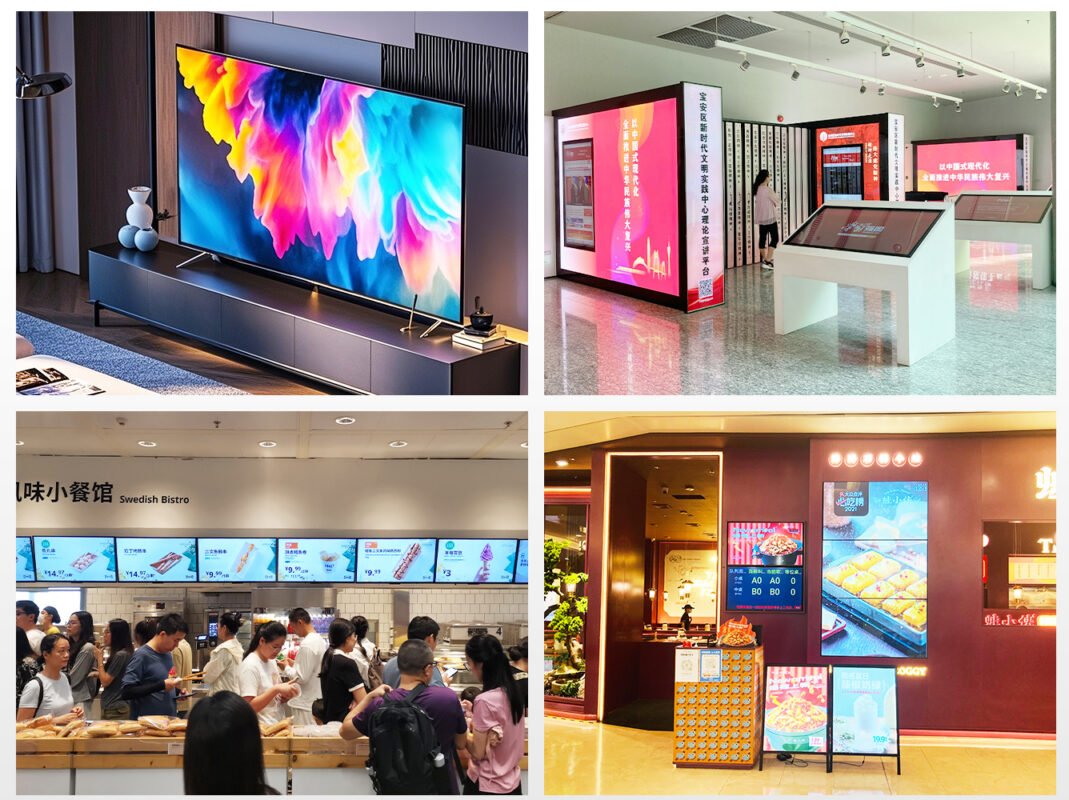

Application Scenarios
The DS-963B is designed for a wide range of smart display solutions, such as:
- 4K advertising display machines
- Electronic menu boards or water signs
- Mobile signage systems
- TV-integrated public terminals
- Self-service kiosks in retail or transportation
Frequently Asked Questions
What is the “3-in-1 design” of the DS-963B motherboard?
It integrates the mainboard, power module, and LED backlight driver into a compact design—saving space, reducing cabling, and simplifying installation.
What display outputs are supported?
The DS-963B supports:
- 1×V-by-One (8-lane) output, up to 4K resolution
- 1×LVDS output, compatible with various LCD panel formats
Does the board support HDMI input?
Yes, it features 2 HDMI-IN ports, both supporting up to 4K@60Hz, allowing it to handle multiple HD signal sources such as computers, players, and set-top boxes.
Is TV signal decoding supported?
Yes. An optional module supports decoding of PAL analog TV and DTMB digital TV signals. Devices integrating this module may qualify for government subsidies (up to 15%).
How does the backlight adaptation work?
It supports both 2-pin and 3-pin backlight interfaces, with adjustable current and power (≤80W/100W). Backlight parameters can be fine-tuned via software to match screen size and ensure ideal brightness.
