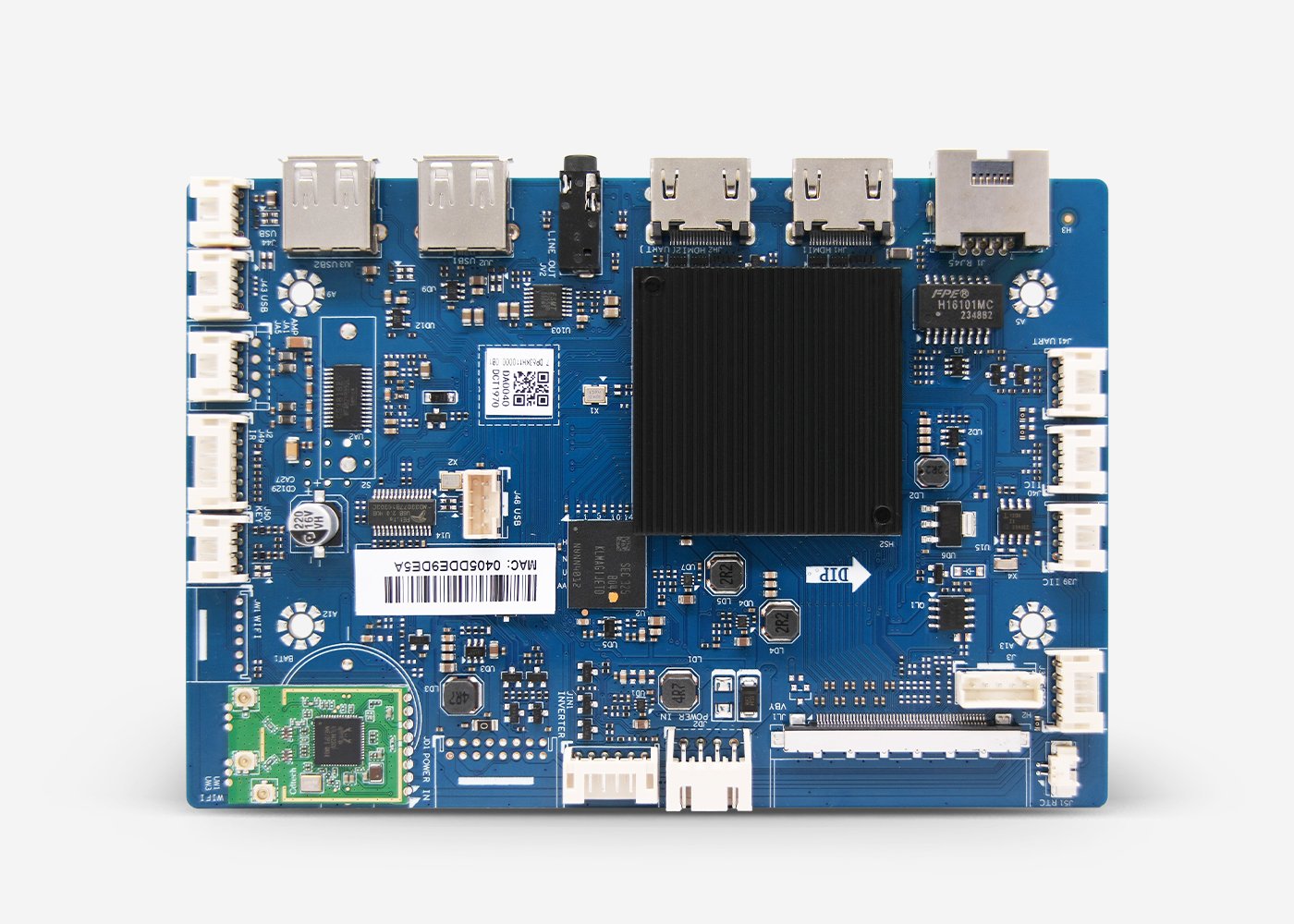

DS-963A 4K Digital Signage Motherboard
Discover the DS-963A Android signage motherboard with quad-core CPU, 4K V-by-One output, dual HDMI-IN, rich interfaces, and WiFi connectivity for commercial digital displays.
Description
High Performance with Efficient Processing
Powered by the Amlogic T963 quad-core processor (up to 1.8GHz) and Mali-G31 GPU, the DS-963A runs on Android 9 OS and easily handles complex workloads. It delivers smooth, stable, and efficient operation for long-running digital signage applications.
4K Ultra HD Visual Experience
With V-by-One display output and 8-lane configuration, this board supports 4K resolution with vibrant, sharp, and true-to-life visuals. Whether for digital advertising, real-time information display, or art exhibition, it ensures immersive viewer engagement and lasting visual impact.
Dual HDMI-IN for Versatile Input Options
- Features 2×HDMI-IN input ports
- Supports up to 4K@60Hz resolution
- Easily connect multiple HD signal sources (e.g., PCs, media players, cameras)
This dual-input design enhances flexibility for dynamic display applications.
Comprehensive I/O Expansion
- 4×USB ports for external devices
- 1×UART serial port
- 1×IIC interface
These allow seamless peripheral expansion to meet the customized needs of interactive terminals, kiosks, or smart signage systems.
Stable Networking & Multi-Connectivity
- Supports 10/100M adaptive Ethernet
- Built-in WiFi module
- Optional Bluetooth function via RTL8822CU module
Multiple connectivity options ensure reliable data transmission, remote management, and real-time content updates.
Customizable Android System & SDK Support
- Offers complete Android system customization service with:
- System-level API interfaces
- Reference codes for app integration
This empowers developers and integrators to perform secondary development quickly and meet specific project goals.

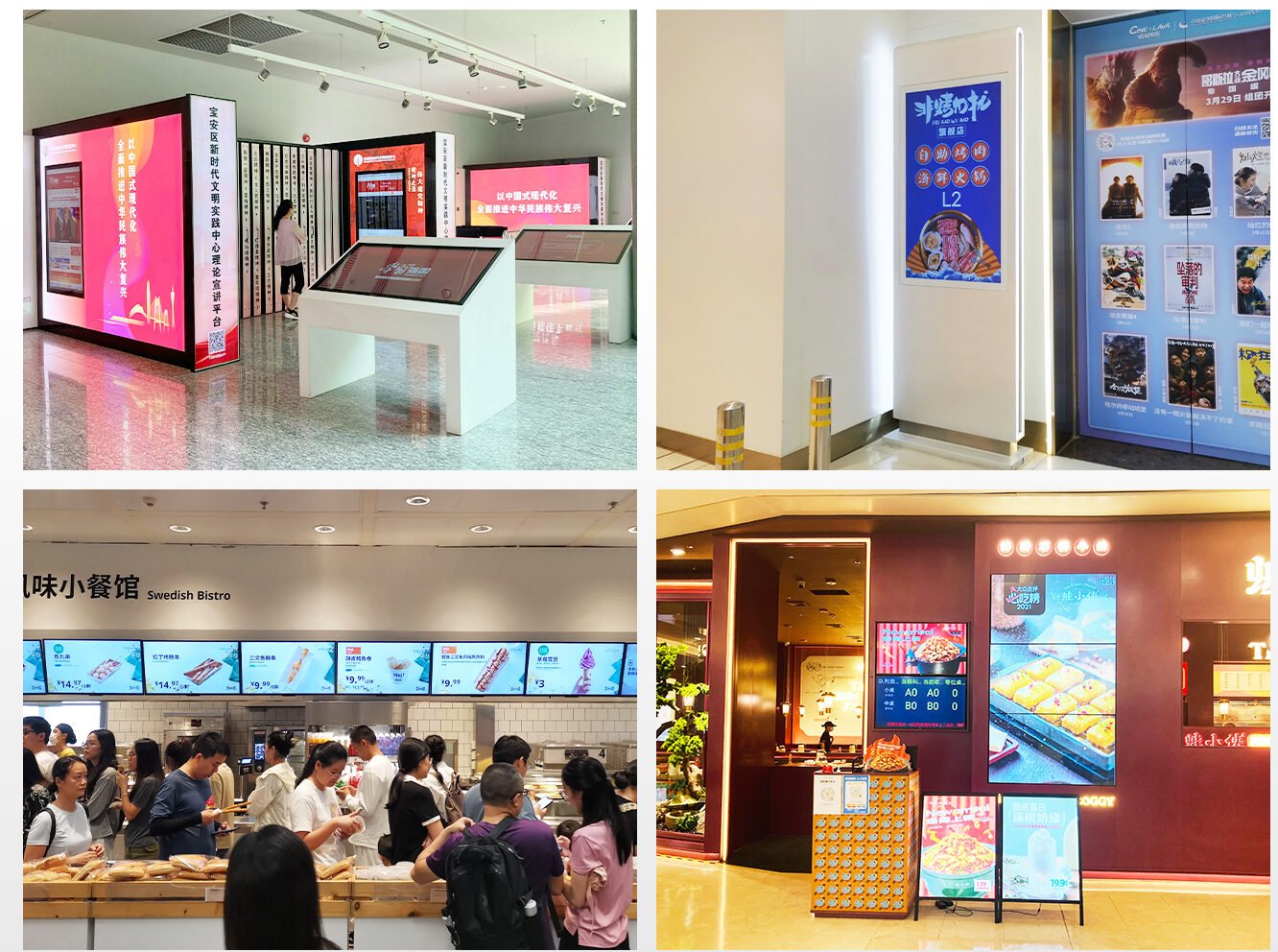

Typical Application Scenarios
The DS-963A is a cost-effective and stable solution widely used in:
- 4K advertising players
- Mobile signage systems
- Digital menu boards
- Self-service terminals
- Art or event display installations
Frequently Asked Questions
What processor and OS does the DS-963A use?
The DS-963A uses the Amlogic T963 quad-core processor (up to 1.8GHz) and runs on the Android 9 operating system for high efficiency and stability.
What display output formats are supported?
The board supports V-by-One output with 8 lanes, enabling up to 4K resolution (3840×2160 @60Hz), suitable for ultra-high-definition digital signage applications.
Can it support multiple video input sources?
Yes. The DS-963A is equipped with 2 HDMI-IN interfaces, allowing it to receive video from two HD sources simultaneously—ideal for dynamic or multi-content display needs.
What peripheral interfaces are available?
It includes 4×USB ports, 1×UART, and 1×IIC, enabling flexible expansion such as USB storage, cameras, sensors, and other input/output devices.
Does it support wireless communication?
Yes. It has built-in WiFi and optional Bluetooth support (via RTL8822CU), in addition to 10/100M Ethernet for reliable networking and remote management.
