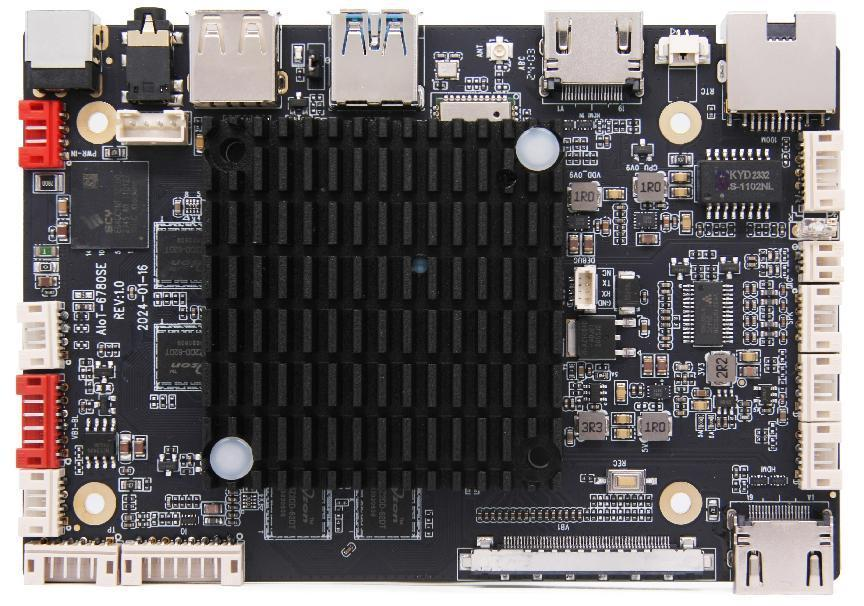

AIoT-6780SE 4K Digital Signage Motherboard
Discover the AIoT-6780SE, a high-performance 4K digital signage motherboard with 8-core processor, HDMI-IN, HDMI/VBY1 output, and support for Android & OpenHarmony systems. Ideal for government, education, and commercial signage.
Powerful 8-Core Processor for Commercial-Grade Signage
The AIoT-6780SE is equipped with the GuoKe GK6780V100 chip—featuring an 8-core Cortex-A55 CPU and 4x Mali-G52 GPU. It supports up to 4Kx2K@60fps or 8Kx4K@30fps H.265/H.264 decoding and 1080p@30fps encoding with low latency. Built-in DRM, TEE, SVP, and encryption ensure secure and smooth media playback.
Dual OS Support: Android & OpenHarmony
Seamlessly switch between Android and OpenHarmony operating systems to meet diverse application and security requirements. Ideal for government institutions and enterprises that demand high data security and system stability.
Ultra HD Display Output with HDMI & V-BY-ONE
Integrated with HDMI and V-BY-ONE display interfaces, the motherboard delivers vivid 4K visuals at 3840×2160 resolution. Supports dual-screen display and split playback—perfect for digital billboards, self-service terminals, and multi-panel signage.
HDMI-IN Input for External Video Sources
The onboard HDMI-IN supports 4K input, enabling flexible video source integration such as live TV, computer presentations, or surveillance feeds. Simplifies signal input for interactive or real-time display applications.
Versatile Connectivity & Expansion
- 4 USB ports (1x USB 3.0, 3x USB 2.0)
- 2 expandable serial ports (default RS232, configurable to TTL)
- 4 GPIO + 1 I2C
- Ethernet + WiFi (2.4G/5G) + USB-to-PCIE 4G module support
These flexible I/O options support integration with diverse peripherals and IoT components.
Customizable System Development
Full API access and reference code support secondary development of custom applications on Android or HarmonyOS. Ideal for solution providers and integrators developing advanced digital signage or smart terminal applications.
Integrated with ShiMeta CMS
AIoT-6780SE supports ShiMeta’s Android/OpenHarmony-based content management system (CMS), allowing remote device and content management, live streaming, offline playback, and secure data encryption. Any terminal installed with the signage app can be instantly managed as a smart screen.

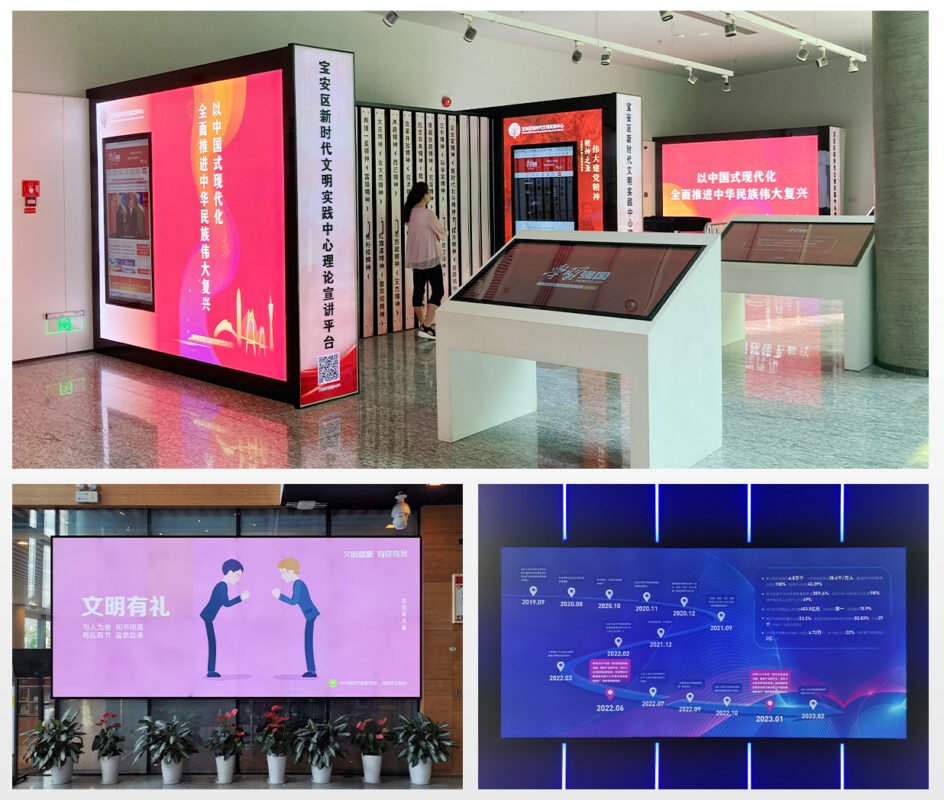

Application Scenarios
- Government: Party-building displays, smart administration boards
- Education: Campus information displays
- Healthcare: Hospital signage and queue systems
- Enterprises: Corporate lobbies and visitor kiosks
- Parks & Banks: Public information terminals
Frequently Asked Questions
It supports both Android and OpenHarmony systems, offering flexibility for different applications and security levels.
Yes, the HDMI-IN interface supports up to 4K input resolution for real-time video streaming and presentations.
Yes, it supports dual-screen output with different content through HDMI and V-BY-ONE interfaces.
Absolutely. The board provides system APIs and reference code to enable full customization and secondary development.
It is fully compatible with ShiMeta's Android/Harmony-based information publishing software, ideal for managing content remotely across networks.
