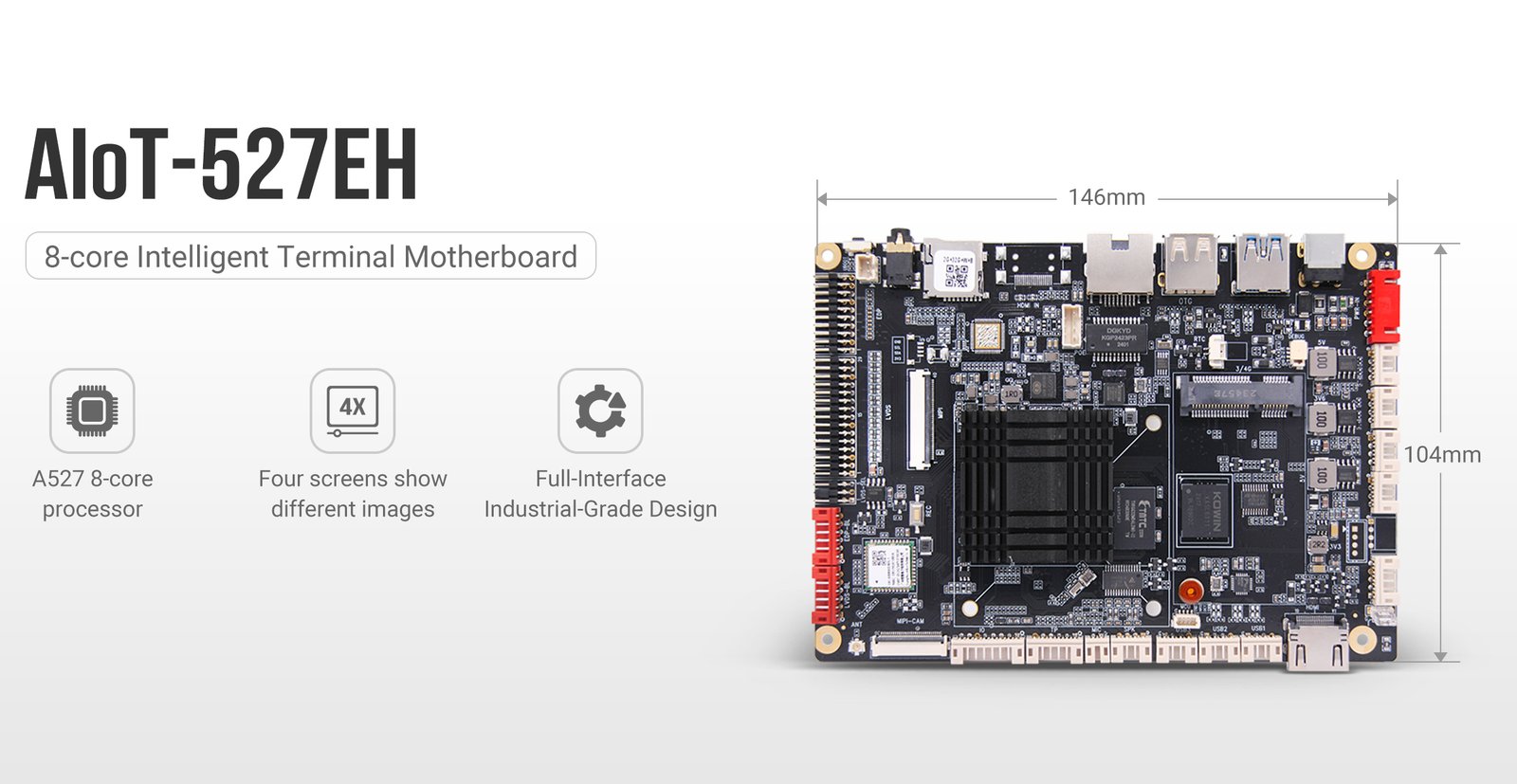

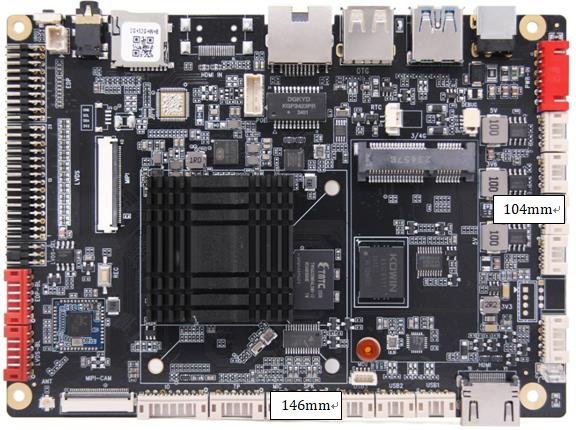

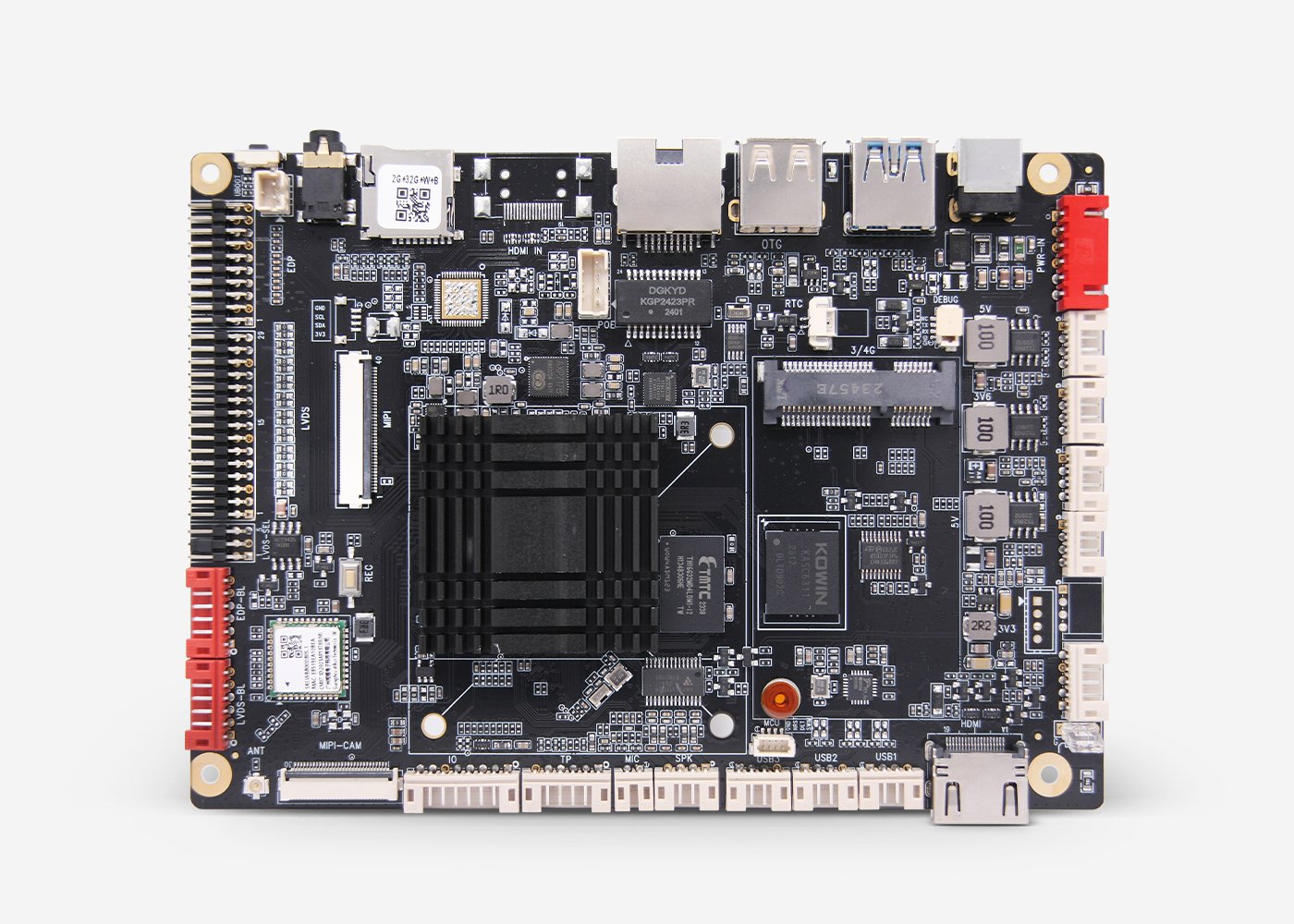

AIoT-527EH – 8-Core Intelligent Terminal Motherboard
Explore AIoT-527EH: 8-core intelligent terminal motherboard with 2.0T NPU, Android 13/OpenHarmony OS, 4-screen output, POE, 4G, and rich I/O for AIoT smart terminals.
Description
Product Overview
The AIoT-527EH is a high-performance embedded motherboard powered by the Allwinner A527 8-core processor, designed for smart terminal devices in industries such as retail, healthcare, education, and government. With support for multi-screen output, AI acceleration, POE, and dual operating systems, it offers a flexible platform for diverse AIoT scenarios.
A527 8-core processor
Android13.0 /OpenHarmony dual system
Four screens show different
Key Features
- A527 8-core 64-bit processor with built-in 2.0T NPU, up to 1.8GHz
- Supports Android 13.0 and OpenHarmony dual operating systems
- 4 independent displays via HDMI / LVDS / MIPI / eDP
- Rich peripheral interfaces: USB, RS232/485, GPIO, IIC, ADC
- Supports POE power supply, 4G connectivity, and Wi-Fi/Bluetooth
- Customizable system API for upper-layer application development
Detailed Specifications
8-Core High-Performance Processor
Built on the Allwinner A527 (Cortex-A55x8) architecture, this board integrates a 2.0T computing power NPU and delivers up to 1.8GHz performance, ensuring seamless and responsive operation in edge computing and AI inference tasks.
Dual OS Support
Runs Android 13.0 and OpenHarmony, enabling flexibility in development and deployment. The environment is secure, stable, and customizable, ideal for commercial-grade AI terminals.
Multi-Screen Output
Supports HDMI, LVDS, MIPI, eDP, and four screens displaying different content simultaneously. Compatible with various touch technologies including infrared, optical, capacitive, resistive, and touch film, with HID driver-free support.
Camera Interface
Supports USB monocular/stereo cameras. MIPI interface supports 1×4-lane@1.5Gbps/lane, up to 8MP (3264×2448).

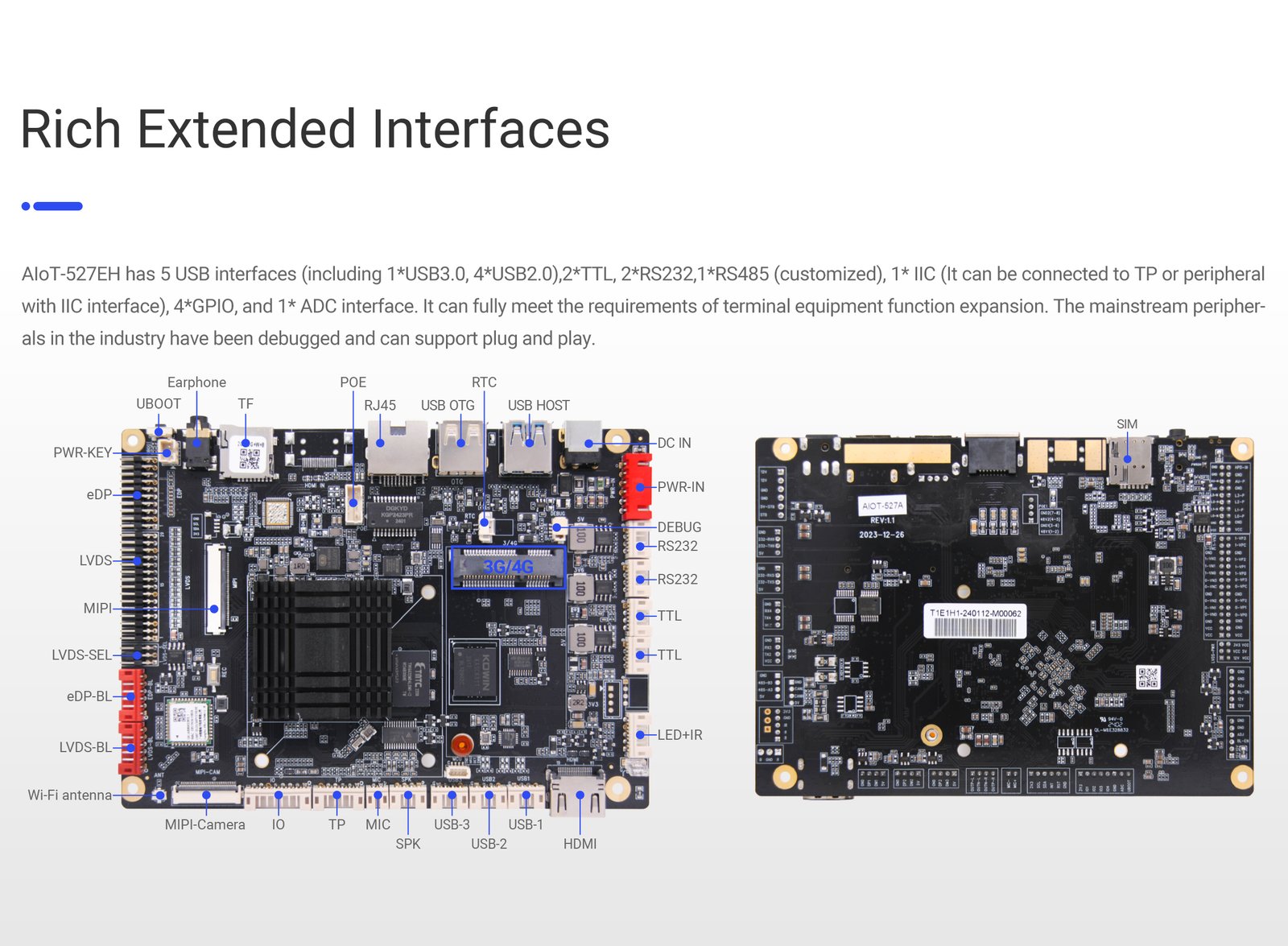

Rich Peripheral Interfaces
USB: 1 x USB 3.0, 4 x USB 2.0
Serial: 2 x TTL, 2 x RS232, 1 x RS485 (custom)
Expansion: 1 x IIC, 4 x GPIO, 1 x ADC

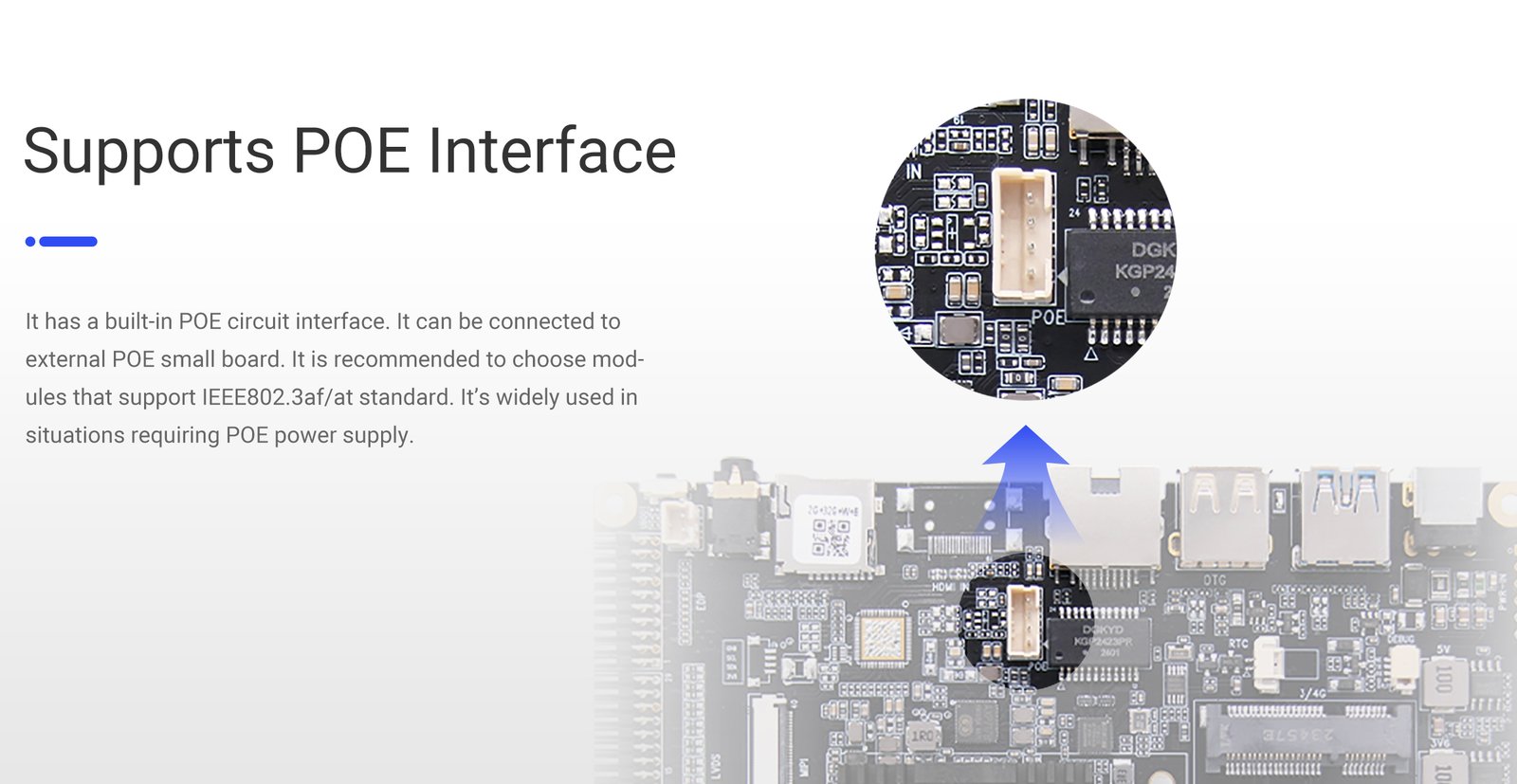

POE Power Support
Integrated POE interface, compatible with IEEE802.3af/at standard modules. Ideal for deployments with centralized power needs.
Network Communication
Ethernet: 10/100/1000M adaptive
Wireless: Built-in Wi-Fi 2.4G, Bluetooth 4.2
4G support via MINI PCI-E module + analog call capability
System Customization
Provides SDK/API and full system customization capabilities for Android/OpenHarmony to support application-level development and vertical integration.
Applications
- Smart Retail Terminals
- Smart Medical Equipment
- Government & Enterprise Self-Service Kiosks
- Smart Campus Systems
- AIoT Edge Devices in Commercial Zones
Frequently Asked Questions (FAQ)
Does it support Linux or other OS options besides Android?
It supports Android 13.0 and OpenHarmony. Linux-based customization may be possible depending on requirements.
Can I connect more than one screen?
Yes, it supports four independent screens via multiple output interfaces.
What kind of touch screens are compatible?
Infrared, optical, capacitive, resistive, and HID-compliant touch film screens.
Is 4G or POE integration plug-and-play?
Yes, with the right module selected (IEEE802.3af/at for POE), setup is seamless.
Product Comparison Table
Feature | AIoT-527EH | AIoT-40A |
CPU | 8-core A527 | 4-core A40i |
OS | Android 13 / OH | Android 7.1 |
Multi-screen | 4x Display Supported | Dual Display |
POE Support | Yes | Optional |
NPU | 2.0T | 1.2T |
Interface Richness | Very High | Moderate |
Resources for Developers
- Download: AIoT-527EH Datasheet PDF
- SDK/API Support: Available upon request
- User Manual: Contact sales@smartdevicetech.com
