AIoT-3588SE – High-End Smart Self-Service Terminal Motherboard
Discover AIoT-3588SE: a compact-size AI motherboard with RK3588S, 6TOPS NPU, three-screen output, MIPI camera, and rich I/O. Ideal for smart terminals and industrial tablets.
Description
Overview

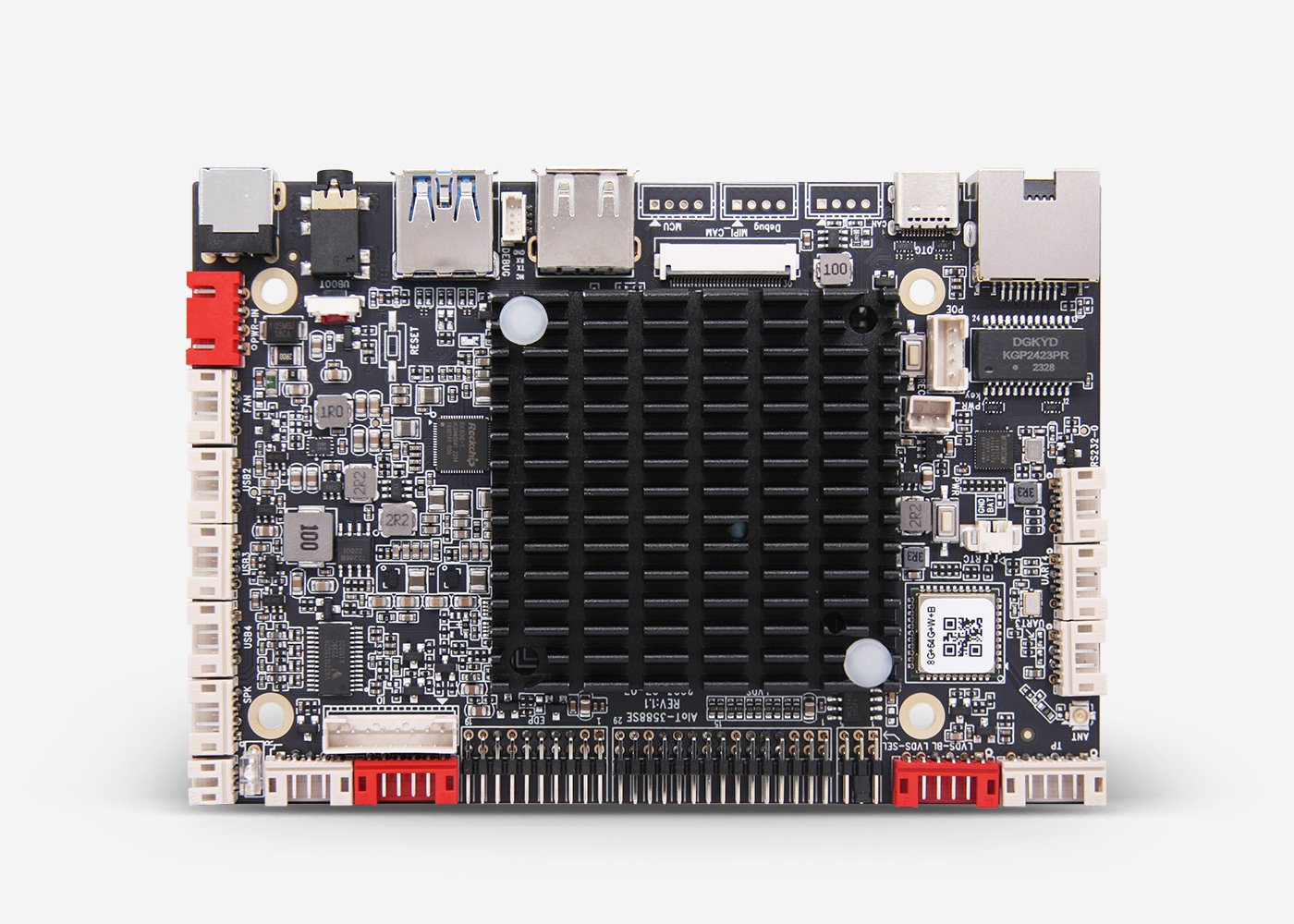

The AIoT-3588SE is a compact, high-performance smart terminal motherboard featuring the RK3588S 8-core processor, a 6TOPS AI NPU, and triple independent display output. With its miniaturized 125 × 85 mm board design, it’s engineered to deliver robust performance, high flexibility, and cost-efficiency for embedded applications like dual-screen terminals, tablets, robots, and smart mirrors.
Key Features
- RK3588S 8-core 64-bit processor, 8nm LP process, up to 2.4GHz
- Built-in 6TOPS AI NPU for edge AI scenarios
- ARM Mali-G610 MP4 GPU for advanced graphics rendering
- Supports three independent displays via LVDS, eDP, and MIPI
- Supports USB & MIPI cameras, up to 48MP
- Rich I/O: USB 3.0/2.0, serial, IIC, GPIO, ADC
- 10/100/1000M Ethernet, built-in WiFi & Bluetooth 5.0
- Android 12.0 OS, supports Linux/OpenHarmony + API customization
- Compact form factor: 125 × 85 mm – ideal for space-constrained designs

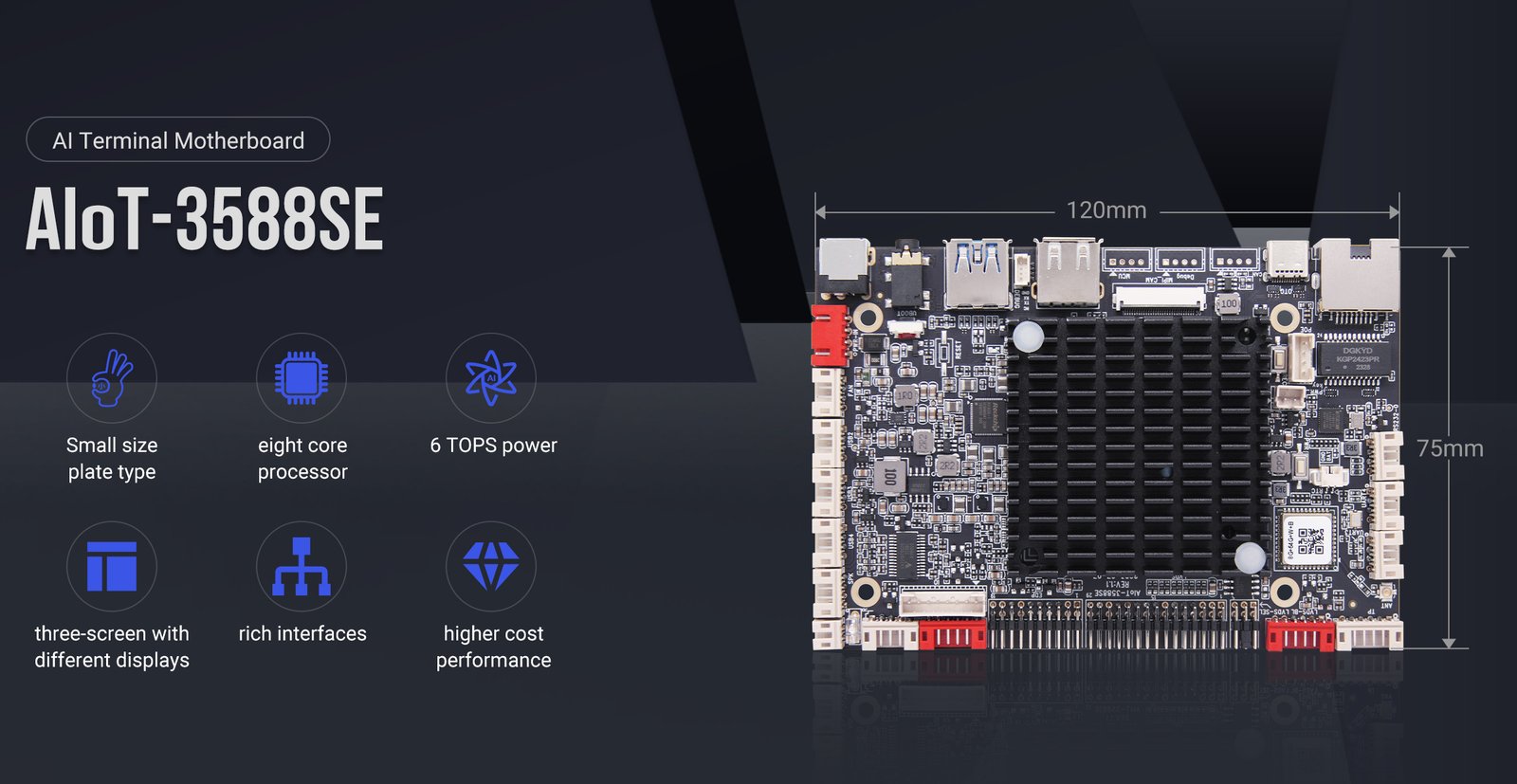

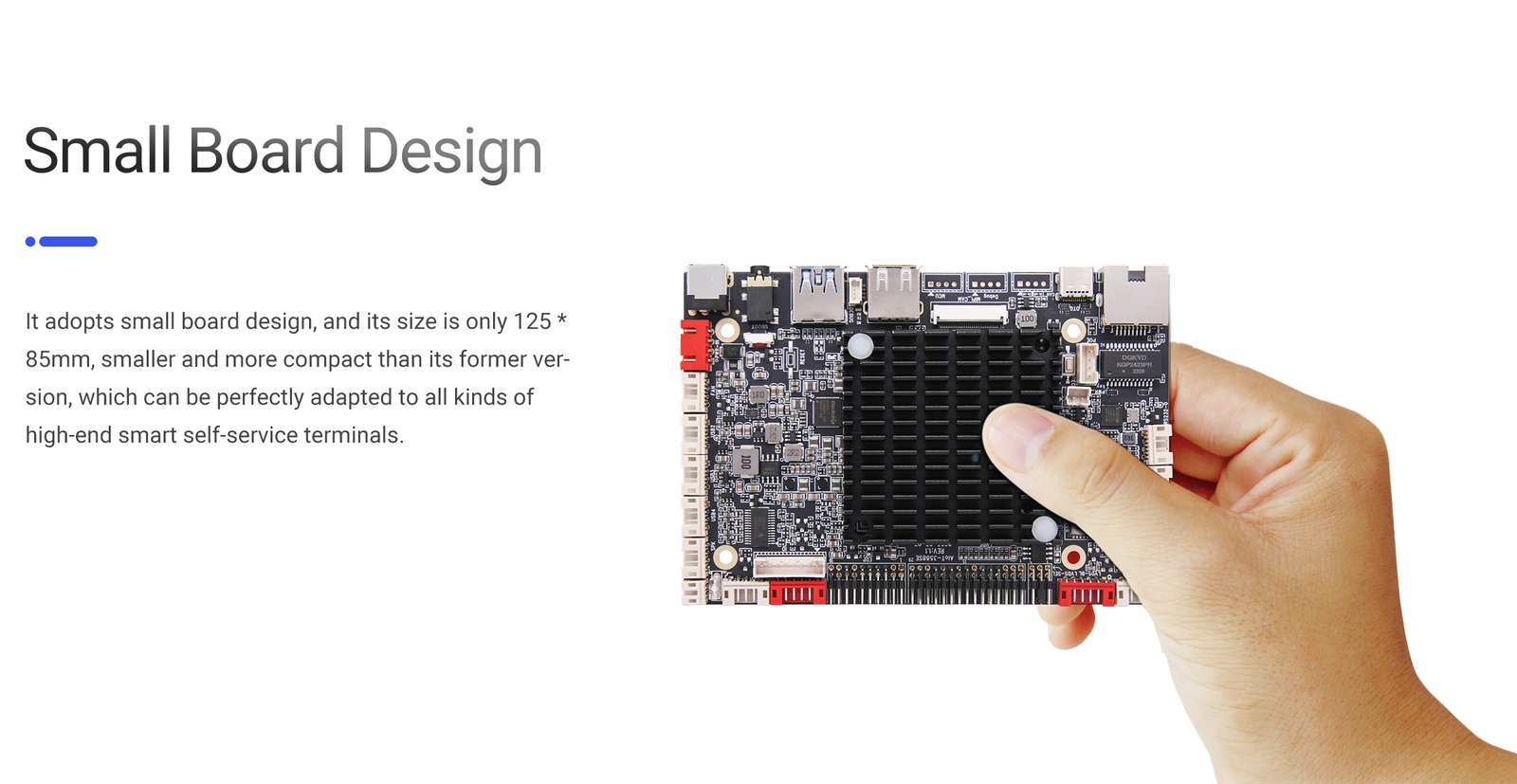

Compact Design for Embedded Integration
Measuring just 125×85 mm, AIoT-3588SE’s compact form factor makes it ideal for embedded and mobile applications, including tablet terminals, robotics, and dual-screen smart displays.
RK3588S CPU + 6TOPS NPU
Built with 8-core architecture (4×Cortex-A76 + 4×Cortex-A55) on 8nm LP process, the board reaches up to 2.4GHz.
The built-in NPU delivers 6 TOPS computing power, optimized for real-time AI inference such as:
- Face and object recognition
- NLP tasks and model inference
- Multi-thread AI processing
Three-Screen Independent Output
Supports simultaneous output across:
- LVDS: up to 1920×1200
- eDP: up to 3840×2160
- MIPI: up to 1920×1200
Perfect for interactive terminals, multi-display kiosks, and dual-touch industrial interfaces.

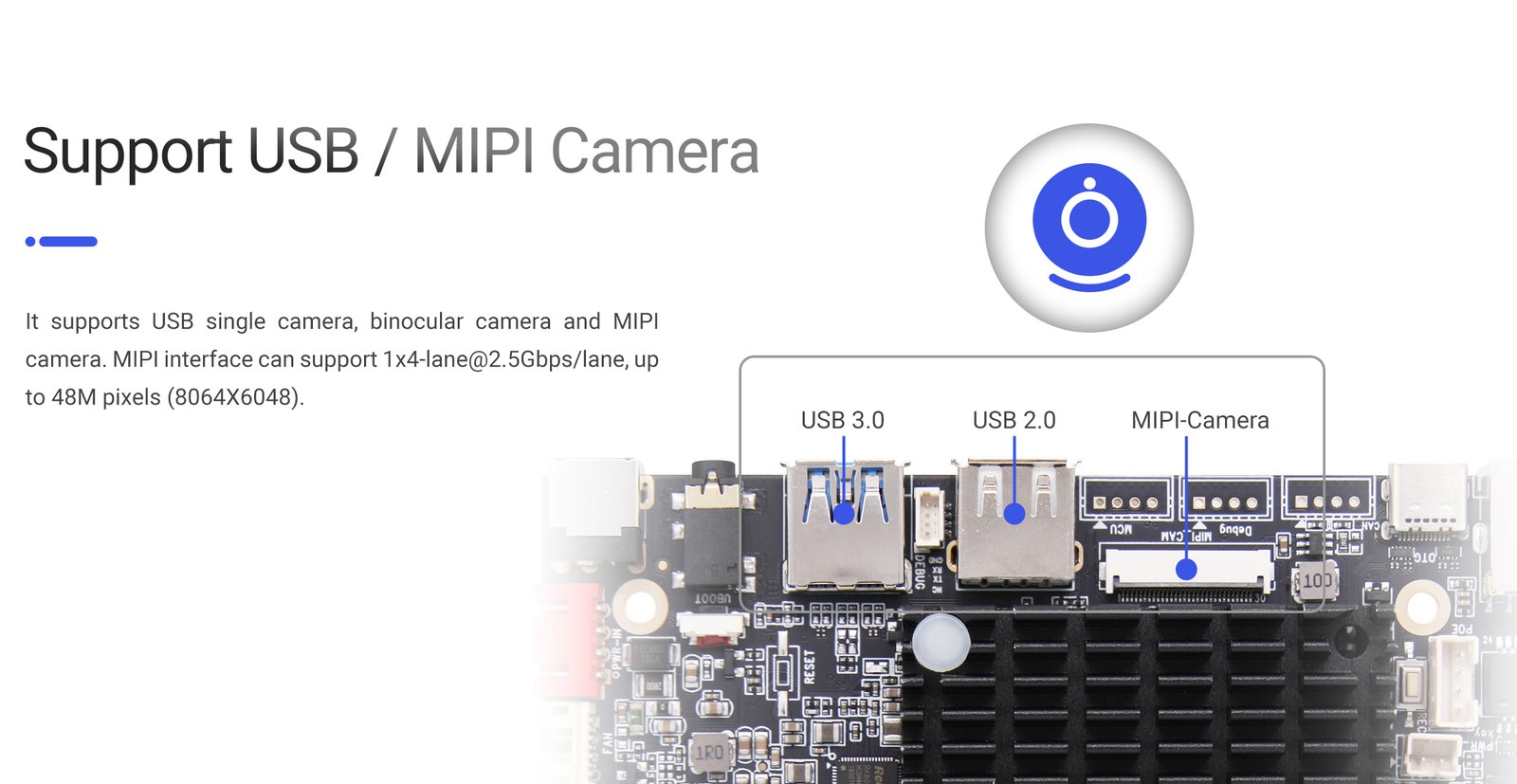

USB & MIPI Camera Support
- USB support: Single and binocular cameras
- MIPI: 1×4-lane@2.5Gbps/lane, up to 48MP (8064×6048)
Delivers high-fidelity image capture for vision AI, intelligent imaging, and industrial recognition.

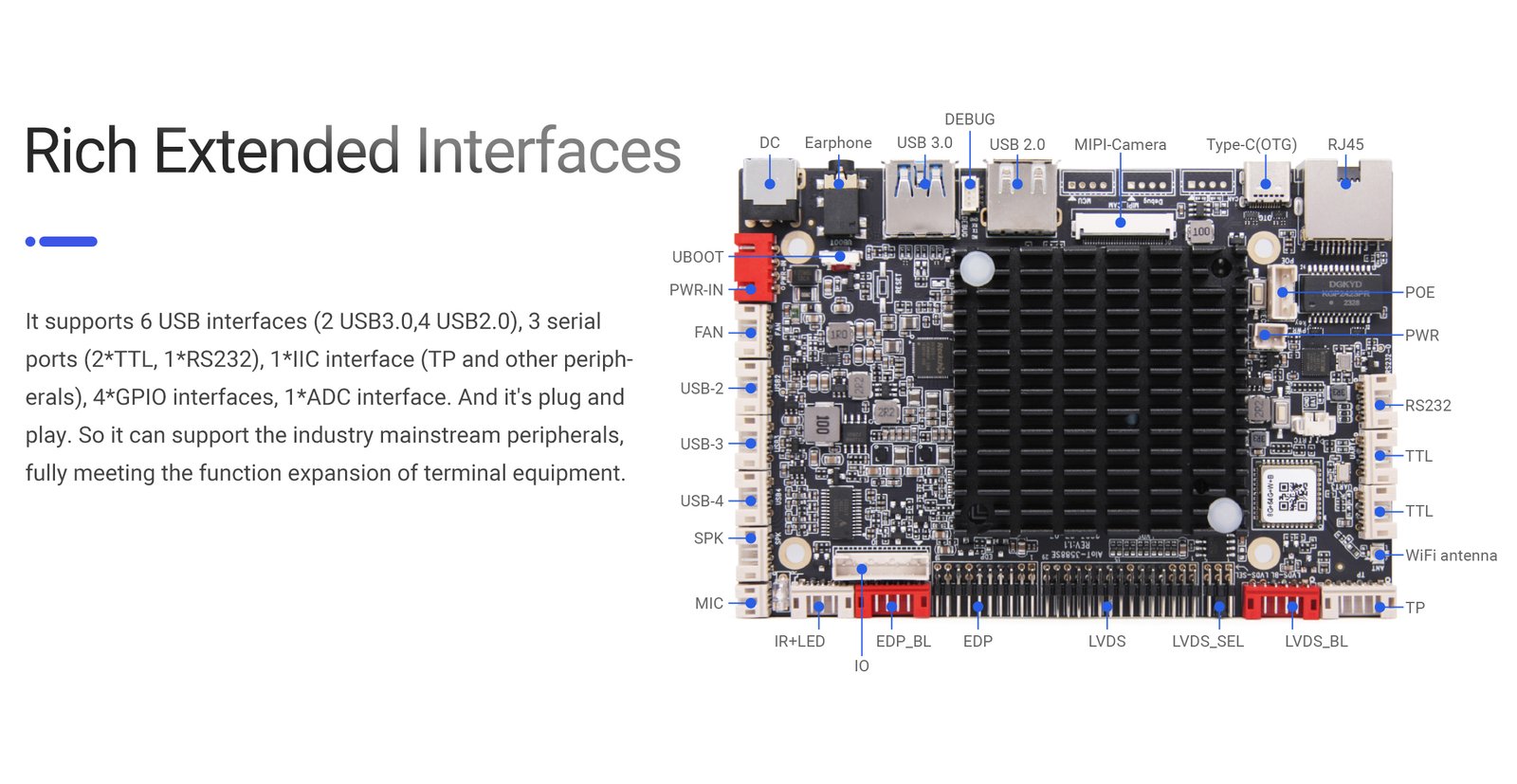

Rich I/O Expansion
The board offers strong expansion capability:
- 6 USB ports (2×USB 3.0, 4×USB 2.0)
- 3 serial ports (2×TTL, 1×RS232)
- 1×IIC, 4×GPIO, 1×ADC
Fully supports mainstream peripheral connections with plug-and-play compatibility.
Advanced Network Connectivity
Stay connected with:
- Gigabit Ethernet (10/100/1000M)
- WiFi + Bluetooth 5.0 for wireless connectivity
Reliable for all smart terminal deployment environments.
Application Scenarios
- The AIoT-3588SE is widely adopted in:
- Industry-specific tablet computers
- Dual-screen, dual-touch smart terminals
- Robotics and mobile automation systems
- AI-powered smart mirrors
- Compact digital signage & control systems
Frequently Asked Questions (FAQ)
Can the AIoT-3588SE run Linux or OpenHarmony?
Yes, besides Android 12.0, it supports Linux and OpenHarmony for system-level development.
What’s the camera support specification?
USB and MIPI cameras are supported. MIPI can handle up to 48MP with 1×4-lane@2.5Gbps.
How many screens can it control simultaneously?
It supports three independent display outputs via LVDS, eDP, and MIPI.
Is it suitable for embedded tablet terminals?
Yes. Its compact size (125×85 mm) and full I/O make it perfect for embedded smart tablets.
