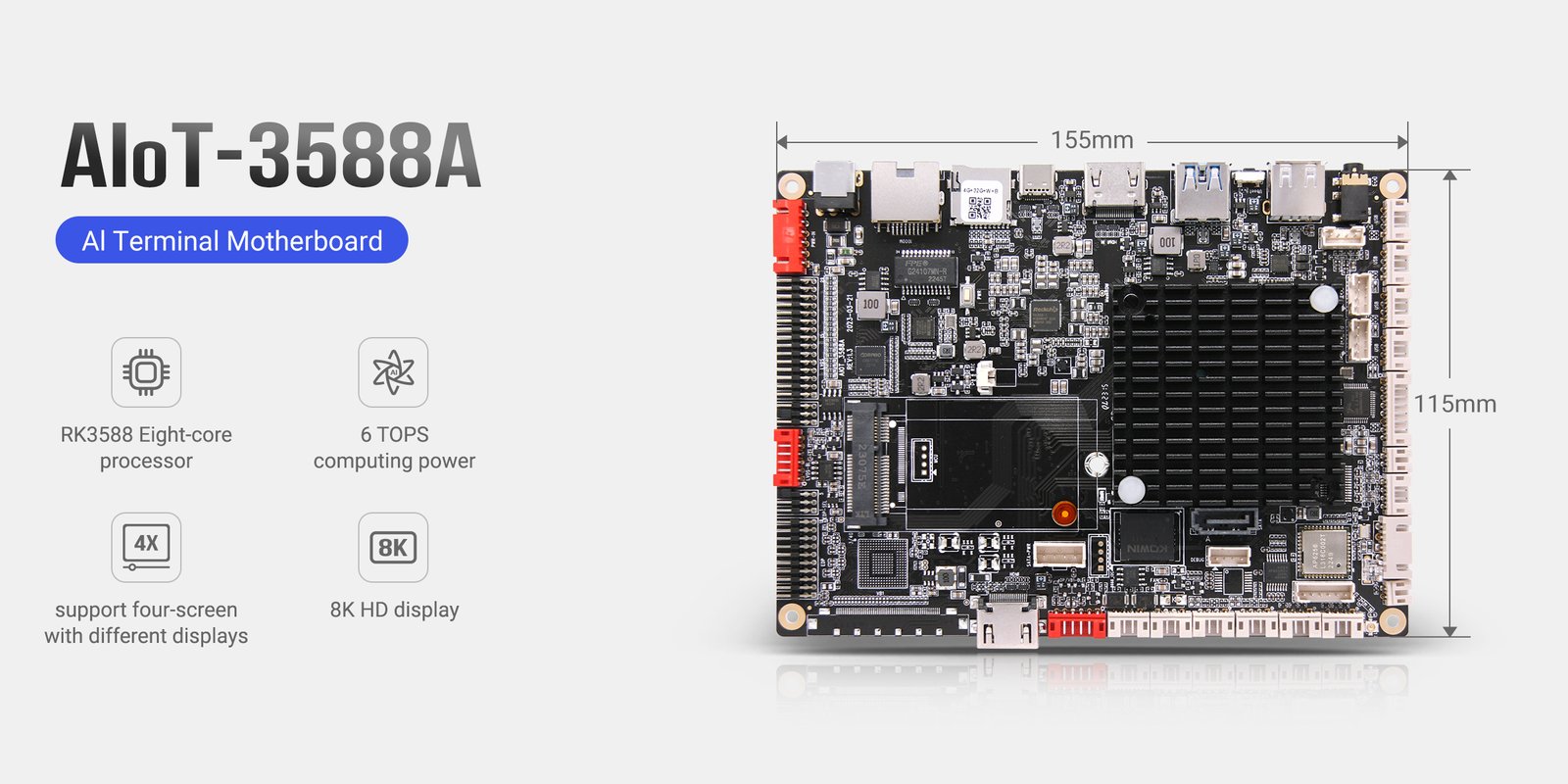

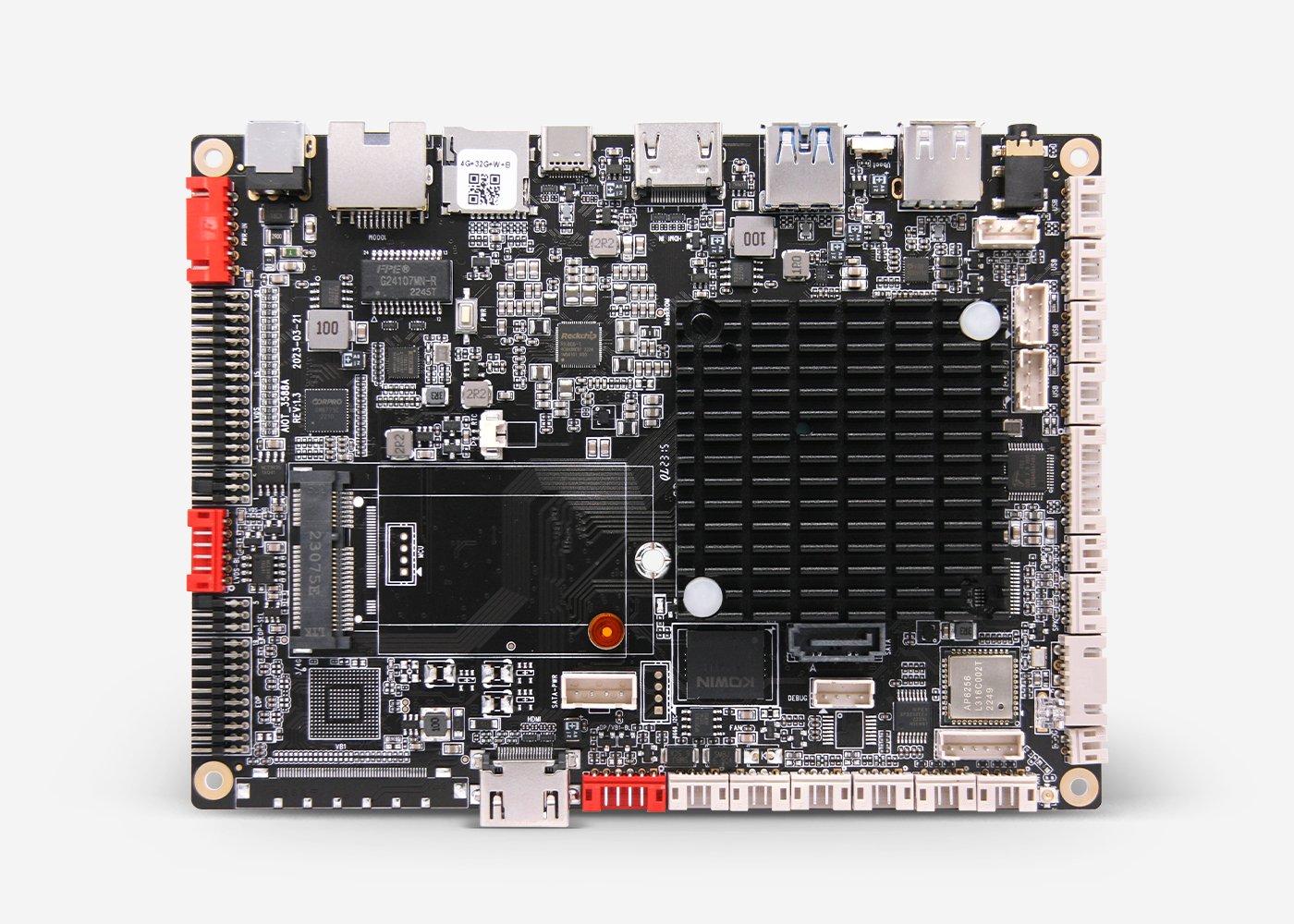

AIoT-3588A – Full-Scene AI Smart Terminal Motherboard
Explore the AIoT-3588A motherboard with RK3588 processor, 6TOPS NPU, 8K display, 32GB+512GB storage, multi-screen output & rich I/O. Ideal for smart terminals & automation.
Overview
The AIoT-3588A is a new-generation full-scene smart terminal motherboard built on the powerful RK3588 8-core processor. Supporting 6TOPS AI computing, up to 8K ultra HD video, and four-screen independent display, this board meets the requirements of edge AI applications in smart displays, industrial automation, and multi-modal computing devices.
Flagship High-End Processor
Powered by RK3588, built on an 8nm process, the CPU integrates:
- 4× Cortex-A76 + 4× Cortex-A55
- Up to 2.4GHz main frequency
This architecture balances high performance and energy efficiency, ensuring smooth multitasking for compute-intensive AI applications.
Built-in 6TOPS AI NPU
The integrated AI accelerator NPU delivers up to 6TOPS computing power and supports INT4/INT8/INT16 hybrid operation.
AIoT-3588A supports conversion across leading AI frameworks:
- TensorFlow
- MXNet
- PyTorch
- Caffe
- Paddle Paddle
Compatible with Transformer-based AI models, it is ideal for complex edge inference tasks.
Super-Large Storage Capacity
With up to 32GB memory and 512GB storage, this board eliminates I/O bottlenecks during multi-task processing. Smoothly run multiple applications, heavy AI inference, and large-scale data caching simultaneously.
8K Ultra HD Visuals
Equipped with Mali-G610 MP4 GPU, the board supports:
- 8K@60fps decoding (H.265/VP9)
- 8K@30fps encoding (H.264/H.265)
- Dual-function encode + decode
- HDMI and Type-C output ports
- Support for 32x 1080P decoding and 16x 1080P encoding
The result? Stunning clarity, vibrant colors, and ultra-smooth video rendering for digital signage and video analysis terminals.
Four Independent Displays
Supports HDMI, LVDS, MIPI, eDP outputs:
- LVDS: Up to 1920×1200
- HDMI: Up to 7680×4320 (8K)
- V-By-One: Up to 3840×2160
- Type-C/DP OUT also available
Users can connect and control four screens with different outputs simultaneously, boosting customizability for industrial and retail systems.

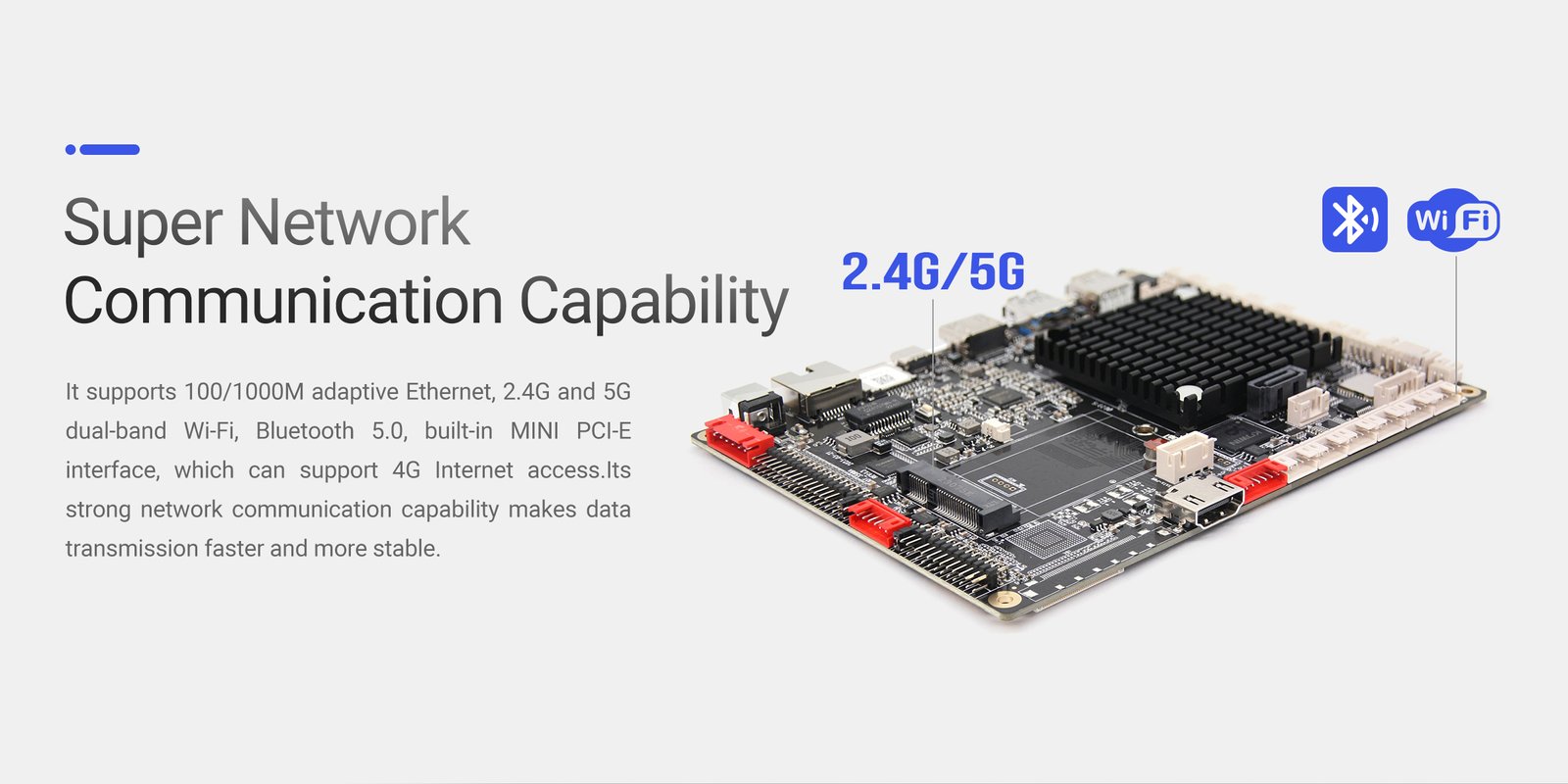

Powerful Network Communication
Supports:
- 100/1000M Ethernet
- Dual-band Wi-Fi (2.4G + 5G)
- Bluetooth 5.0
- MINI PCI-E (4G module support)
- 2 interface (5G module support)
Reliable, flexible, and high-speed connectivity—ready for any scenario.
Expandable Storage Support
With SATA hard disk interface, devices can expand capacity easily. Ideal for data-intensive terminals and long-term video storage solutions.

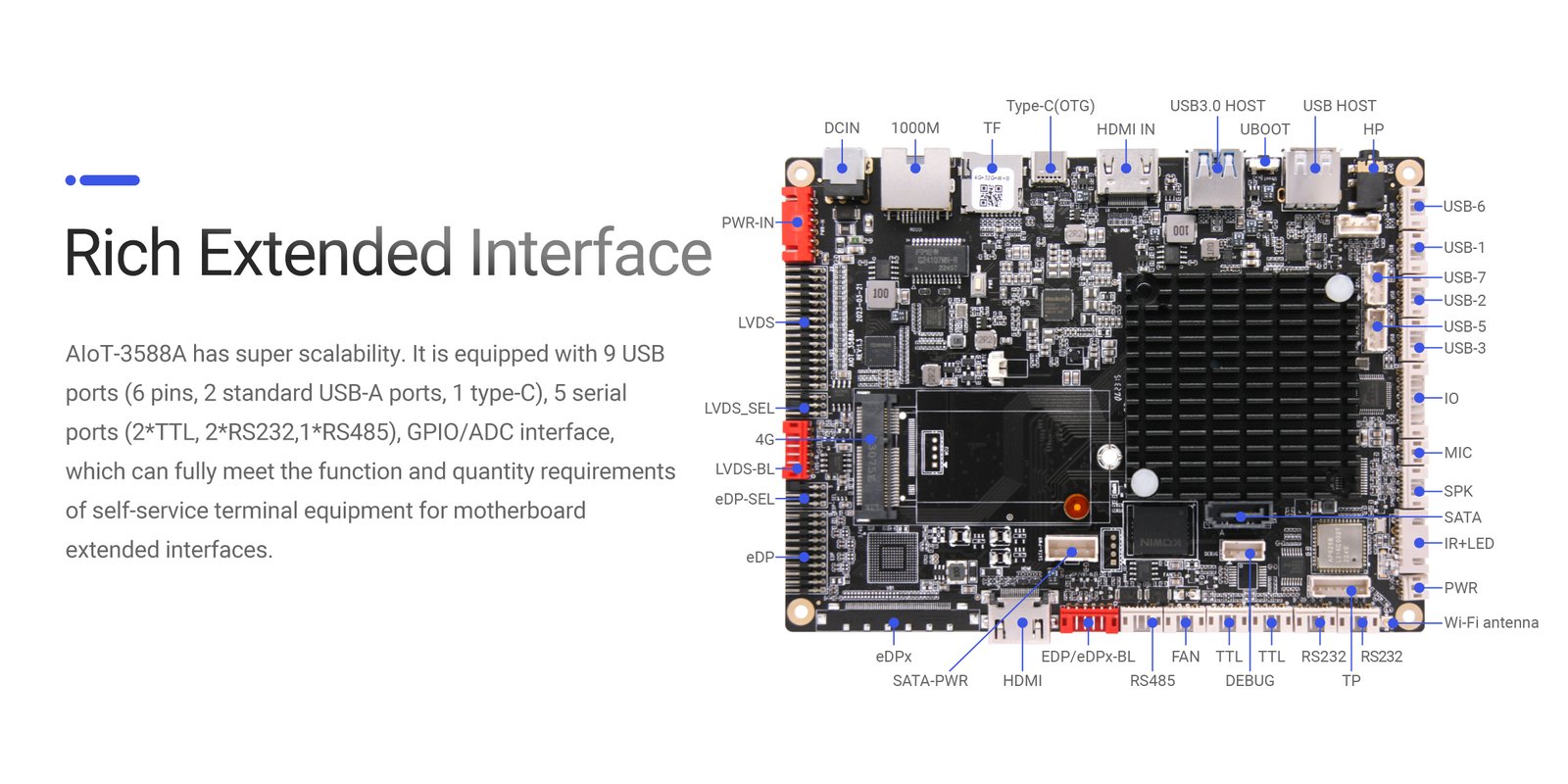

Rich Extended Interfaces
Scalability is built-in:
- 9 USB ports (6-pin, 2x USB-A, 1x Type-C)
- 5 serial ports (2x TTL, 2x RS232, 1x RS485)
- GPIO & ADC support
These interfaces fulfill high-traffic and multi-device scenarios like self-service kiosks, automation control, and sensor hubs.
Multi-OS Support with Deep Customization
Out of the box:
- Android 12.0 (default)
- Supports Linux, OpenHarmony, UnionTech OS, Kylin
Deep OS customization supported with:
- API interfaces
- System call reference code
- SDKs for upper-layer application development
Application Scenarios
AIoT-3588A is widely deployed across thousands of smart industries, including:
- Smart Display Terminals
- Video Terminal Devices
- Industrial Automation Equipment
- Multi-core AI Computing Terminals
- Intelligent Interactive Interfaces
- AIoT Edge Hubs
Frequently Asked Questions (FAQ)
Up to 8K@60fps via HDMI and 4K via Type-C output.
Yes. It supports HDMI, LVDS, MIPI, and eDP outputs with independent content.
Yes. Via built-in M.2 interface, it supports 5G Internet access. 4G is supported through MINI PCI-E.
Android 12.0 by default; also supports Linux, OpenHarmony, UnionTech, and Kylin OS.
Yes. It supports SATA hard disk interface for storage expansion.
