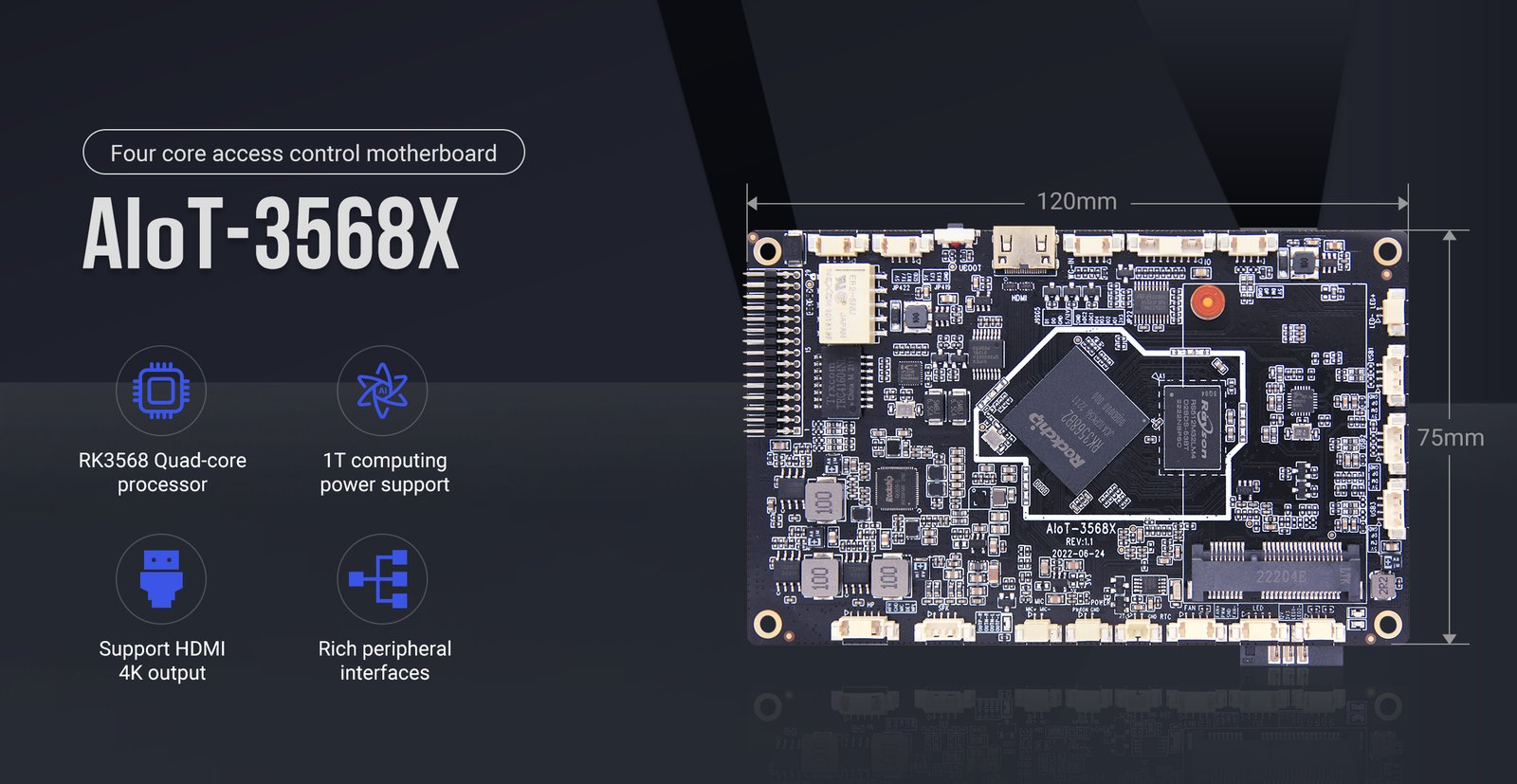

AIoT-3568X – AI Access Motherboard
Discover AIoT-3568X, a quad-core AI access motherboard with 1TOPS NPU, 4K display, rich I/O, camera & QR support. Ideal for smart terminals and access control.
Overview

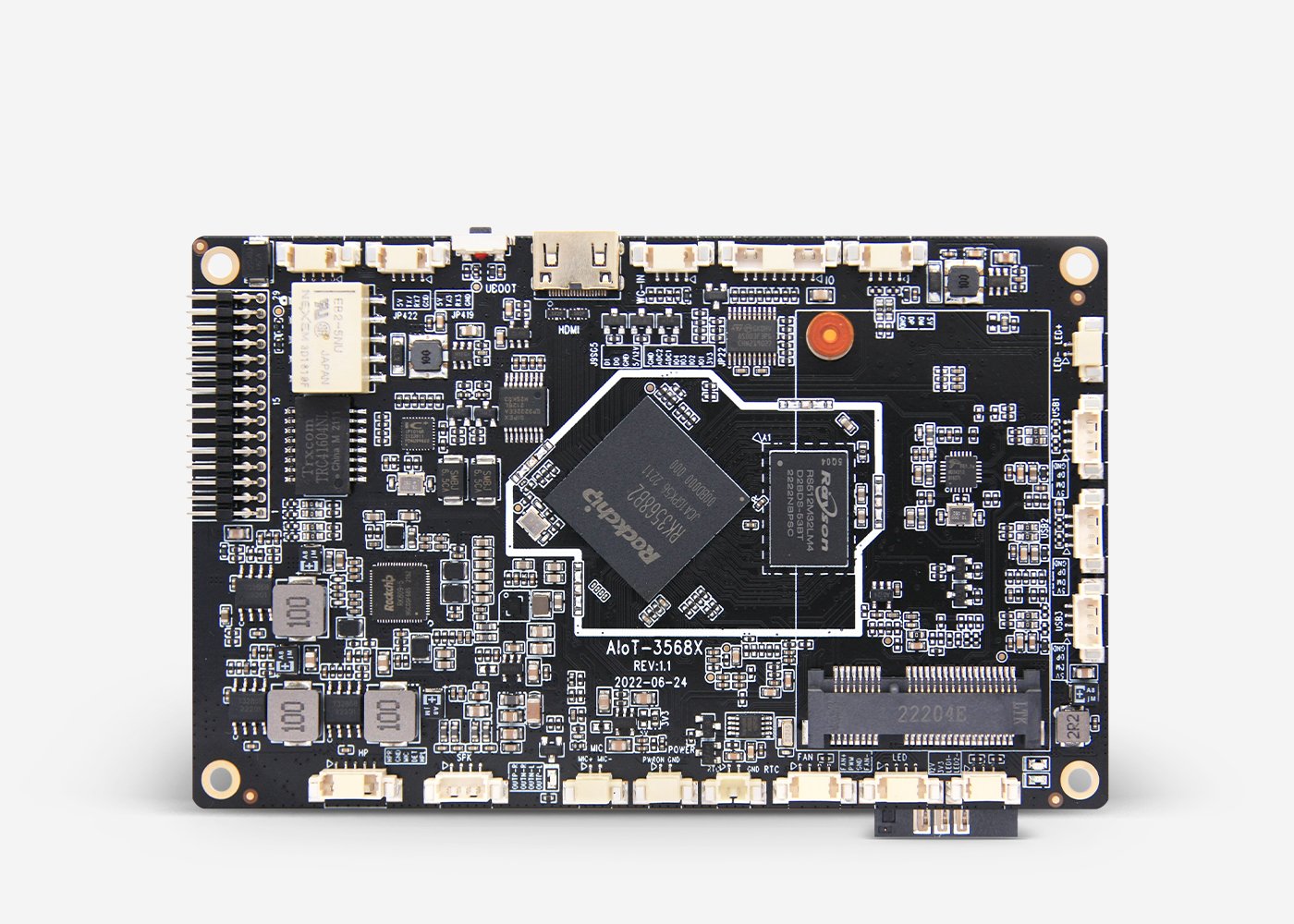

The AIoT-3568X is an advanced AI computing motherboard built for intelligent access control, traffic management, and embedded vision applications. Powered by the RK3568 quad-core Cortex-A55 processor and integrated with a 1 TOPS NPU, this board combines low power consumption with high performance, supporting 4K display, MIPI cameras, QR code scanning, and rich I/O expansion. It’s ideal for demanding smart terminal deployments such as e-sentry, turnstiles, access control, and robotic systems.
Key Features at a Glance
- RK3568 quad-core 64-bit Cortex-A55, up to 2.0 GHz
- 1 TOPS AI computing power with built-in NPU
- Supports Android 11 with system-level customization APIs
- 4K UHD decoding, HDMI/MIPI/eDP output
- Touch support: IR, optical, capacitive, resistive, film, HID (driver-free)
- MIPI dual-eye camera interface (up to 10MP)
- Supports embedded QR code scanner module
- Constant current light booster interface for night lighting
- PCI-E for optional 4G network support
- Rich I/O: 5x USB, 4x UART (1x RS232, 1x RS485, 2x TTL), GPIO, ADC, VESA I/O
AI-Ready Computing Power
At its core, the AIoT-3568X features the Rockchip RK3568 SoC, a power-efficient 64-bit processor capable of reaching 2.0GHz. With an integrated NPU offering 1 TOPS of computing power, it fully meets the AI processing requirements of real-time edge scenarios such as license plate recognition, facial analysis, and object detection.
High-Definition Display & Multi-Touch Support
- Supports HDMI, MIPI, and eDP interfaces
- Up to 3840×2160 4K decoding resolution
- Wide compatibility with mainstream touchscreen technologies
- Plug-and-play HID support for driver-free deployment
- No need for additional debugging – saves time during integration

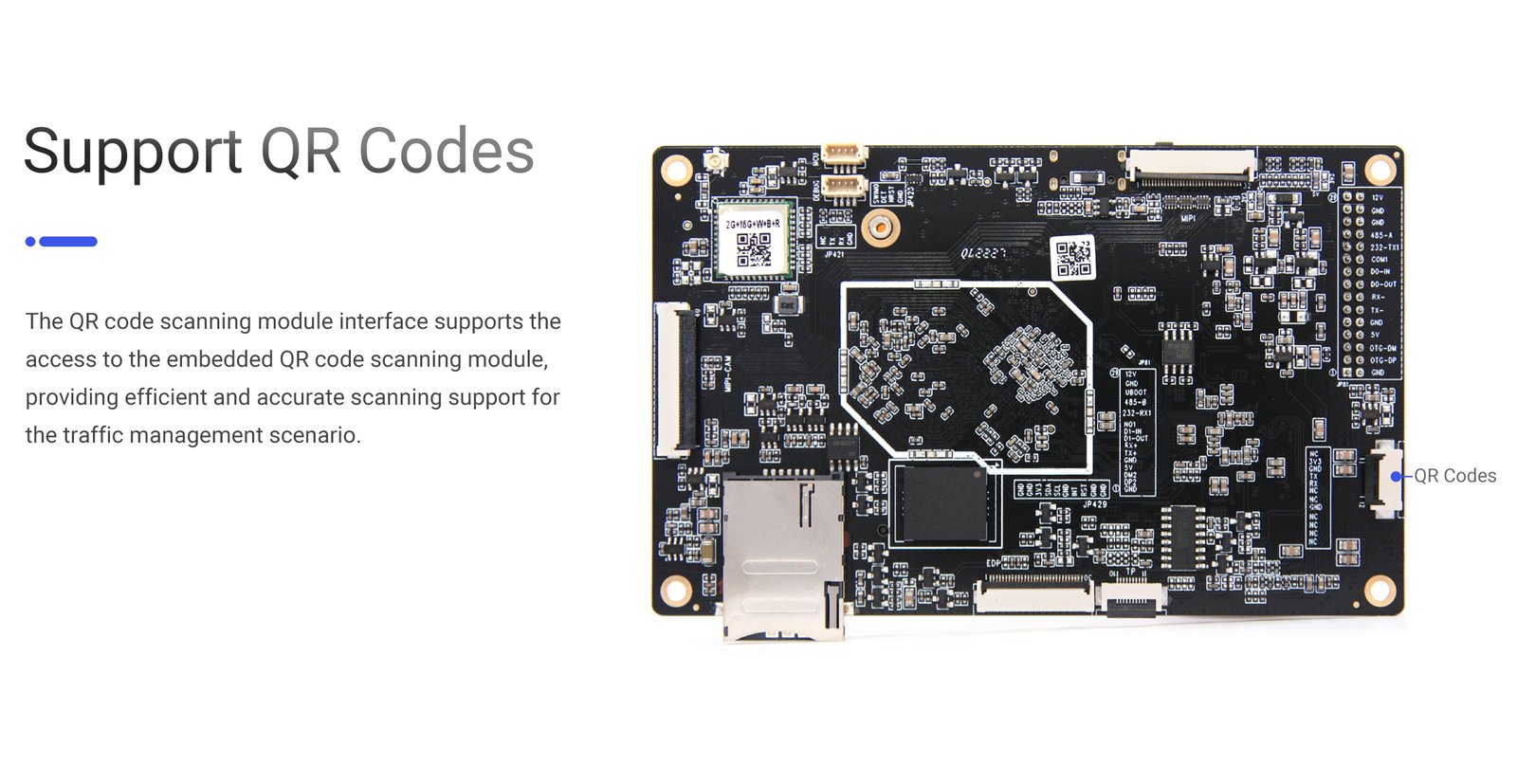

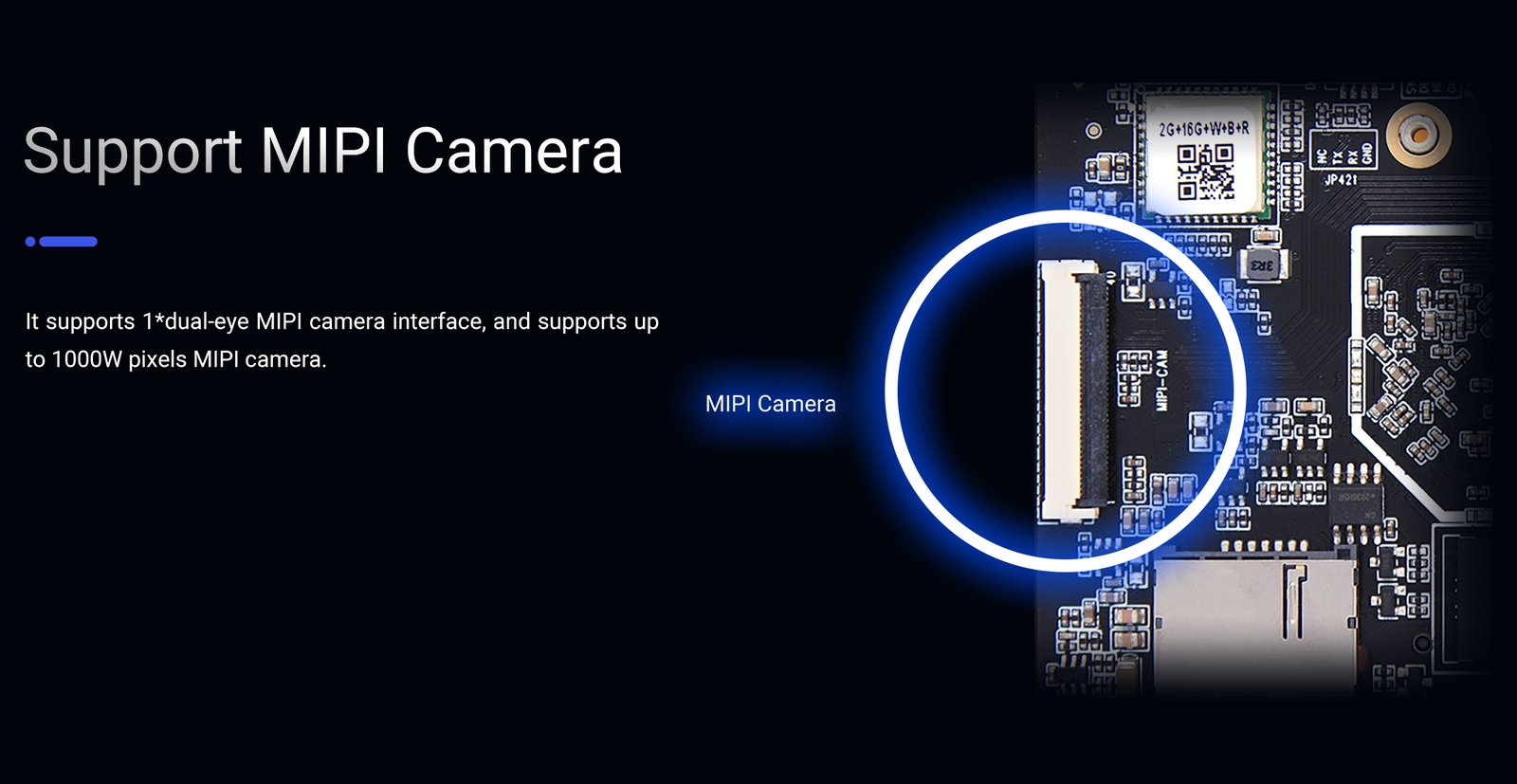

Camera & QR Code Module Support
- MIPI dual-eye camera interface, supporting up to 1000W pixels
- Integrated QR code scanner module interface
- Ensures fast and accurate recognition in access control and traffic terminals

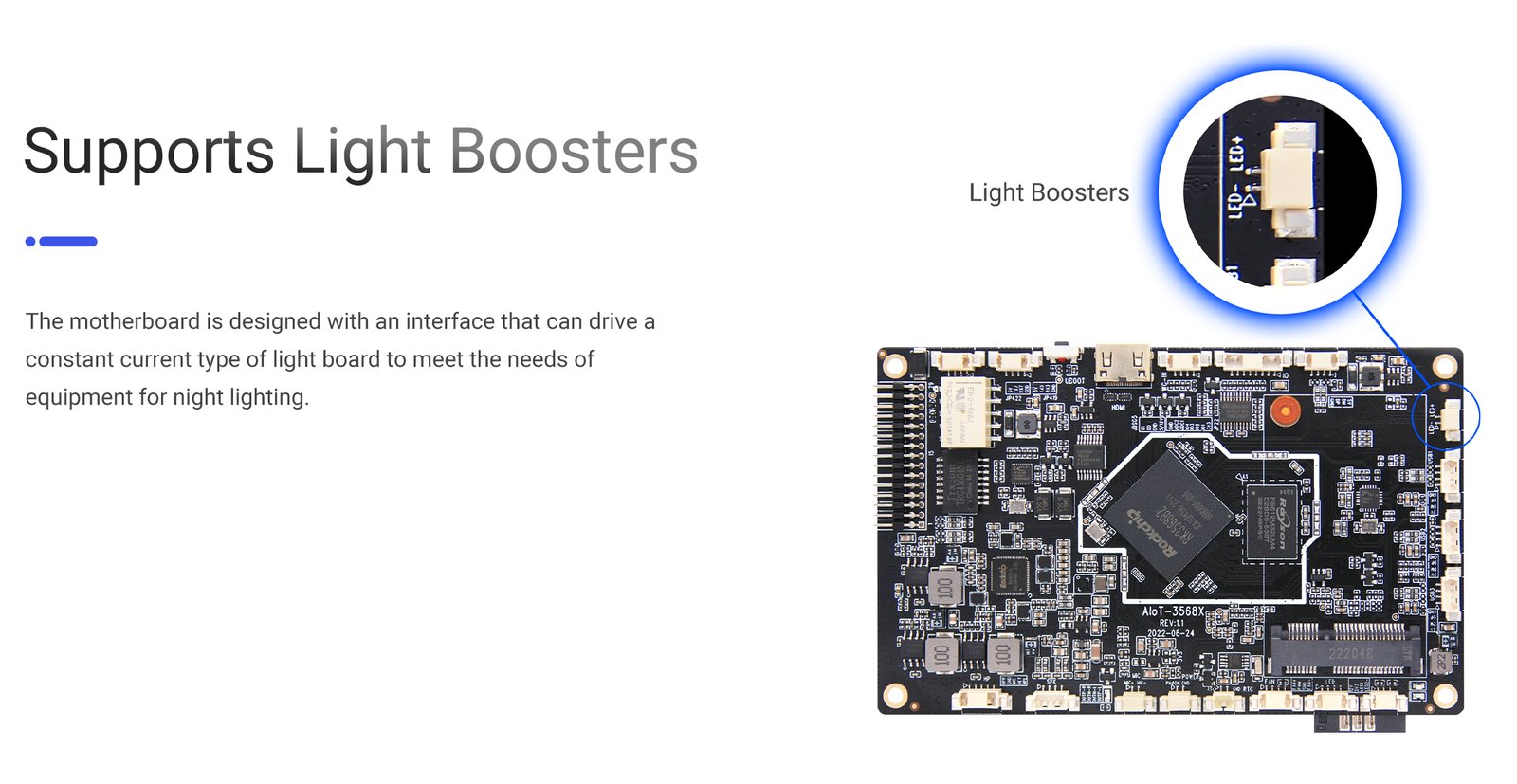

Light Booster Support
AIoT-3568X is designed to drive constant-current light boards, supporting night vision lighting functions in intelligent surveillance and entry systems.

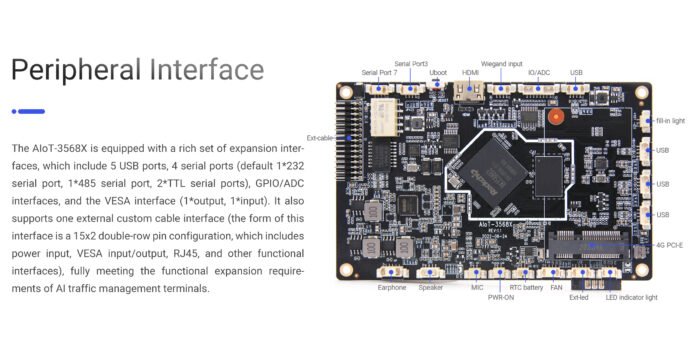

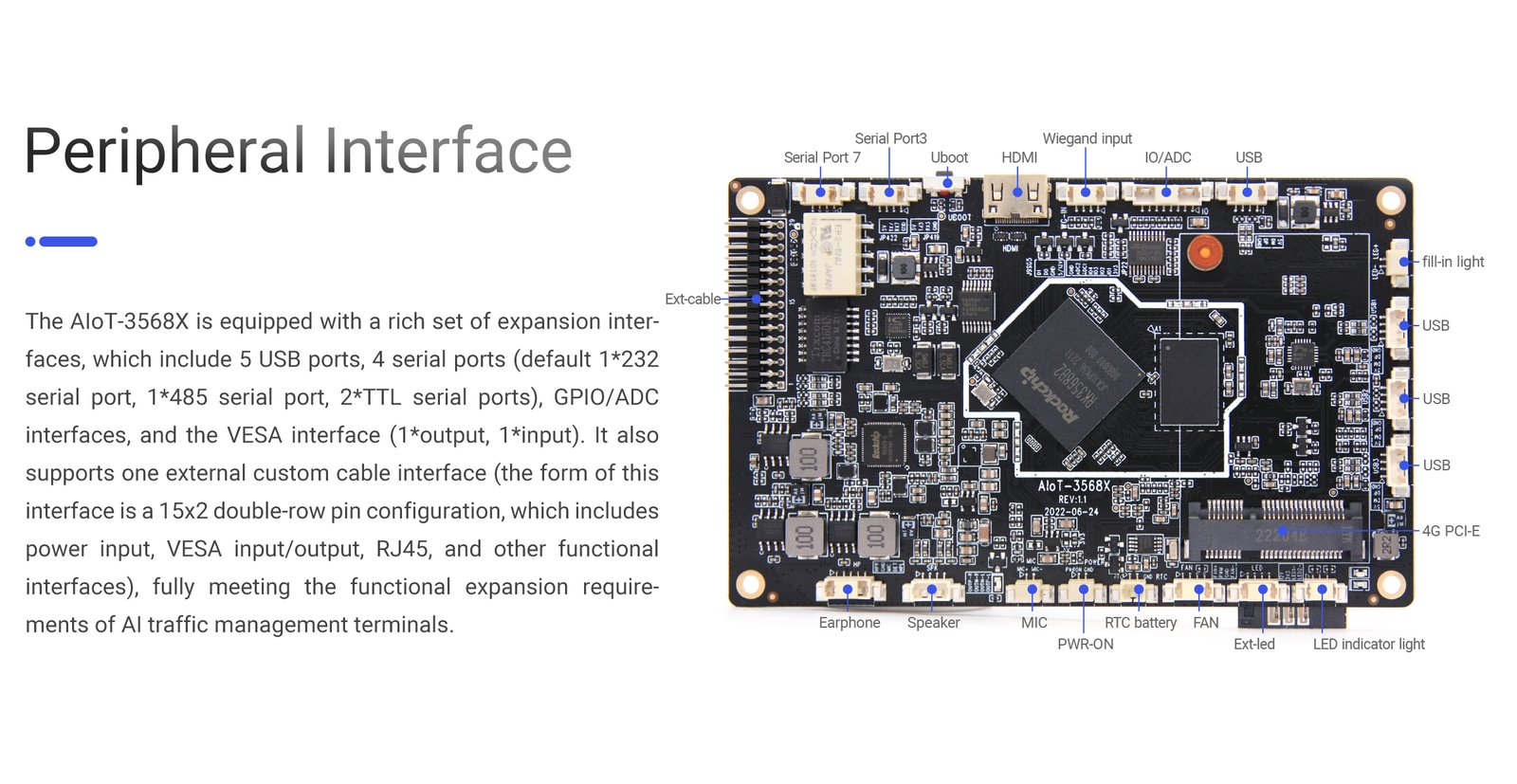

Comprehensive Peripheral Expansion
- 5 USB ports
- 4 Serial ports (1x RS232, 1x RS485, 2x TTL)
- GPIO & ADC inputs
- Custom 15×2 pin I/O interface: includes power, VESA input/output, RJ45, and more
Fully compatible with diverse industrial equipment and terminal form factors
Network & Communication
- Built-in 10/100M Ethernet
- Integrated Wi-Fi, hotspot sharing, and Bluetooth 4.0
- PCI-E interface available for 4G network module access
- Reliable connectivity for complex deployment environments

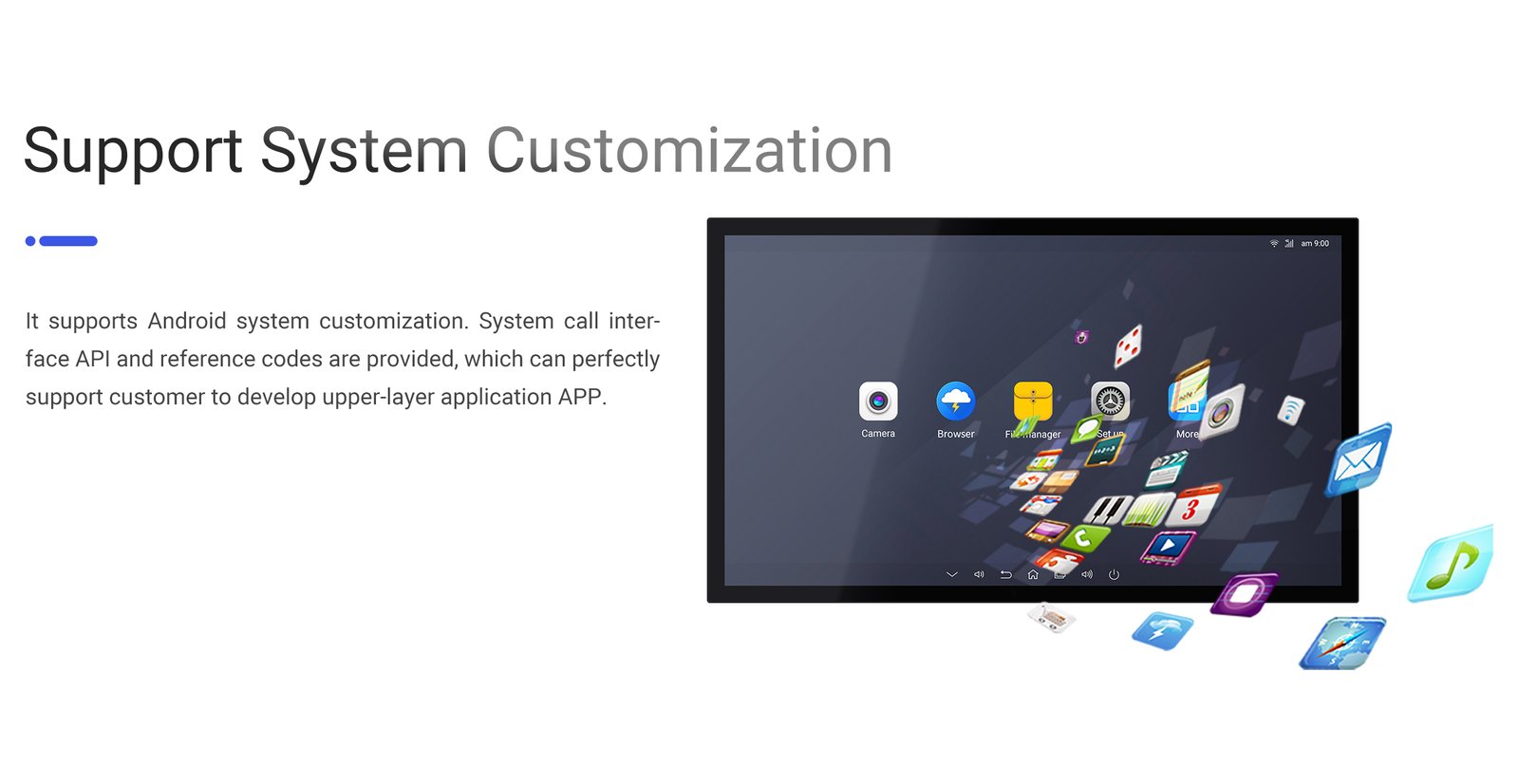

Customizable Android System
- Supports Android 11 OS
- Provides system API interface and reference source code
- Enables seamless development of upper-layer applications and custom UI

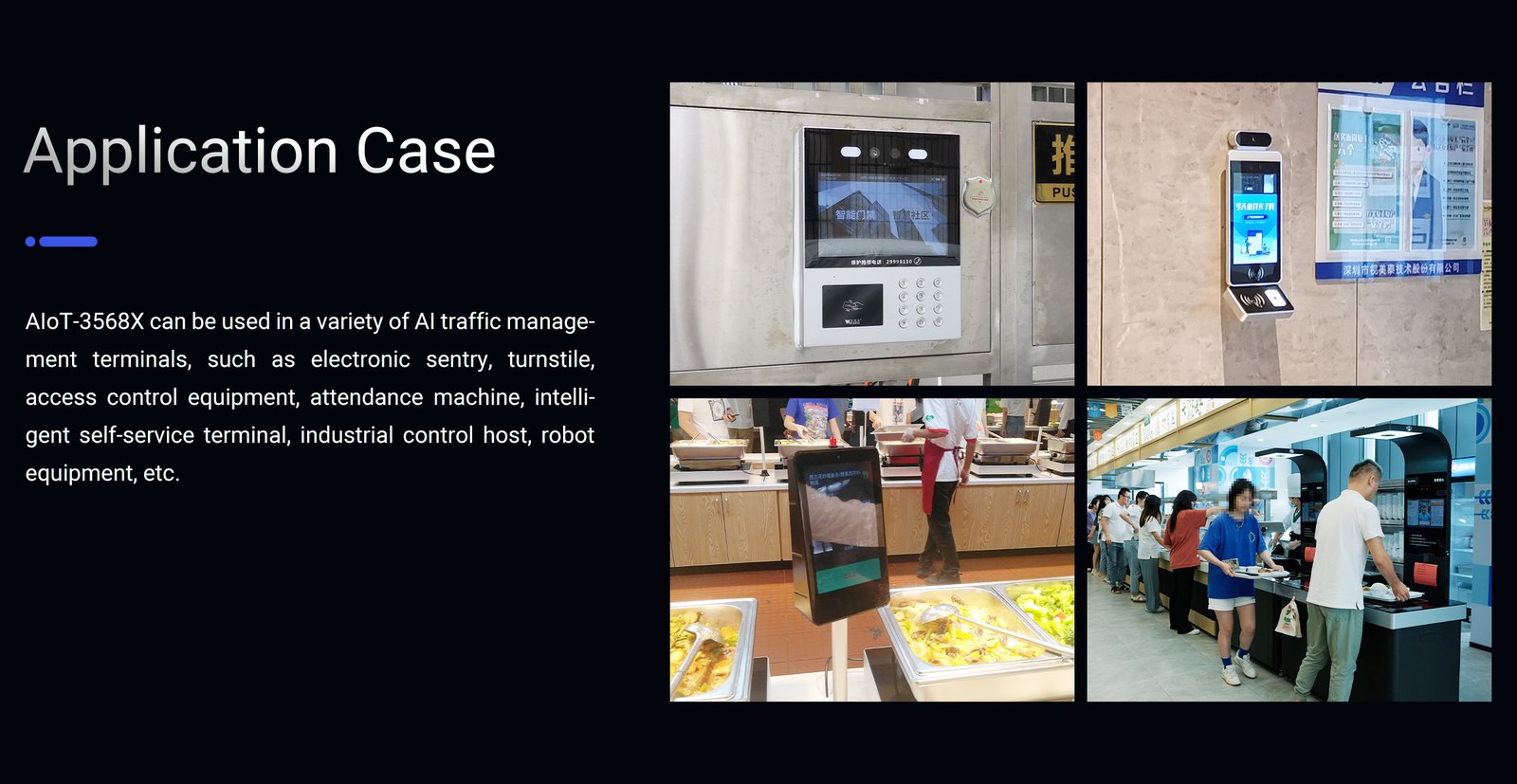

Typical Application Scenarios
AIoT-3568X is purpose-built for intelligent edge deployment in AI-based terminal environments:
- Electronic Sentry Systems
- Turnstiles & Smart Access Control
- Attendance Machines
- Intelligent Self-Service Terminals
- Robotic Control Systems
- Industrial Host Controllers
- AI Traffic Monitoring Terminals
Frequently Asked Questions (FAQ)
It runs Android 11 and supports full system-level customization via API and reference code.
Yes, the MIPI interface supports dual-eye camera input with up to 10MP resolution.
Yes, it supports HID-based touchscreens (plug-and-play) and includes a constant current output for external light boards.
Through the PCI-E interface and embedded QR interface respectively – both are integration-ready.
