AIoT-3568SC – Ultra-Compact Motherboard
Explore AIoT-3568SC: a compact RK3568-based motherboard with dual-screen support, 1TOPS NPU, and Android customization. Ideal for smart vending machines, food terminals, and edge AI kiosks.
Description
Product Overview

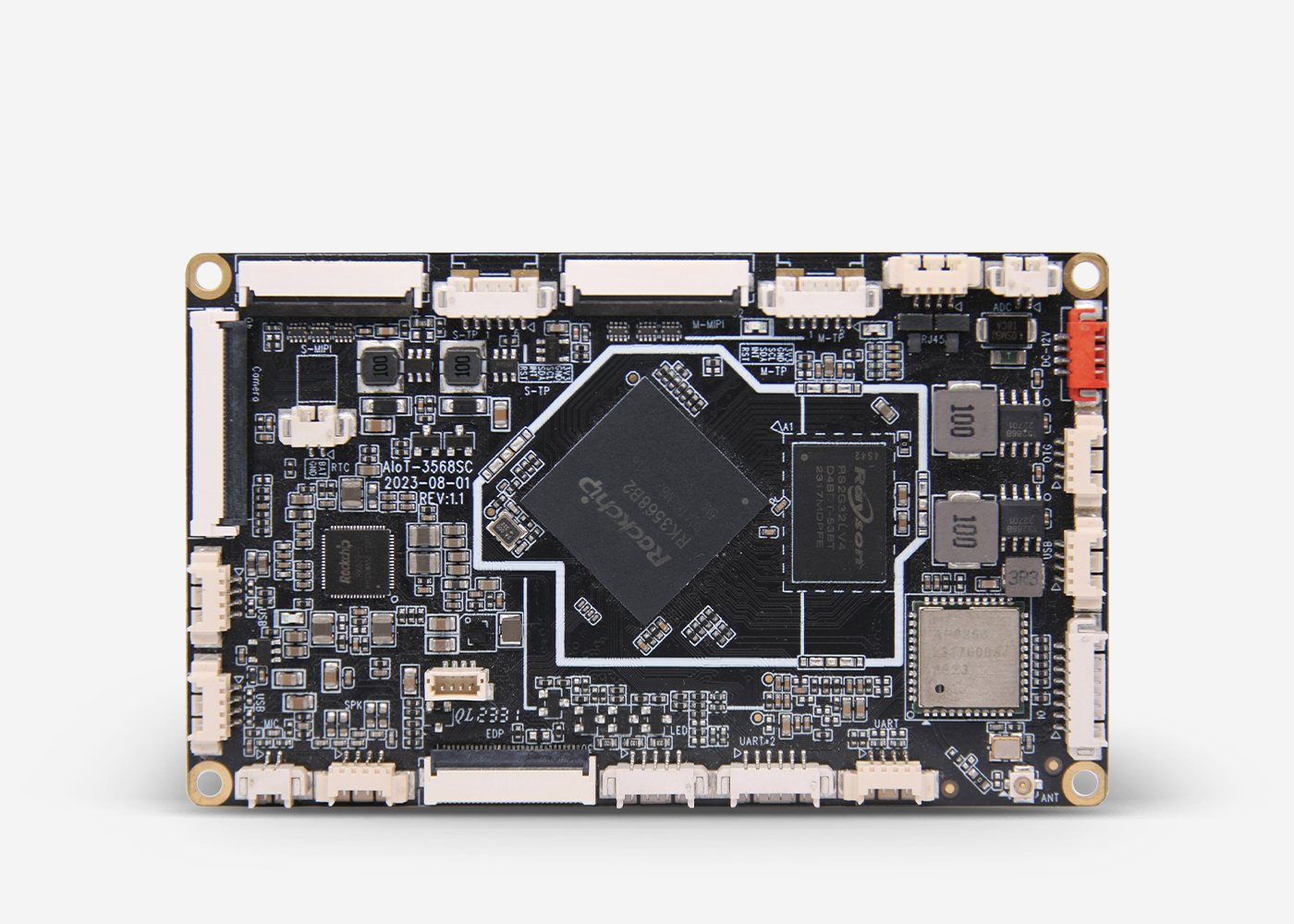

AIoT-3568SC is a super compact, AI-ready motherboard engineered for smart consumer machines in space-constrained environments such as restaurants, canteens, and kiosks. Powered by a quad-core RK3568 processor and a 1TOPS NPU, it supports dual-screen display, MIPI camera input, and rich connectivity options — making it an ideal solution for intelligent human-machine interaction and automated consumer devices.
Key Features

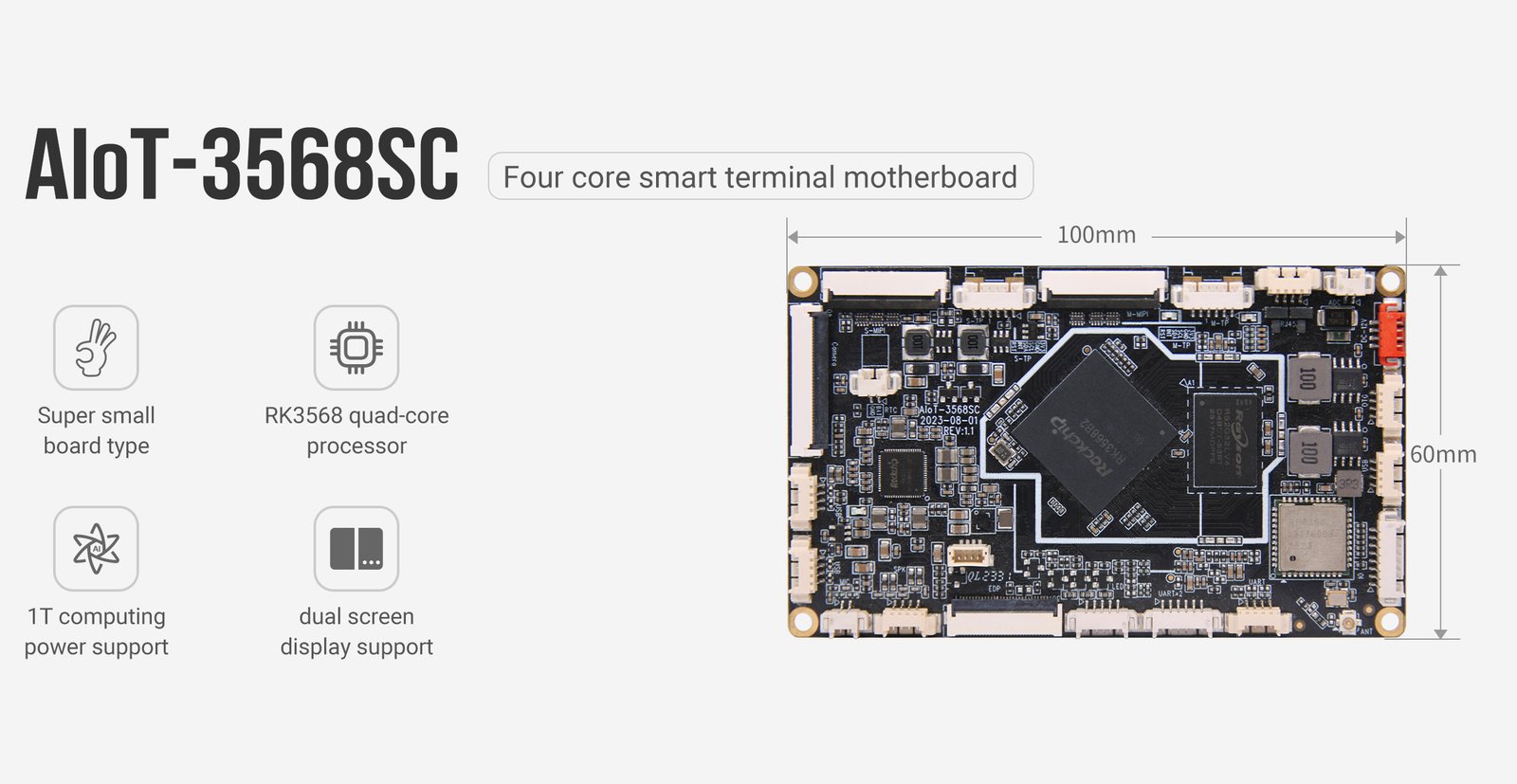

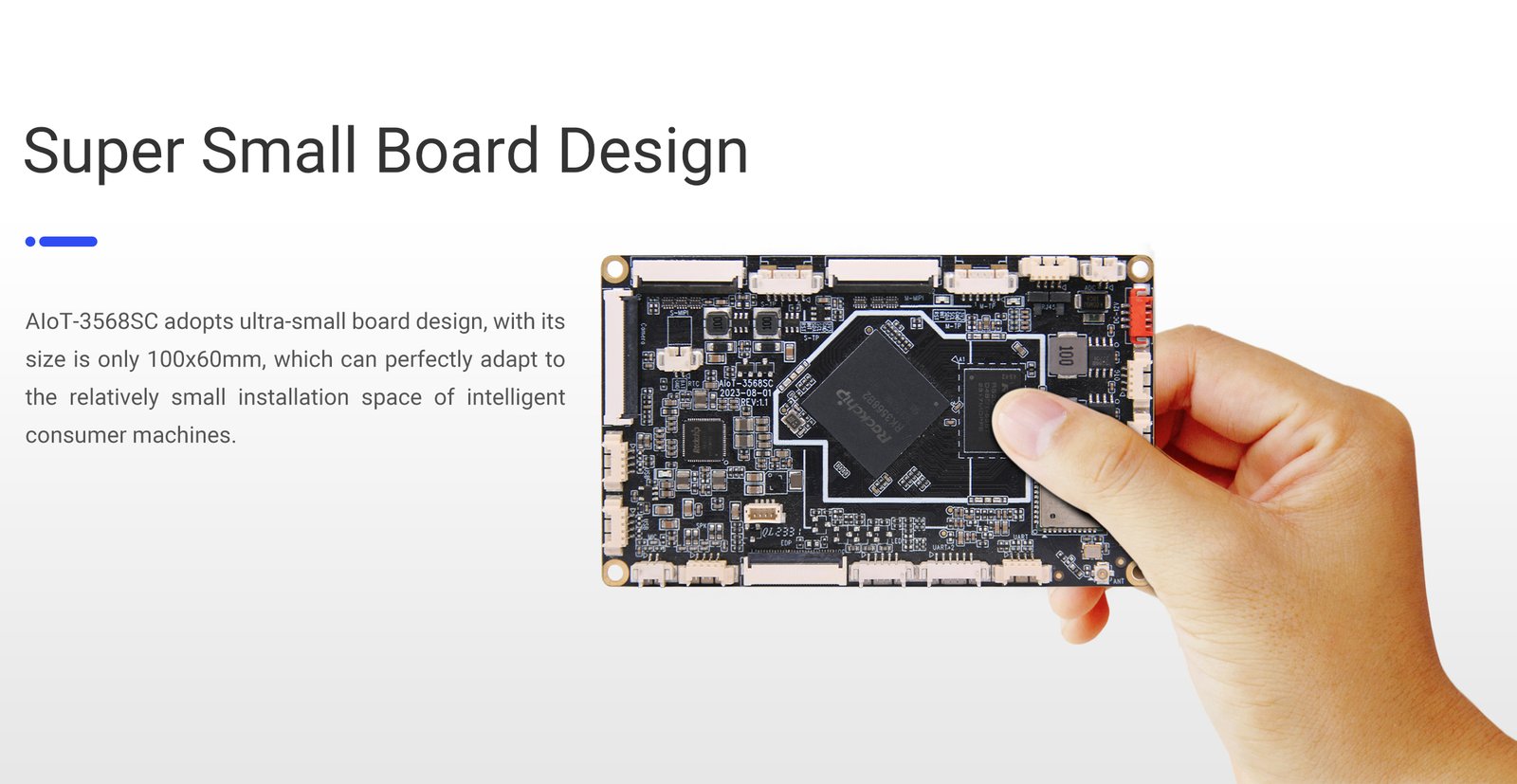

Ultra-Small Board Design
- Dimensions: 100mm × 60mm
- Fits perfectly in compact or embedded enclosures
- Designed for vending terminals, self-service canteens, ordering kiosks
RK3568 Quad-Core Processor
- Architecture: Cortex-A55 x4
- Max Frequency: 0GHz, 22nm process
- OS: Android 11 (customizable)
- Memory: 2GB RAM, Storage: 16GB eMMC
Offers efficient and stable performance with low power consumption and heat.
Built-in AI Acceleration
- 1TOPS RKNN NPU
- Supports lightweight edge AI applications such as image analysis, facial recognition, and real-time interaction
- Compatible with popular AI frameworks
Dual Independent Display Support
- GPU: Mali-G52
- Encoding/Decoding: 1080p@60fps, H.265/H.264
- Display Interfaces:
2×MIPI (max 1920×1080)
1×eDP (max 2560×1600)
- Dual-screen with different displays: Great for user/customer-facing screens + operator UIs

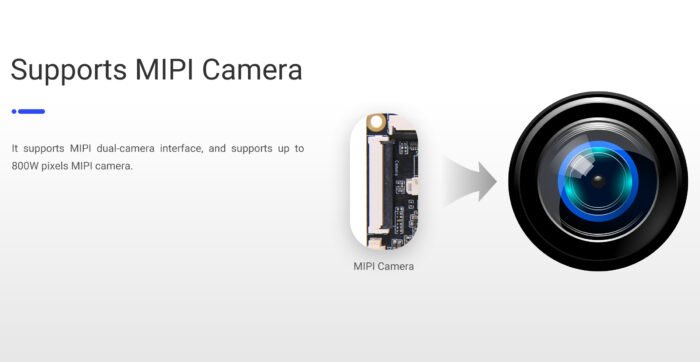

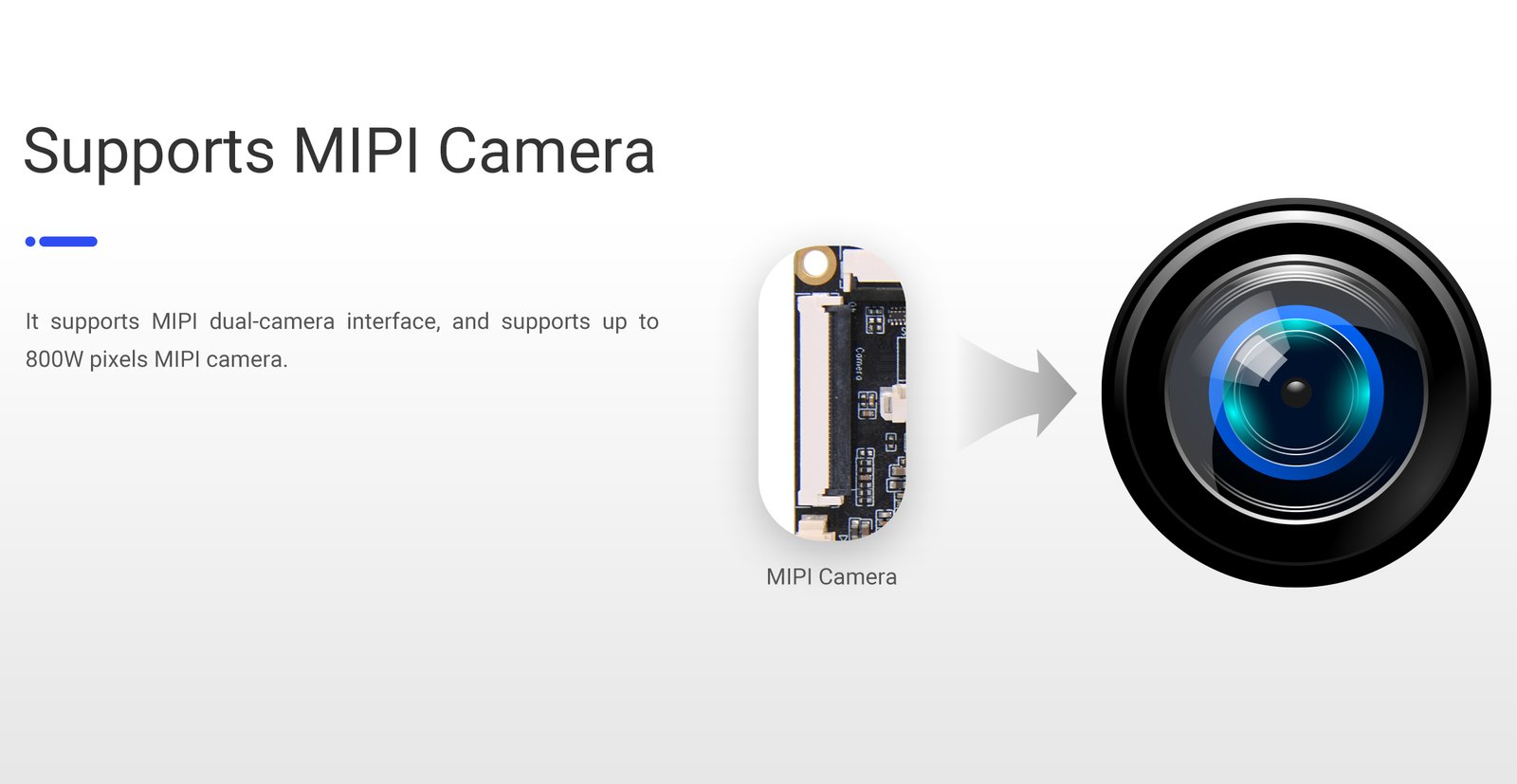

Camera & Visual Input
- MIPI Dual-Camera Interface
- Supports up to 8MP MIPI camera
- Ideal for visual AI applications (e.g., QR scan, facial recognition, status detection)

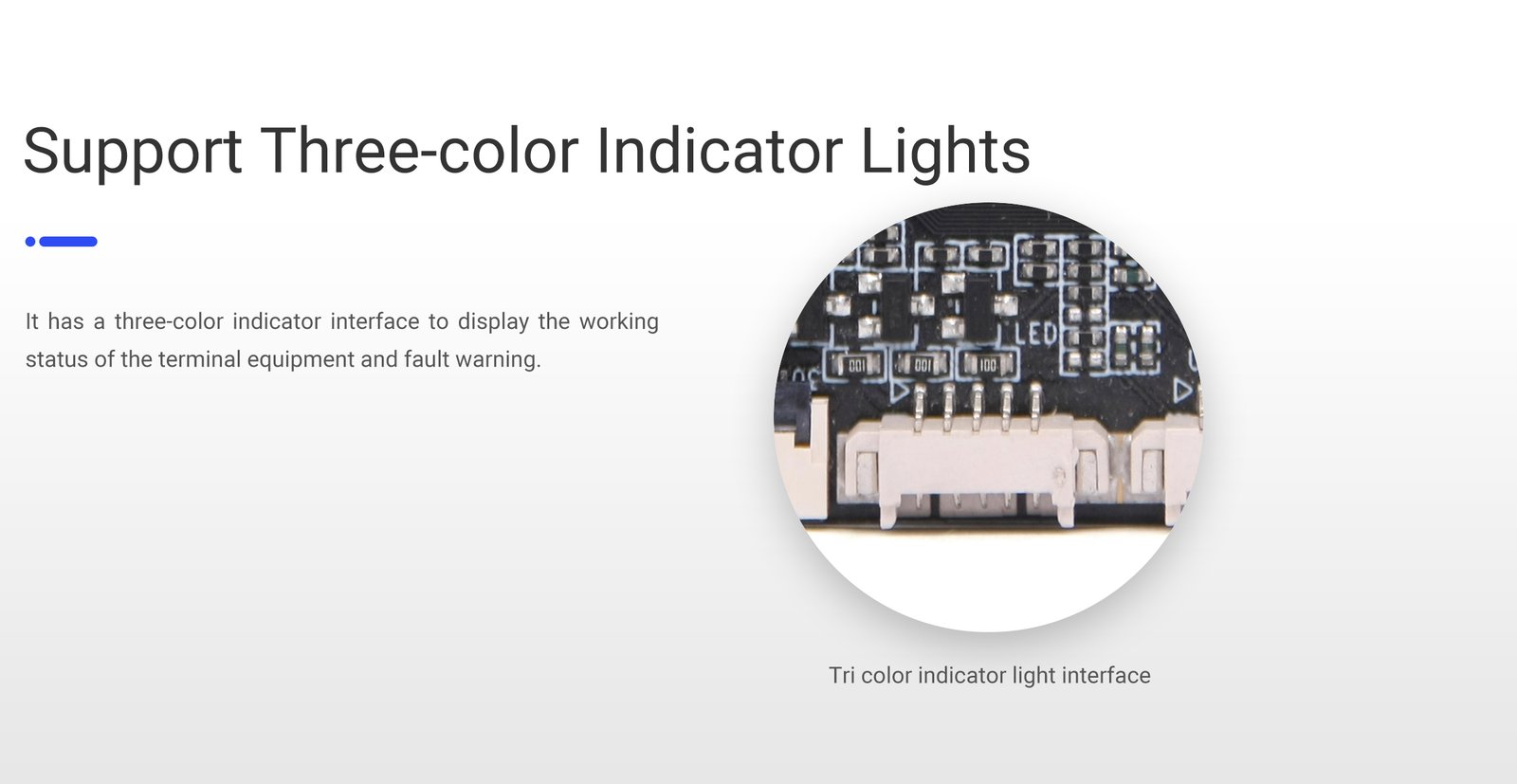

Indicator & Status Feedback
- Three-color LED indicator interface
- Visual fault alerts and operating status indicators for terminal equipment

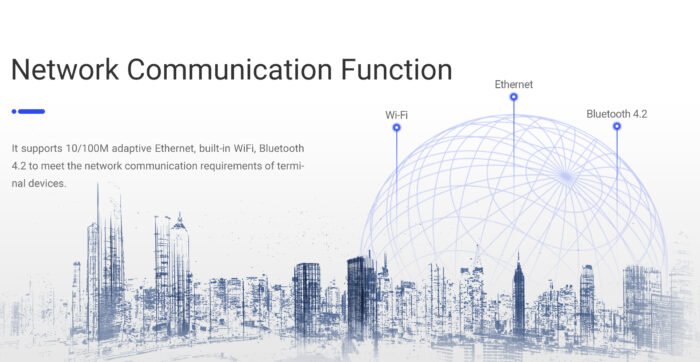

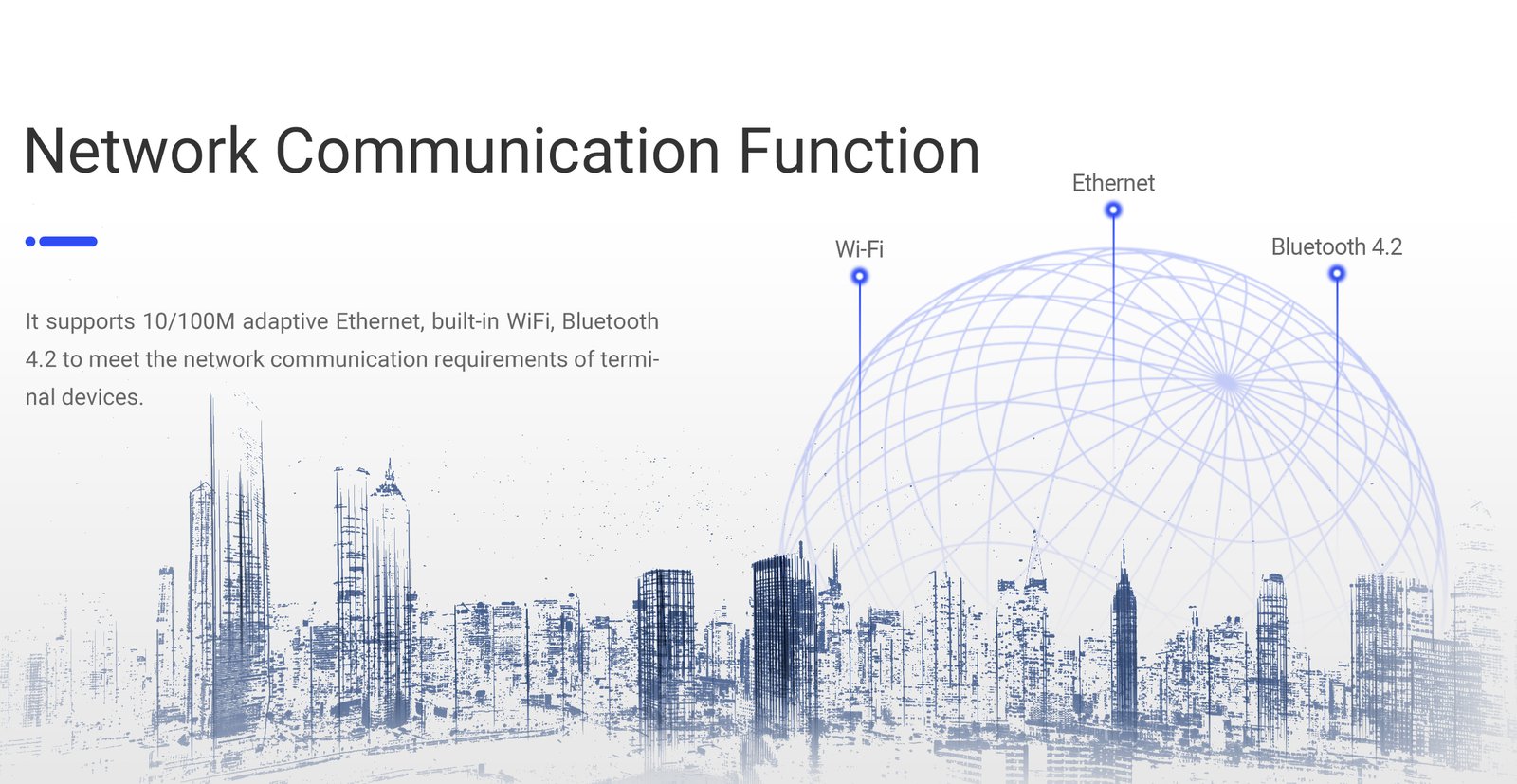

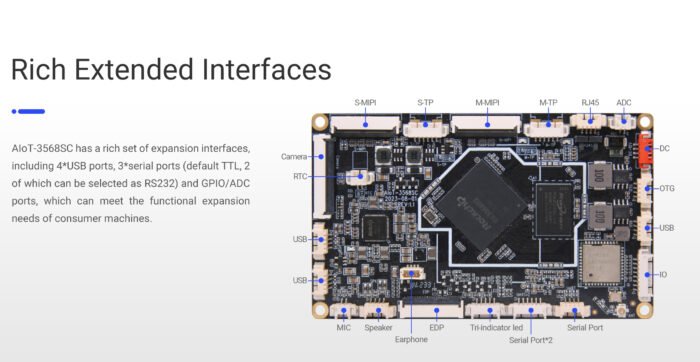

Expansion & Connectivity
- 4×USB ports
- 3×Serial ports (default TTL, 2 configurable to RS232)
- GPIO / ADC ports for external sensors, lights, buttons
- Ethernet: 10/100M adaptive
- Built-in WiFi + Bluetooth 4.2
- Supports integration with 4G dongles if needed
Custom Android System
- Deep customization supported
- Full system API + reference code provided
- Enables fast development of upper-layer APPs

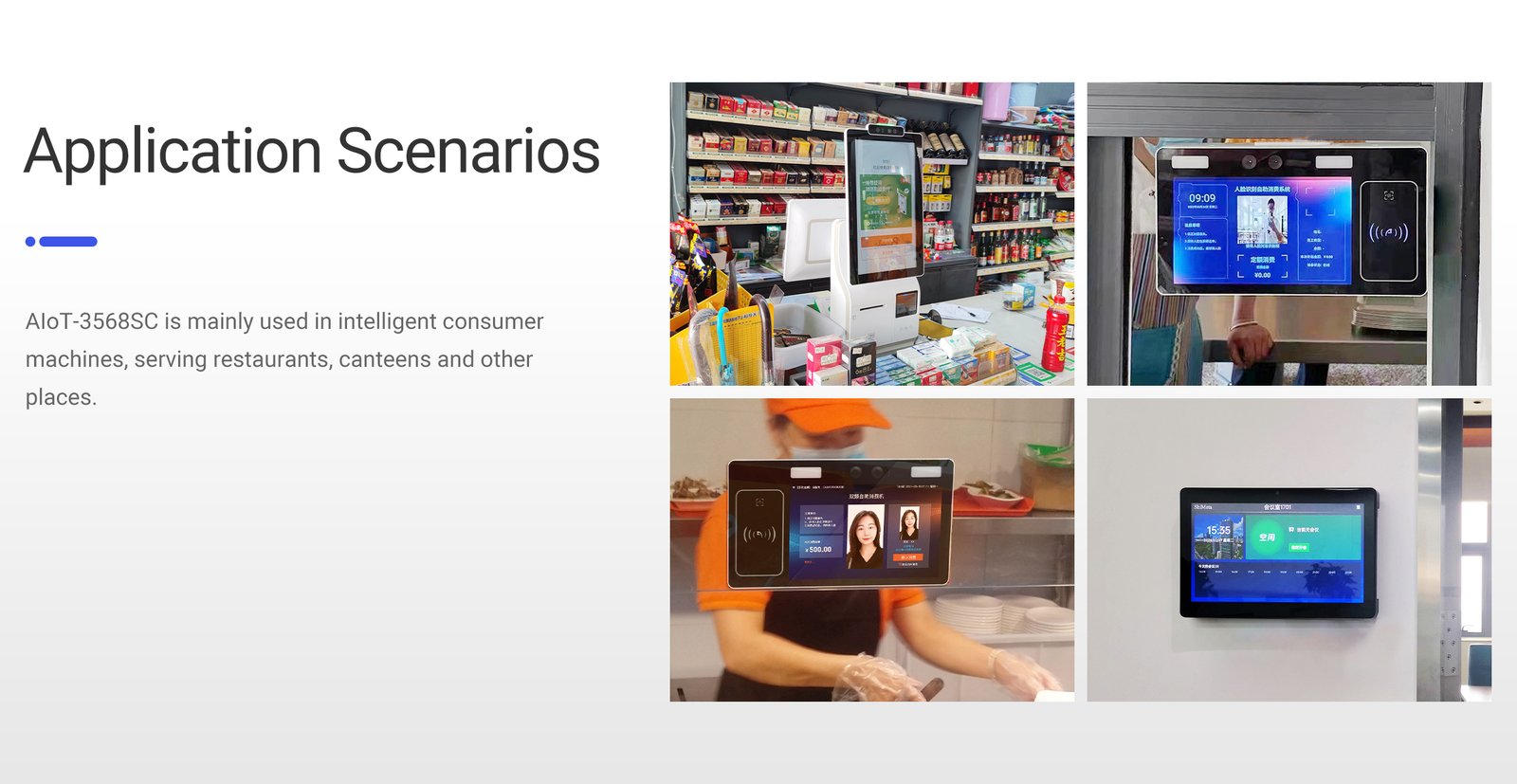

Application Scenarios
AIoT-3568SC is widely used in:
- Smart consumer machines (canteens, buffets, ordering machines)
- Restaurant self-order kiosks
- Campus dining systems
- Checkout terminals
- Retail automation counters
Frequently Asked Questions (FAQ)
What makes this board suitable for compact machines?
Its ultra-small 100x60mm size fits tight spaces in vending and consumer terminals.
Can it run dual screens with different content?
Yes. It supports MIPI + eDP outputs for independent display management.
Is this board AI-capable?
Absolutely. It features a 1TOPS RKNN NPU for lightweight AI computing at the edge.
Does it support camera input?
Yes, dual MIPI camera interfaces with up to 8MP support.
