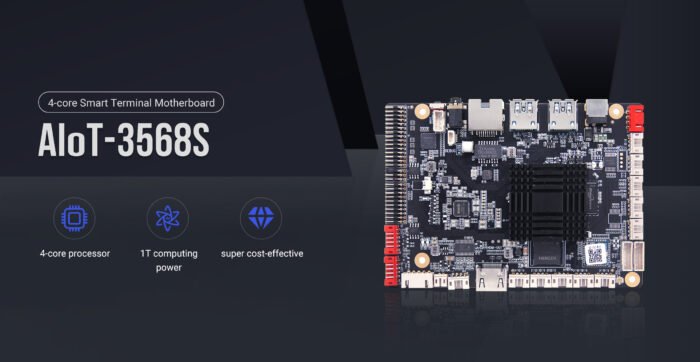

AIoT-3568S – Ultra-Compact 4-Core Smart Terminal Motherboard
Explore AIoT-3568S: a cost-effective RK3568-based embedded motherboard with 1TOPS AI computing, dual-display support, and Android/Linux OS. Ideal for smart terminals and AIoT devices.
Product Overview

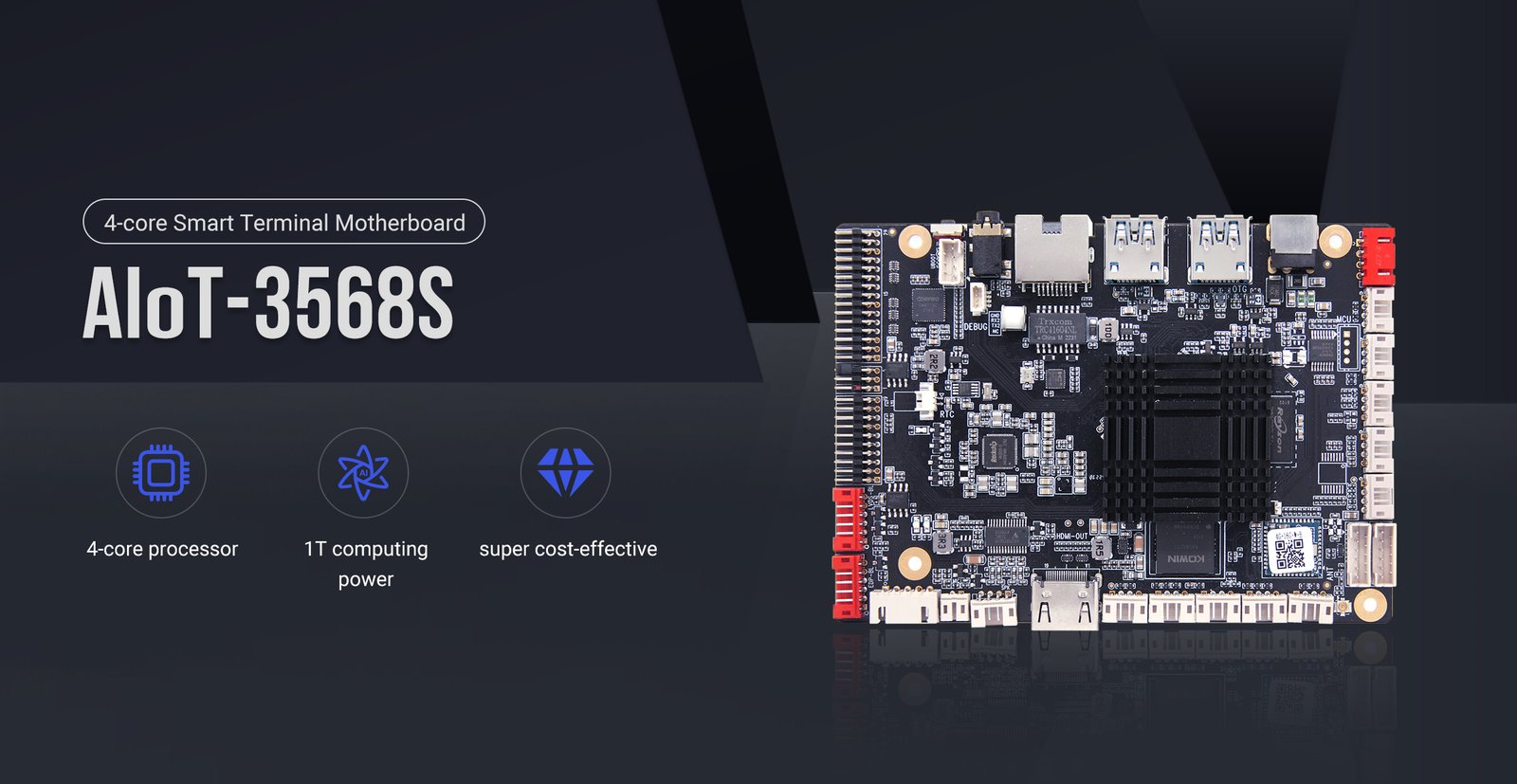

The AIoT-3568S is an ultra-thin, highly integrated 4-core smart terminal motherboard tailored for compact intelligent devices. Powered by Rockchip RK3568, it features dual-screen output, built-in 1TOPS NPU, and full compatibility with Android 11.0 and Linux operating systems. It is ideal for cost-sensitive AIoT deployments in smart retail, education, healthcare, and government sectors.

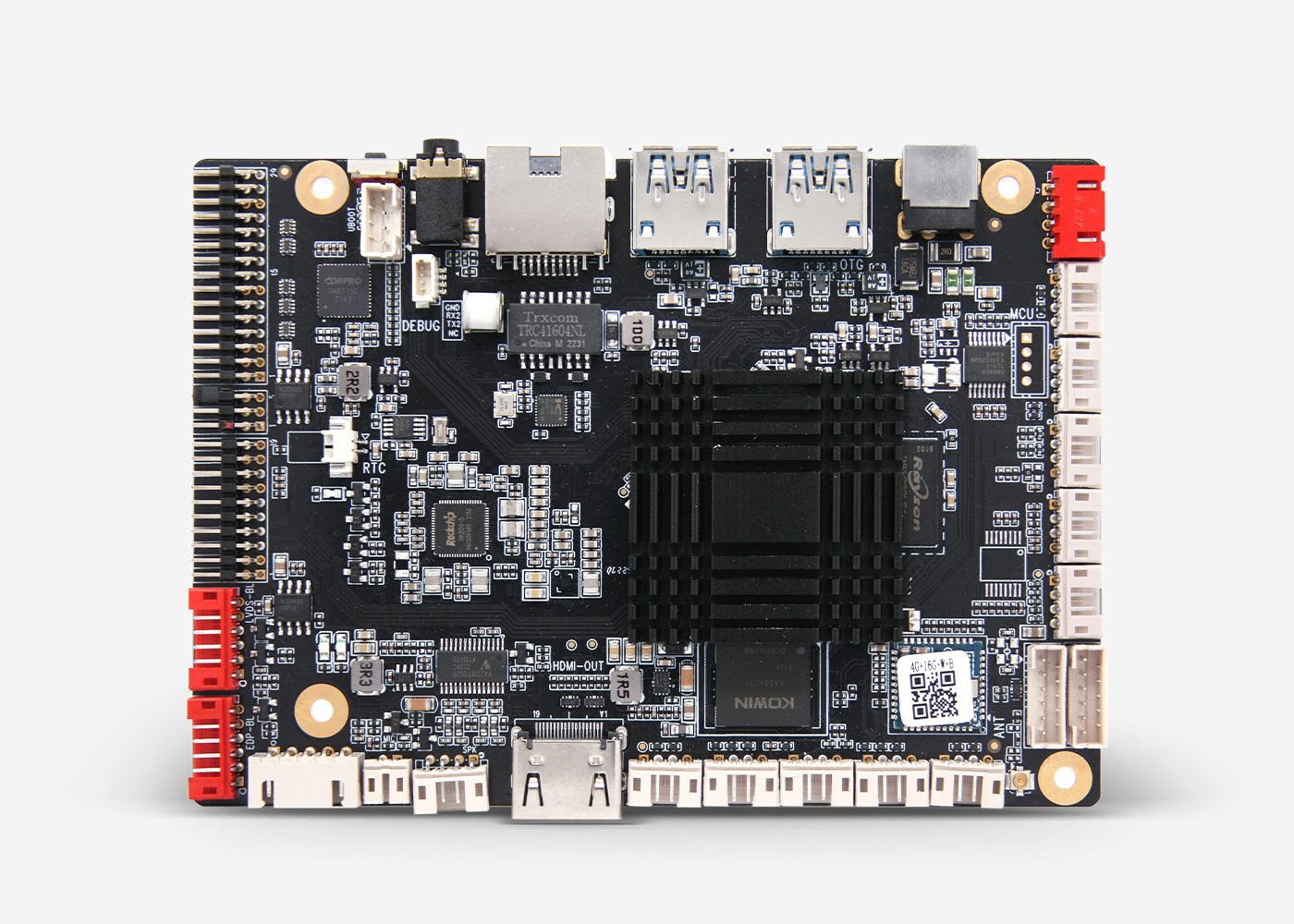

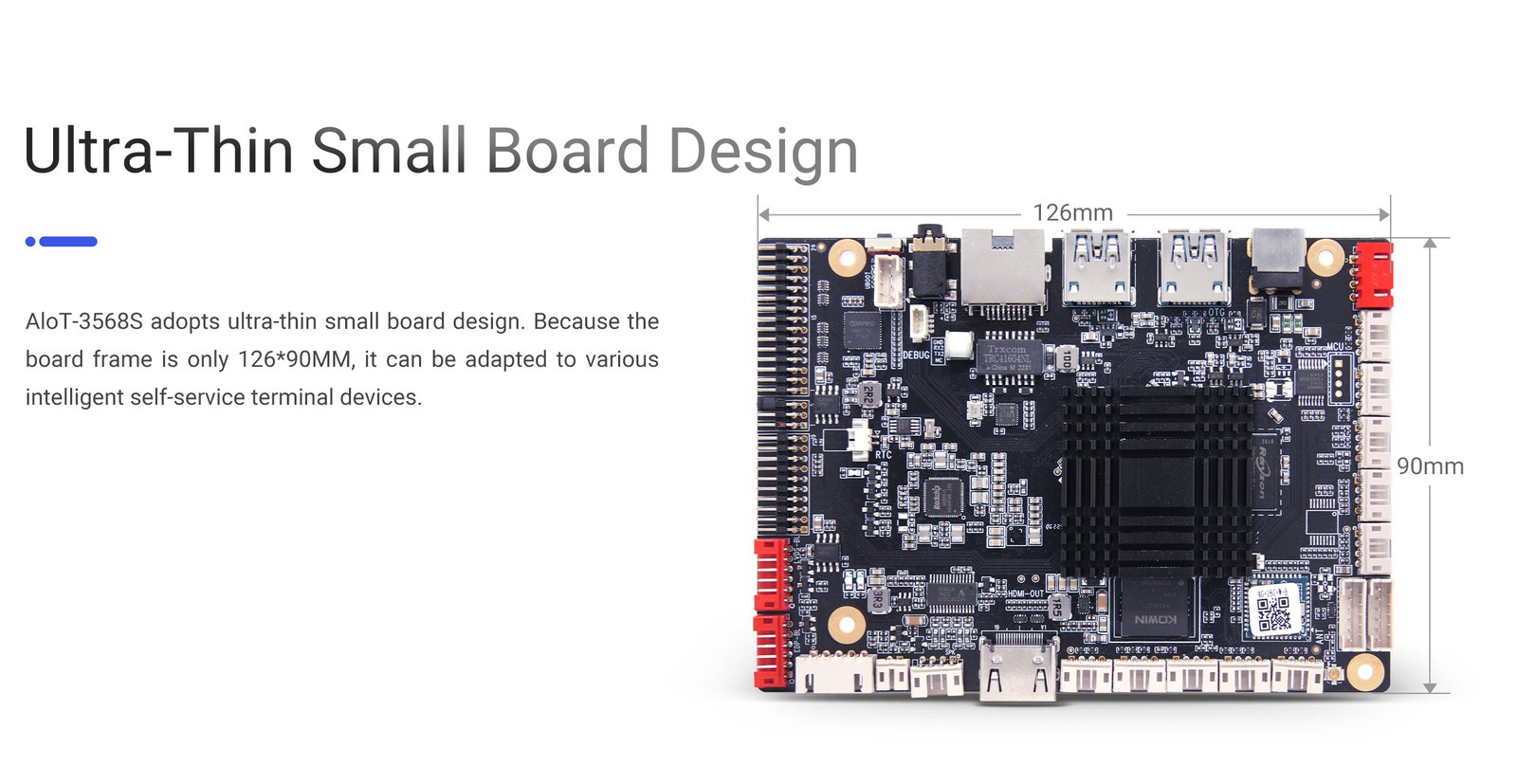

Ultra-Thin Small Board Design
- Board dimensions: 126mm × 90mm
- Compact, space-saving design
- Easy to integrate into self-service terminals, kiosks, and embedded smart equipment
High-Performance Quad-Core Processor
- CPU: RK3568, Cortex-A55 x4, 22nm process, up to 0GHz
- GPU: Dual-core architecture with OpenGLES3.2, Vulkan 1.1
- VPU:
4K@60fps decoding (H.265/H.264/VP9)
1080p@60fps encoding (H.265/H.264)
Ensures smooth multimedia handling and high-definition playback.
Dual Display & Touchscreen Compatibility
- Supports HDMI, LVDS, eDP, and MIPI outputs
- HDMI: up to 4K resolution
- Dual-screen with different display content
- Touchscreen support includes:
Infrared, optical, capacitive, resistive, and touch film
Plug-and-play HID with no driver or debugging needed
- MIPI camera input: Up to 8MP (800W)
Perfect for interactive display terminals, self-service check-ins, and surveillance interfaces.
Built-In 1TOPS AI Computing Power
- NPU: Integrated RKNN AI accelerator
- Supports 1TOPS for lightweight AI tasks
- One-click model compatibility with Caffe, TensorFlow, and others
- Ideal for edge inference, vision AI, and intelligent interaction

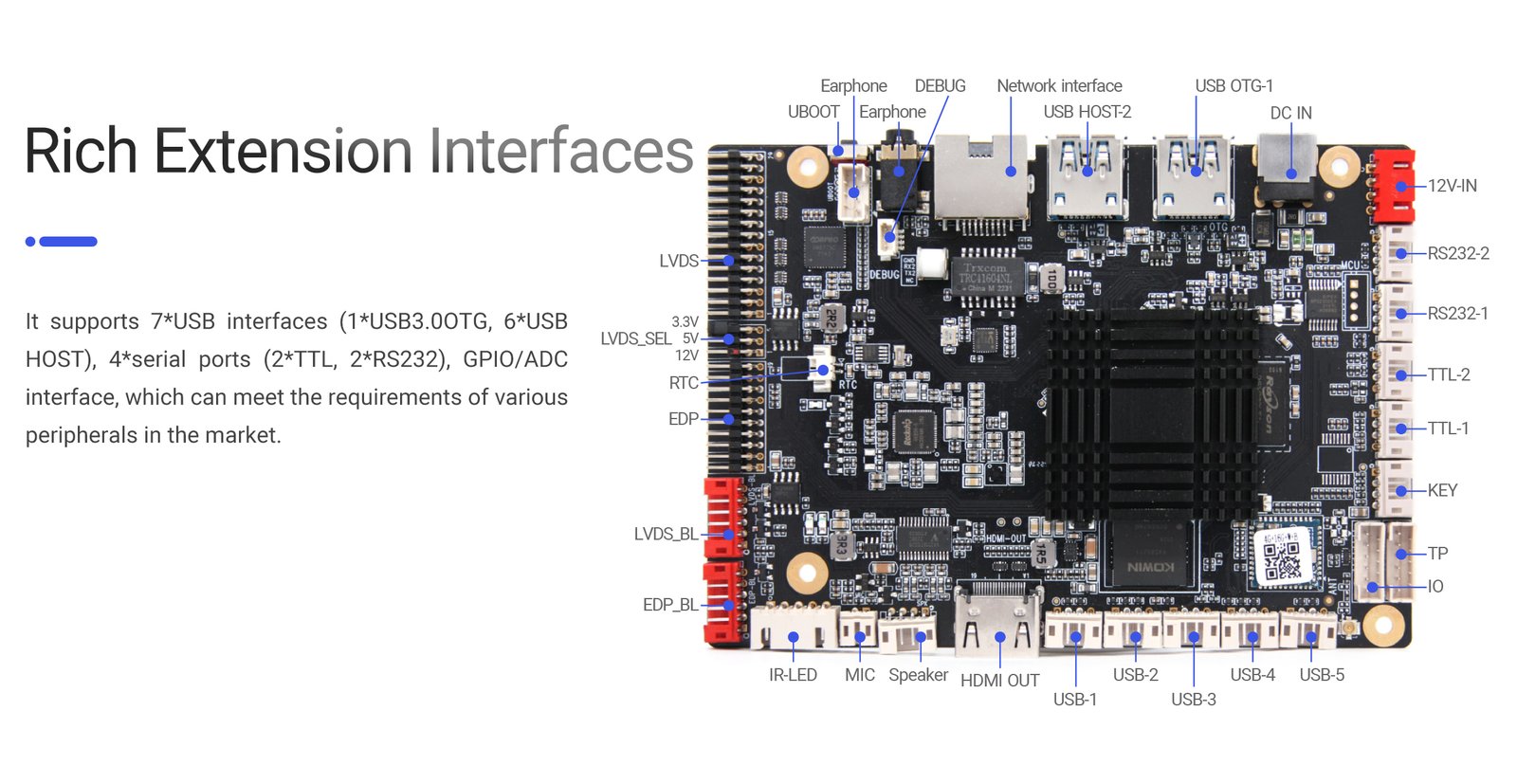

Rich Peripheral Interface Options
- 7 USB ports (1×USB3.0 OTG + 6×USB HOST)
- 4 Serial Ports (2×TTL, 2×RS232)
- GPIO / ADC interface
Supports a wide array of peripherals: - Cameras, sensors, printers, barcode scanners, and more
Network Communication Features
- 10/100M Ethernet
- Built-in WiFi & Bluetooth
Delivers seamless connectivity for online control, content syncing, and remote monitoring.
Dual OS Support & Customization
- Default OS: Android 11.0
- Optional: Linux OS support
- Provides system API and reference code
- Enables fast and stable development of customized upper-layer applications

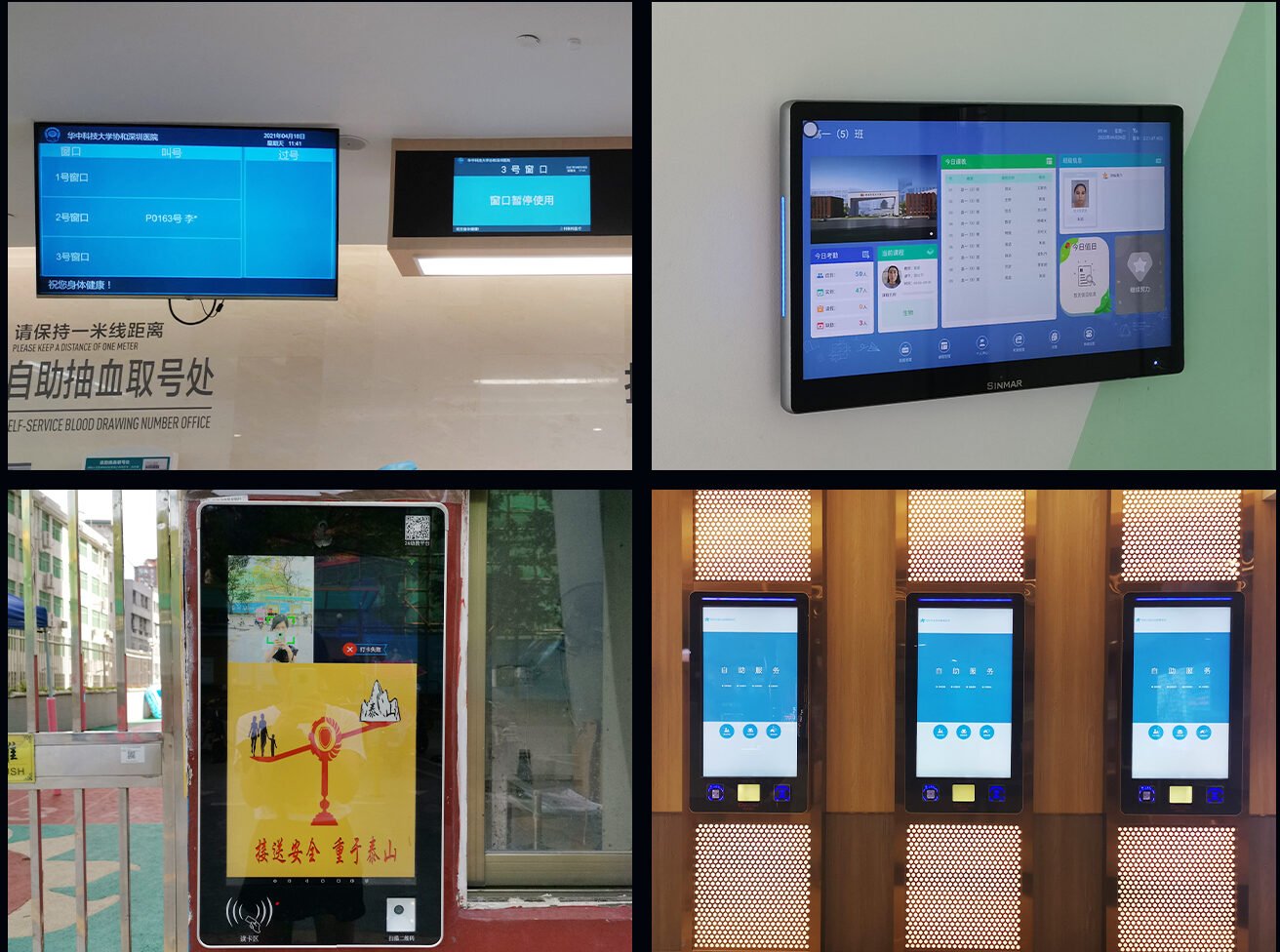

Application Scenarios
AIoT-3568S is widely used in:
- Smart Retail Systems
- Smart Healthcare Devices
- Government & Enterprise Info Terminals
- Smart Education Screens
- Advertising Players
- Electronic Class Signs
- Intelligent Attendance Machines
- Outpatient Info Panels
- OR Control Displays
Frequently Asked Questions (FAQ)
126mm × 90mm – compact and ultra-thin for embedded integration.
Yes. HDMI, LVDS, eDP, and MIPI support independent content across two displays.
Absolutely. The 1TOPS NPU supports lightweight AI and common frameworks like TensorFlow and Caffe.
Android 11.0 is default; Linux support and full customization APIs are also available.
