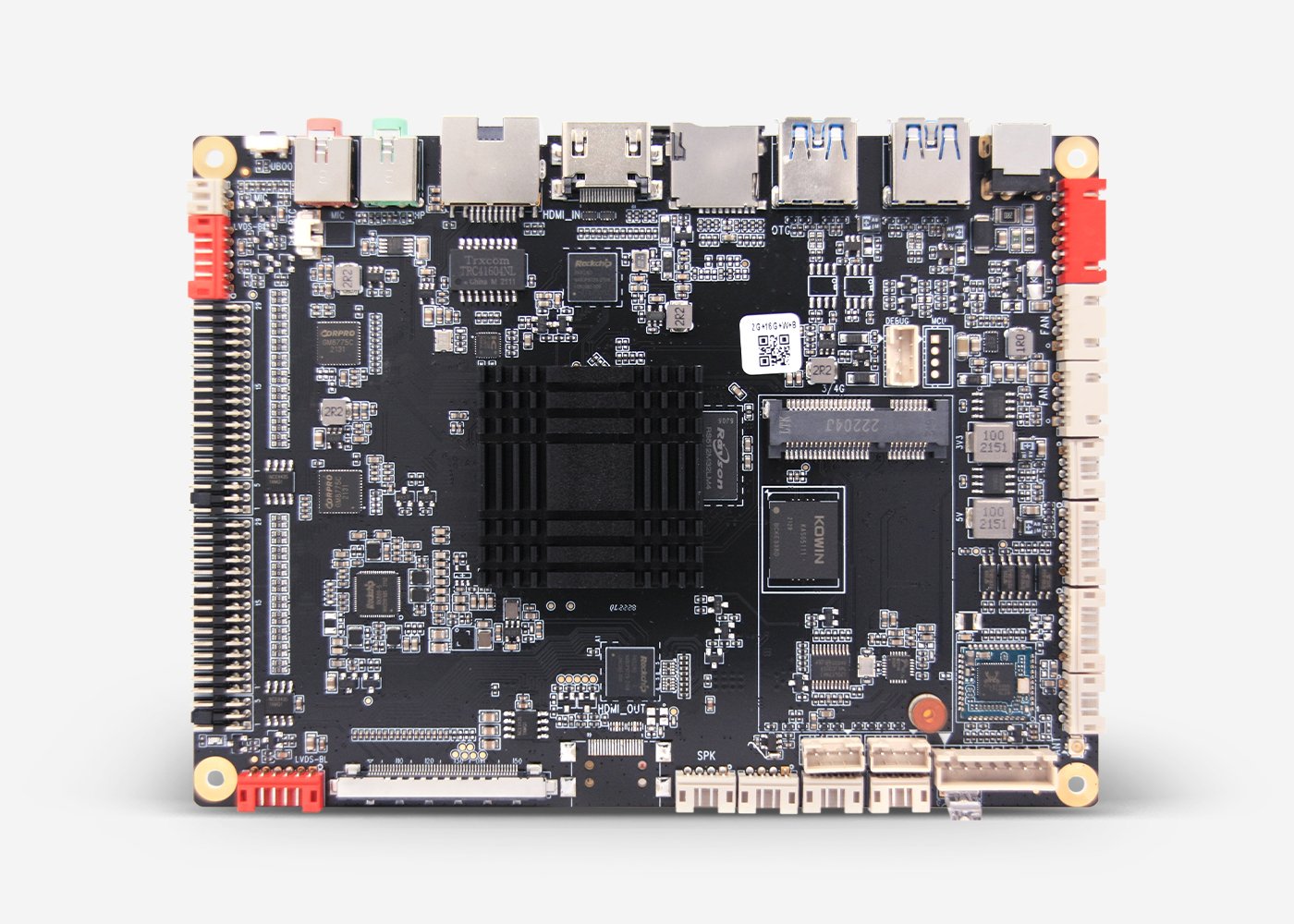

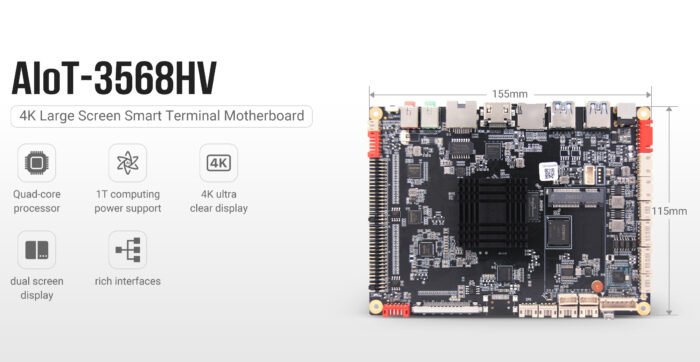

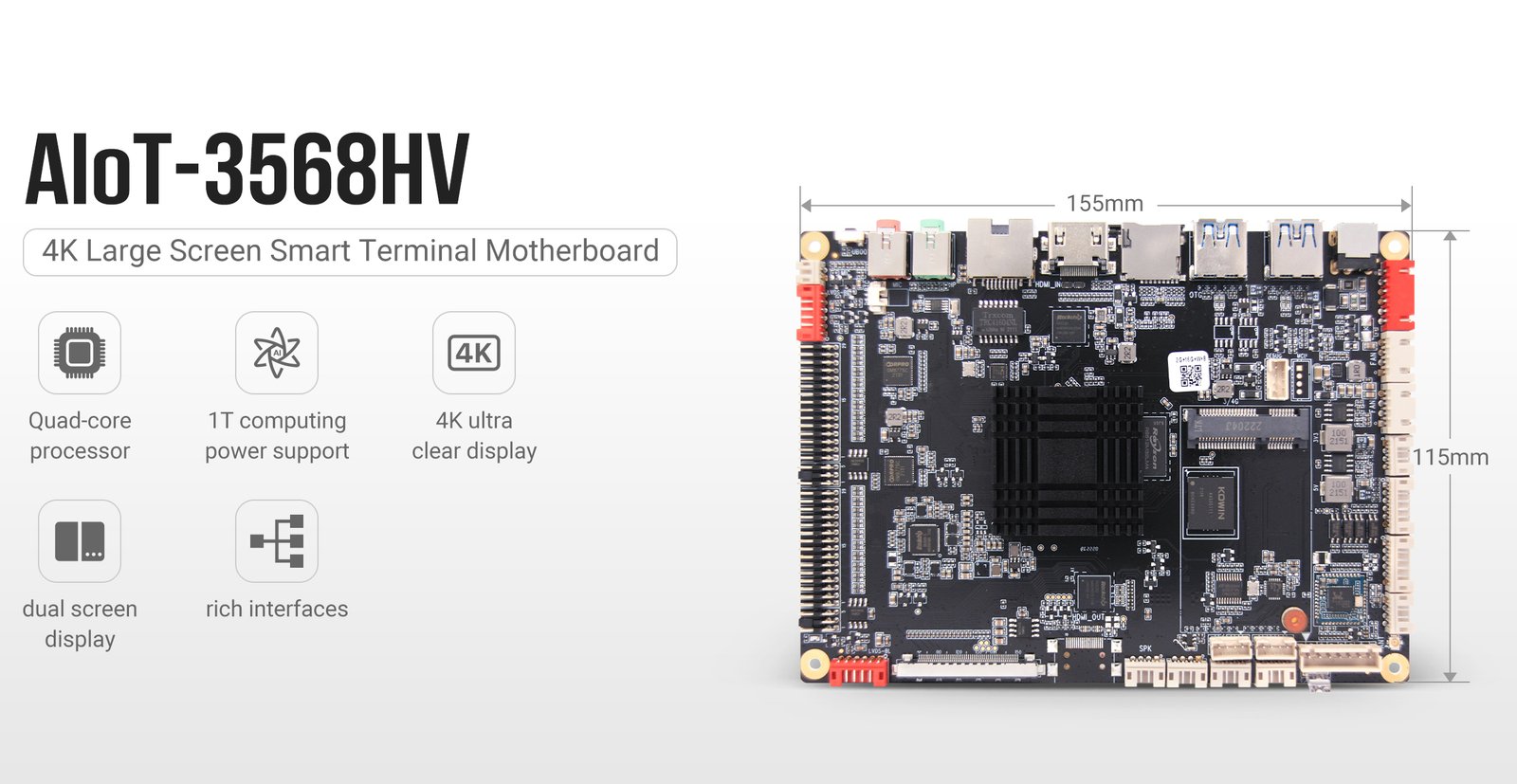

AIoT-3568HV – 4K Large-Screen Smart Terminal Motherboard
Explore the AIoT-3568HV: a quad-core smart terminal motherboard with 4K dual-display output, 1TOPS NPU, HDMI IN, and multiple I/O interfaces. Ideal for commercial large-screen AIoT applications.
Description
Product Overview
AIoT-3568HV is a high-performance, 4-core embedded smart motherboard tailored for large-screen digital terminals. Featuring support for dual 4K display, HDMI IN, and 1TOPS lightweight AI computing, it offers a perfect combination of visual excellence, AI readiness, and system stability—making it a powerful choice for smart retail, government kiosks, and educational display devices.
High-Performance Quad-Core CPU
- Processor: RK3568 (Cortex-A55x4), up to 0GHz
- OS: Android 11.0
- Memory: Up to 8GB RAM
- Storage: Up to 128GB eMMC
Delivers fast, stable processing for multi-tasking digital signage or terminal operations.
Built-In 1TOPS NPU for Lightweight AI
- 1TOPS AI computing power
- Ideal for edge AI functions: image analysis, gesture detection, voice interaction, etc.
- Compatible with mainstream AI frameworks
Dual-Screen with Different Displays
- HDMI OUT: Up to 4K@60Hz
- LVDS: Up to 1920×1200
- V-by-One: Up to 4K@60Hz
- Dual-display support: simultaneously drives two different resolution displays
Suitable for dual-screen advertising machines, interactive kiosks, or educational terminals.
HDMI IN Support
- Type-A HDMI IN port
- Supports up to 1080p@60Hz input
- Enables external video sources like set-top boxes or cameras to be captured and processed in real time
Rich Touchscreen & Camera Support
- Compatible with: infrared, optical, capacitive, resistive, touch film
- Driver-free HID support
- 1×MIPI camera interface, up to 8MP (800W pixel sensor)
4K Ultra HD Video Output
- Built-in Mali-G52 GPU
- Hardware 2D acceleration + ISP image processing
- Delivers rich color and smooth high-res video experience

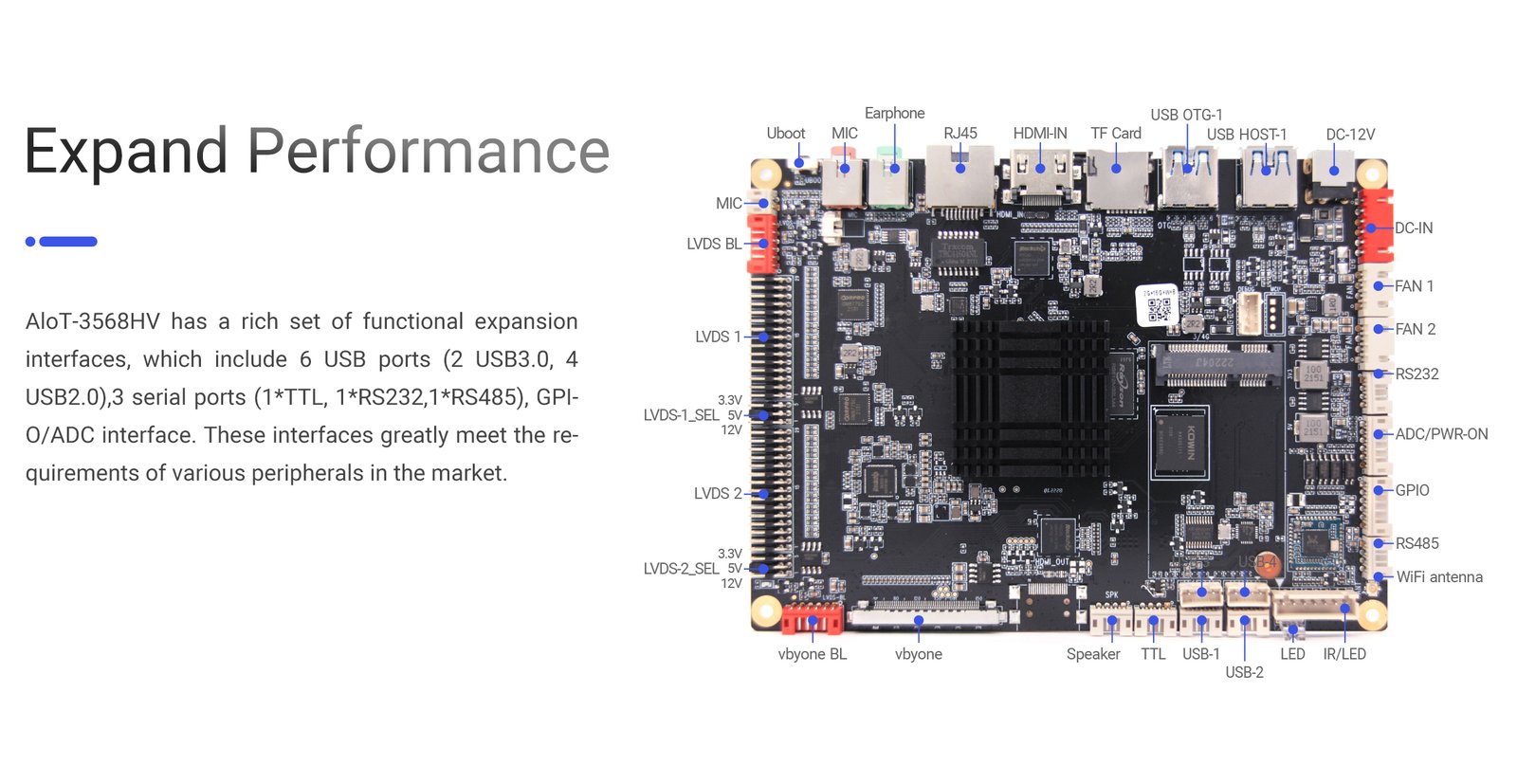

Expanded I/O Interfaces
- 6× USB ports (2×USB3.0, 4×USB2.0)
- 3× Serial ports (TTL, RS232, RS485)
- GPIO / ADC interfaces
Supports a wide range of commercial-grade sensors and peripherals
Network & Communication Capabilities
- Ethernet: 100 Mbps
- Wireless: Built-in WiFi + Bluetooth 4.2
- 4G Support: via built-in Mini PCI-E interface
Ensures reliable data transmission for cloud-based terminals

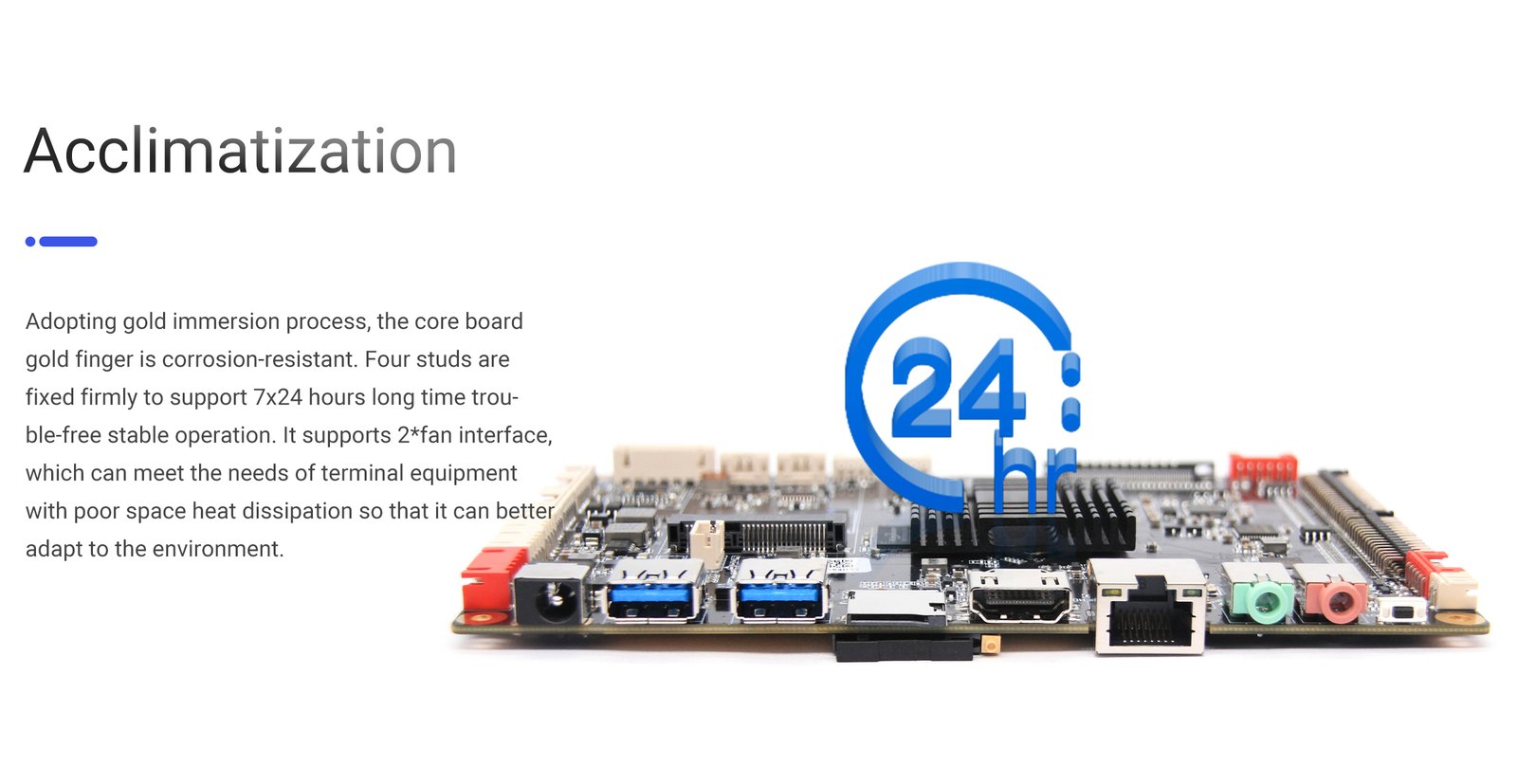

Customization & Reliability
- Supports deep Android system customization
- Provides API and system call reference code
- Gold-immersion PCB, corrosion-resistant
- 7x24h stable operation with optional dual-fan support
Designed for high-uptime industrial and public environments

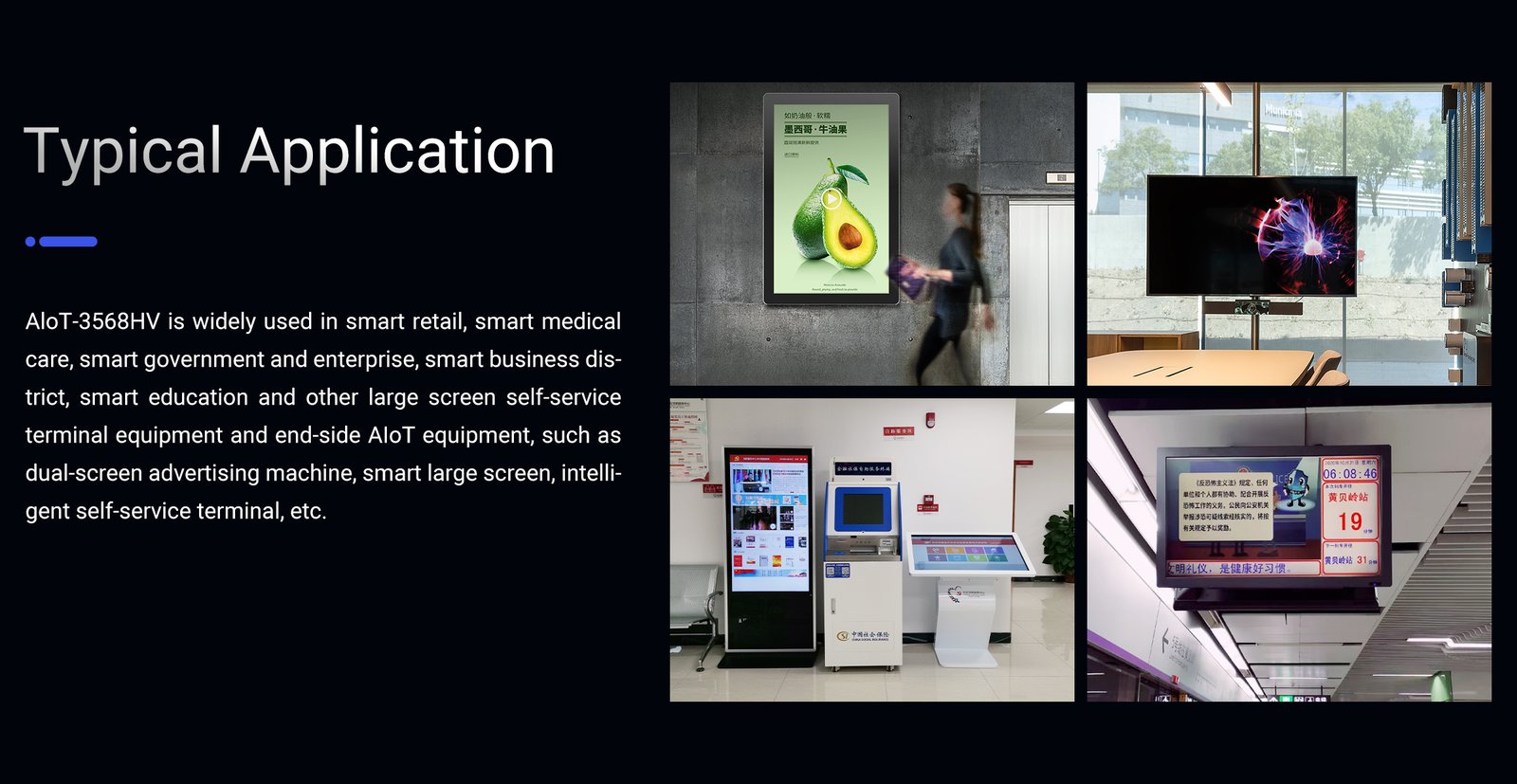

Typical Application Scenarios
AIoT-3568HV is widely used in:
- Smart retail display terminals
- Hospital navigation or check-in screens
- Educational whiteboards or class signs
- Government or enterprise service kiosks
- Dual-screen advertising machines
- Large-format LCD/LED digital signage
Frequently Asked Questions (FAQ)
Can this board support two screens with different resolutions?
Yes, via HDMI + LVDS or V-by-One. Ideal for dual-screen terminal use.
What is the purpose of HDMI IN?
You can input external video signals (e.g., cameras, media players) up to 1080p.
Is it suitable for AI applications?
Yes, the 1TOPS NPU supports lightweight AI tasks such as vision recognition and behavior monitoring.
What peripherals are supported?
It supports USB devices, serial interfaces, GPIO-connected sensors, and MIPI cameras.
