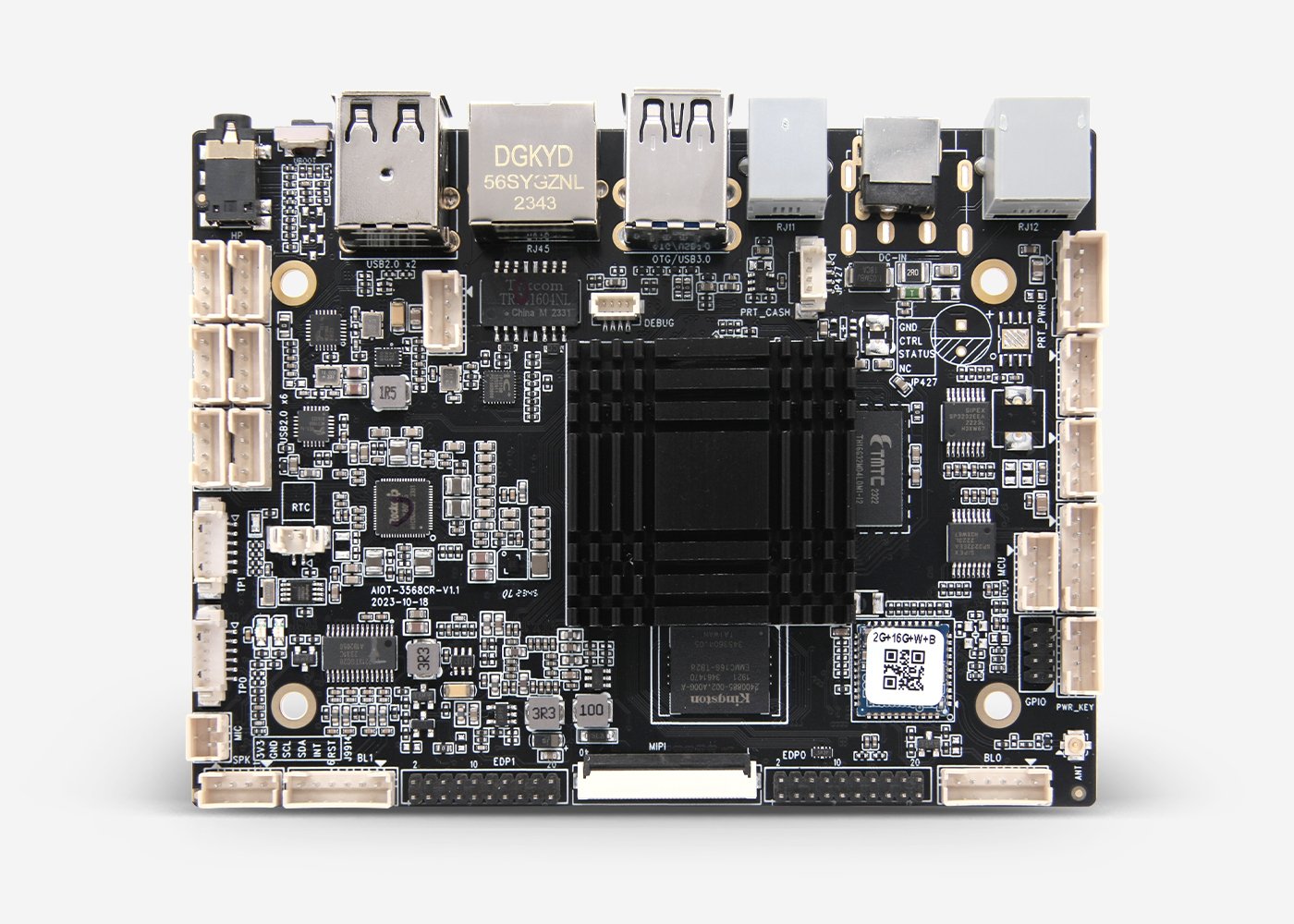

AIoT-3568CR – Smart Dual-Screen Cash Register Motherboard with POE & AI Computing
Meta Title
AIoT-3568CR Dual-Screen POS Motherboard with RK3568, 1TOPS NPU, POE Power | ShiMeta
Meta Description
Discover AIoT-3568CR: a compact, Android-based dual-display cash register motherboard with 1TOPS NPU, POE support, printer integration, and rich I/O. Perfect for smart POS terminals.
Product Overview

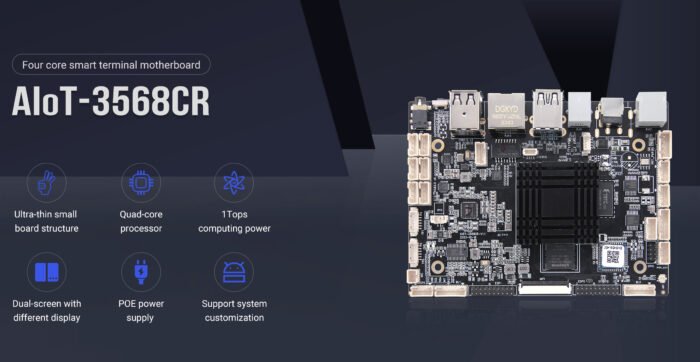

The AIoT-3568CR is a compact, ultra-thin motherboard purpose-built for smart dual-screen POS terminals and retail cash register systems. Powered by the high-performance RK3568 quad-core processor and a built-in 1TOPS NPU, it supports dual-screen and dual-touch display, printer functions, POE power, and comprehensive I/O interfaces, making it an all-in-one solution for modern AI-enhanced checkout systems.
Key Features

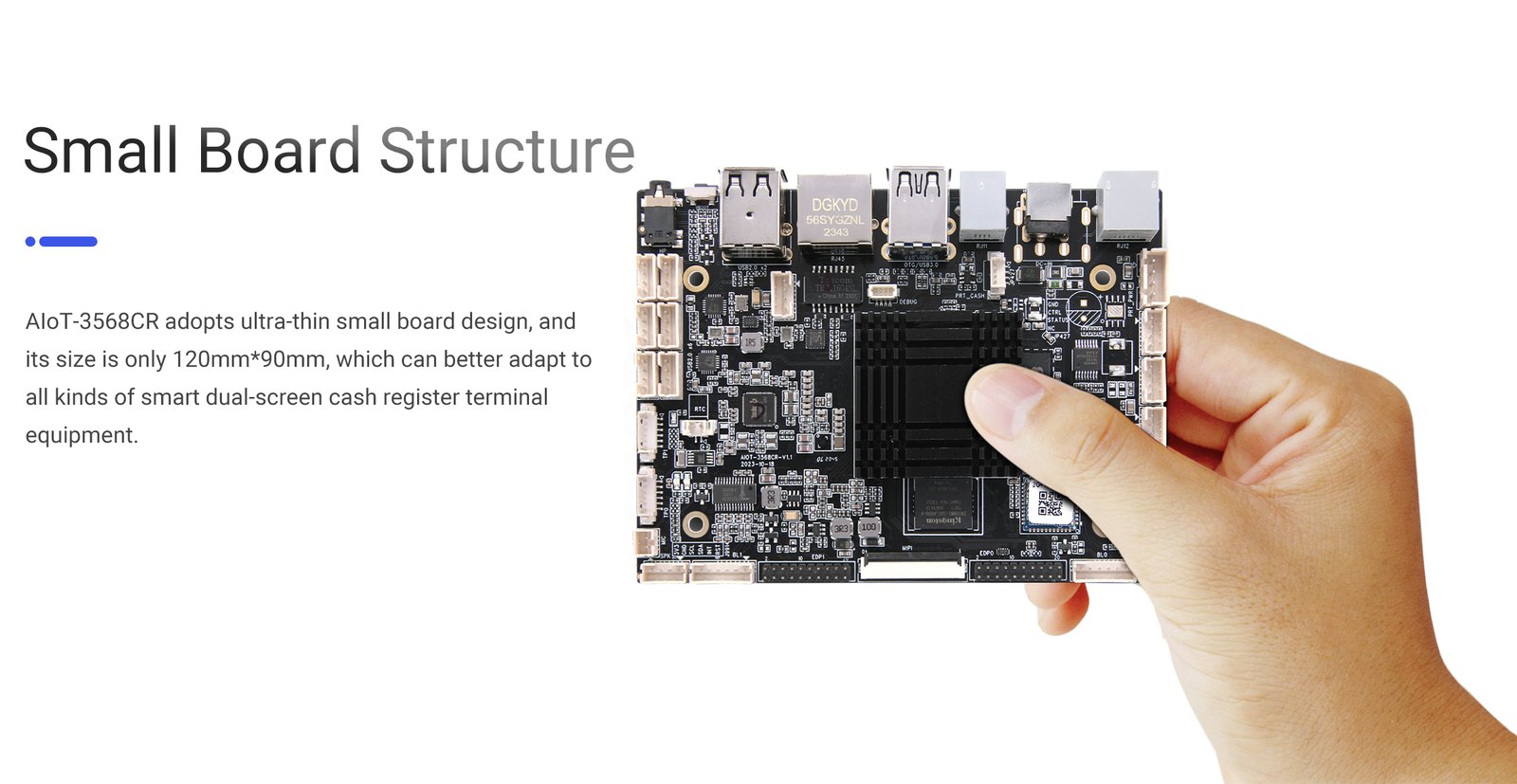

Compact, Thin-Board Design
- Dimensions: 120mm × 90mm
- Ultra-slim profile designed to integrate seamlessly into space-constrained POS terminals and cash registers
RK3568 Quad-Core AI Processor
- Architecture: Cortex-A55 ×4
- Max Frequency: 2.0GHz, 22nm process
- Built-in NPU: 1TOPS computing power
Supports AI-enhanced functions such as smart recognition, automated checkout, and machine learning applications in retail.

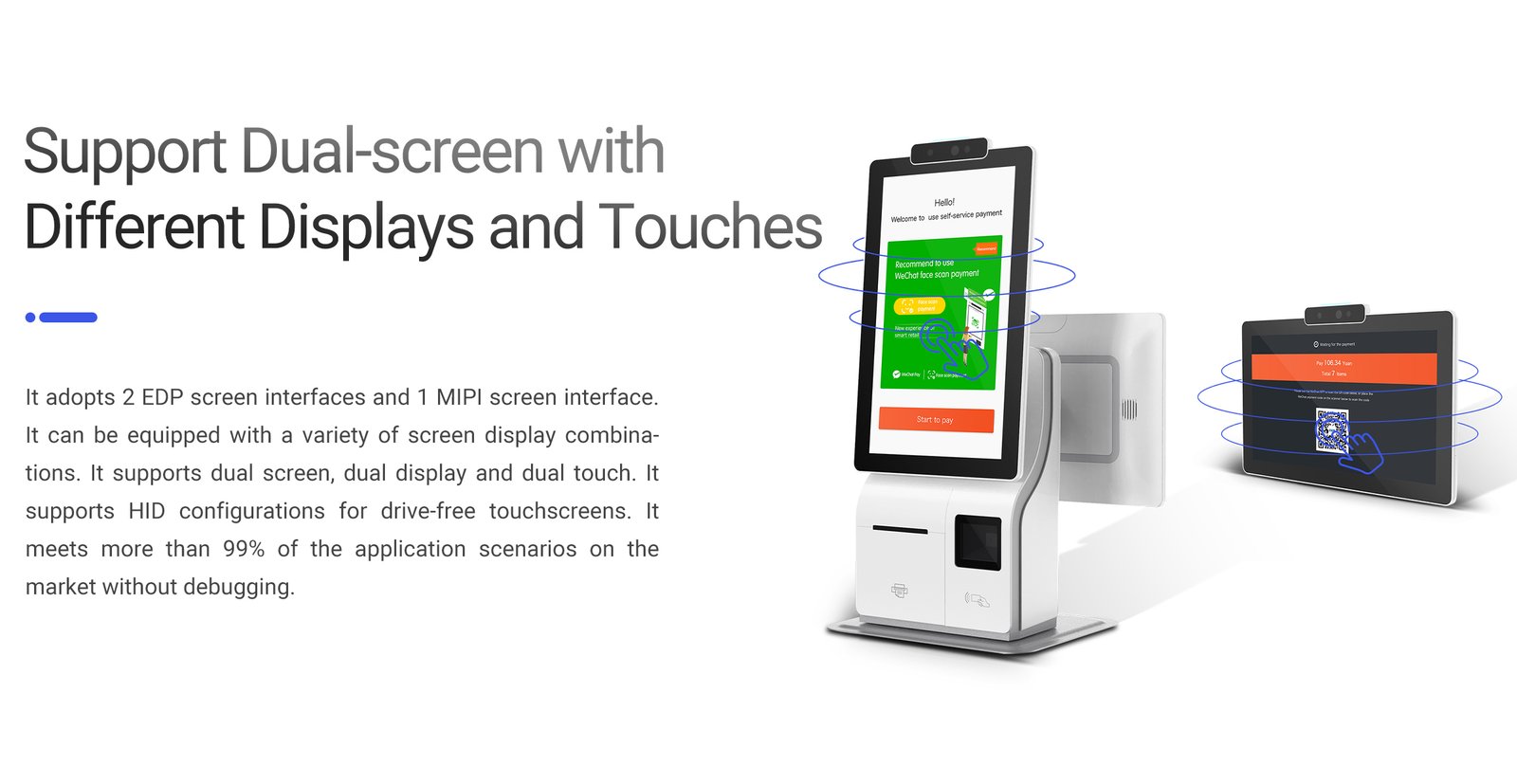

Dual-Screen & Dual-Touch Display
- Interfaces: 2×eDP, 1×MIPI
- Supports:
Dual screens with independent display content
Dual touch interaction
Driver-free HID configuration - Compatible with over 99% of mainstream touchscreen modules
Ideal for customer-facing display + cashier operation screen configurations

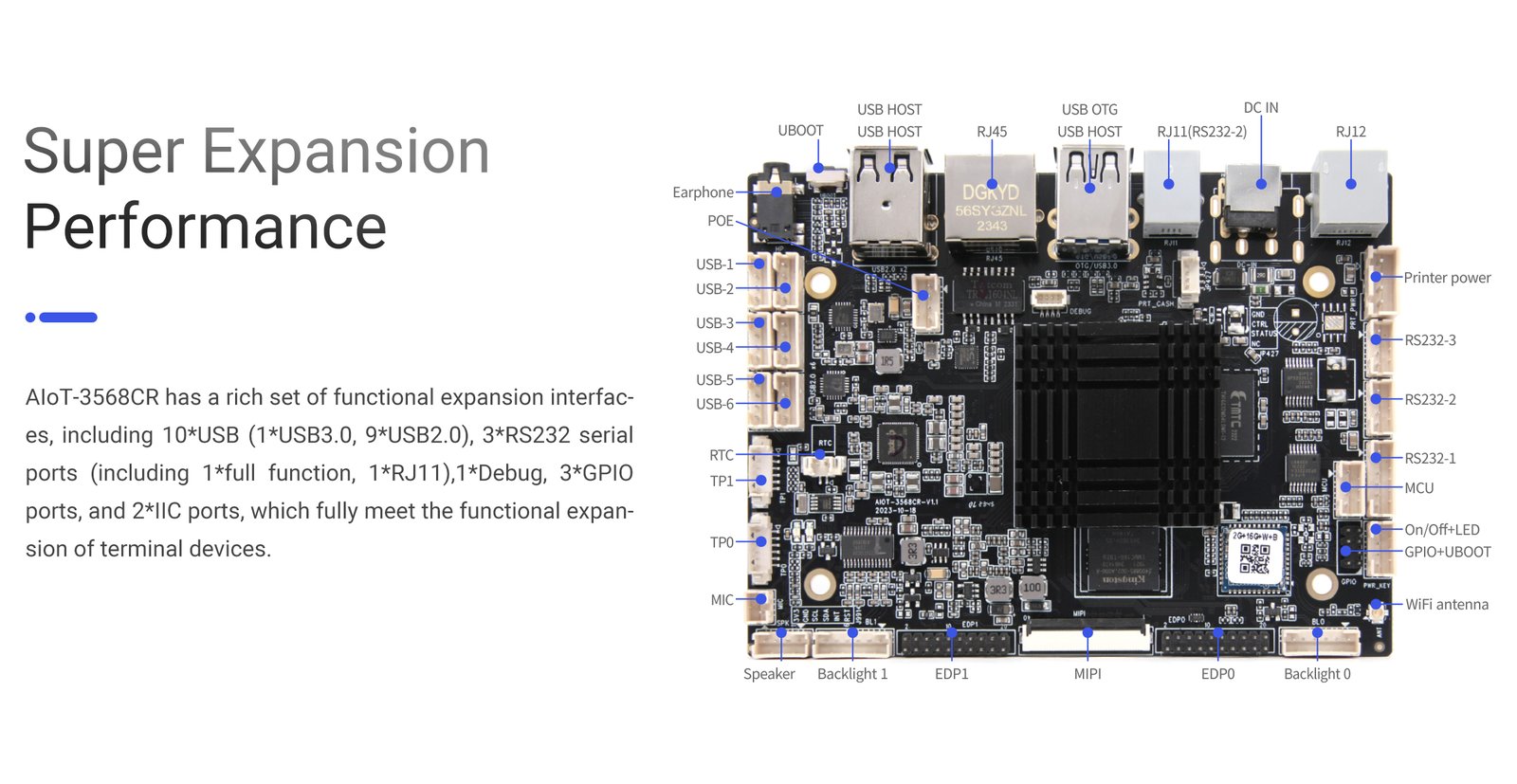

Robust Expansion Capabilities
- USB: 10 total (1×USB3.0, 9×USB2.0)
- Serial: 3×RS232 (1 full function, 1×RJ11)
- I/O: 3×GPIO, 2×IIC, 1×Debug

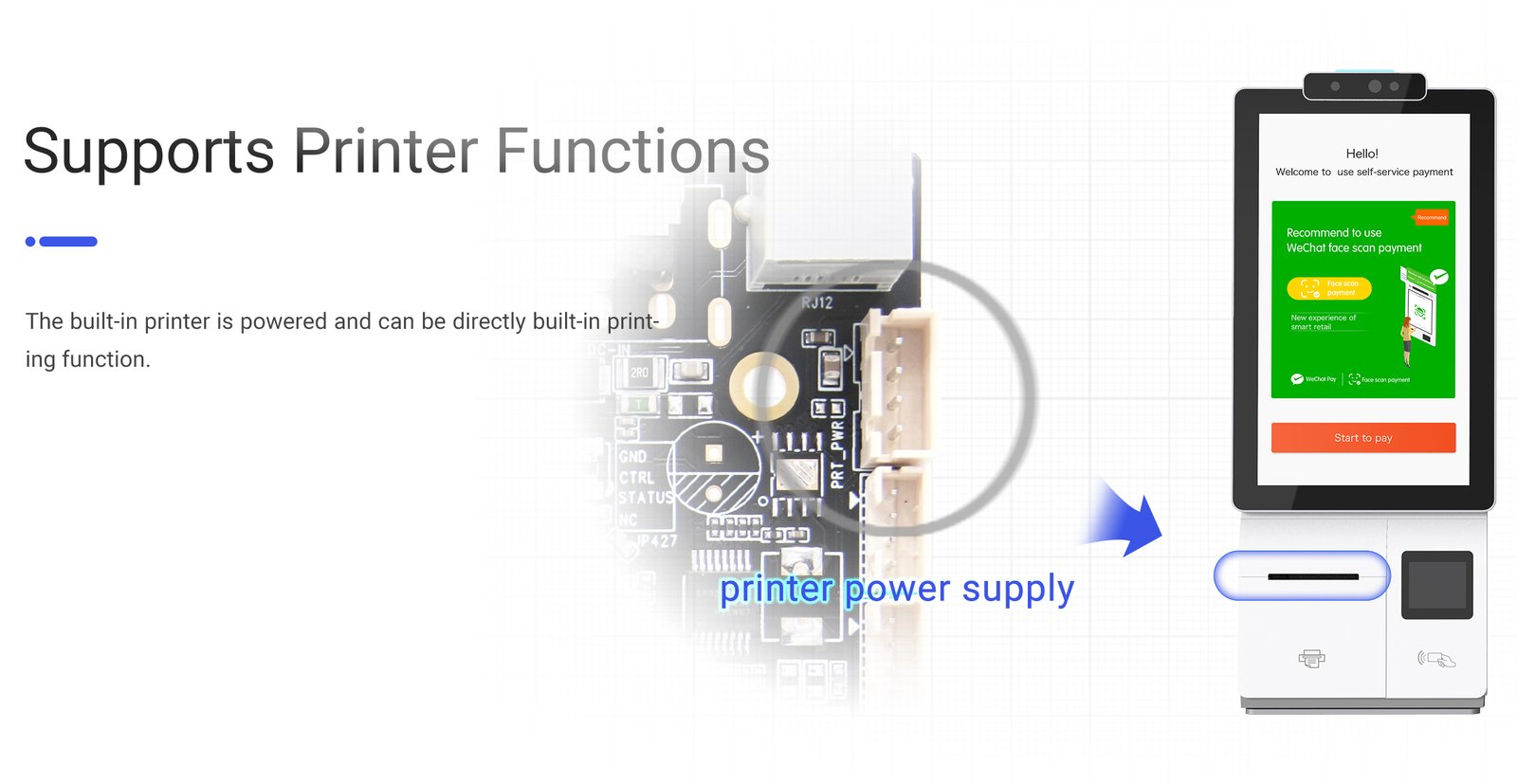

- Built-in printer support: enables direct printer integration
Fully expandable for peripherals such as barcode scanners, scales, card readers, thermal printers

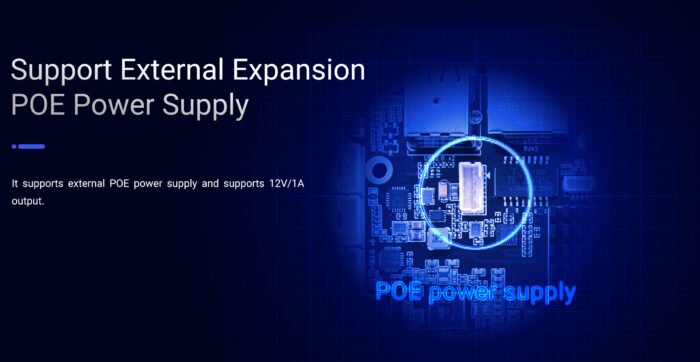

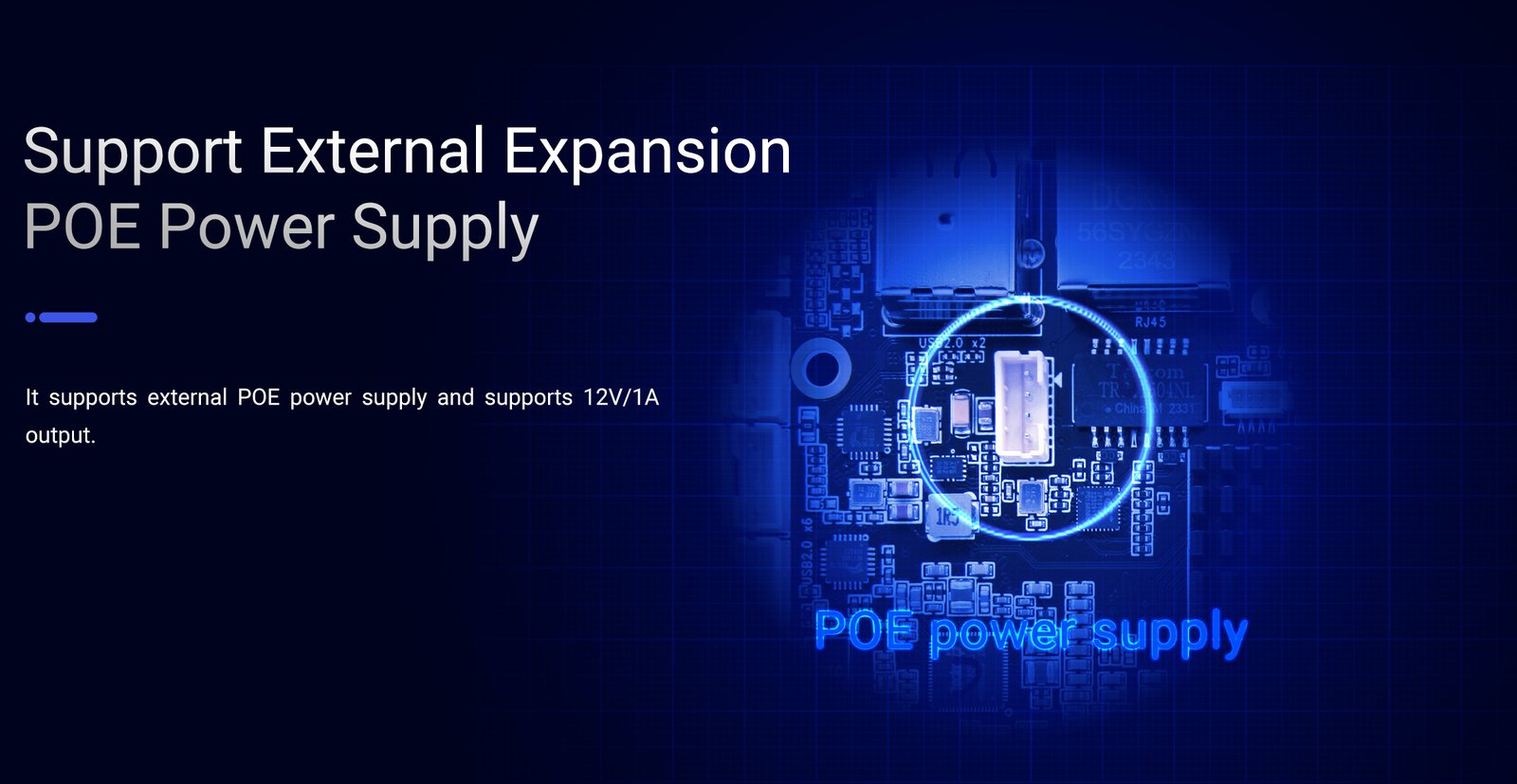

External POE Power Support
- Supports external POE power input
- Built-in 12V/1A output
Reduces wiring complexity and enhances installation flexibility for all-in-one retail machines
Strong Network Communication
- Ethernet: 10/100M adaptive
- Wireless: Wi-Fi + Bluetooth 4.2
Supports seamless cloud connectivity, online payment systems, and wireless peripheral pairing
Full System Customization
- Default OS: Android 11.0
- Compatible with: Linux and other domestic operating systems
- Supports full API-level system customization, enabling fast deployment of retail POS applications

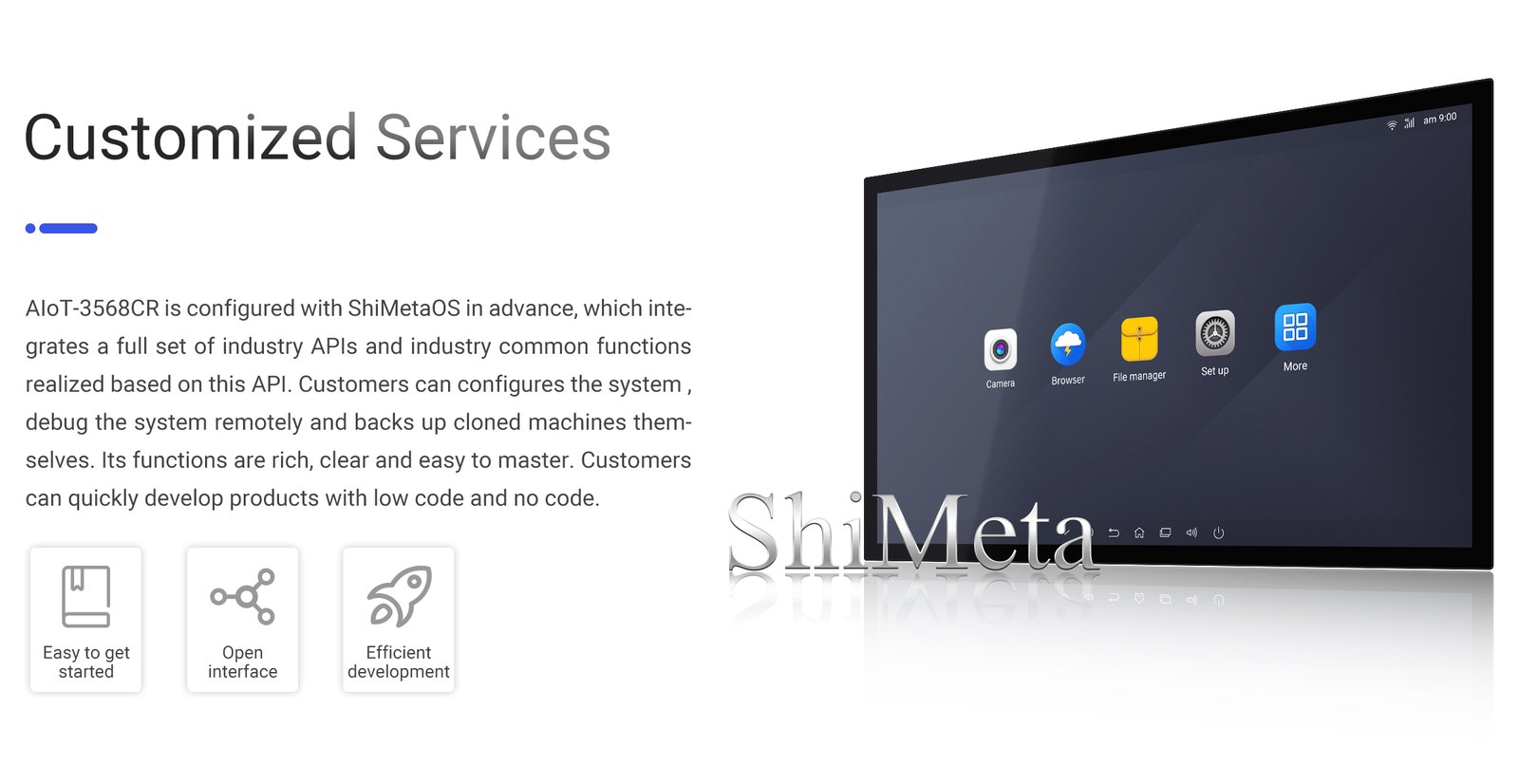

ShiMetaOS + Low-Code/No-Code Development
- Pre-loaded with ShiMetaOS
- Includes industry-ready APIs and common retail modules
- Supports remote system debugging, cloning, and flexible interface configuration
Accelerates development speed while reducing engineering cost — ideal for OEM/ODM clients

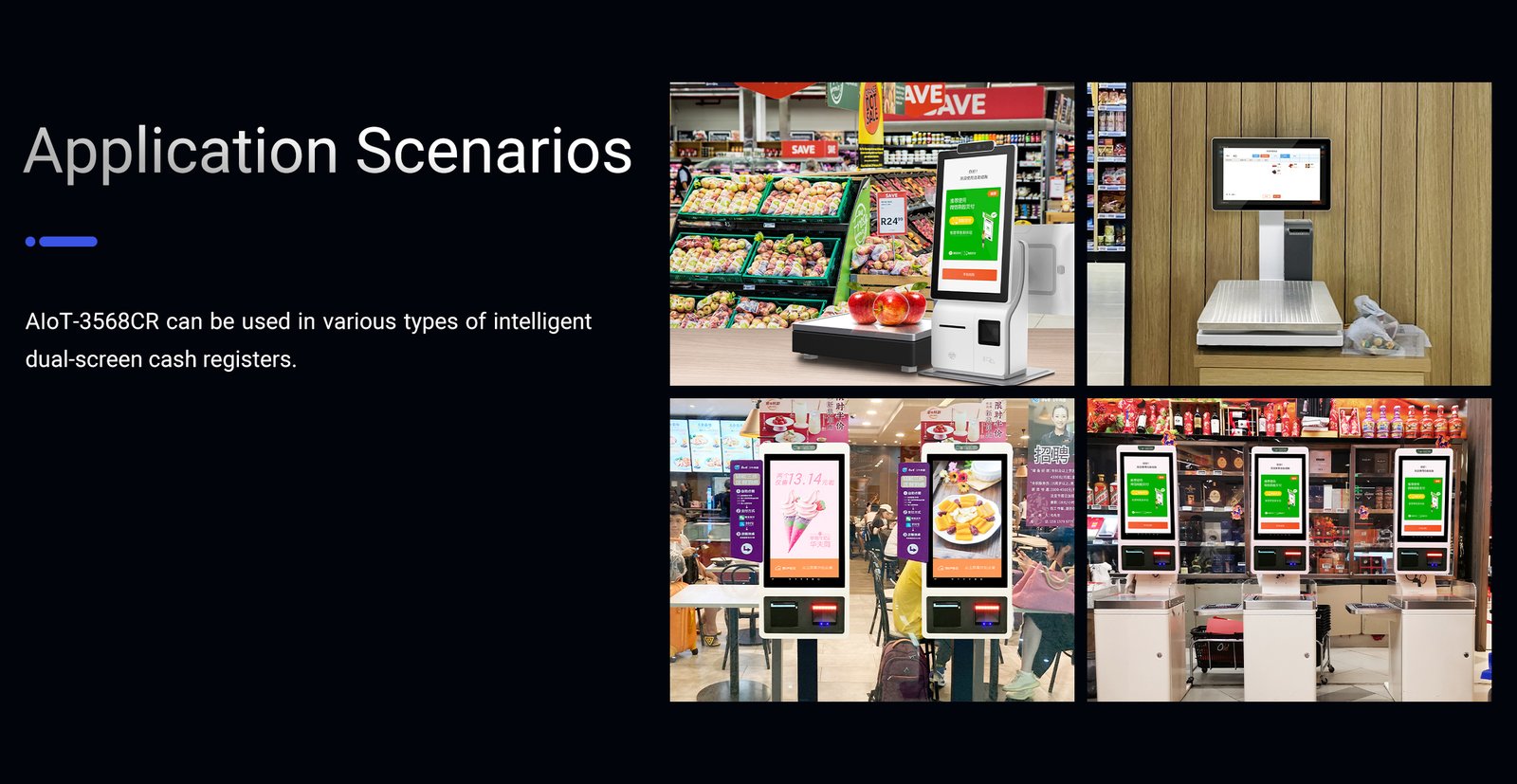

Application Scenarios
AIoT-3568CR is perfectly suited for:
- Dual-screen smart POS machines
- Integrated retail checkout systems
- Smart food court & canteen cash registers
- Self-service cashier terminals
- Touch-enabled billing kiosks
Frequently Asked Questions (FAQ)
Two eDP interfaces and one MIPI, supporting dual-screen and dual-touch functionality.
It supports external POE modules and provides 12V/1A output internally.
Yes, the board supports built-in printer integration and power supply.
Android 11.0 is default. Linux and domestic OS versions can also be deployed.
Yes. ShiMeta provides reference code and full API support for upper-layer application development.
