AIoT-3568A – Standard 4-Core Smart Terminal Motherboard
Discover AIoT-3568A: a standard-sized RK3568-based embedded motherboard with 0.8TOPS NPU, dual-screen output, advanced video processing, and Android system customization. Perfect for smart retail and self-service devices.
Description
Product Overview

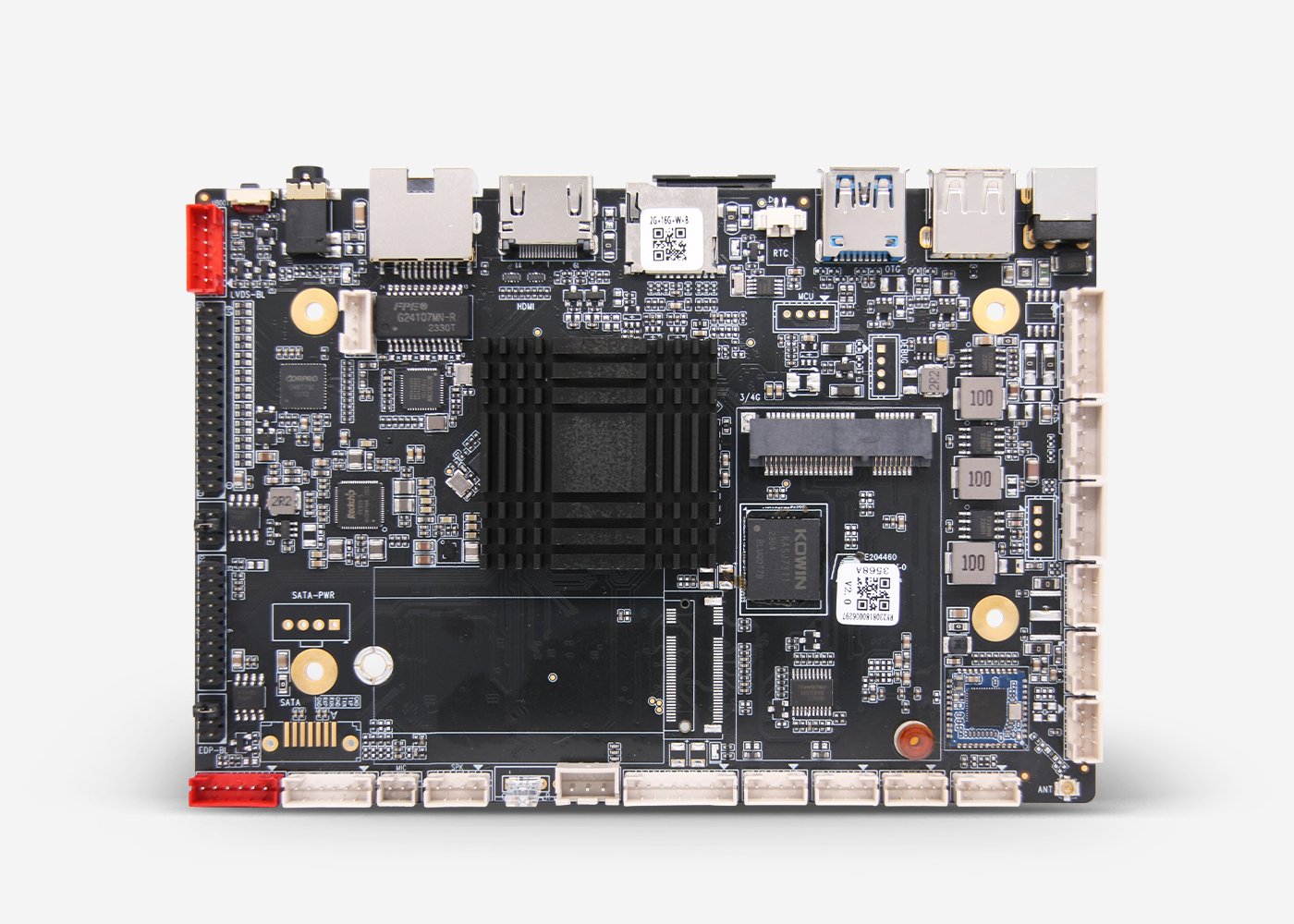

AIoT-3568A is a stable, high-performance quad-core embedded motherboard designed for smart terminals and edge computing applications. Equipped with the RK3568 processor, 0.8TOPS NPU, and support for dual-screen output, it’s ideal for scenarios requiring high-definition multimedia, lightweight AI tasks, and multi-peripheral integration.
The standard board design and industrial-grade reliability make it easy to integrate and scale in self-service kiosks, vending terminals, and smart retail solutions.
Key Features
Standard Industrial Design

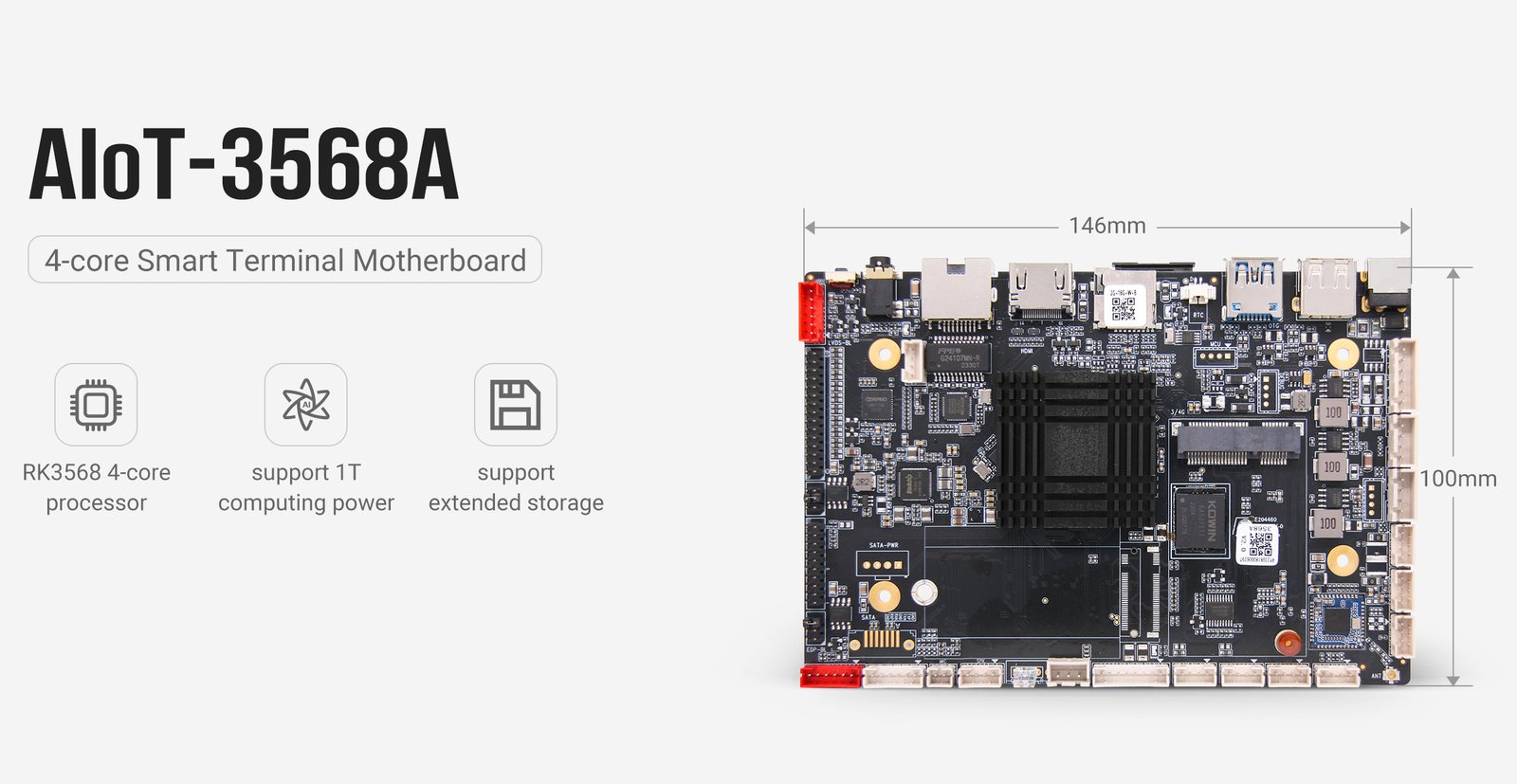

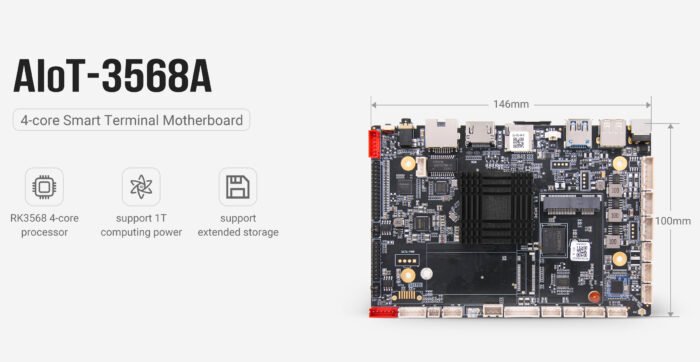

- Dimensions: 146 × 100 mm
- Gold immersion PCB ensures anti-corrosion & stability
- Operational temperature: -10°C to +60°C
- Drop-in compatible for standard device replacement or upgrades

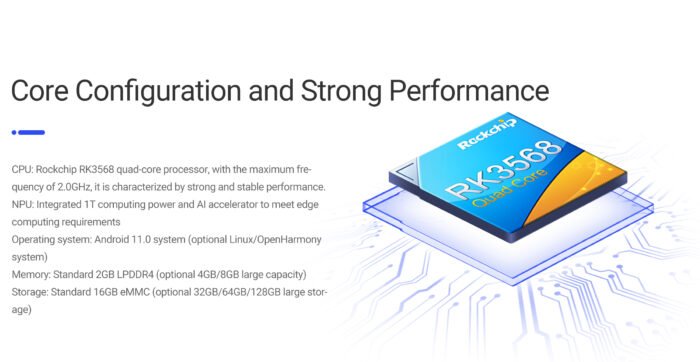

Quad-Core High-Efficiency Processor
- SoC: RK3568 (Cortex-A55 ×4), 64-bit
- Max Frequency: 2.0 GHz
- OS: Android 11.0 (customizable)
Provides strong back-end data processing support for smart terminal operations.
Advanced Multimedia Capabilities
- GPU: Mali-G52
- Decoding: 4K H.264 / H.265 / VP9
- Encoding: 1080p@60fps H.264 / H.265
- ISP: 8MP@30fps image processor
- HDR Engine: Supports fog removal, distortion correction, and noise reduction
- Supports mainstream touchscreens (IR, capacitive, resistive, HID no-debug required)
Built-in Lightweight AI Performance
- NPU: 0.8 TOPS
- Supports frameworks like TensorFlow Lite / Caffe
- Enables lightweight AI applications at the edge such as object recognition, smart interaction, etc.

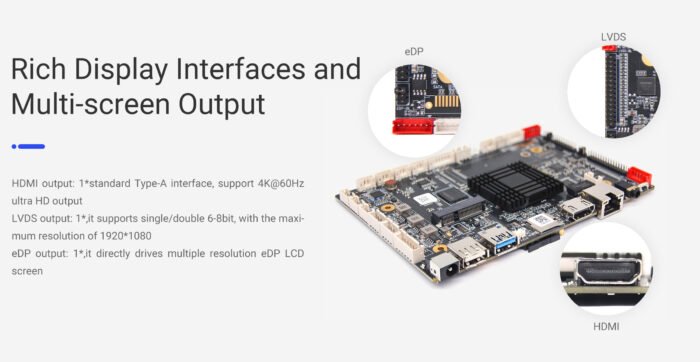

Dual-Screen Output with Multiple Interfaces
- HDMI, LVDS, eDP supported
- Dual-screen with different displays
LVDS: Max 1920×1200
eDP: Max 2560×1600
Ideal for dual-view retail displays or information panels.

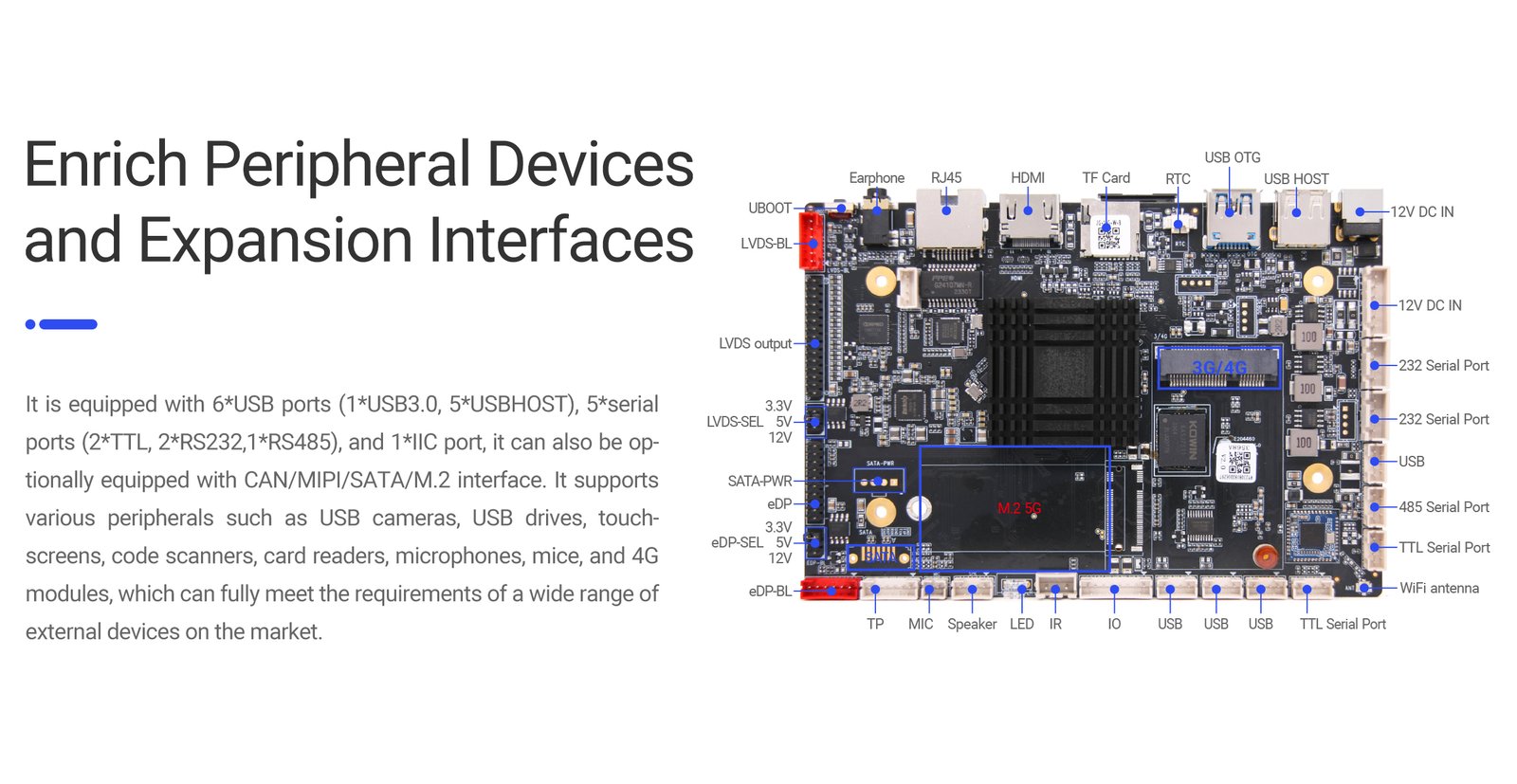

Rich I/O and Expansion Interfaces
- USB: 6 ports (1×USB3.0 + 5×USB2.0)
- Serial: 5 ports (2×TTL, 2×RS232, 1×RS485)
- GPIO / ADC support
Supports a wide variety of peripherals including touchscreens, QR scanners, printers, sensors, etc.
Full Android System Customization
- Customizable Android 11.0
- System API + reference code provided
- Flexible for upper-layer APP or software platform integration

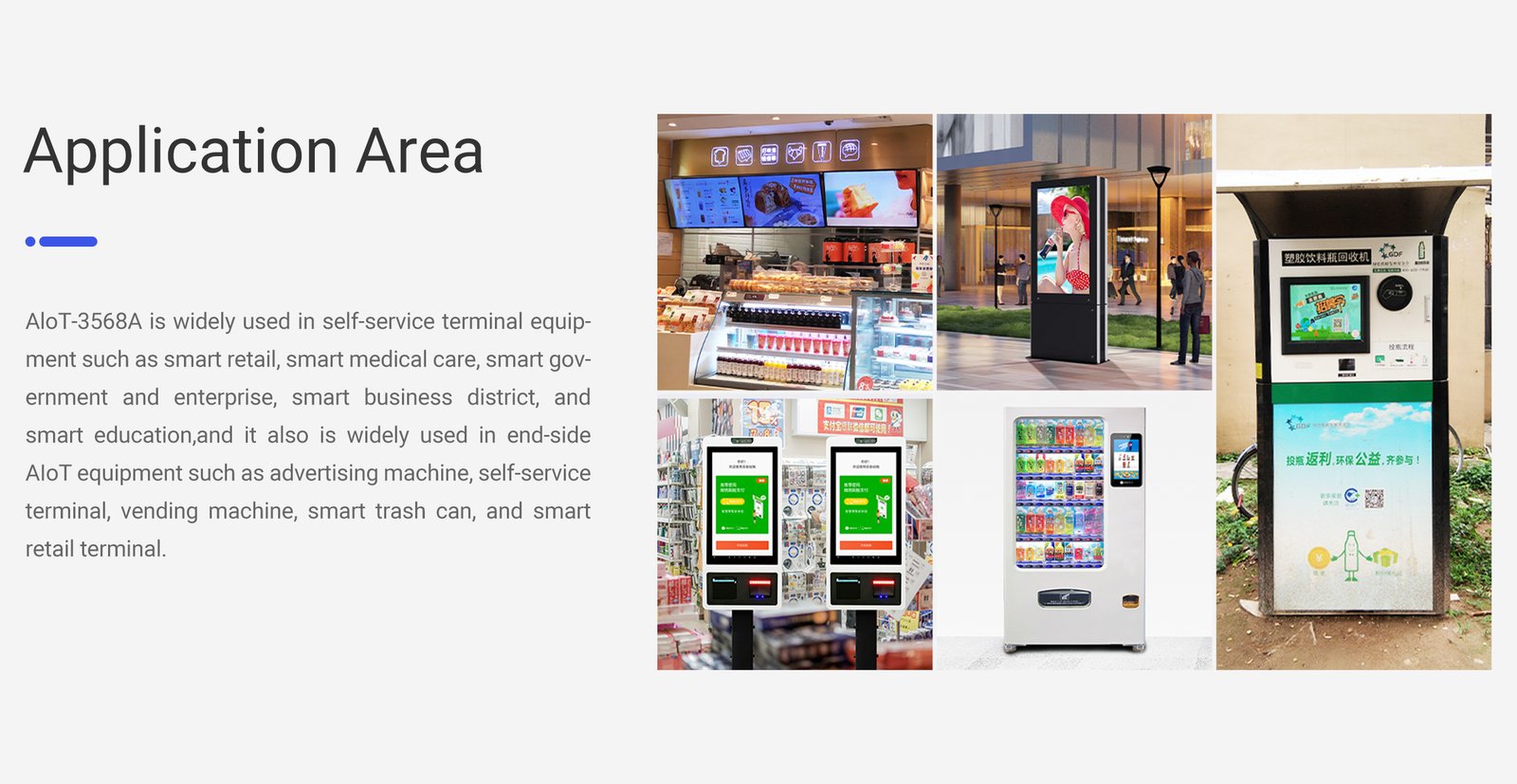

Application Scenarios
AIoT-3568A is widely deployed in:
- Smart Retail Terminals
- Medical Self-Service Kiosks
- Digital Education Platforms
- Enterprise & Government Smart Devices
- Advertising Machines / Vending Machines
- Smart Trash Bins / Environmental IoT
- Self-Payment Terminals
Frequently Asked Questions (FAQ)
Can this motherboard support dual independent displays?
Yes. Via HDMI + LVDS/eDP, supporting up to 2560×1600 resolution.
Is it compatible with Android app development?
Absolutely. It supports Android 11 and comes with system API references for upper-layer application development.
Does it support AI inference?
Yes. The 0.8TOPS NPU supports lightweight AI applications such as image recognition and edge computing tasks.
Is it stable enough for industrial usage?
Yes. The board operates from -10°C to 60°C and supports 24/7 uninterrupted usage.
