AIoT-133SE – HD Advertising Player Motherboard
Discover AIoT-133SE: a high-performance HD advertising player motherboard with Android 10, LVDS/MIPI output, 5 USB ports, and Wi-Fi support. Ideal for digital signage, menu displays, and touch kiosks.
Description

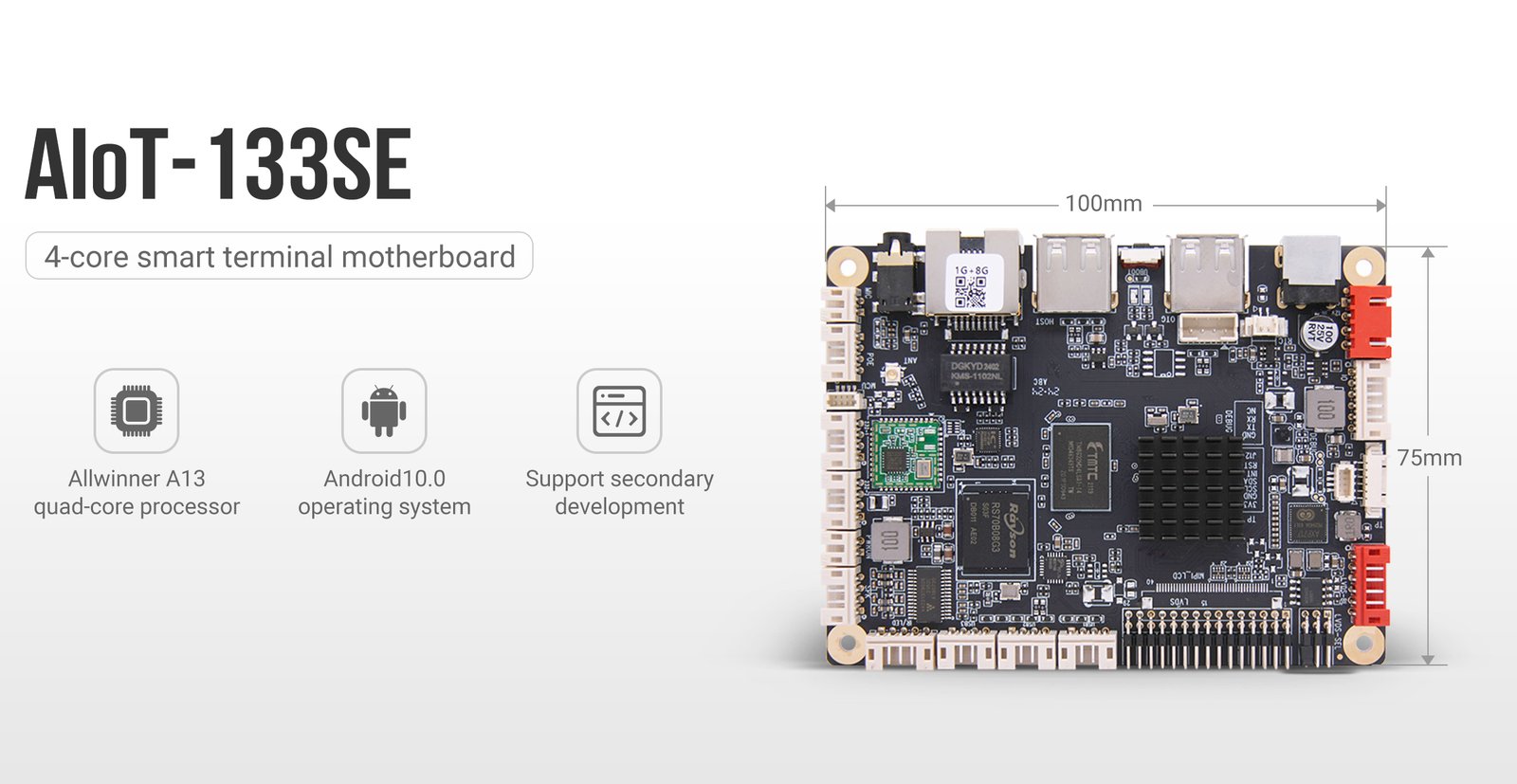

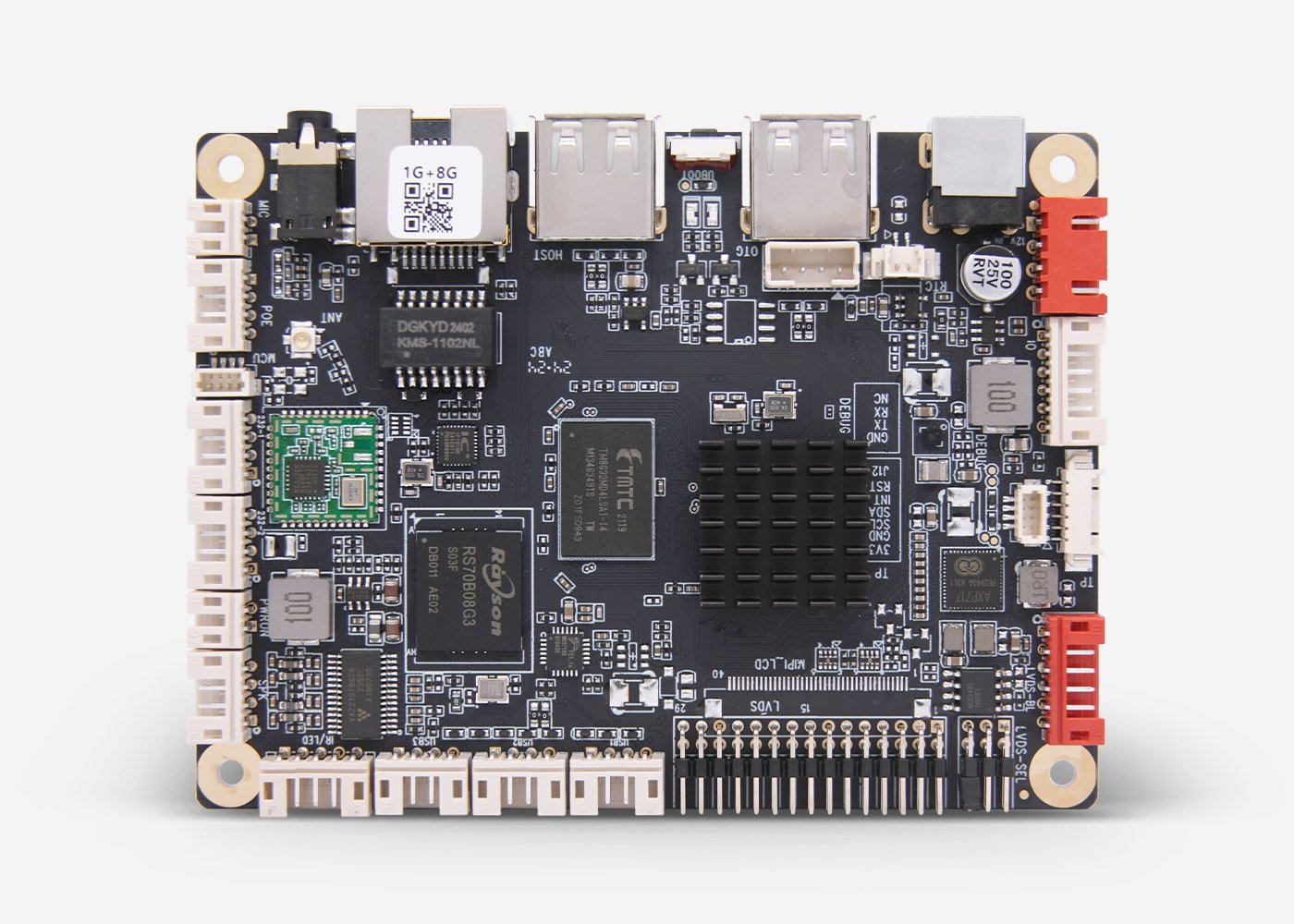

Product Overview
AIoT-133SE is a high-efficiency, cost-effective advertising player motherboard, purpose-built for digital signage, electronic menu boards, and self-service terminals. Featuring the Allwinner A133 quad-core processor, LVDS HD output, and rich I/O interfaces, it delivers seamless multimedia playback, touch interaction, and flexible connectivity in commercial and industrial environments.
Core Highlights
Efficient Quad-Core Processor
- CPU: Allwinner A133 (Cortex-A53 ×4), 64-bit
- Max Frequency: 1.5 GHz
- GPU: IMG PowerVR GE8300
OS: Android 10.0
Provides stable and smooth media playback with low power consumption.
High-Definition Display Output
- LVDS output: Max resolution 1920×1200, supports 50/60Hz LCD displays
- Optional MIPI output: Max resolution 1920×1080
- Ideal for restaurant signage, advertising displays, or visual guidance panels
Multi-Touchscreen Compatibility
- Supports: infrared, optical, capacitive, resistive, and touch film screens
- Plug-and-play with HID driver-free configuration – no debugging required
- Enables seamless user interaction for self-service terminals and touch menus

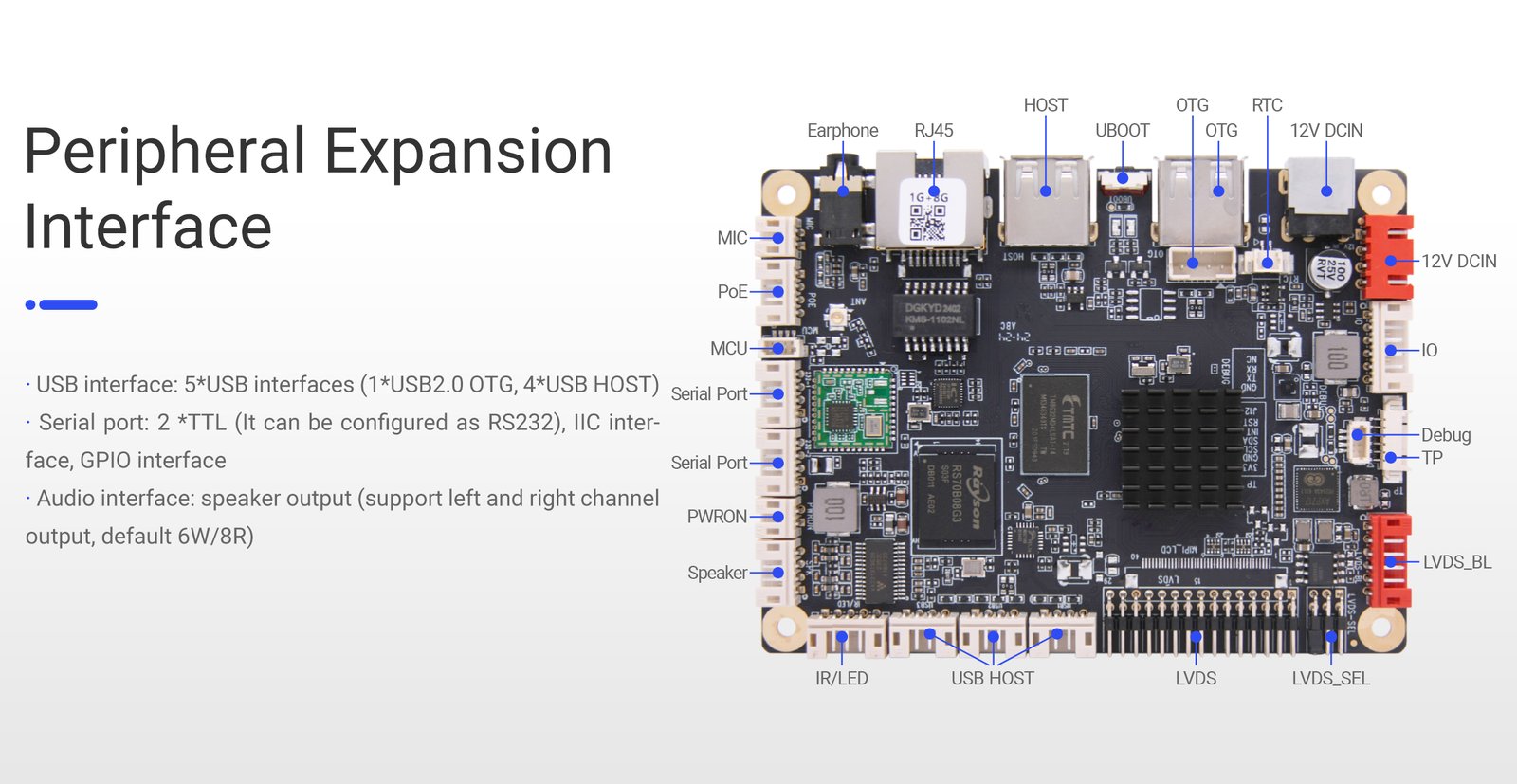

Rich Peripheral Expansion
- USB Ports: 5 total (1×OTG, 4×HOST)
- Serial Ports: 2×TTL (configurable to RS232)
- Interfaces: IIC, GPIO
- Audio: Stereo speaker output (default 6W/8R)
Ready to connect with barcode scanners, cameras, speakers, sensors, and more
Network & Connectivity
- Ethernet: 10/100M adaptive
- Wi-Fi: Built-in Wi-Fi (802.11 b/g/n)
- 4G: Supports external USB 4G module
Offers reliable internet connectivity for cloud updates, media push, and remote management
Customizable Android System
- Android 10.0 as default OS
- Supports deep customization, ideal for smart application development
- Provides API & reference codes to accelerate time-to-market for client applications

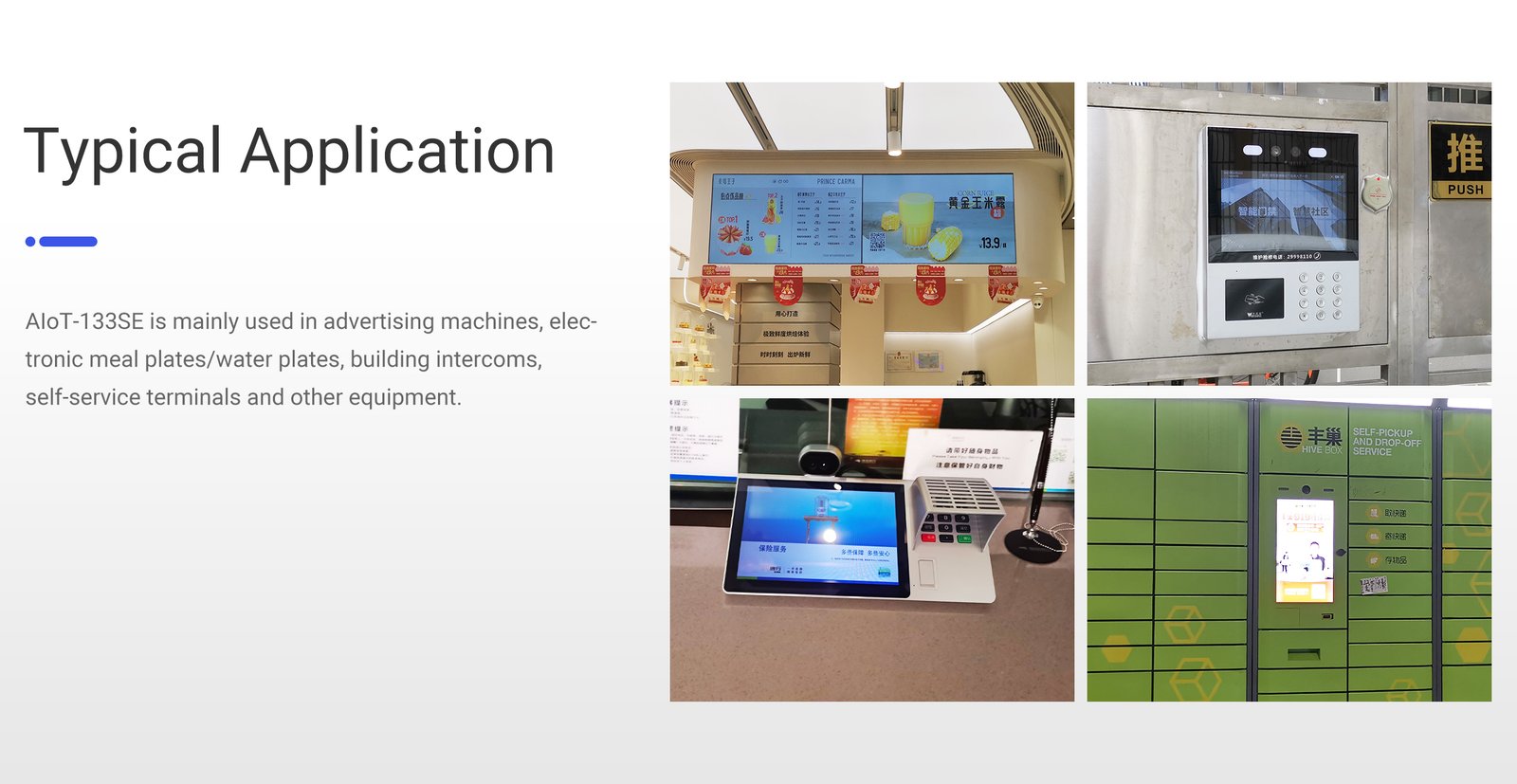

Application Scenarios
AIoT-133SE is widely applied in:
- Digital advertising machines
- Electronic meal plates / water plates
- Building intercom screens
- Self-service kiosks
- Menu display boards
- Access control display terminals
Frequently Asked Questions (FAQ)
What is the default OS and can I change it?
Android 10.0 is default. System customization is supported with API and SDK access.
Does it support Wi-Fi and Ethernet simultaneously?
Yes. It has both 10/100M Ethernet and built-in Wi-Fi module.
Can this board be used with touchscreens?
Yes. It supports most mainstream touch technologies with HID support.
Is the board suitable for commercial-grade advertising?
Absolutely. It supports HD video output, stable playback, and long-term operation.
Reviews (0)
Related products
Discover AIoT-3568CR: a compact, Android-based dual-display cash register motherboard with 1TOPS NPU, POE support, printer integration, and rich I/O. Perfect for smart POS terminals.
Explore the AIoT-3568HV: a quad-core smart terminal motherboard with 4K dual-display output, 1TOPS NPU, HDMI IN, and multiple I/O interfaces. Ideal for commercial large-screen AIoT applications.
Explore AIoT-3568SC: a compact RK3568-based motherboard with dual-screen support, 1TOPS NPU, and Android customization. Ideal for smart vending machines, food terminals, and edge AI kiosks.
<strong>Discover AIoT-3568X, a quad-core AI access motherboard with 1TOPS NPU, 4K display, rich I/O, camera & QR support. Ideal for smart terminals and access control.</strong>
Explore the AIoT-3588A motherboard with RK3588 processor, 6TOPS NPU, 8K display, 32GB+512GB storage, multi-screen output & rich I/O. Ideal for smart terminals & automation.
DS-352B is a compact 1080P digital signage motherboard with integrated design, quad-core CPU, HDMI-IN, LVDS output, optional TV module, and Android 9 support for smart displays.

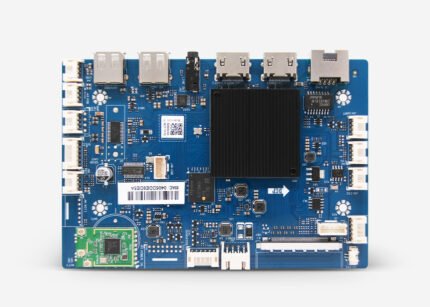

Discover the DS-963A Android signage motherboard with quad-core CPU, 4K V-by-One output, dual HDMI-IN, rich interfaces, and WiFi connectivity for commercial digital displays.
