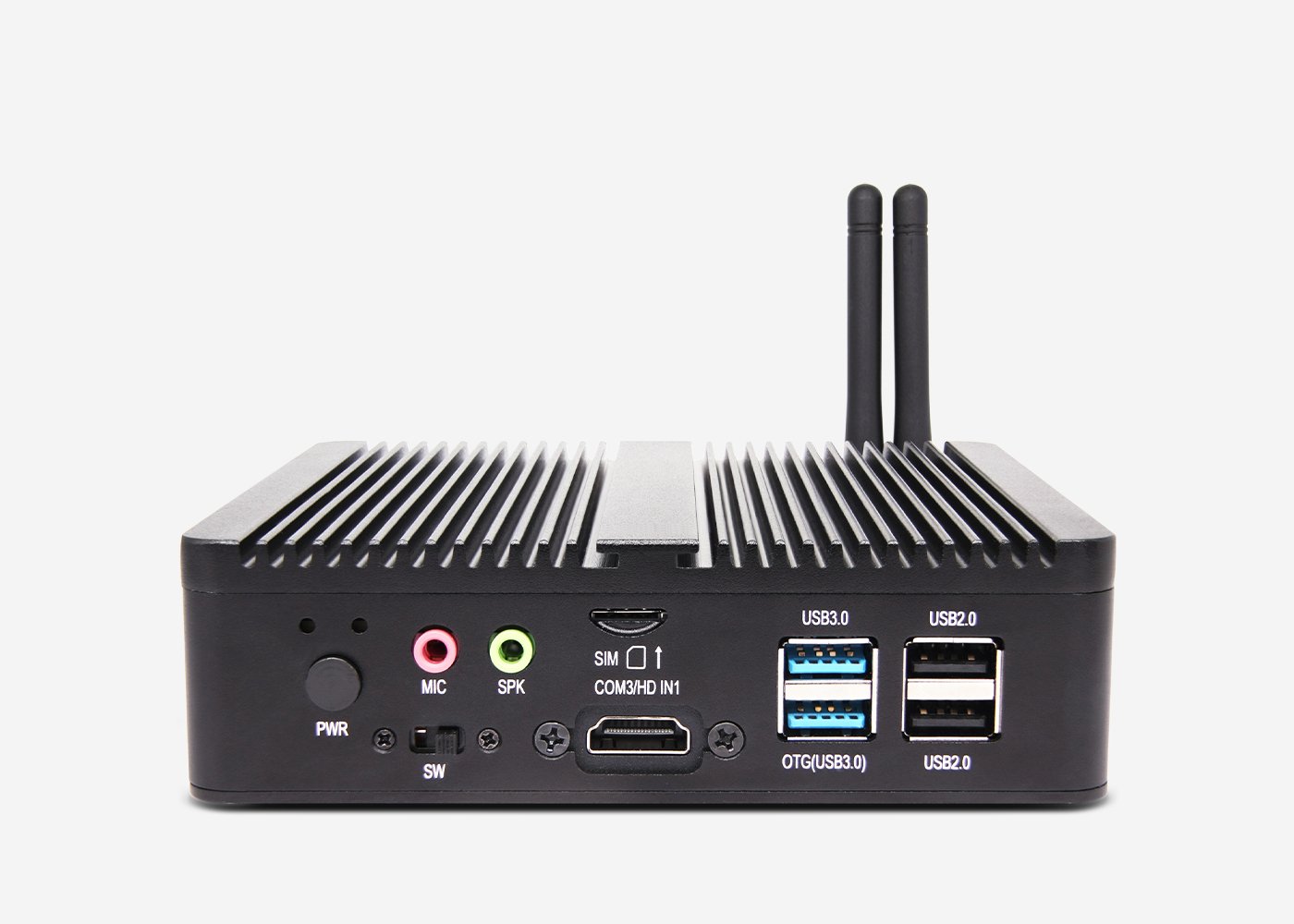

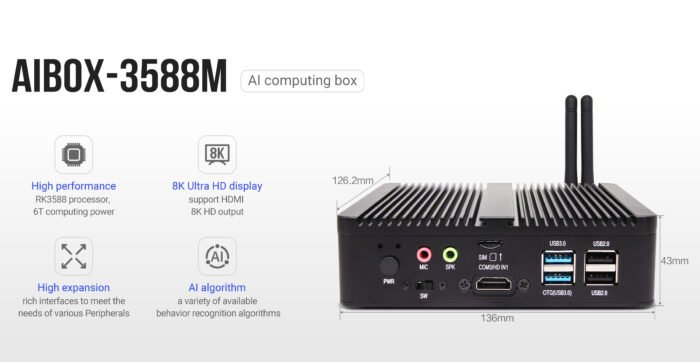

AIBOX-3588M – 8-Core AI Computing Box

High-Performance 8-Core AI Processor

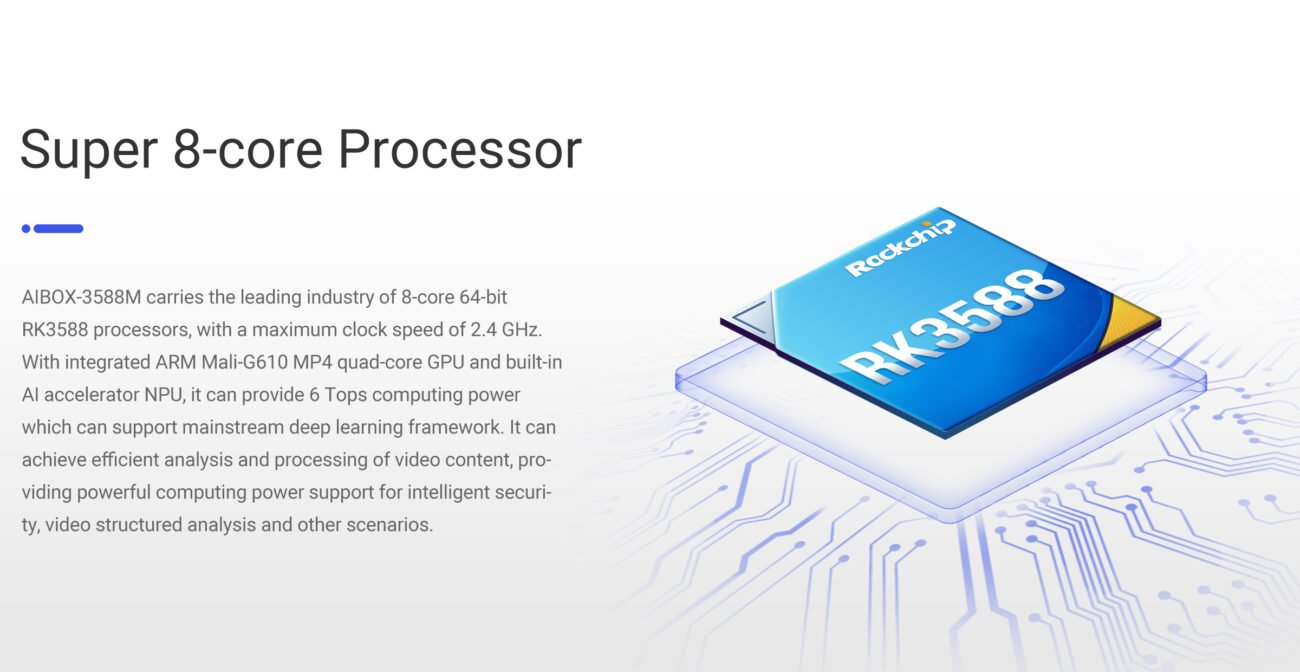

At its core, the AIBOX-3588M features the industry-leading RK3588 64-bit 8-core processor, combining:

• 4× Cortex-A76 + 4× Cortex-A55 cores
• Up to 2.4GHz clock speed
• ARM Mali-G610 MP4 GPU
• Built-in 6TOPS NPU for AI acceleration

Supports mainstream deep learning frameworks, enabling fast video analysis, AI model inference, and edge computing in real time.

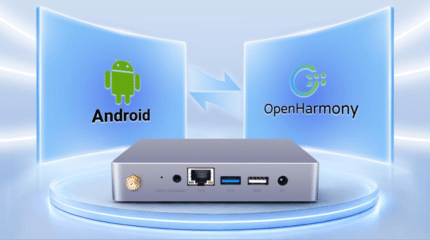

Multi-System Compatibility

Default OS: Android 12.0
Optional: Linux, Kylin, OpenHarmony, Union OS

This flexibility ensures:

• Strong data security & localization support
• Broad ecosystem compatibility
• User-friendly customization for various industries

Ideal for enterprises needing domestic operating system support or multi-platform development.

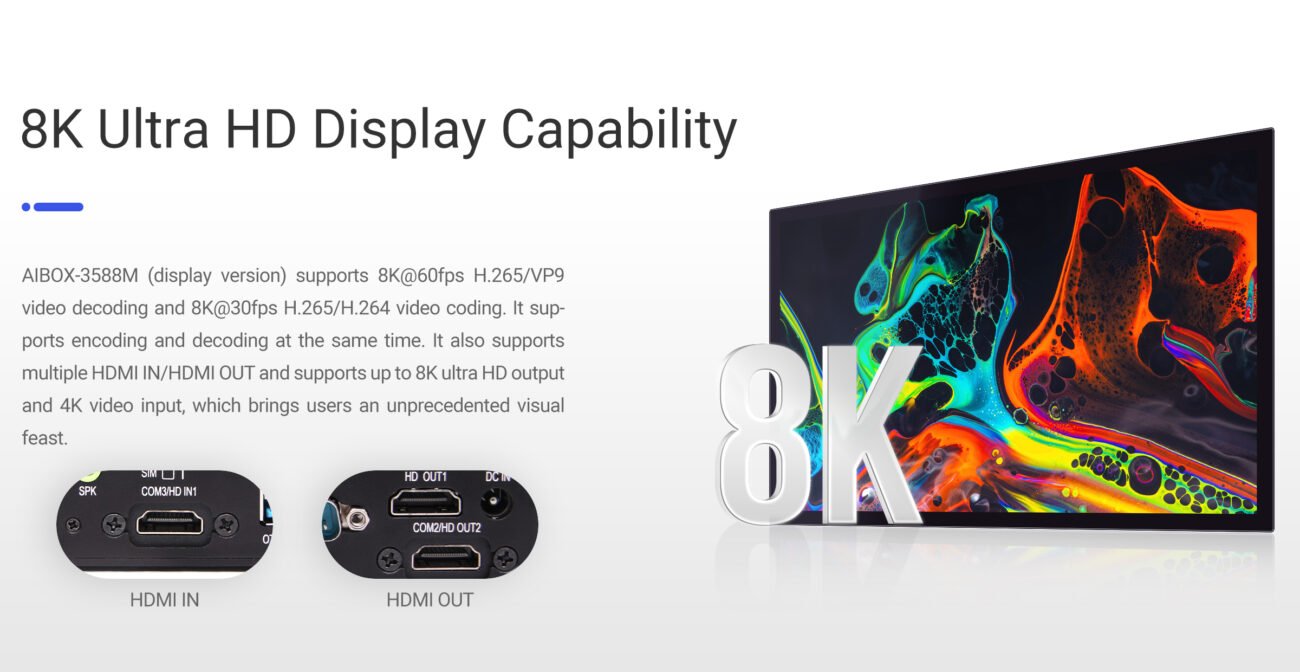

8K Ultra HD Multimedia Performance

The Display Version supports:

• 8K@60fps decoding (H.265 / VP9)
• 8K@30fps encoding (H.265 / H.264)
• Simultaneous encode + decode
• Multiple HDMI IN & OUT ports
• Up to 8K output & 4K input

Delivers an immersive visual experience for smart displays, surveillance walls, and AI-powered visualization terminals.

Rich Industrial-Grade Interfaces

AIBOX-3588M is built for expansion:

• USB 3.0 / USB 2.0 ports
• Serial: RS232 / RS485 / CAN
• Storage: M.2 SSD, SATA
• Plug-and-play for mainstream peripherals

Supports use cases from video surveillance to data capture, edge AI deployment, and more.

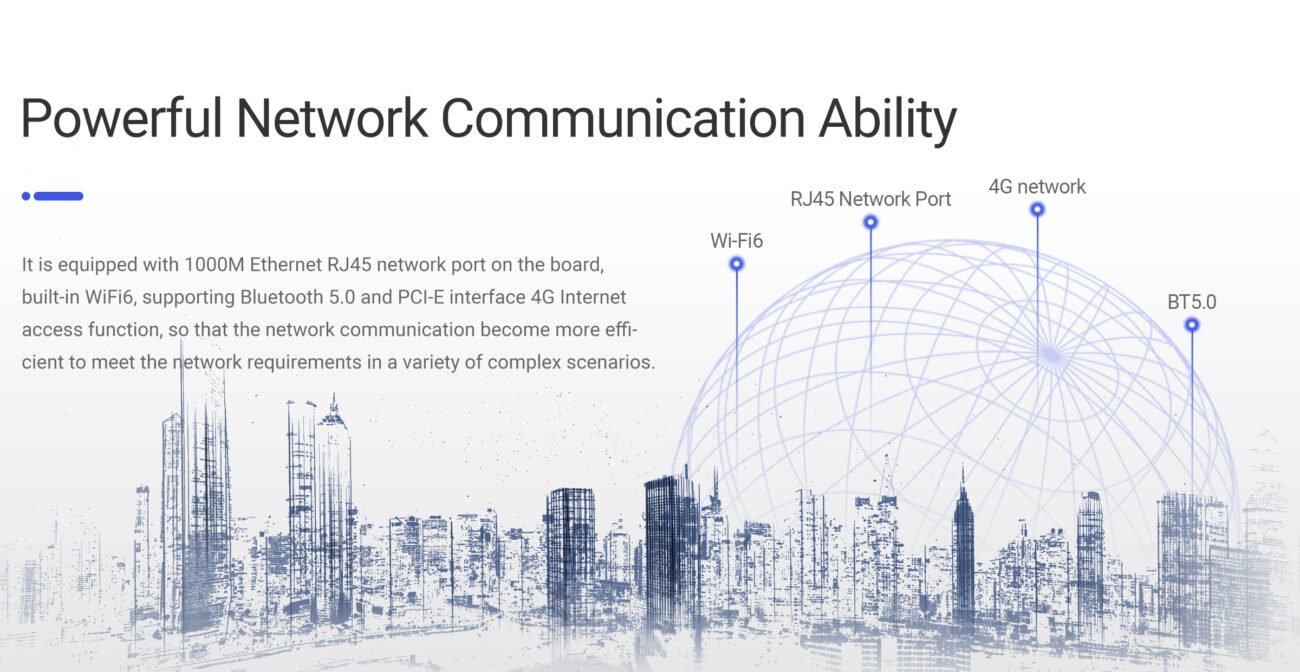

Reliable and High-Speed Networking

Equipped with:

• Gigabit Ethernet (RJ45)
• WiFi 6 for ultra-fast wireless data transfer
• Bluetooth 5.0
• PCI-E slot for 4G module access

Ensures stable and efficient network communication across varied operational environments.

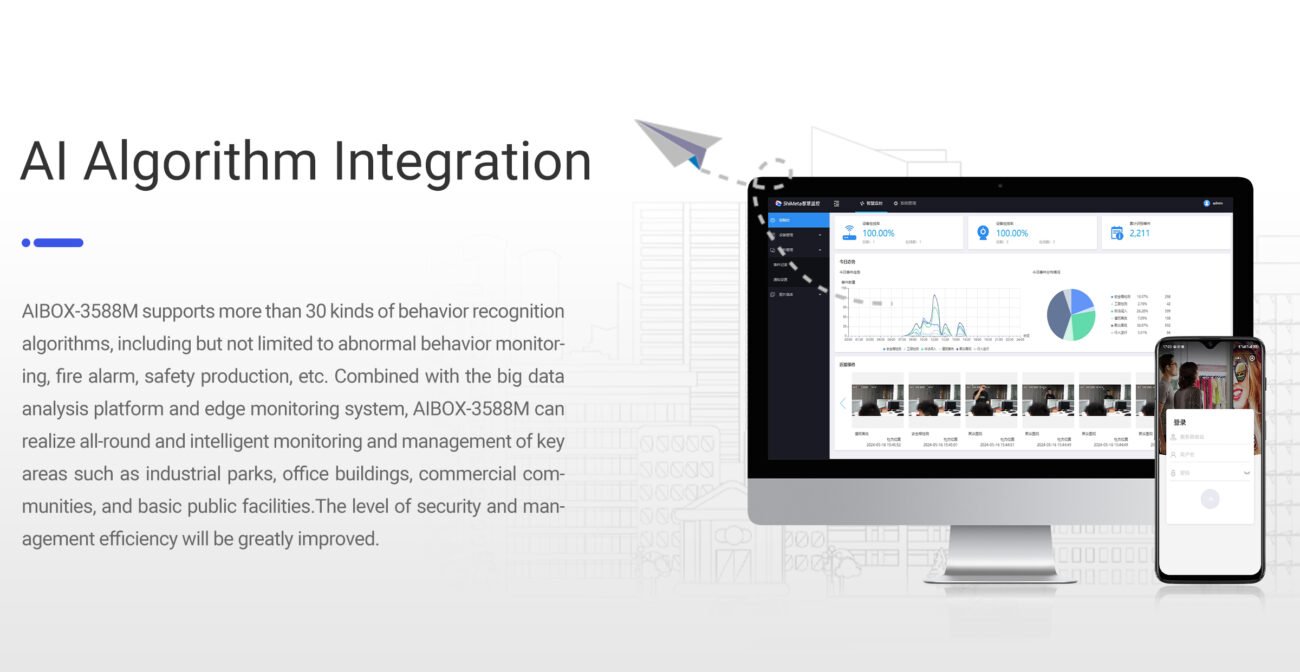

Built-in AI Behavior Recognition

Supports over 30+ behavior detection algorithms, including:

• Abnormal movement detection
• Fire and smoke alarms
• Safety compliance monitoring
• Edge-assisted big data analytics

Paired with edge monitoring systems and cloud-based dashboards, it empowers:

• Real-time alerts
• Predictive maintenance
• Full-site situational awareness

Applicable to:

• Industrial parks
• Office buildings
• Commercial complexes
• Infrastructure monitoring

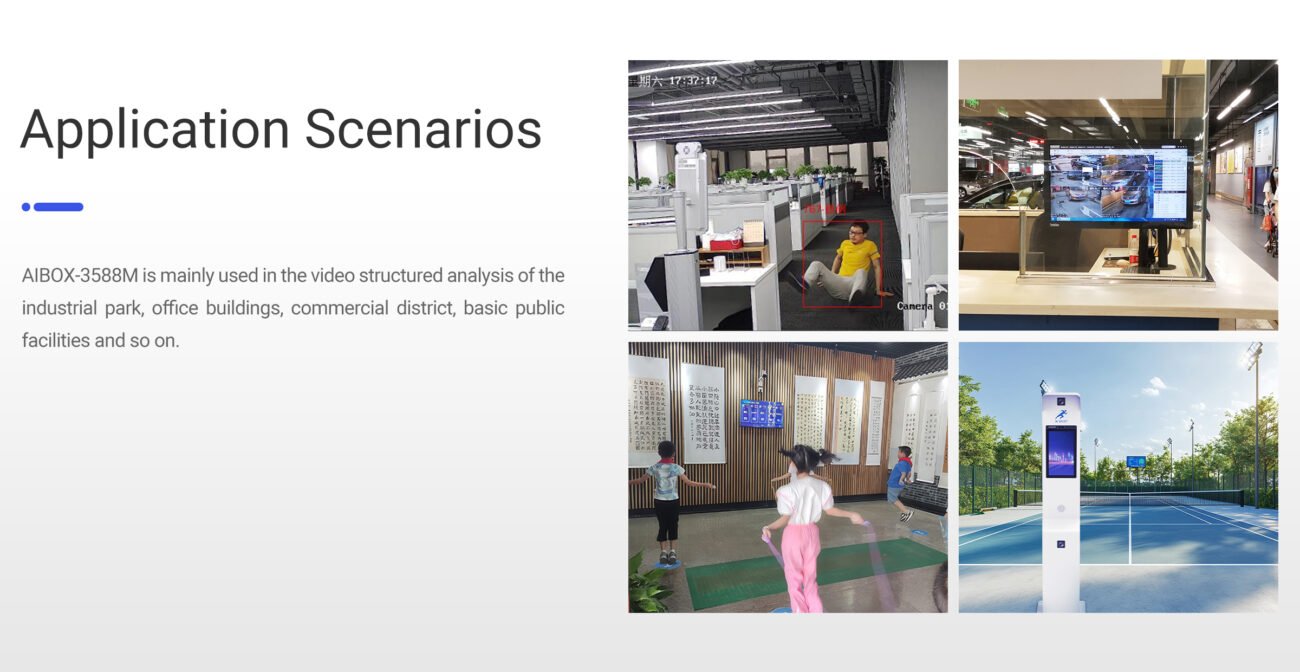

Application Scenarios

AIBOX-3588M is ideal for:

• Video-structured analysis in surveillance systems
• AI behavior recognition in security facilities
• High-resolution display control for control rooms
• Edge AI processing in smart infrastructure

Frequently Asked Questions (FAQ)

Q1: What OS options are supported?
A: Android 12.0 by default; Linux, HarmonyOS, Union, and Kylin are also available.

Q2: Does the system support AI inference out-of-the-box?
A: Yes. The built-in 6TOPS NPU supports major deep learning frameworks for real-time AI inference.

Q3: How many displays can it connect to?
A: Multiple HDMI IN/OUT ports are supported, including 8K@60fps output and 4K input.

Q4: Can I use it with existing surveillance or sensor systems?
A: Yes. It supports RS232, RS485, CAN, USB, and network protocols for full peripheral compatibility.
